Front-Engine Lawn Tractor

Model # 50225800 Official Craftsman front-engine lawn tractor

Here are the diagrams and repair parts for Official Craftsman 50225800 front-engine lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

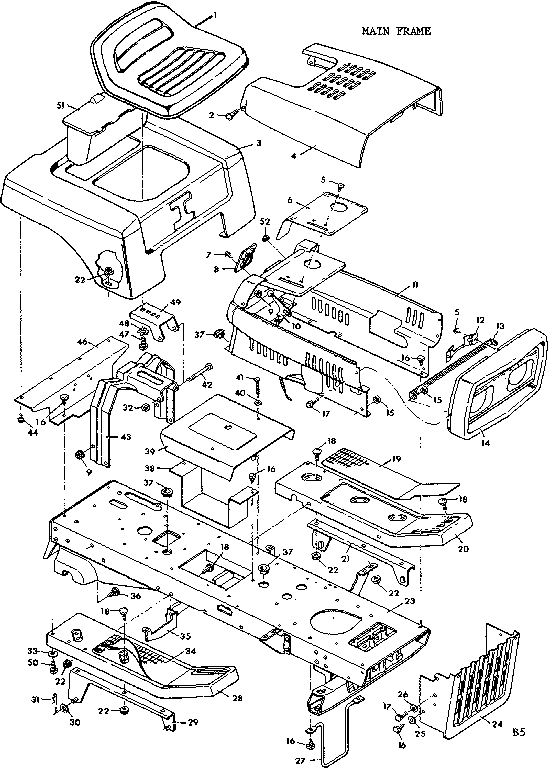

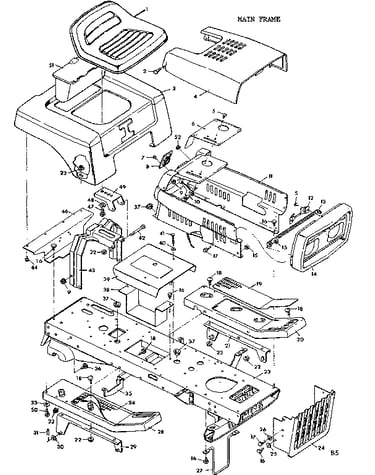

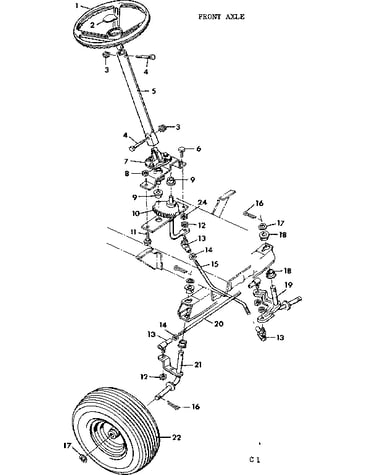

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 286 parts  |
Solenoid 21261
#12

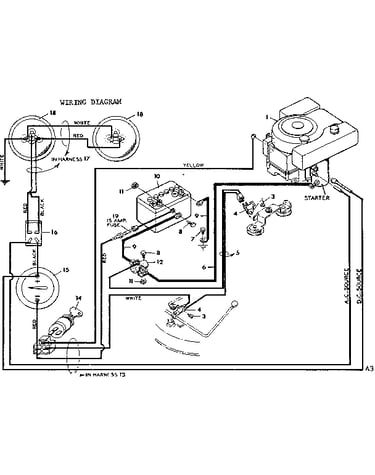

10 lawn tractor/wiring diagram diagram

Solenoid

Part #21261

Replaced by #532146154

?
Manufacturer substitution
This part replaces 21261. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Valve Cap 400162
Valve cap

Part #400162

Replaced by #65139

?
Manufacturer substitution
This part replaces 400162. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
E-ring 21432
#39

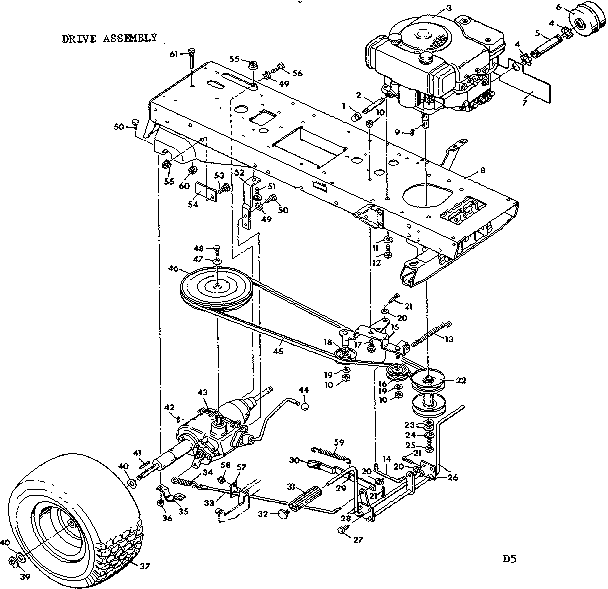

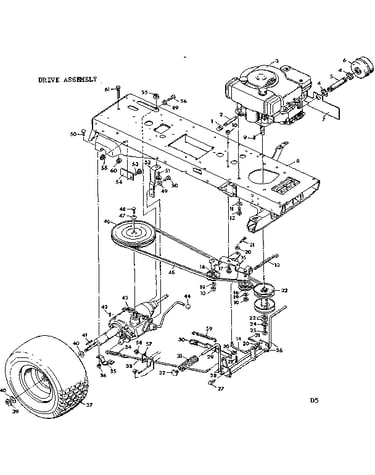

10 lawn tractor/drive assembly diagram

E-ring

Part #21432

Replaced by #812000029

?
Manufacturer substitution
This part replaces 21432. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Switch Key 21571
#14

10 lawn tractor/wiring diagram diagram

Switch key

Part #21571

Replaced by #532365402

?
Manufacturer substitution
This part replaces 21571. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Plate 790007
#80

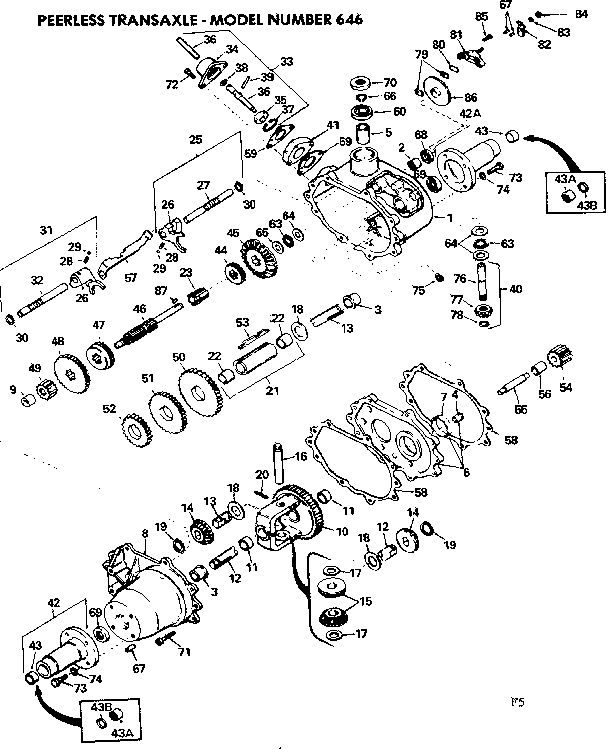

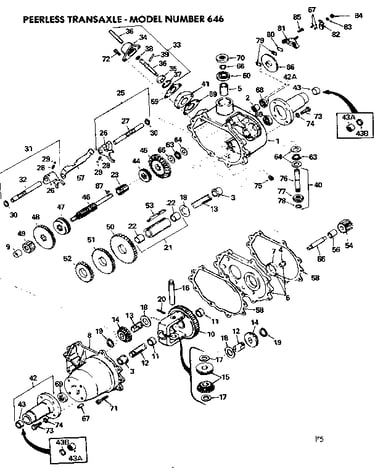

10 lawn tractor/peerless transaxle diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Holder 790005
#81

10 lawn tractor/peerless transaxle diagram

Holder

Part #790005

Replaced by #790025

?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
Pin 786026
#67

10 lawn tractor/peerless transaxle diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Hex Nut 15X67
#31

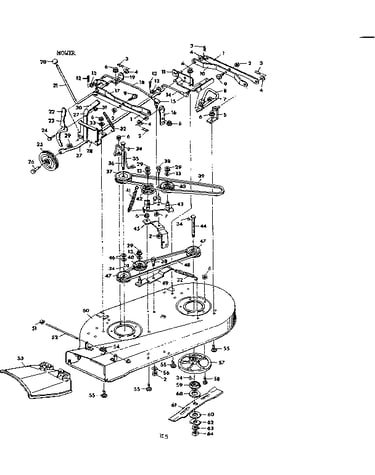

10 lawn tractor/mower diagram

Hex nut

Part #15X67

Replaced by #703251

?
Manufacturer substitution
This part replaces 15X67. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Washer 780001
#18

10 lawn tractor/peerless transaxle diagram

Washer

Part #780001

Replaced by #780001

?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
Washer 17X53
#13

10 lawn tractor/mower diagram

Washer

Part #17X53

Replaced by #703590

?
Manufacturer substitution
This part replaces 17X53. Substitute parts can look different from the original.
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
