Model # T4H736GKA100 Official ICP heat pump
Here are the diagrams and repair parts for Official ICP T4H736GKA100 heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
T4H736GKA100 Heat Pump
#21

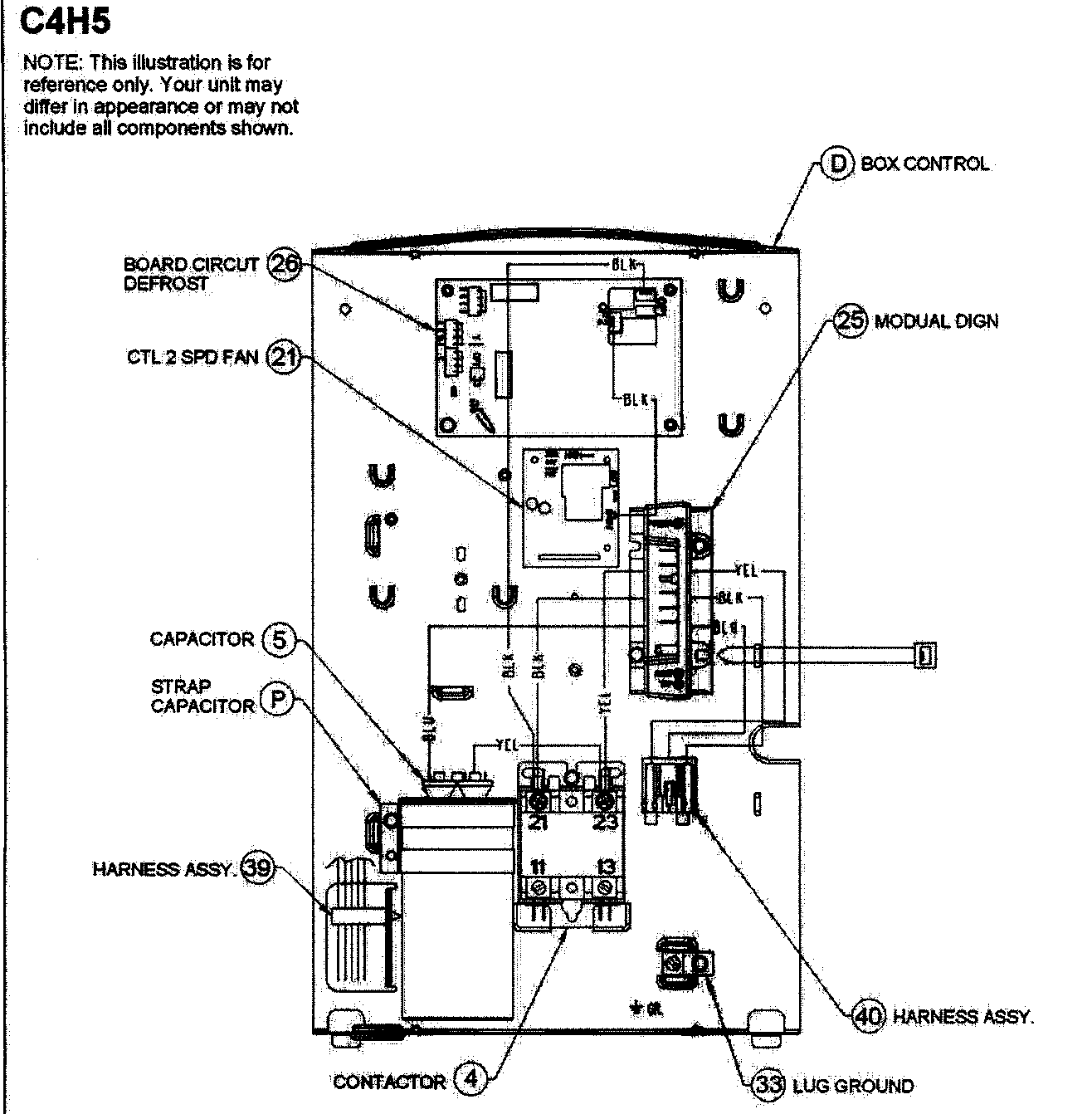

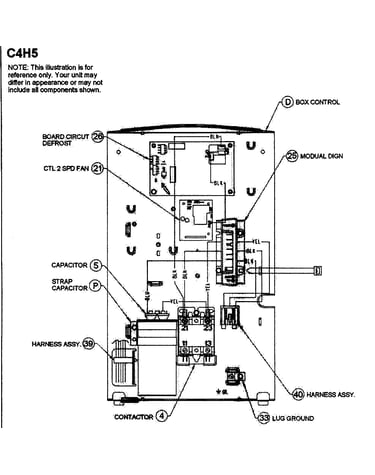

Cabinet parts 2 diagram
Central air conditioner condenser electronic control board (replaces 1086071)
Part #1088977
$85.61 |
7% OFF Phone Price : $91.61
In Stock
#26
Cabinet parts 2 diagram
Condensing unit defrost control board
Part #1173636
$174.11 |
6% OFF Phone Price : $186.11
Back Order
#5
Cabinet parts 2 diagram
Capacitor
Part #1172147
Replaced by #1172148
?
Manufacturer substitution
This part replaces 1172147. Substitute parts can look different from the original.
$25.33 |
19% OFF Phone Price : $31.33
In Stock
#2

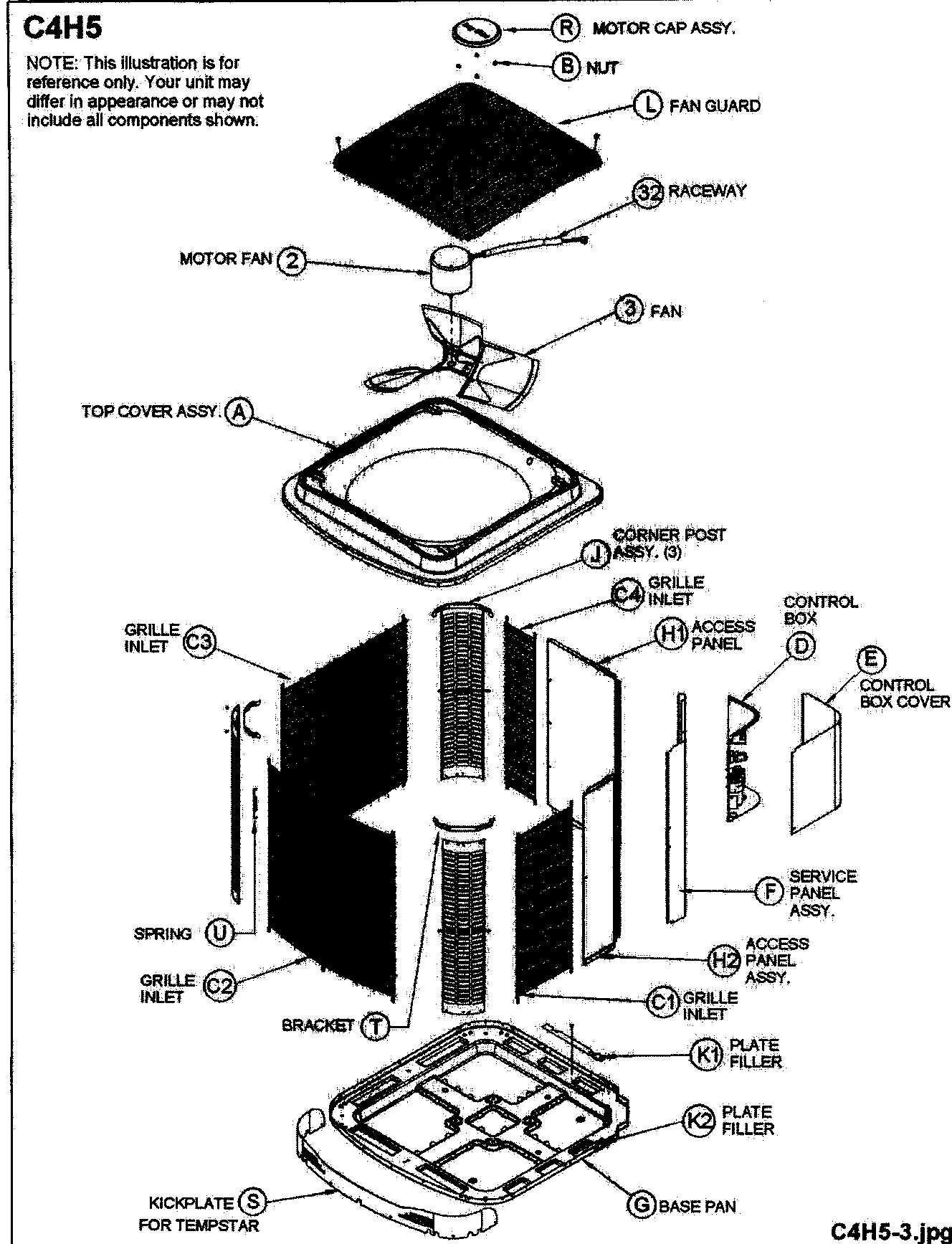

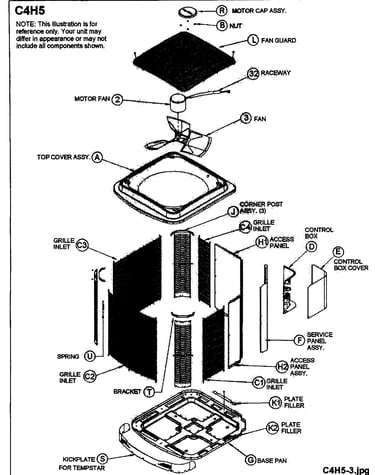

Cabinet parts 3 diagram
Central air conditioner condenser fan motor
Part #1173774
$395.30
In Stock
#R
Cabinet parts 3 diagram
Motor cap
Part #1175158
$27.29
In Stock
#10

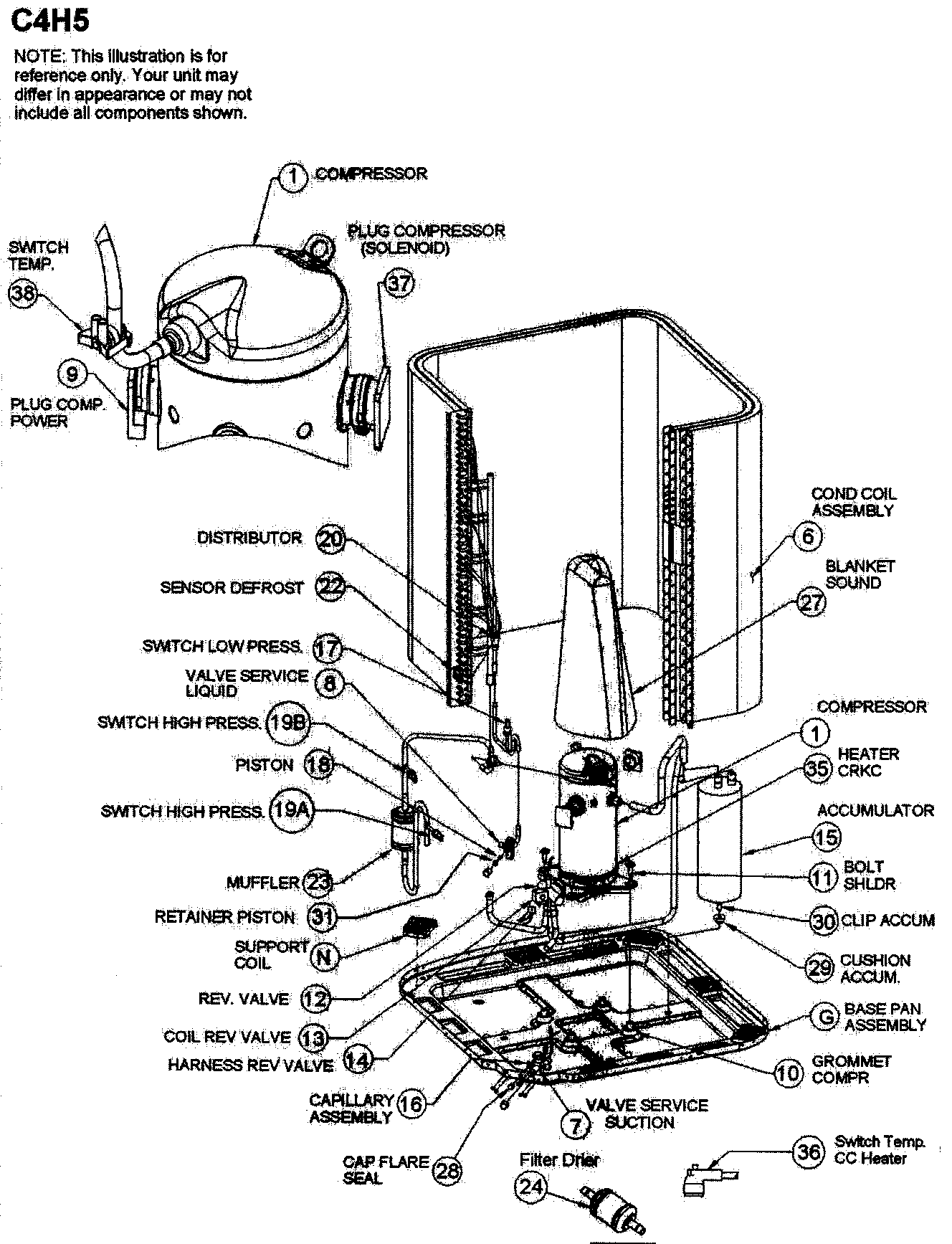

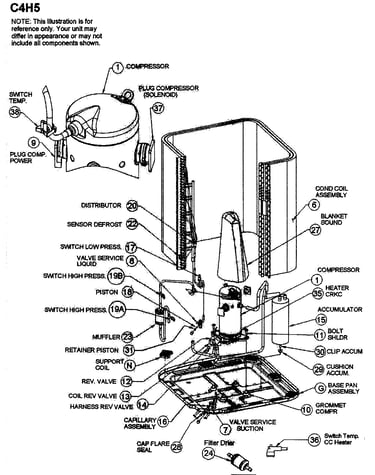

Cabinet parts 1 diagram
Carrier grommet
Part #1171270
This item is not returnable
$4.00
In Stock
#3
Cabinet parts 3 diagram
Fan
Part #1173790
$149.65 |
7% OFF Phone Price : $161.65
In Stock
#19A
Cabinet parts 1 diagram
Switch
Part #1174695
$52.53 |
10% OFF Phone Price : $58.53
In Stock
#U
Cabinet parts 3 diagram
Spring
Part #1174673
This item is not returnable
$5.26
In Stock
#6
Cabinet parts 1 diagram
Condenser coil
Part #1174006
$3307.23
In Stock
