Power Sander

Model # 315115032 Official Craftsman sander/polisher

Here are the diagrams and repair parts for Official Craftsman 315115032 sander/polisher, as well as links to manuals and error code tables, if available.

By Schematic

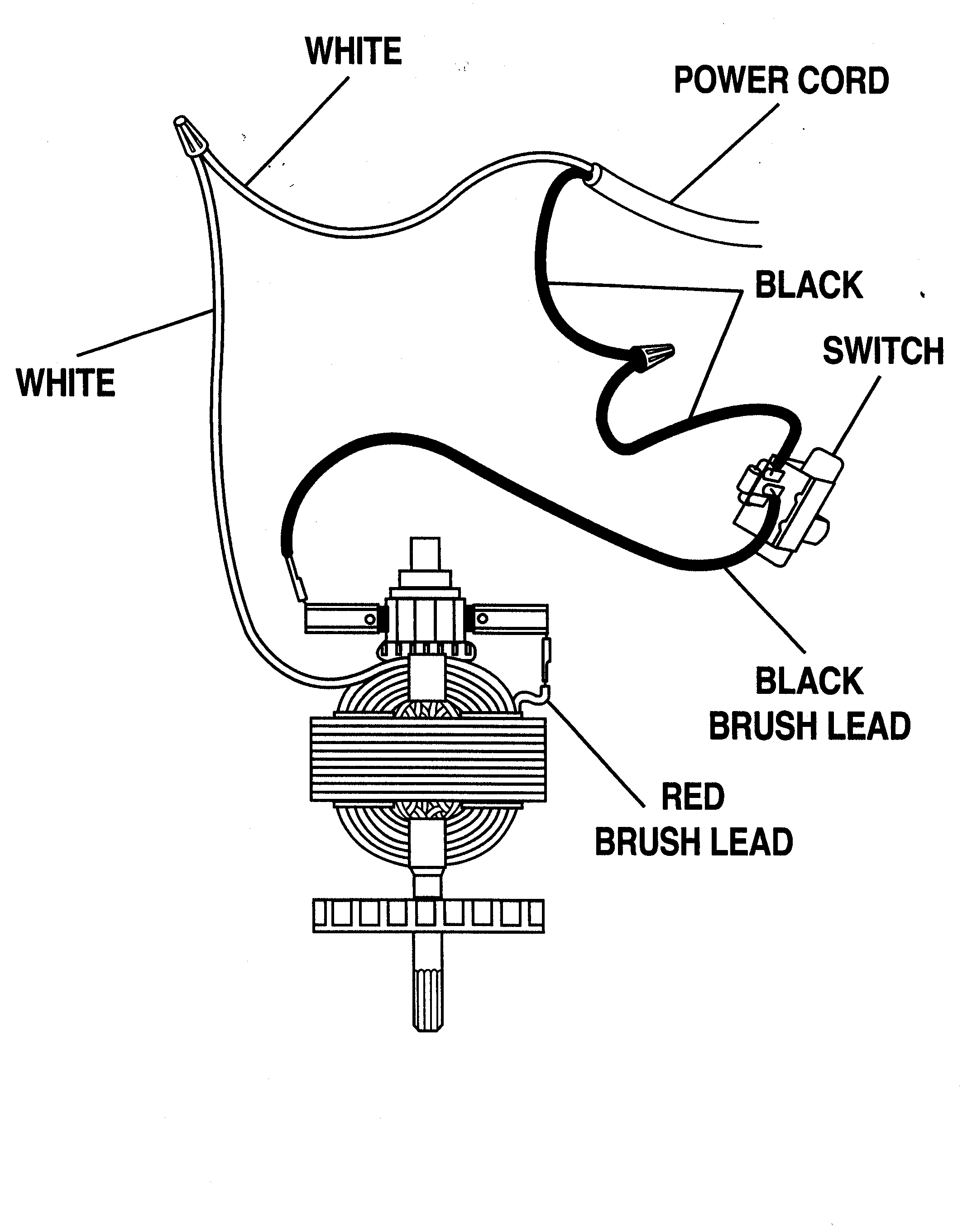

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315115032 Power Tools
Gear 610246-001
#3

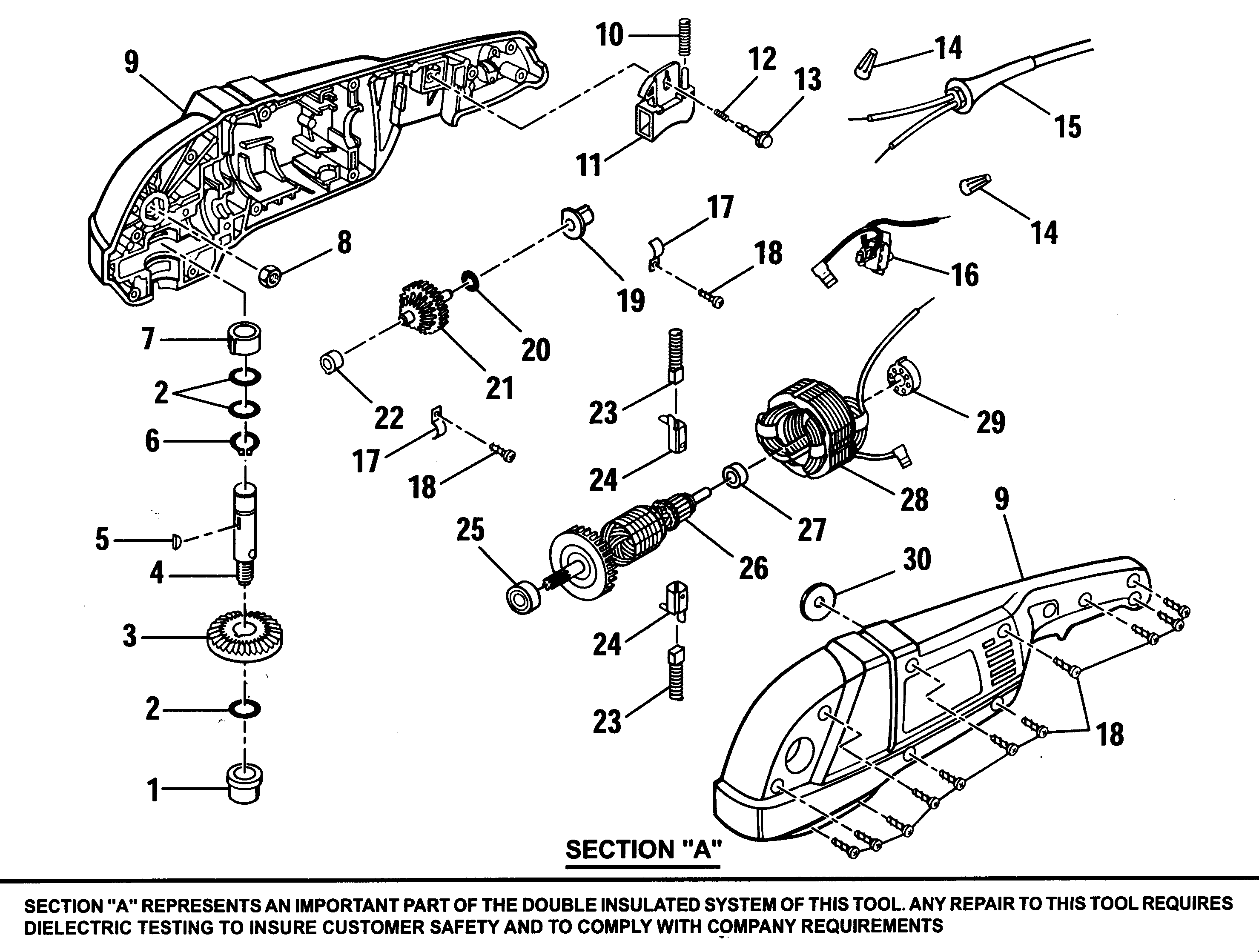

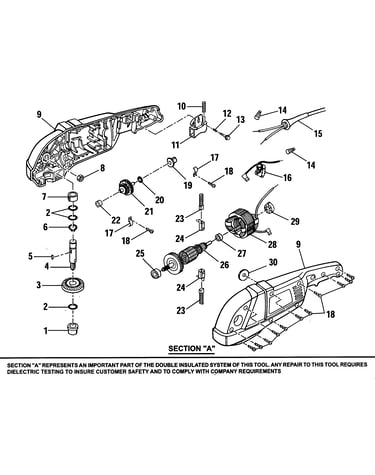

Motor assy diagram

Gear

Part #610246-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 612750-002
#7

Motor assy diagram

Bearing

Part #612750-002

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 983001-001
#5

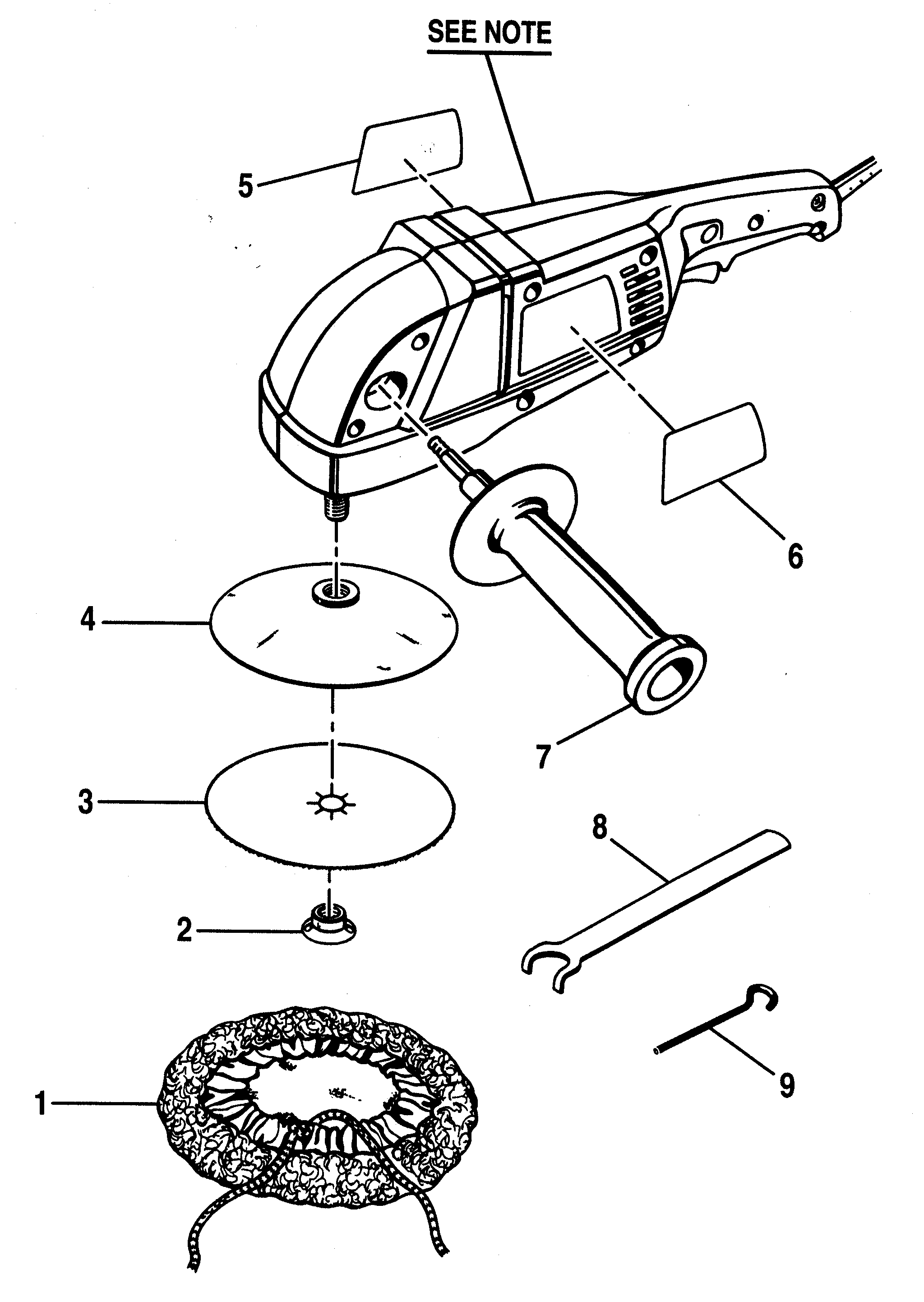

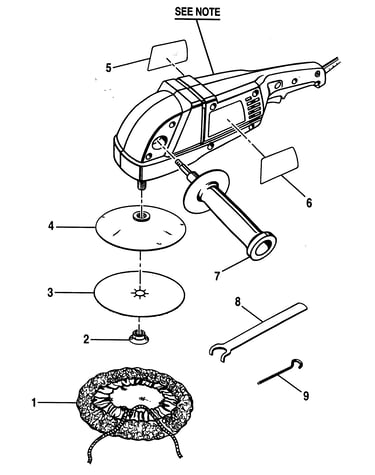

Sander/polisher diagram

Data plate

Part #983001-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 7426601
#26

Motor assy diagram

Armature

Part #7426601

The manufacturer no longer makes this part, and there's no substitute part

Washer 5911601
#27

Motor assy diagram

Washer

Part #5911601

The manufacturer no longer makes this part, and there's no substitute part

Handle 972895-005
#7

Sander/polisher diagram

Handle

Part #972895-005

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 990494-016
#15

Motor assy diagram

Ac cord

Part #990494-016

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 621230-000
#9

Sander/polisher diagram

Lock pin

Part #621230-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 680954-001
#12

Motor assy diagram

Spring

Part #680954-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706239-841
#2

Motor assy diagram

Washer

Part #706239-841

The manufacturer no longer makes this part, and there's no substitute part
