Room Air Conditioner

Model # 25374131403 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25374131403 air conditioner, as well as links to manuals and error code tables, if available.

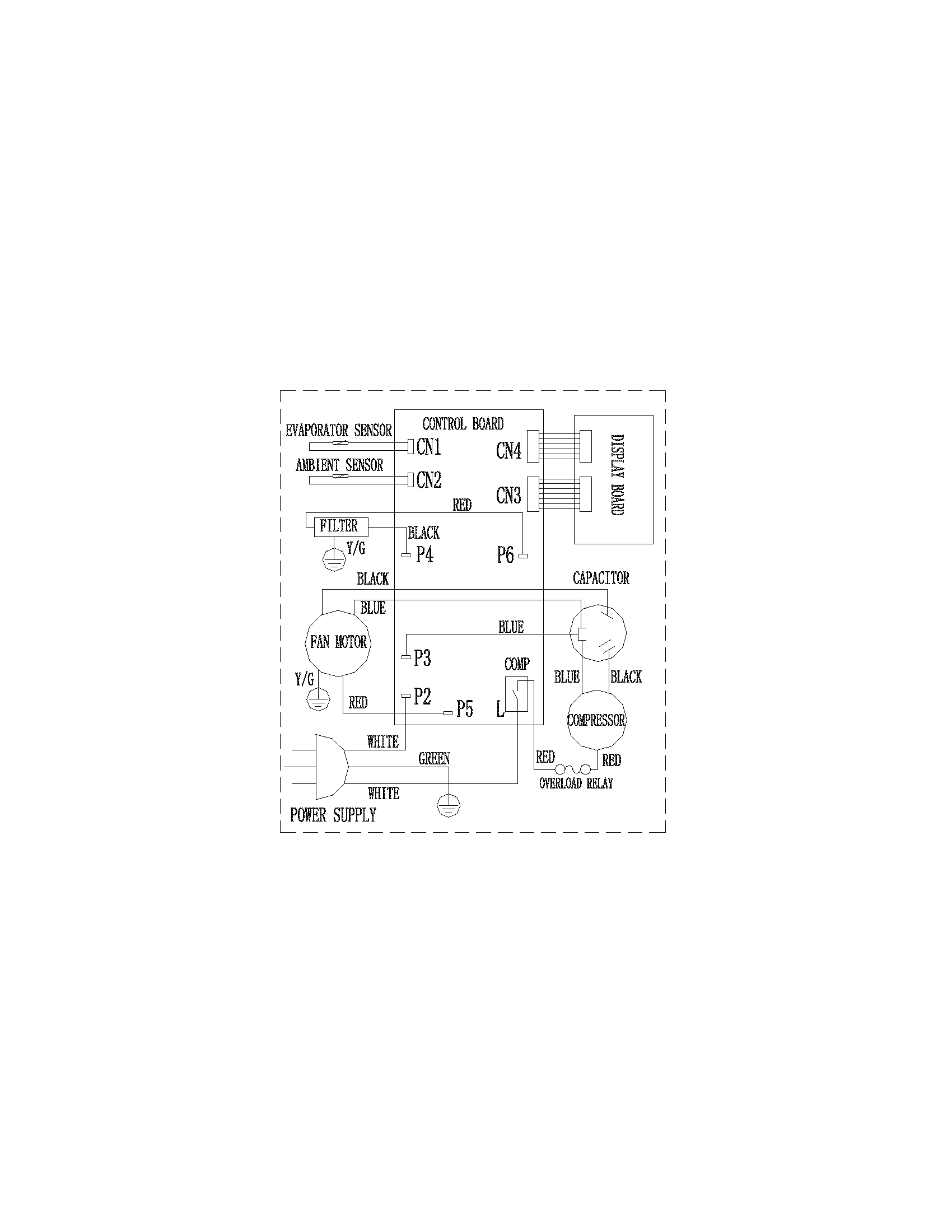

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
25374131403 Air Conditioner
Fan 5304436565
#6

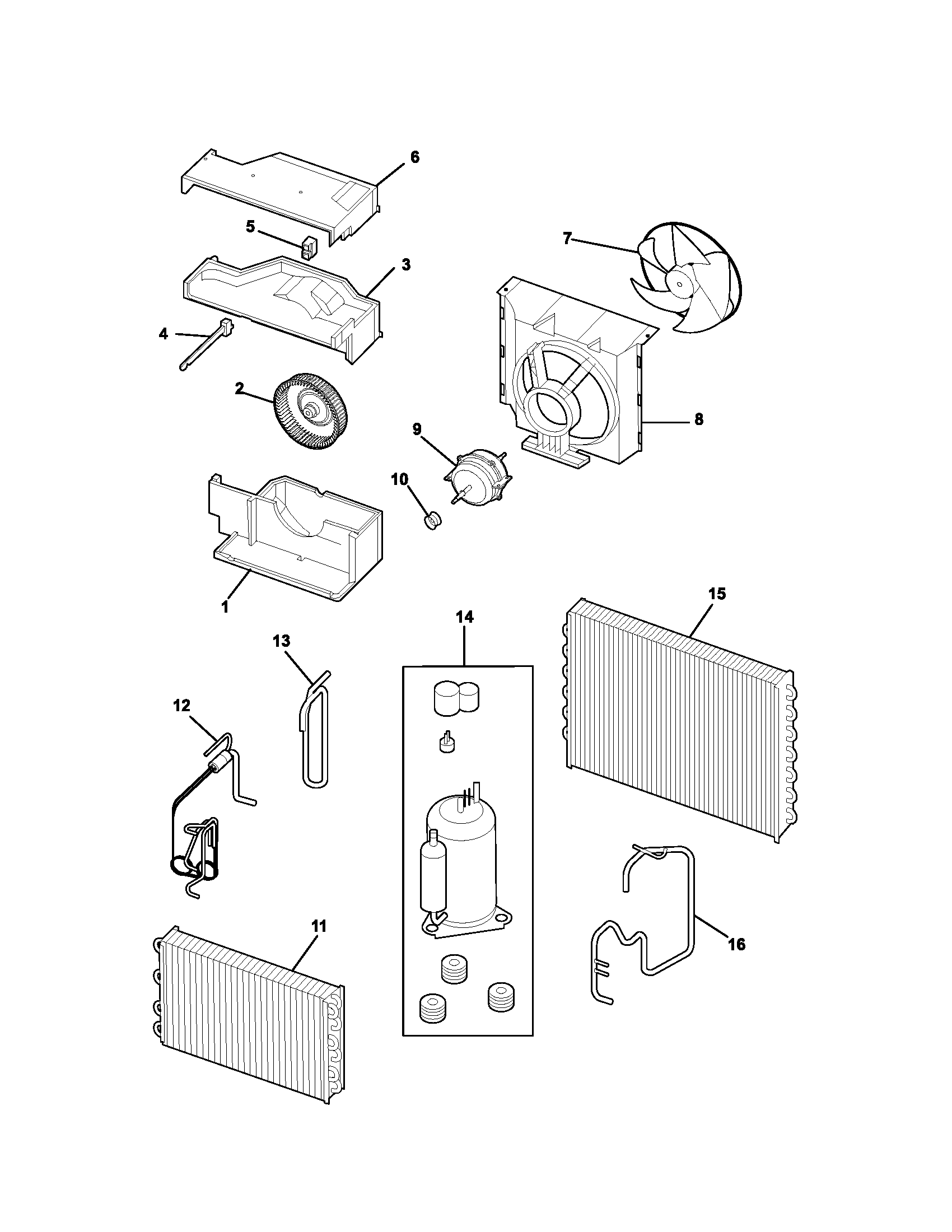

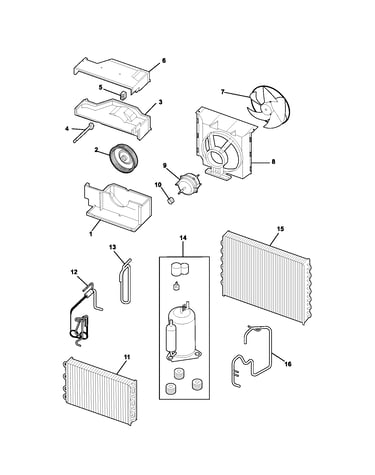

Cooling & air flow systems diagram

Fan

Part #5304436565

$22.01
In Stock
Capillary 5304436580
#12

Cooling & air flow systems diagram

Capillary

Part #5304436580

$32.65
In Stock
Charging Board 5304436562
#8

Cooling & air flow systems diagram

Charging board

Part #5304436562

$48.72
In Stock
Discharge Pi 5304436575
#13

Cooling & air flow systems diagram

Discharge pi

Part #5304436575

This item is not returnable
$7.42
In Stock
Front 5304441409
#10

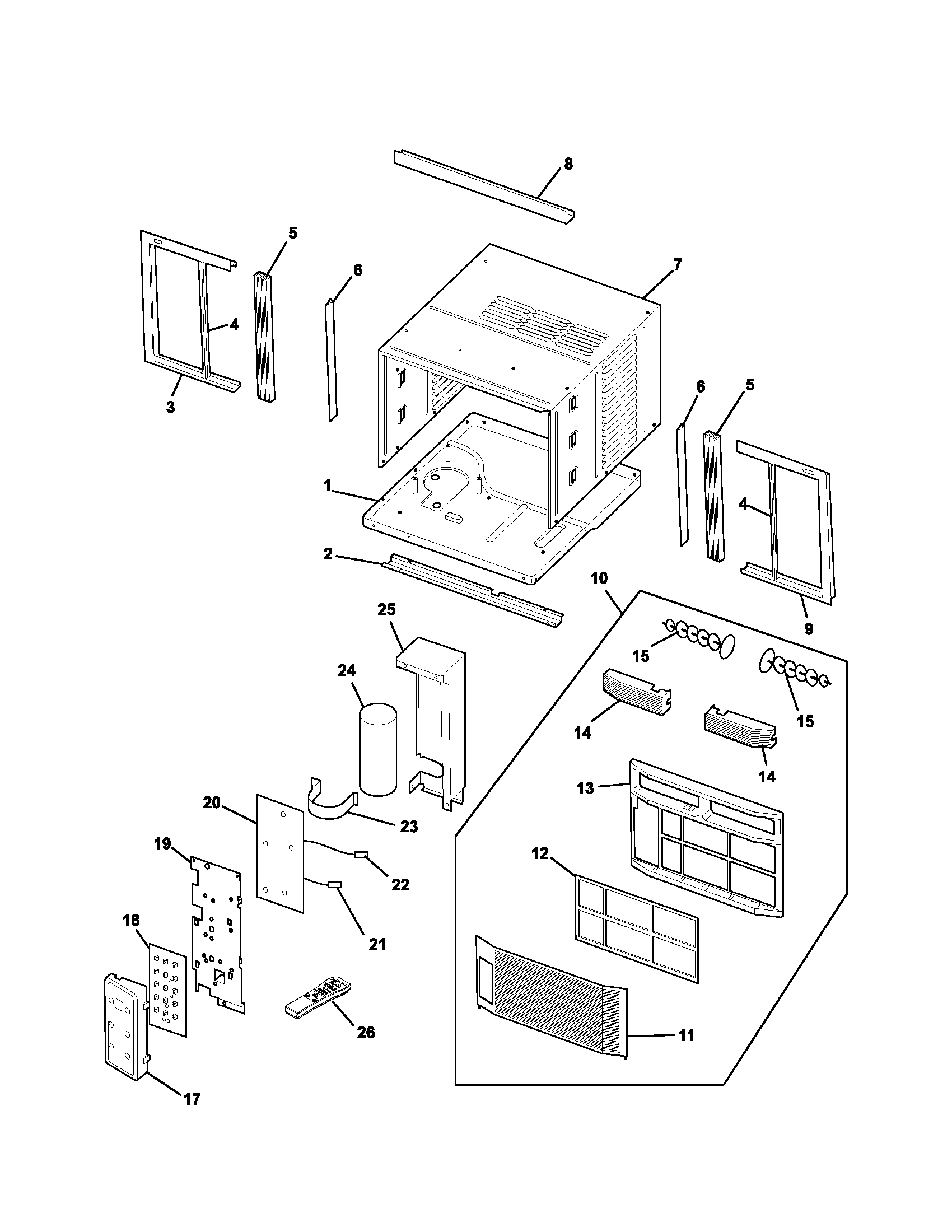

Cabinet/front/controls diagram

Front

Part #5304441409

$70.37
In Stock
Suction Pipe 5304436569
#16

Cooling & air flow systems diagram

Suction pipe

Part #5304436569

$26.96
In Stock
Motor 5304441406
#9

Cooling & air flow systems diagram

Motor

Part #5304441406

The manufacturer no longer makes this part, and there's no substitute part

Fan 5304436563
#7

Cooling & air flow systems diagram

Fan

Part #5304436563

The manufacturer no longer makes this part, and there's no substitute part

Fan 5304436557
#2

Cooling & air flow systems diagram

Fan

Part #5304436557

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304436566
#11

Cooling & air flow systems diagram

Evaporator

Part #5304436566

The manufacturer no longer makes this part, and there's no substitute part
