Model # ALW540RAC-PALW540RAC Official Amana washer

Here are the diagrams and repair parts for Official Amana ALW540RAC-PALW540RAC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

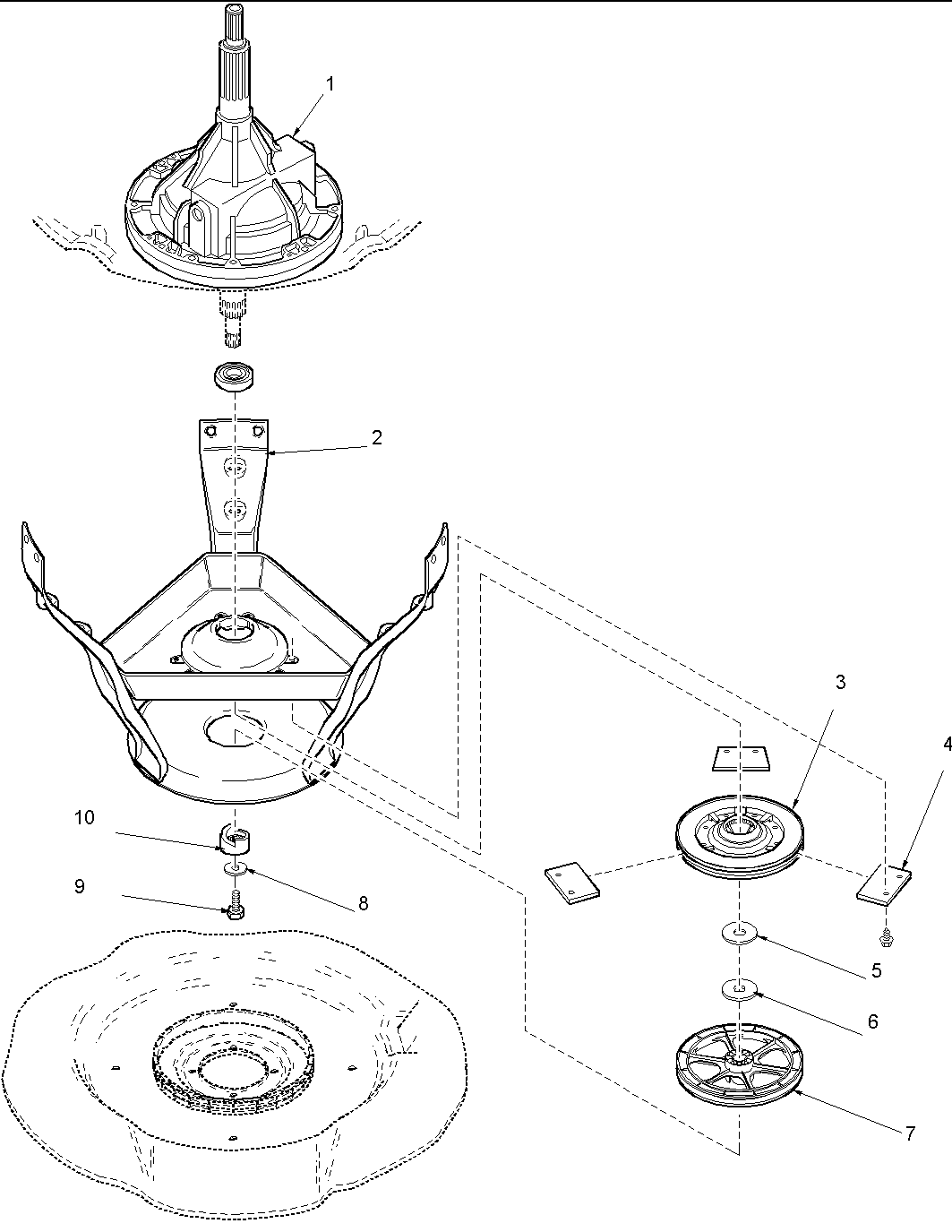

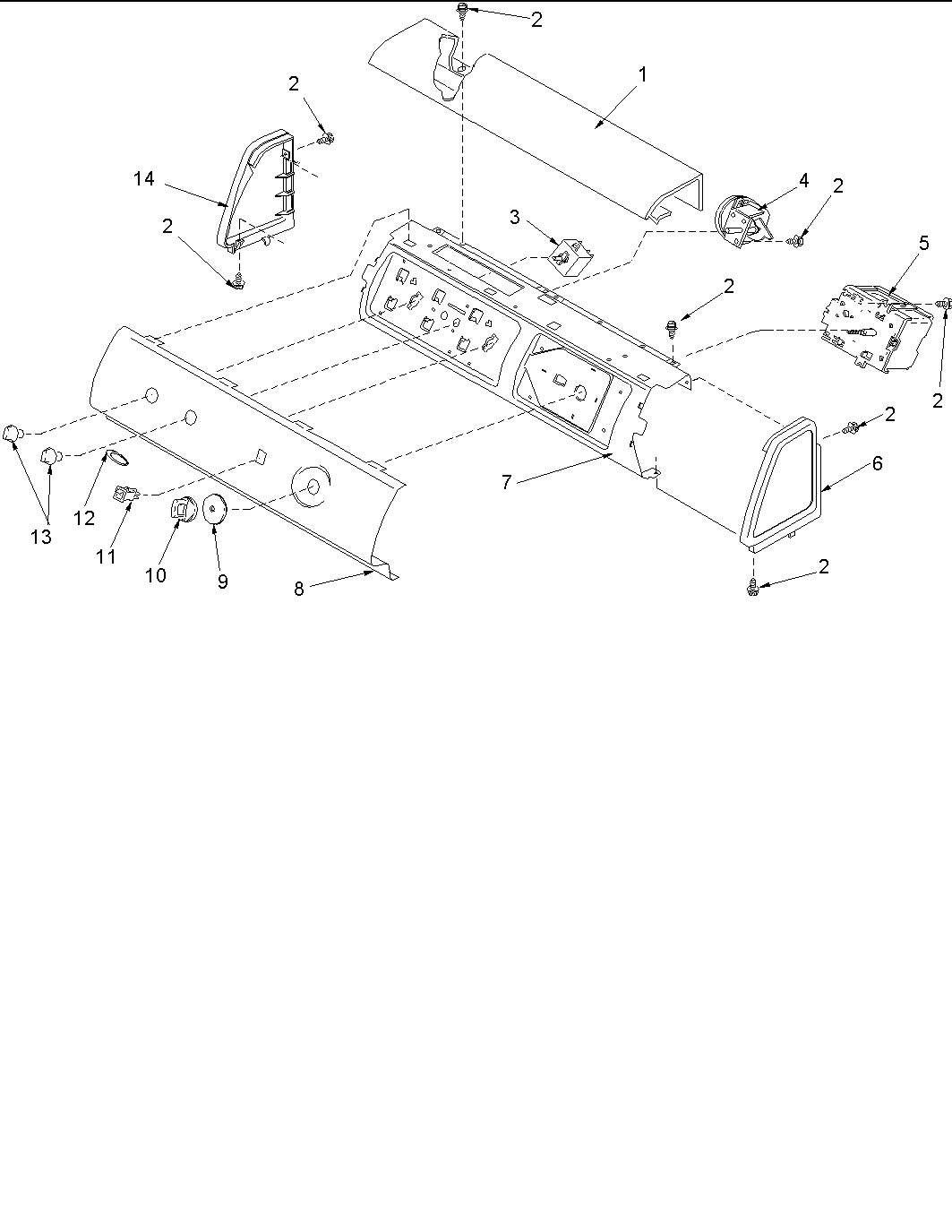

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Hose Clamp 36801
#3

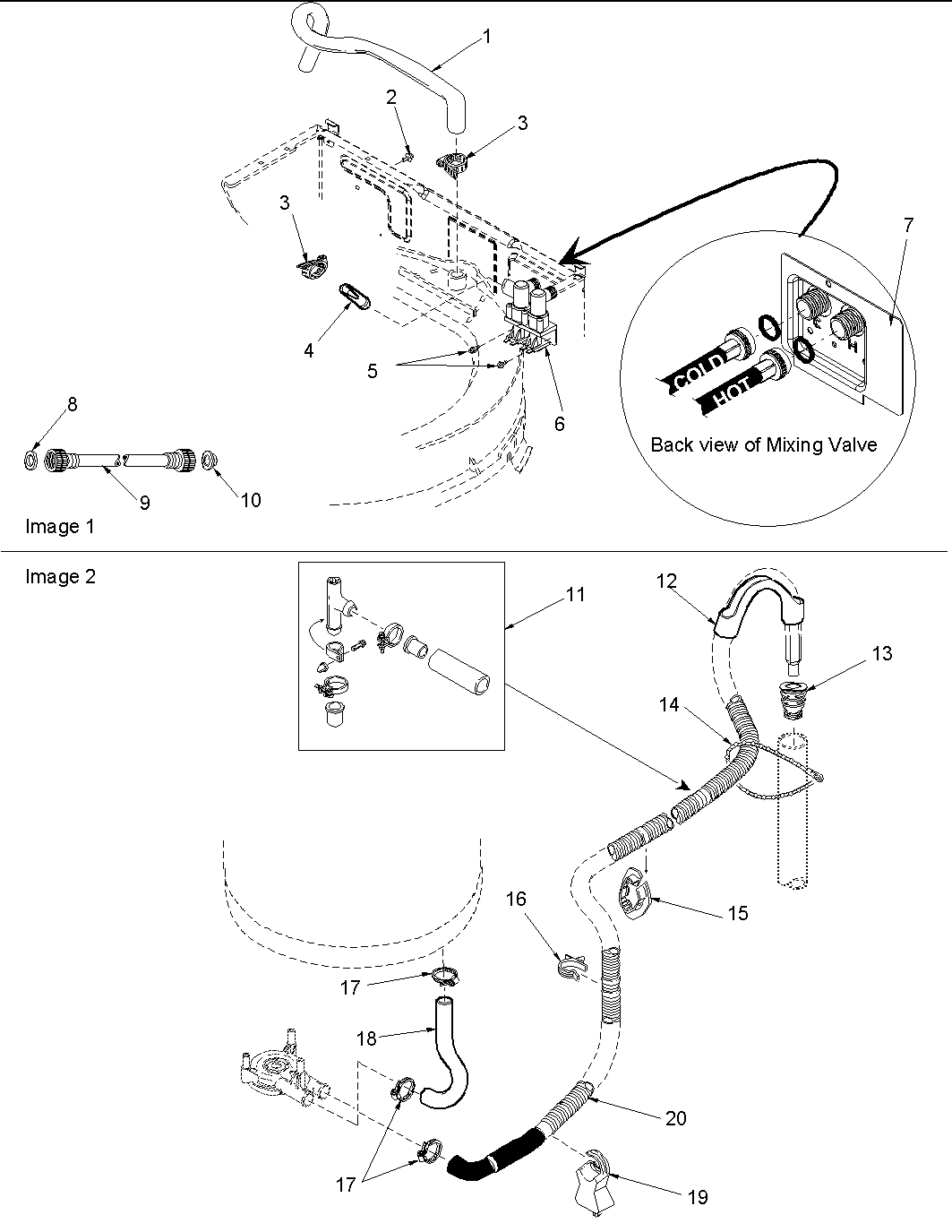

Mixing valve and hoses diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 40039201
#5

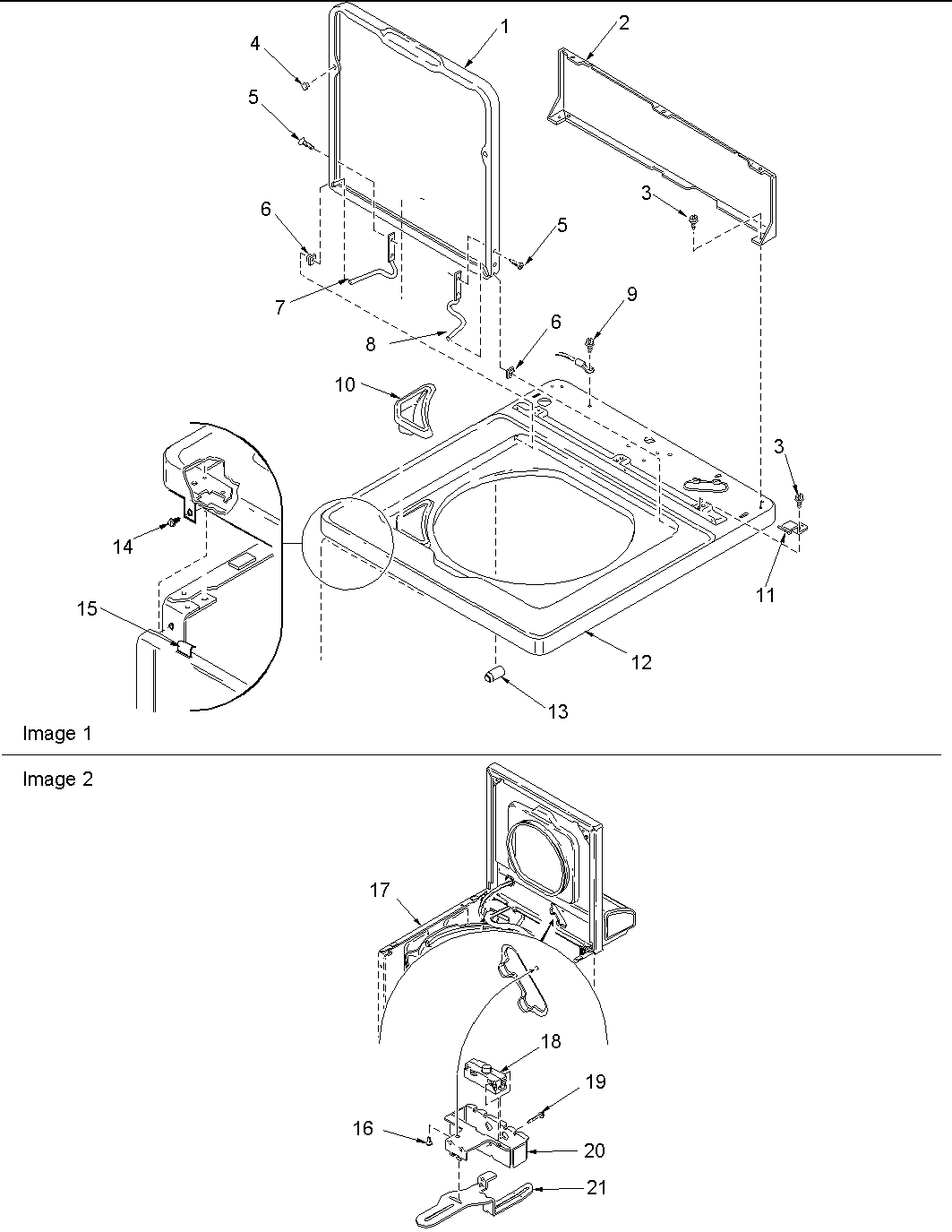

Cabinet top, door, and door switch diagram

Screw

Part #40039201

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 40039201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Washer 52549
#16

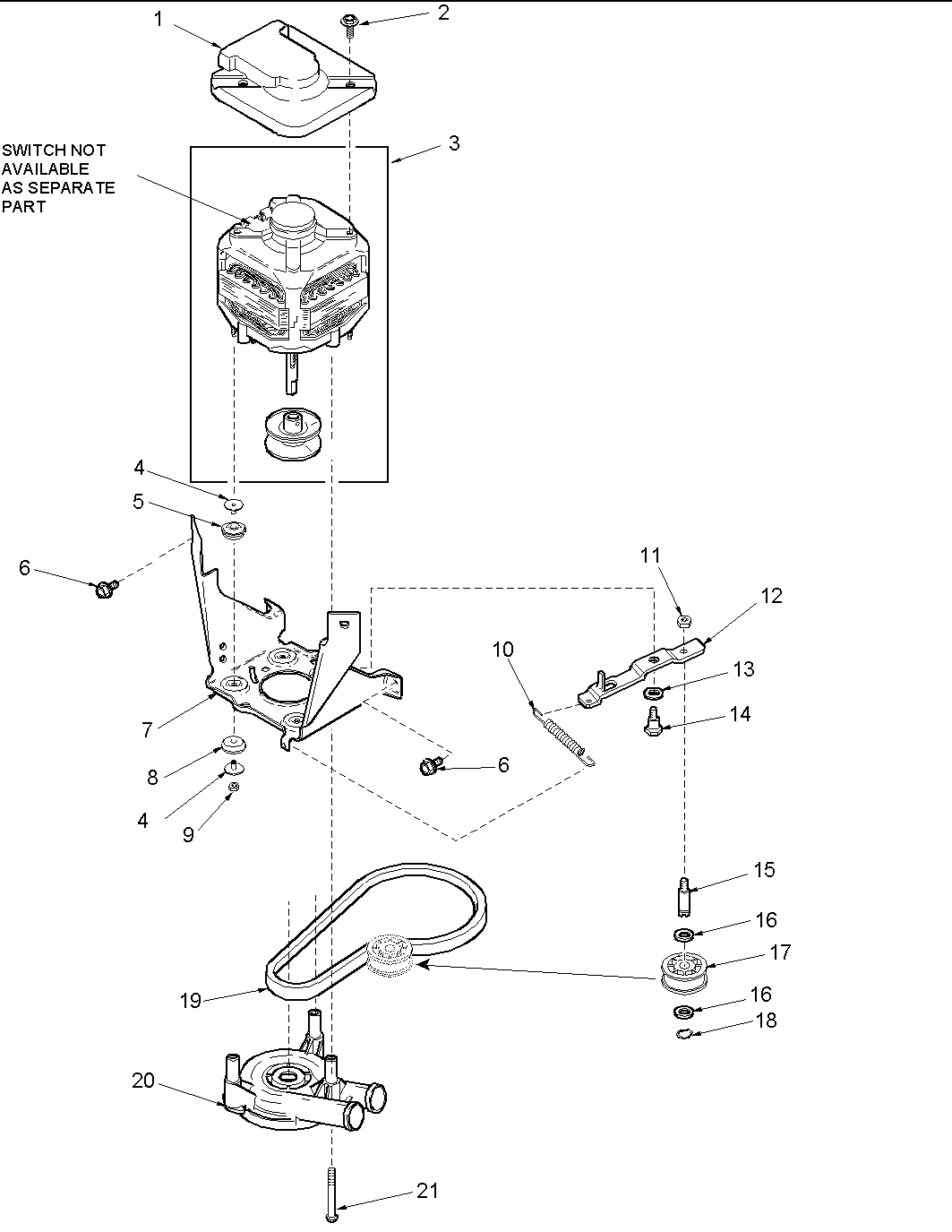

Motor, belt, pump, and idler assy diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 40064801
#5

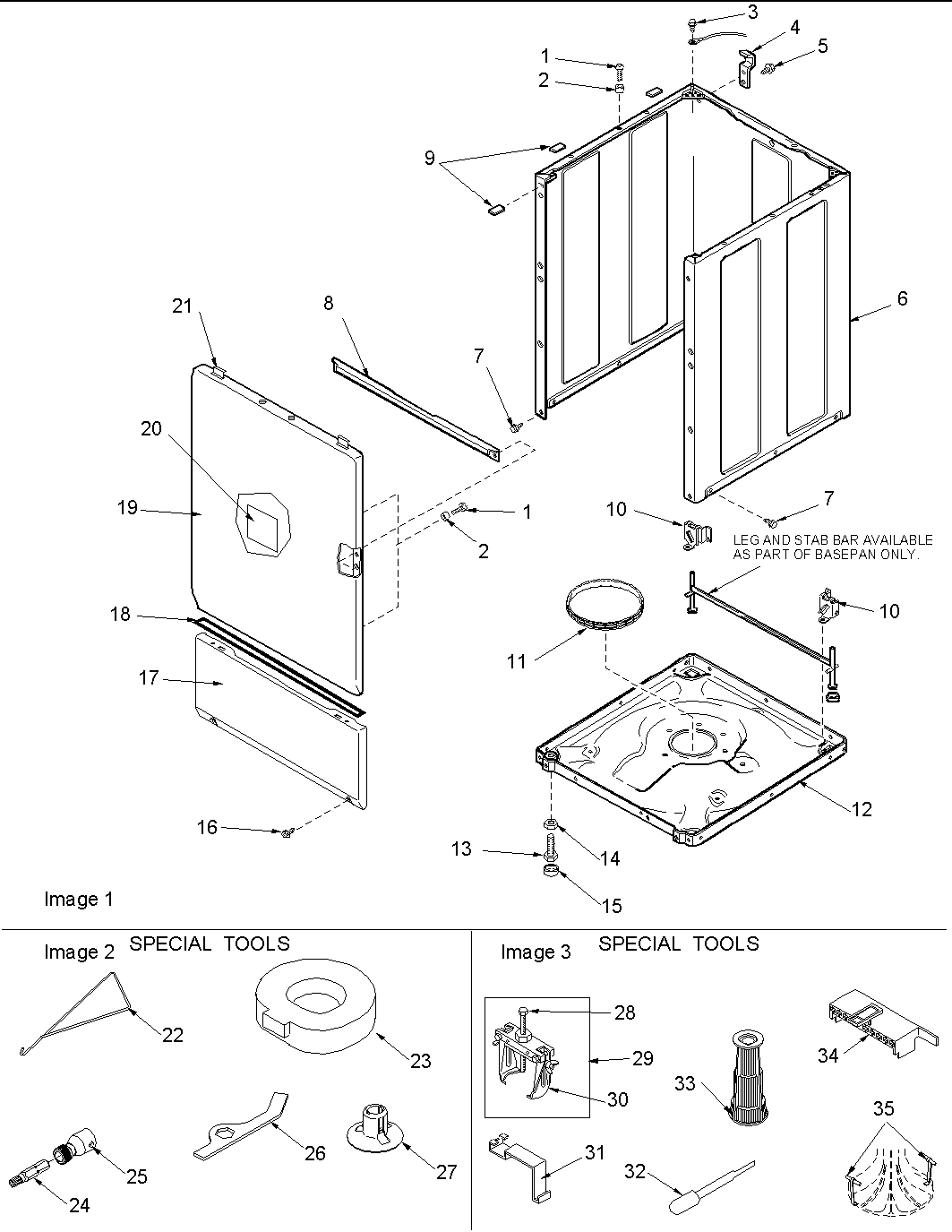

Base, cabinet, front and special tools diagram

Screw

Part #40064801

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 40064801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Belt 40053602
#19

Motor, belt, pump, and idler assy diagram

Belt

Part #40053602

The manufacturer no longer makes this part, and there's no substitute part

Washer 20290
#8

Mixing valve and hoses diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Locknut, 10- 40095101
#9

Motor, belt, pump, and idler assy diagram

Locknut, 10-

Part #40095101

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 40095101. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Tubing 40065001
#15

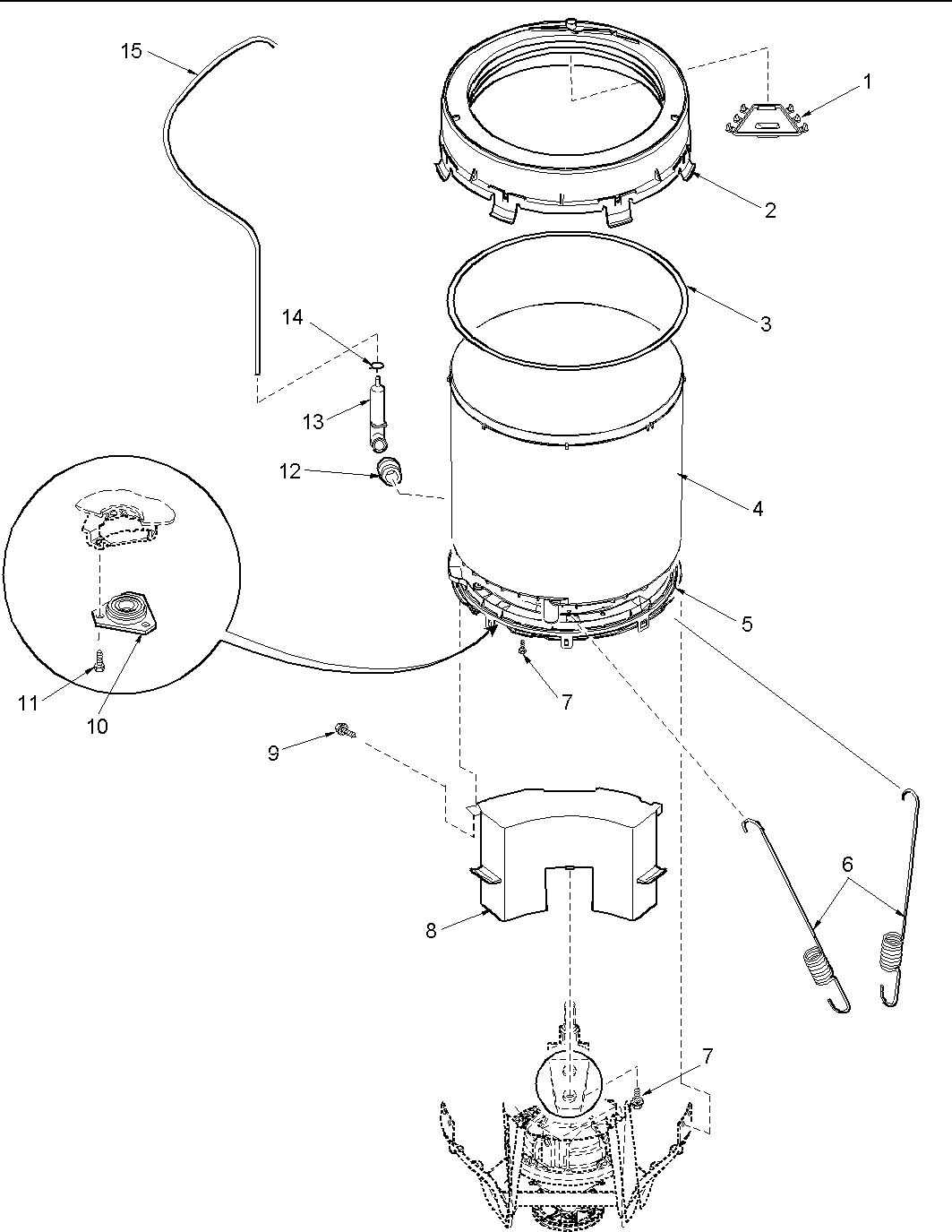

Outer tub and pressure tube diagram

Tubing

Part #40065001

Replaced by #WP21001748

?
Manufacturer substitution
This part replaces 40065001. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Screw 40063301
#1

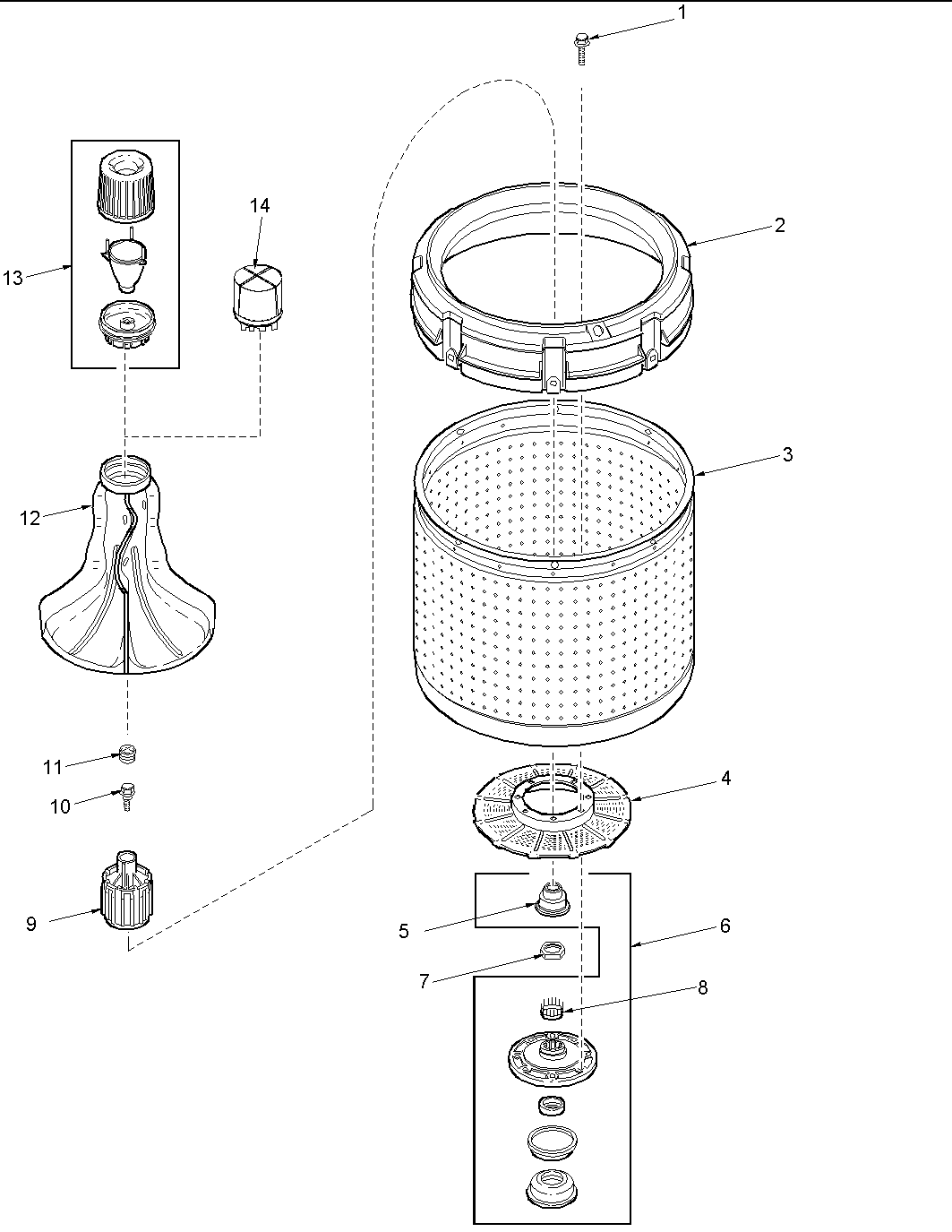

Agitator, drive bell, washtub and hub diagram

Screw

Part #40063301

The manufacturer no longer makes this part, and there's no substitute part

Screw 32671
#1

Base, cabinet, front and special tools diagram

Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
