Frigidaire
Top-Mount Refrigerator

Model # PF18TFA1 Official Frigidaire top-mount refrigerator - lf30588570

Here are the diagrams and repair parts for Official Frigidaire PF18TFA1 top-mount refrigerator - lf30588570, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Refrigerator Defrost Timer 3001671
#28

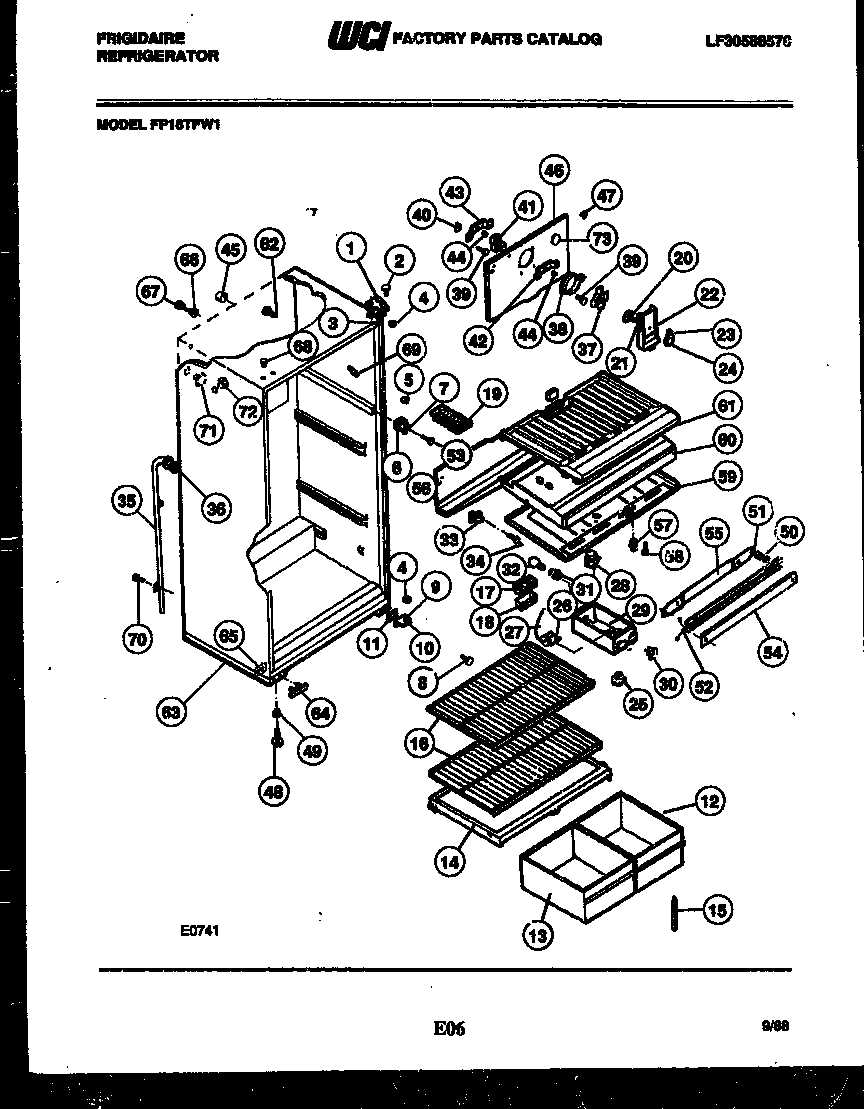

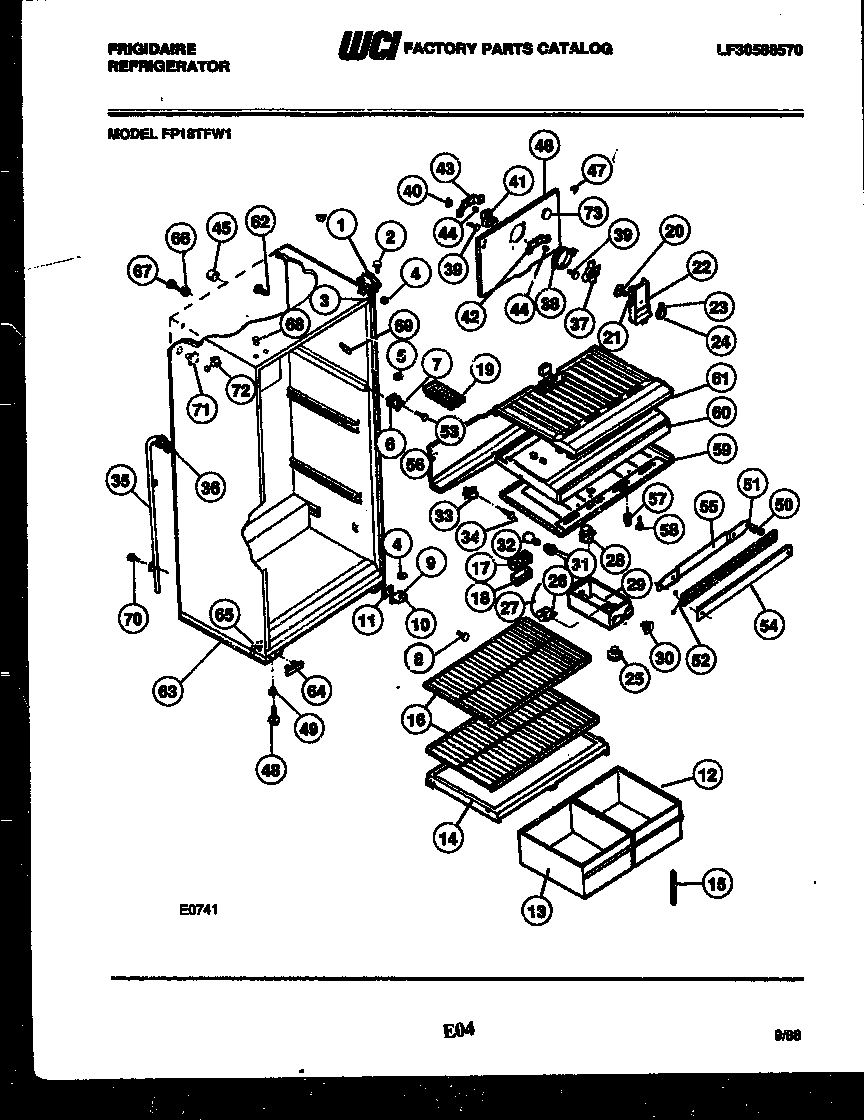

Cabinet parts diagram

Refrigerator defrost timer

Part #3001671

Replaced by #215846602

?
Manufacturer substitution
This part replaces 3001671. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Motor 8004176
#41

Cabinet parts diagram

Refrigerator motor

Part #8004176

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 8004176. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Door Rack 3018794
#17

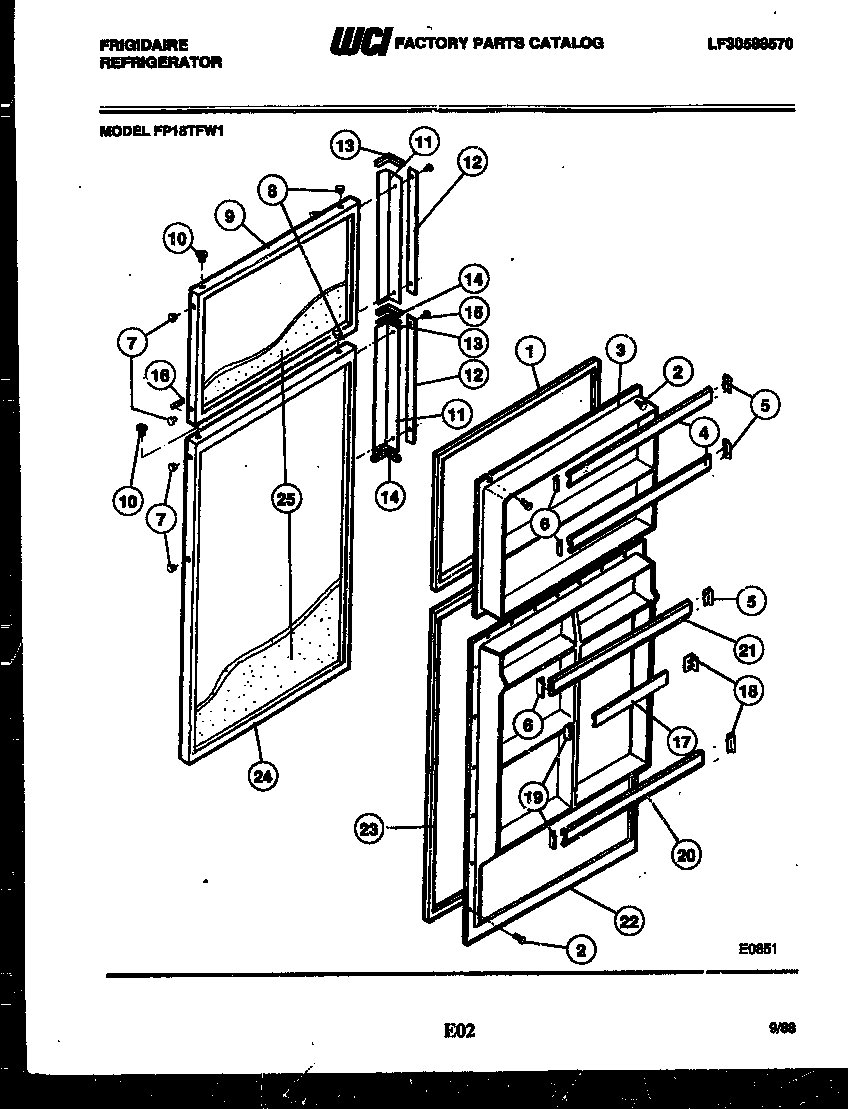

Door parts diagram

Refrigerator door rack

Part #3018794

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3018794. Substitute parts can look different from the original.
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Refrigerator Hinge Screw 8000123
#2

Cabinet parts diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Door Rack 3018795
#20

Door parts diagram

Refrigerator door rack

Part #3018795

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3018795. Substitute parts can look different from the original.
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Grommet 8008778
#11

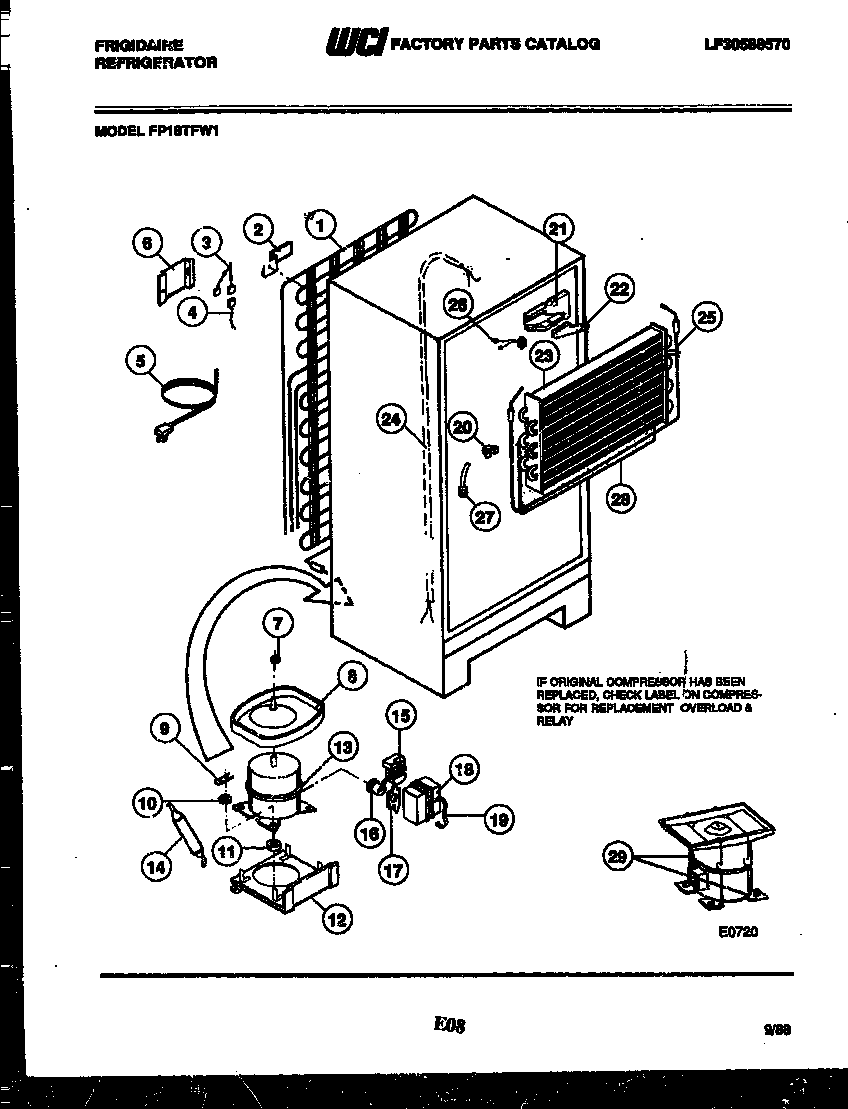

System and automatic defrost parts diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Support Retainer 3017380
#6

Door parts diagram

Support retainer

Part #3017380

Replaced by #5303323481

?
Manufacturer substitution
This part replaces 3017380. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Refrigerator Mullion (almond) 3200370
#54

Cabinet parts diagram

Refrigerator mullion (almond)

Part #3200370

Replaced by #5303200370

?
Manufacturer substitution
This part replaces 3200370. Substitute parts can look different from the original.
$109.51
In Stock
Refrigerator Screw 8002748
Refrigerator screw

Part #8002748

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 8002748. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Condenser Bracket 8003600
#2

System and automatic defrost parts diagram

Refrigerator condenser bracket

Part #8003600

Replaced by #5308000296

?
Manufacturer substitution
This part replaces 8003600. Substitute parts can look different from the original.
$23.96 |
20% OFF Phone Price : $29.96
In Stock
