Samsung
LCD Television

Model # UN46D6003SFXZA-AN02 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN46D6003SFXZA-AN02 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Television Screw 6003-001782
#NI

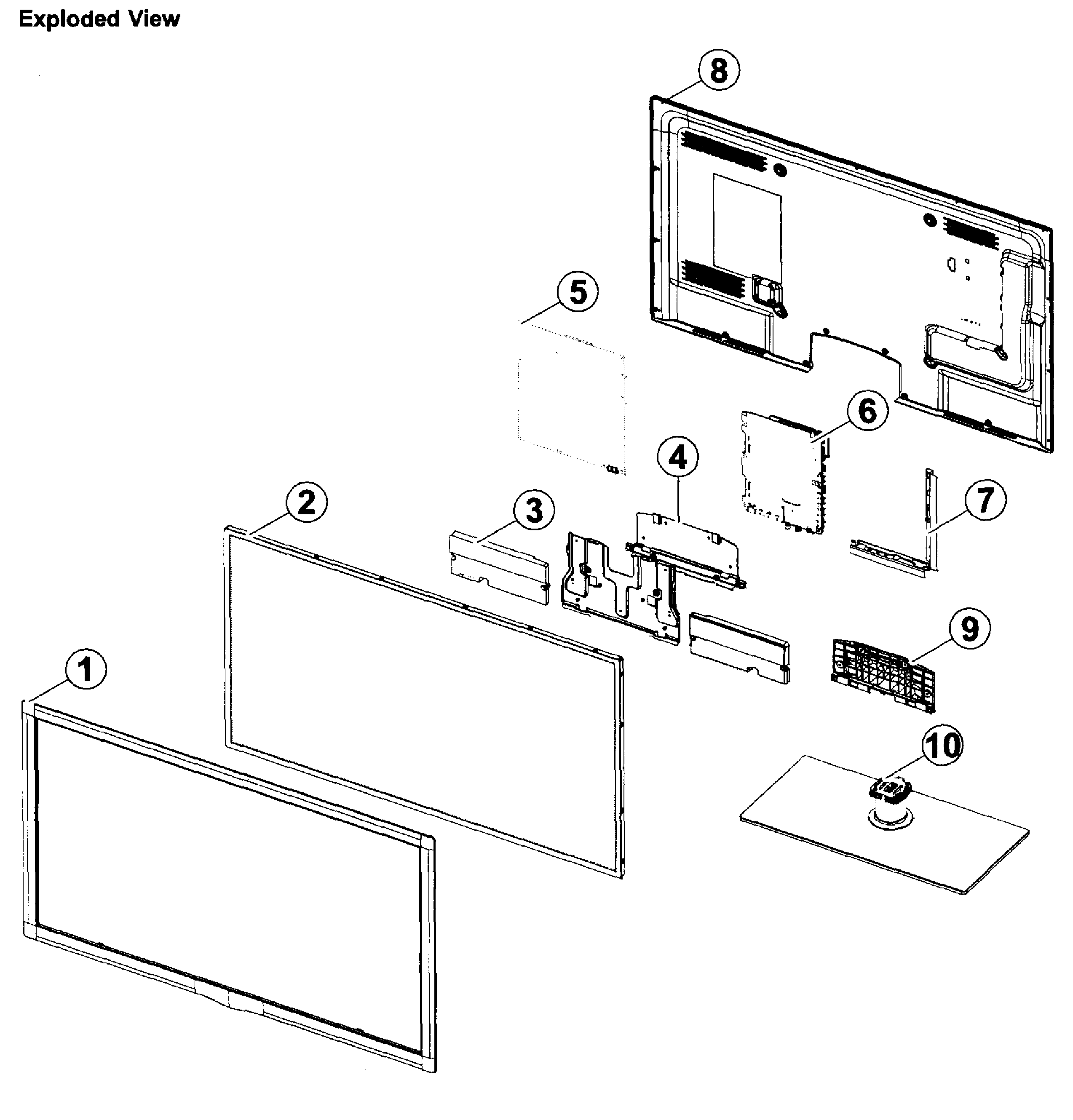

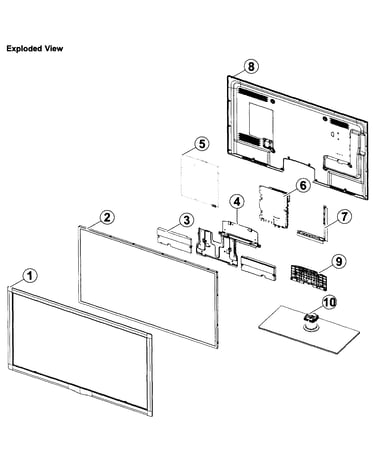

Cabinet parts diagram

Television screw

Part #6003-001782

The manufacturer no longer makes this part, and there's no substitute part

Ic-sw. 1205-003733
#NI

Cabinet parts diagram

Ic-sw.

Part #1205-003733

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-006017
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-006017

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-006109
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-006109

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Screw, M3 X 6 6001-002671
#NI

Cabinet parts diagram

Television stand screw, m3 x 6

Part #6001-002671

The manufacturer no longer makes this part, and there's no substitute part

Ic Aoz1360 1205-004155
#NI

Cabinet parts diagram

Ic aoz1360

Part #1205-004155

The manufacturer no longer makes this part, and there's no substitute part

Bracket BN61-07248A
#NI

Cabinet parts diagram

Bracket

Part #BN61-07248A

The manufacturer no longer makes this part, and there's no substitute part

Ic Max3222 1006-001509
#NI

Cabinet parts diagram

Ic max3222

Part #1006-001509

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-16837S
#1

Cabinet parts diagram

Cover

Part #BN96-16837S

The manufacturer no longer makes this part, and there's no substitute part

Lvds Cable BN96-18130C
#NI

Cabinet parts diagram

Lvds cable

Part #BN96-18130C

The manufacturer no longer makes this part, and there's no substitute part
