Electric Cooktop

Model # JP256BL1BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP256BL1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Range Surface Element Control Switch (replaces Wb24t10015, Wb24t10056) WB24T10063
#14

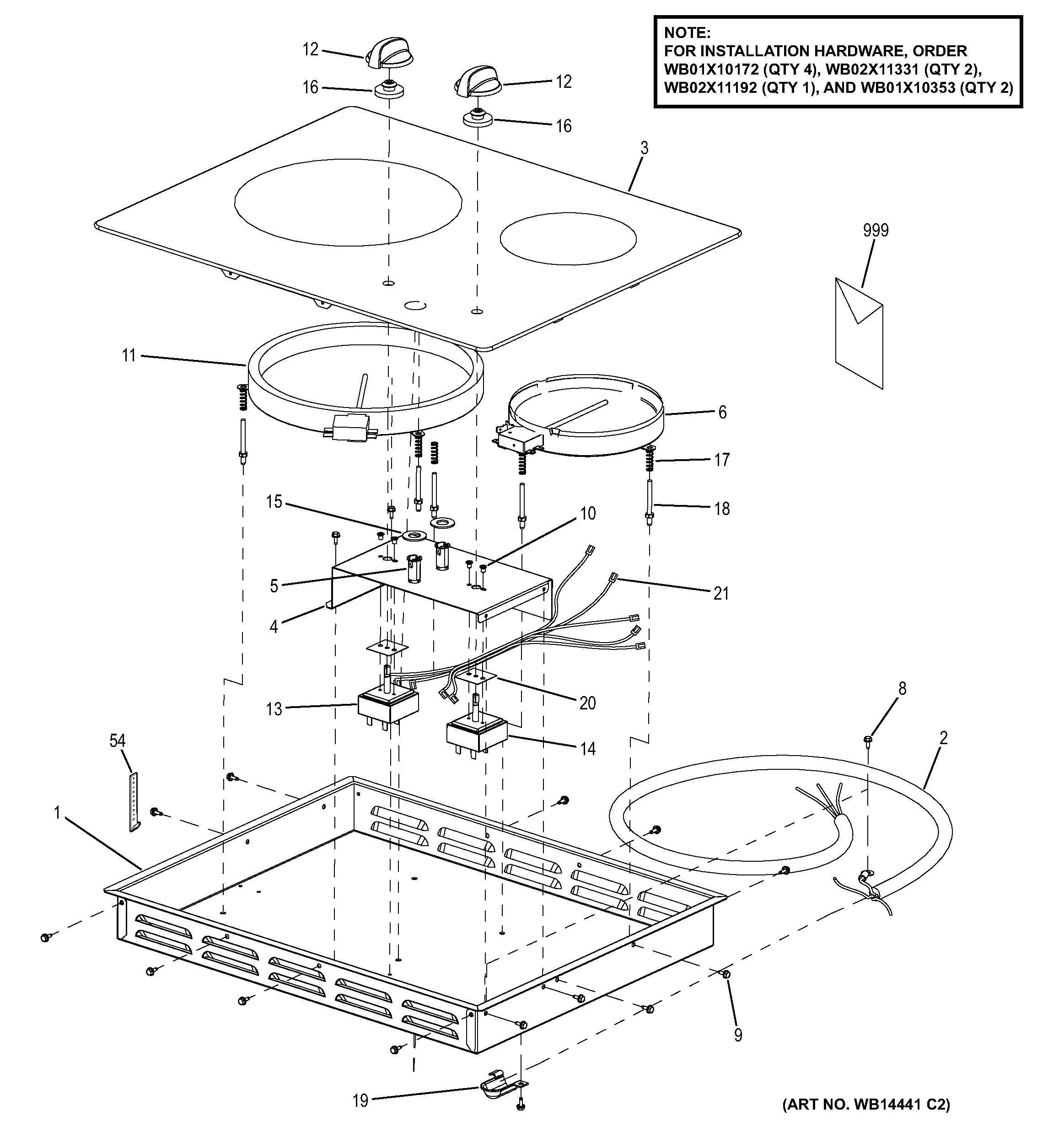

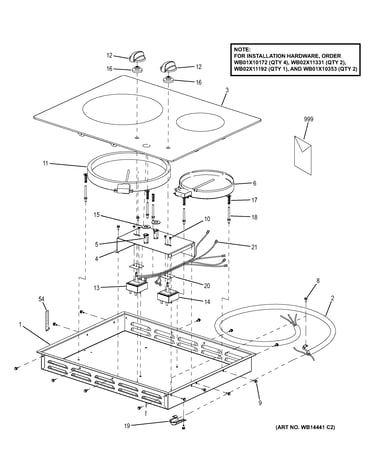

Control panel & cooktop diagram

Range surface element control switch (replaces wb24t10015, wb24t10056)

Part #WB24T10063

BEST SELLER
$70.83 |
8% OFF Phone Price : $76.83
In Stock
Screw WB01X10356
#8

Control panel & cooktop diagram

Screw

Part #WB01X10356

This item is not returnable
$5.00
In Stock
Spring, Stai WB09X10033
#17

Control panel & cooktop diagram

Spring, stai

Part #WB09X10033

$47.29
In Stock
Chassis WB64X10029
#1

Control panel & cooktop diagram

Chassis

Part #WB64X10029

$73.00
In Stock
Cooktop Installation Bracket WB02X11331
#54

Control panel & cooktop diagram

Cooktop installation bracket

Part #WB02X11331

This item is not returnable
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Lamp Seal WB01X10358
#15

Control panel & cooktop diagram

Lamp seal

Part #WB01X10358

This item is not returnable
$5.00
In Stock
Wire Box WB56X10785
#4

Control panel & cooktop diagram

Wire box

Part #WB56X10785

$15.37
In Stock
Screw WB01X10357
#10

Control panel & cooktop diagram

Screw

Part #WB01X10357

This item is not returnable
$5.00
In Stock
Cooktop Element Control Switch WB23X10018
#13

Control panel & cooktop diagram

Cooktop element control switch

Part #WB23X10018

$58.69 |
9% OFF Phone Price : $64.69
In Stock
Screw, #8 WB01X10172
#9

Control panel & cooktop diagram

Screw, #8

Part #WB01X10172

$8.11
In Stock
