Model # EPD5548JC1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EPD5548JC1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Control Housing 1057787
#5

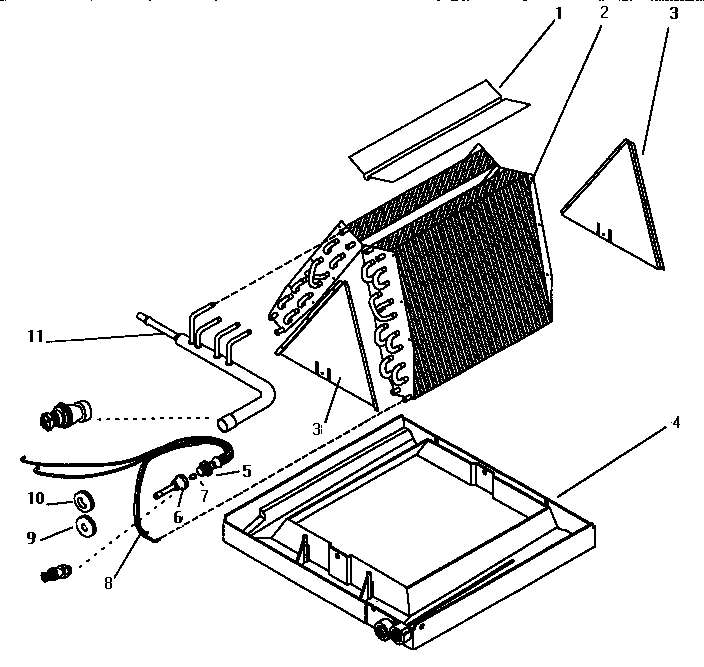

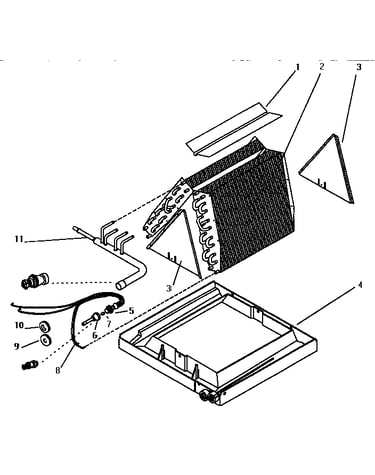

Functional parts "cased" coils diagram

Control housing

Part #1057787

$31.31
In Stock
Plug 711996

#NI

All parts diagram

Plug

Part #711996

Replaced by #1162328

?
Manufacturer substitution
This part replaces 711996. Substitute parts can look different from the original.
$22.77
In Stock
Restrictor . 1053661
#7

Functional parts "cased" coils diagram

Restrictor .

Part #1053661

The manufacturer no longer makes this part, and there's no substitute part

Brace Top 1069963
#1

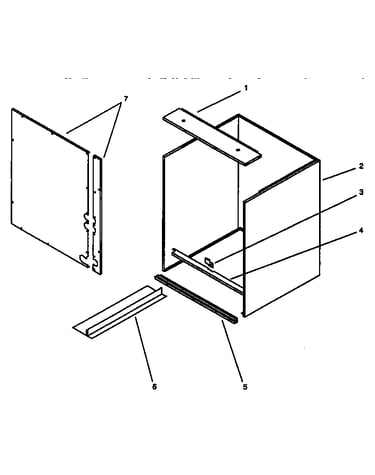

Non-functional parts "cased"coils diagram

Brace top

Part #1069963

The manufacturer no longer makes this part, and there's no substitute part

Filler 1063572
#6

Non-functional parts "cased"coils diagram

Filler

Part #1063572

The manufacturer no longer makes this part, and there's no substitute part

Door Coil 1069983
#7

Non-functional parts "cased"coils diagram

Door coil

Part #1069983

The manufacturer no longer makes this part, and there's no substitute part

Baffle Coil 1062505
#1

Functional parts "cased" coils diagram

Baffle coil

Part #1062505

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 1062629
#2

Functional parts "cased" coils diagram

Evaporator

Part #1062629

The manufacturer no longer makes this part, and there's no substitute part

Grommet 24358300
#10

Functional parts "cased" coils diagram

Grommet

Part #24358300

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1062621
#9

Functional parts "cased" coils diagram

Grommet

Part #1062621

The manufacturer no longer makes this part, and there's no substitute part
