Model # DC727KATY1 Official DeWalt drill
Here are the diagrams and repair parts for Official DeWalt DC727KATY1 drill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
DC727KATY1 Power Tools
#35

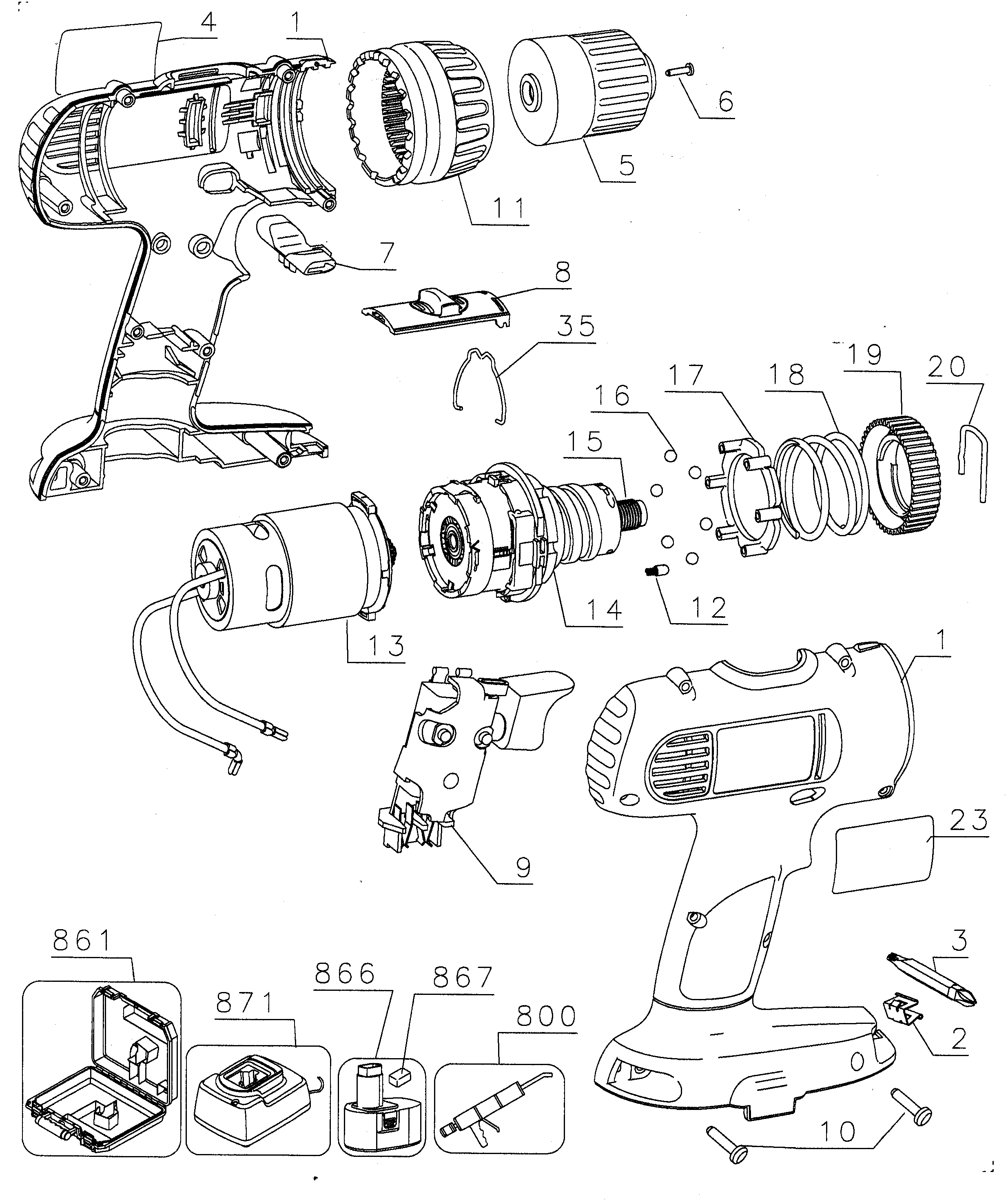

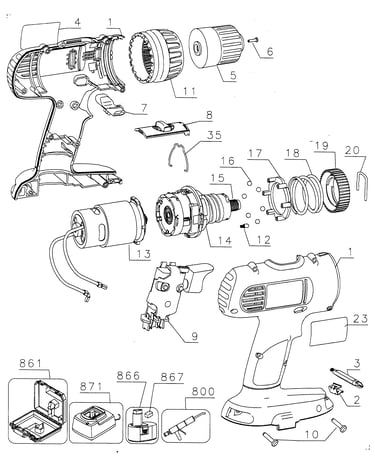

Drill assy diagram
Shift wire
Part #391896-00
The manufacturer no longer makes this part, and there's no substitute part
#12
Drill assy diagram
Detent
Part #326467-00
The manufacturer no longer makes this part, and there's no substitute part
#23
Drill assy diagram
Dewalt nameplate
Part #620806-00
The manufacturer no longer makes this part, and there's no substitute part
#2
Drill assy diagram
Drill bit holder
Part #148354-03
The manufacturer no longer makes this part, and there's no substitute part
#17
Drill assy diagram
Plate
Part #397303-00
The manufacturer no longer makes this part, and there's no substitute part
#15
Drill assy diagram
Spindle
Part #392095-00
The manufacturer no longer makes this part, and there's no substitute part
#13
Drill assy diagram
Dewalt motor
Part #397156-00
The manufacturer no longer makes this part, and there's no substitute part
#19
Drill assy diagram
Adj. nut
Part #391911-00
The manufacturer no longer makes this part, and there's no substitute part
#800
Drill assy diagram
Grease
Part #284778-00
The manufacturer no longer makes this part, and there's no substitute part
#1
Drill assy diagram
Dewalt clamshell
Part #620787-00
The manufacturer no longer makes this part, and there's no substitute part
