CONFIRM THE PART FITS
Part Information

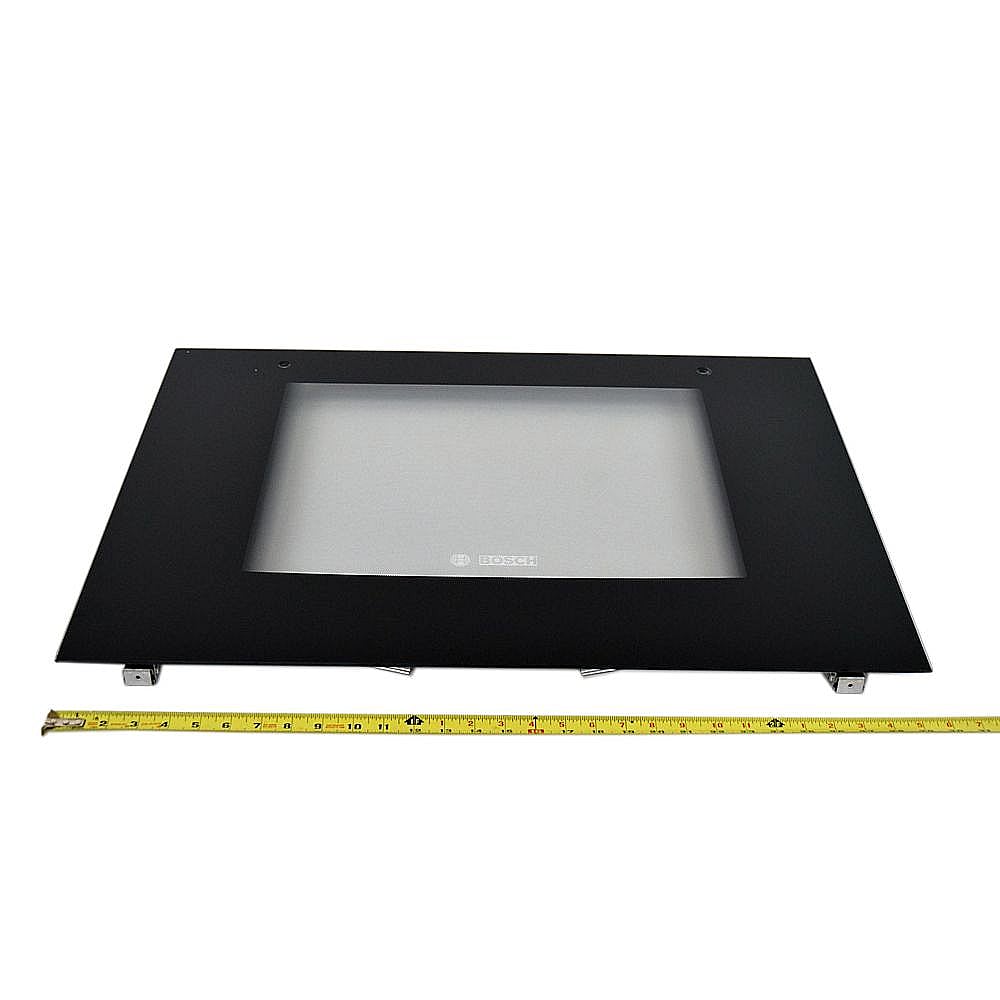

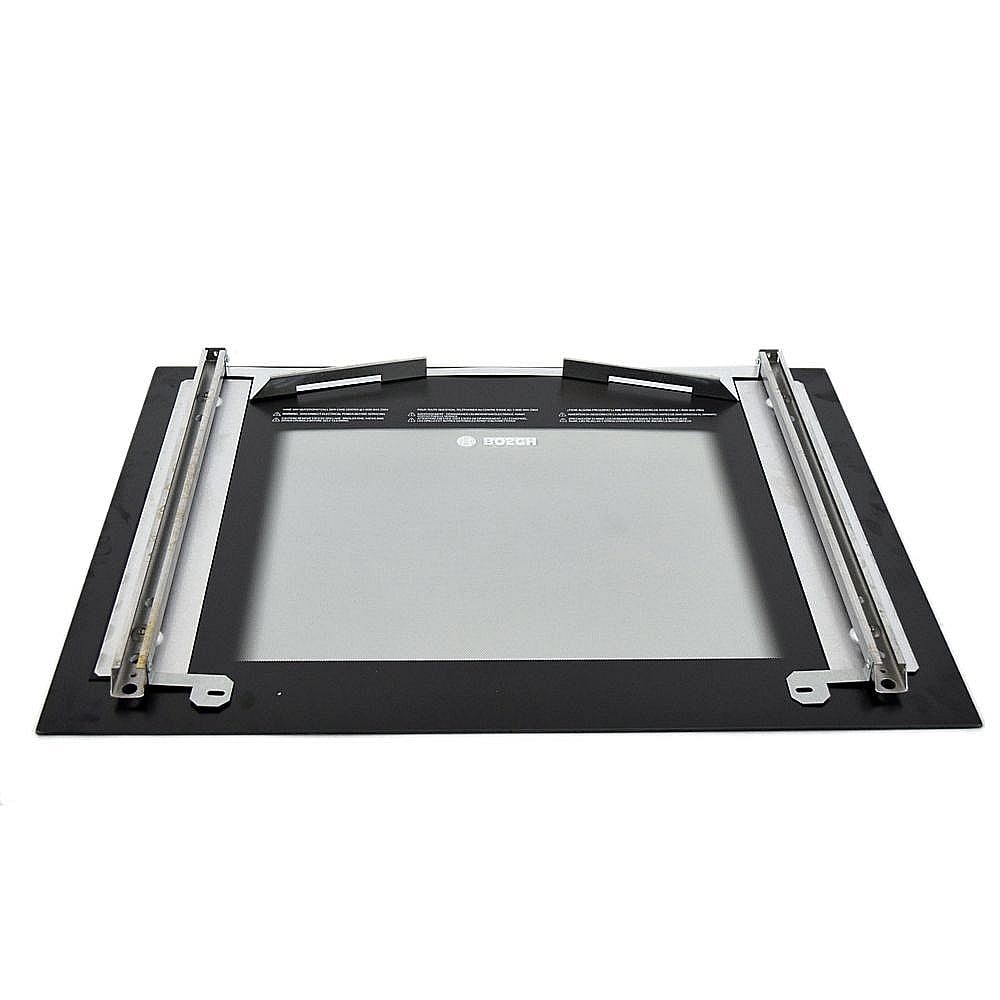

This door outer panel assembly (part number 00246543) is for wall ovens.
Door outer panel assembly 00246543 is an outer heat shield for the oven door. The assembly may include multiple parts; refer to your parts diagram for a complete list of parts included.
Wait until the surface is cool to the touch before starting the repair. Wear work gloves to protect your hands. Caution: The oven door is heavy, so you might need two people to safely lift it off the oven frame for servicing.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #HBL3460UC/09 Bosch electric wall oven | HBL3460UC/09 | Door |
Model #HBL3360UC/02 Bosch electric wall oven | HBL3360UC/02 | Door assy |
Model #HBL3360UC/03 Bosch electric wall oven | HBL3360UC/03 | Door assy |
Model #HBL3360UC/04 Bosch electric wall oven | HBL3360UC/04 | Door assy |
Model #HBL3460UC/03 Bosch electric wall oven | HBL3460UC/03 | Door assy |
Model #HBL3560UC/03 Bosch electric wall oven | HBL3560UC/03 | Door lower |
Model #HBL3460UC/08 Bosch electric wall oven | HBL3460UC/08 | Door assy |
Model #HBL3560UC/08 Bosch electric wall oven | HBL3560UC/08 | Door lower |
Model #HBL3560UC/04 Bosch electric wall oven | HBL3560UC/04 | Door lower |
Model #HBL3460UC/04 Bosch electric wall oven | HBL3460UC/04 | Door assy |
