Part Information
Basic Information

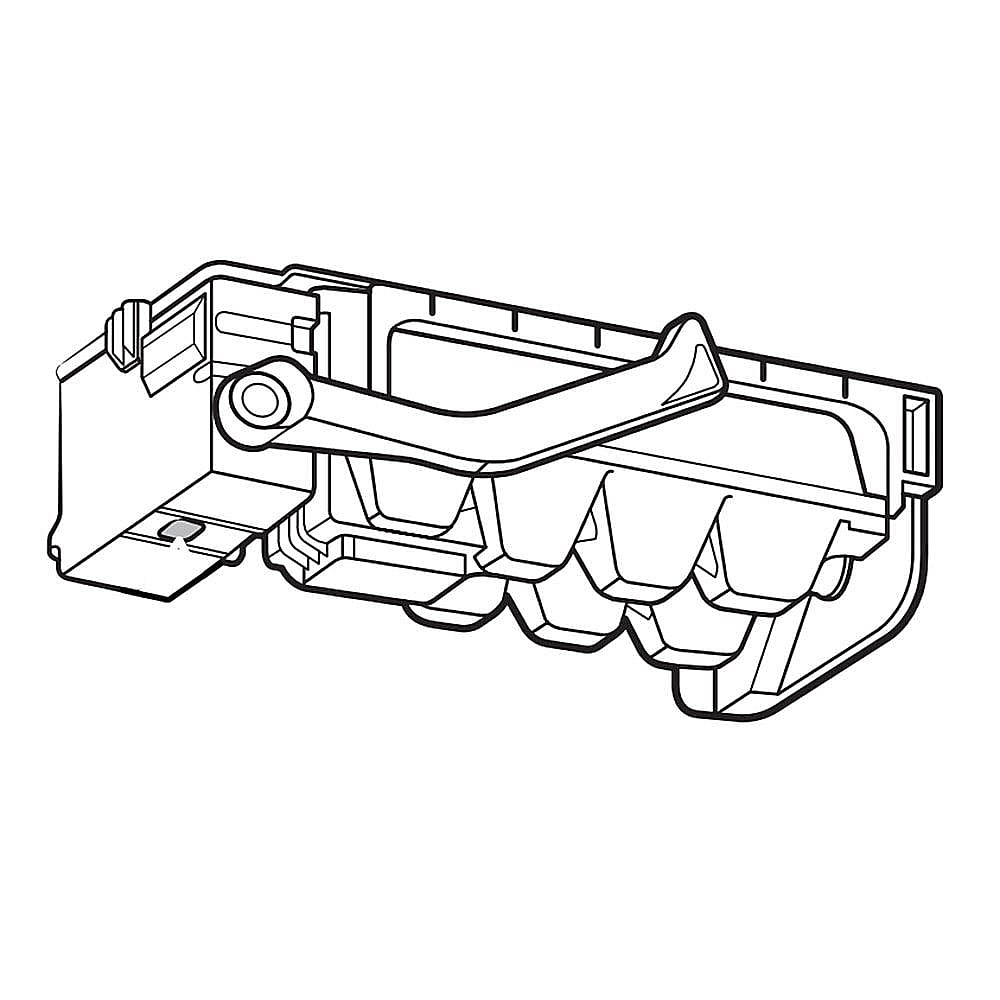

- Part Name: Refrigerator Ice Maker Assembly
- Manufacturer: Samsung
- Category: Refrigerator Appliance Part
- Primary Function: This part is responsible for the production and maintenance of ice within the refrigerator's ice-making compartment.
Technical Specifications
- Dimensions: Specific dimensions may vary based on the refrigerator model; refer to the manufacturer's guide or measure the space available in your refrigerator.
- Power Rating: Typically utilizes the refrigerator's power supply; voltage and wattage are specific to the refrigerator's design.
- Material: Mainly composed of durable plastic for the housing, with metal components for the mechanics of the ice-making process.
Installation & Compatibility
- Compatible Models: This ice maker assembly is compatible with various Samsung refrigerator models. Check the manufacturer?s documentation or with Sears Home Services to ensure compatibility with your specific model.
- Installation Difficulty: Medium; it is generally recommended that someone with basic mechanical knowledge and experience handle the replacement to ensure proper installation and function.
- Tools Required: Common household tools such as a screwdriver, but the exact tools can vary depending on the model of the refrigerator.
Additional Information
The Refrigerator Ice Maker Assembly (DA97-19010A) by Samsung is an essential component for your refrigerator's ice dispensing system. It is typically located in the freezer compartment and connected to the water supply line. When operational, it fills the ice tray with water, freezes the water into ice, and then dumps the ice into a bin. When the bin reaches a certain level, the ice maker shuts off until more ice is needed.
Common issues that this part resolves include an ice maker that no longer produces ice, produces very little ice, or produces ice that is smaller or oddly shaped. If you're experiencing issues with your ice maker, replacing this part can restore its functionality.
Before installation, make sure to disconnect the power and water supply to the refrigerator to prevent any accidents. After installation, verify that the ice maker is functioning properly, and monitor the first few batches of ice to ensure everything is working as expected. If you encounter difficulties during installation or if the ice maker does not operate correctly after installation, it may be helpful to consult the manual or reach out to a professional technician for assistance.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #RS27T5561SR/AA-02 Samsung side-by-side refrigerator | RS27T5561SR/AA-02 | Freezer door parts |
| Model #RS22T5201SG/AA-00 Samsung side-by-side refrigerator | RS22T5201SG/AA-00 | Freezer door parts |
| Model #RS22T5561SG/AA-01 Samsung side-by-side refrigerator | RS22T5561SG/AA-01 | Freezer door parts |
| Model #RS27T5201SR/AA-00 Samsung side-by-side refrigerator | RS27T5201SR/AA-00 | Freezer door parts |
| Model #RS22T5561SG/AA-00 Samsung side-by-side refrigerator | RS22T5561SG/AA-00 | Freezer door parts |
| Model #RS22T5561SR/AA-00 Samsung side-by-side refrigerator | RS22T5561SR/AA-00 | Freezer door parts |
| Model #RS22T5201SR/AA-00 Samsung side-by-side refrigerator | RS22T5201SR/AA-00 | Freezer door parts |
| Model #RS27T5561SR/AA-01 Samsung side-by-side refrigerator | RS27T5561SR/AA-01 | Freezer door parts |
| Model #RS27T5561SR/AA-00 Samsung side-by-side refrigerator | RS27T5561SR/AA-00 | Freezer door parts |
| Model #RS22T5561SR/AA-01 Samsung side-by-side refrigerator | RS22T5561SR/AA-01 | Freezer door parts |
