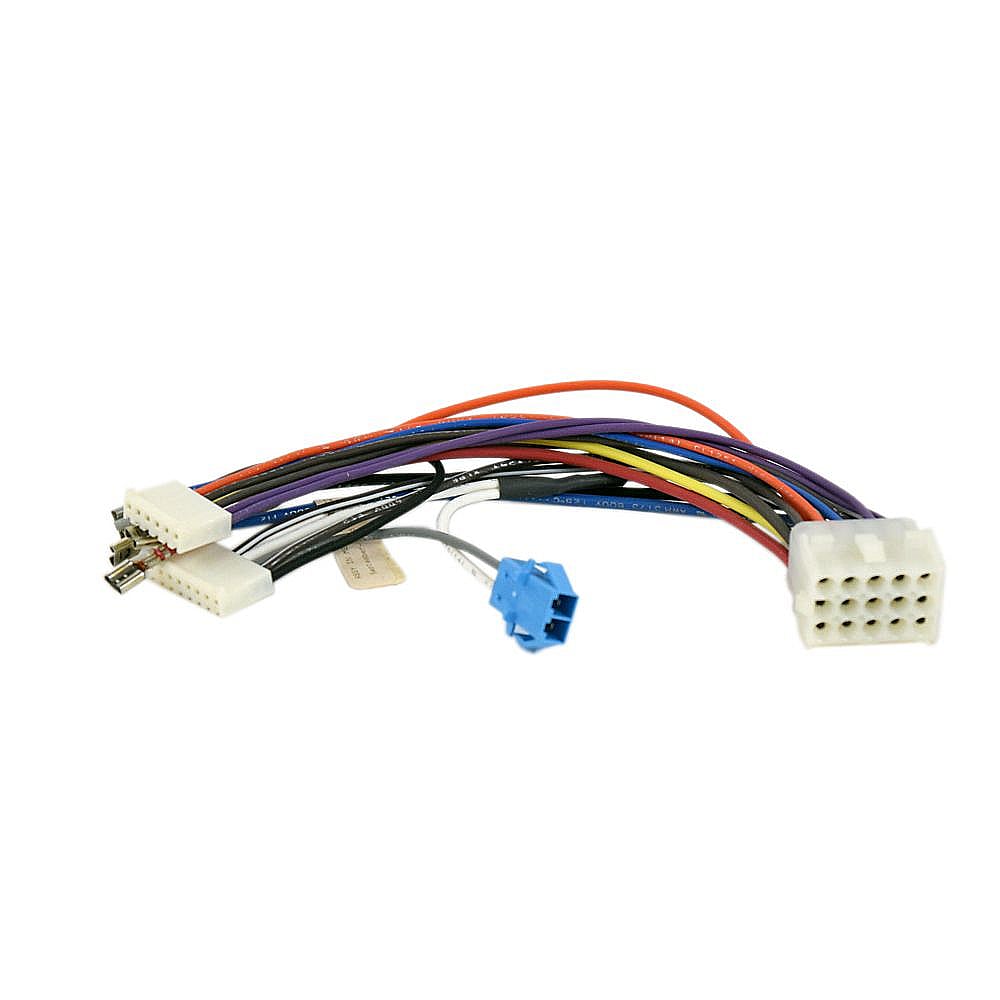

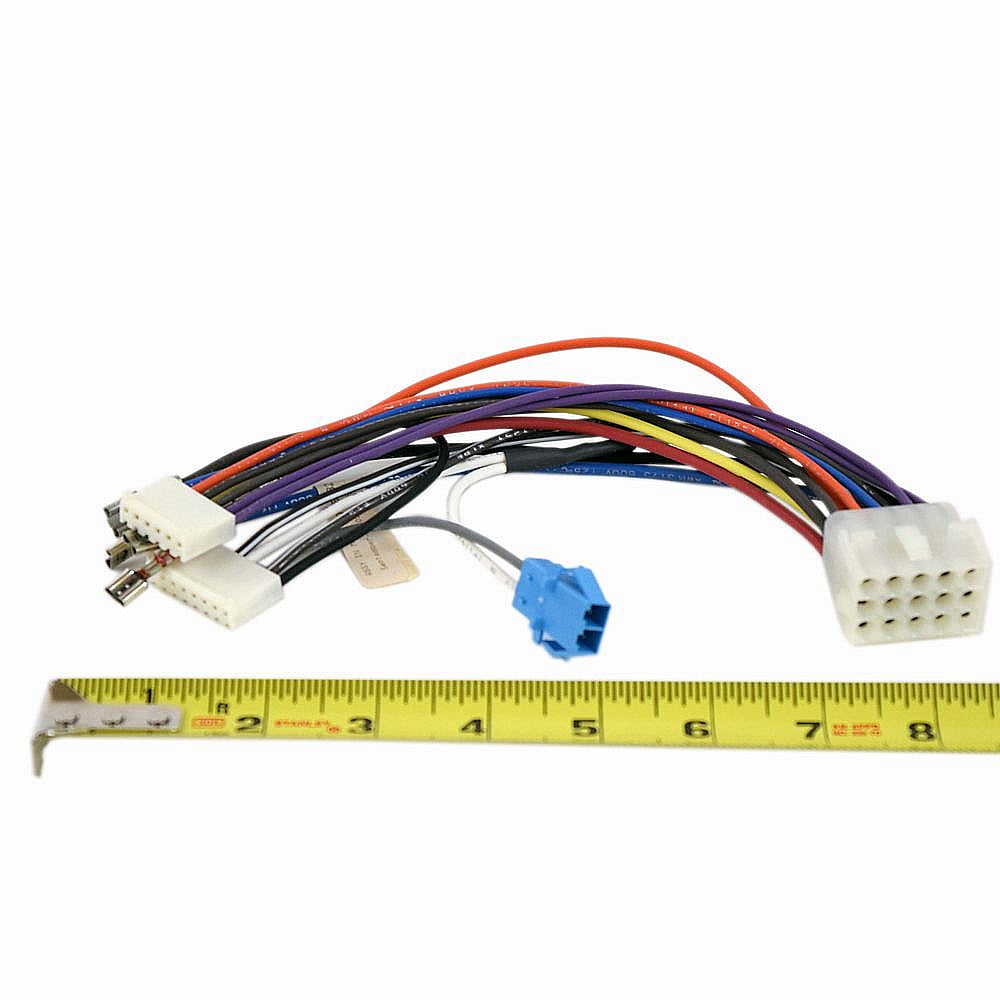

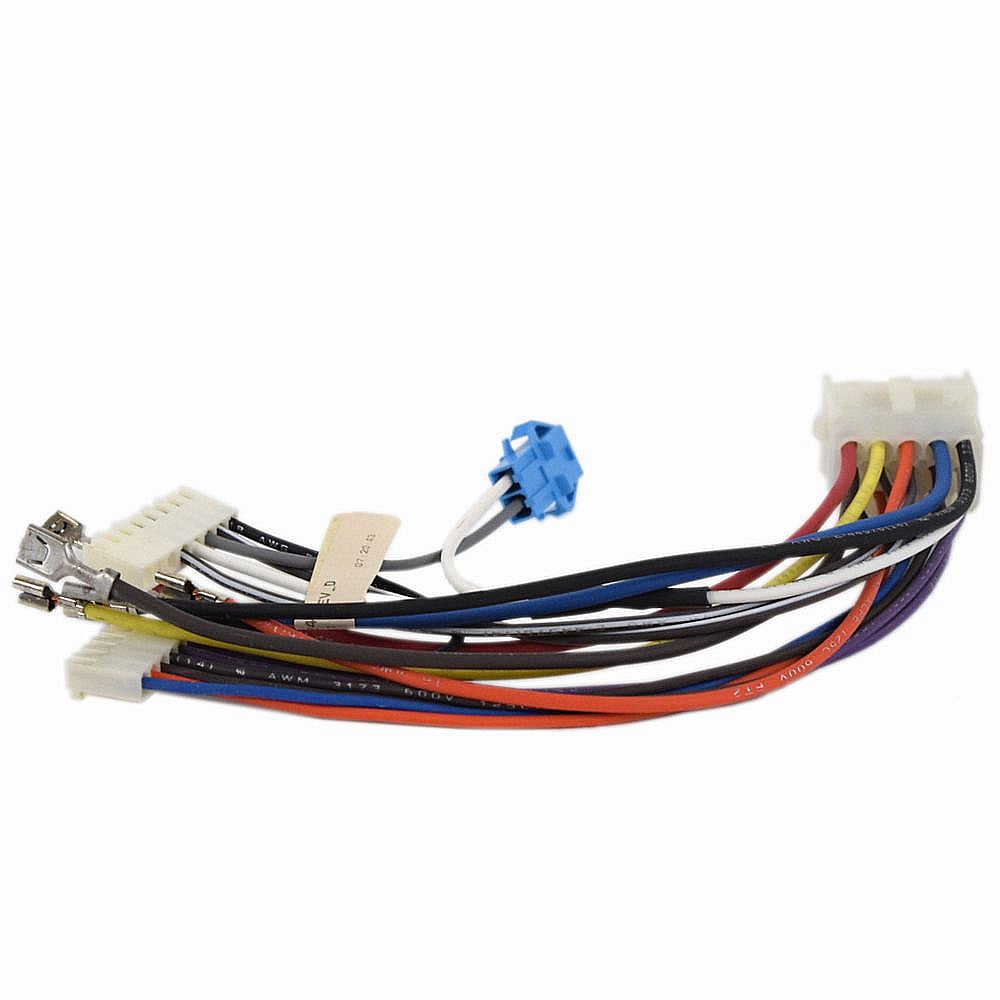

Range Electronic Control Wire Harness 318224820

Part #318224820

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This electronic control wire harness (part number 318224820) is for ranges.

Electronic control wire harness 318224820 connects the electronic control board to electrical circuits in the range.

Unplug the range or shut off the circuit breaker before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #79036714500 Kenmore Elite gas range79036714500
Backguard
Shop Parts
Model #79046622501 Kenmore Elite range79046622501
Backguard
Shop Parts
Model #79046622500 Kenmore Elite range79046622500
Backguard
Shop Parts
Model #79046624500 Kenmore Elite range79046624500
Backguard
Shop Parts
Model #79036713500 Kenmore Elite gas range79036713500
Backguard
Shop Parts
Model #79046623501 Kenmore Elite range79046623501
Backguard
Shop Parts
Model #79046623500 Kenmore Elite range79046623500
Backguard
Shop Parts
Model #79046624501 Kenmore Elite range79046624501
Backguard
Shop Parts
Model #79036719500 Kenmore Elite gas range79036719500
Backguard
Shop Parts
Model #79046629500 Kenmore Elite range79046629500
Backguard
Shop Parts
