CONFIRM THE PART FITS
Part Information

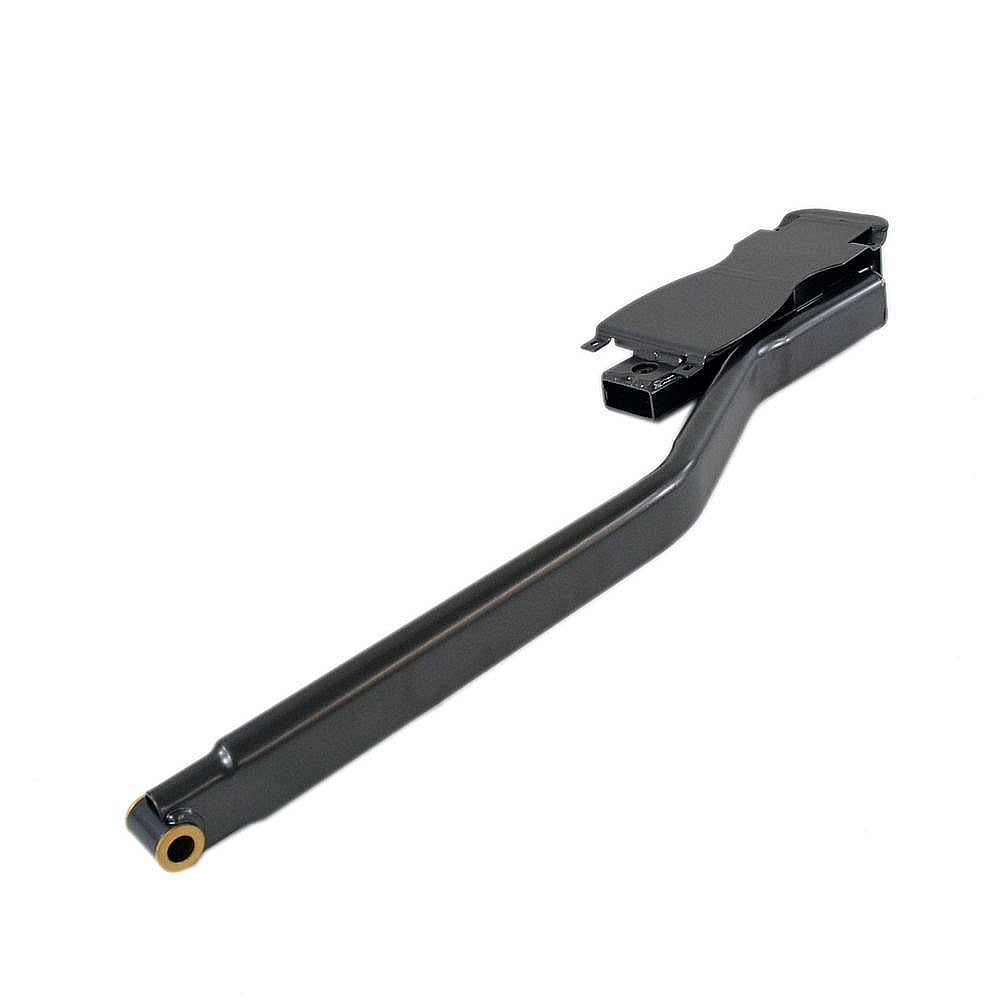

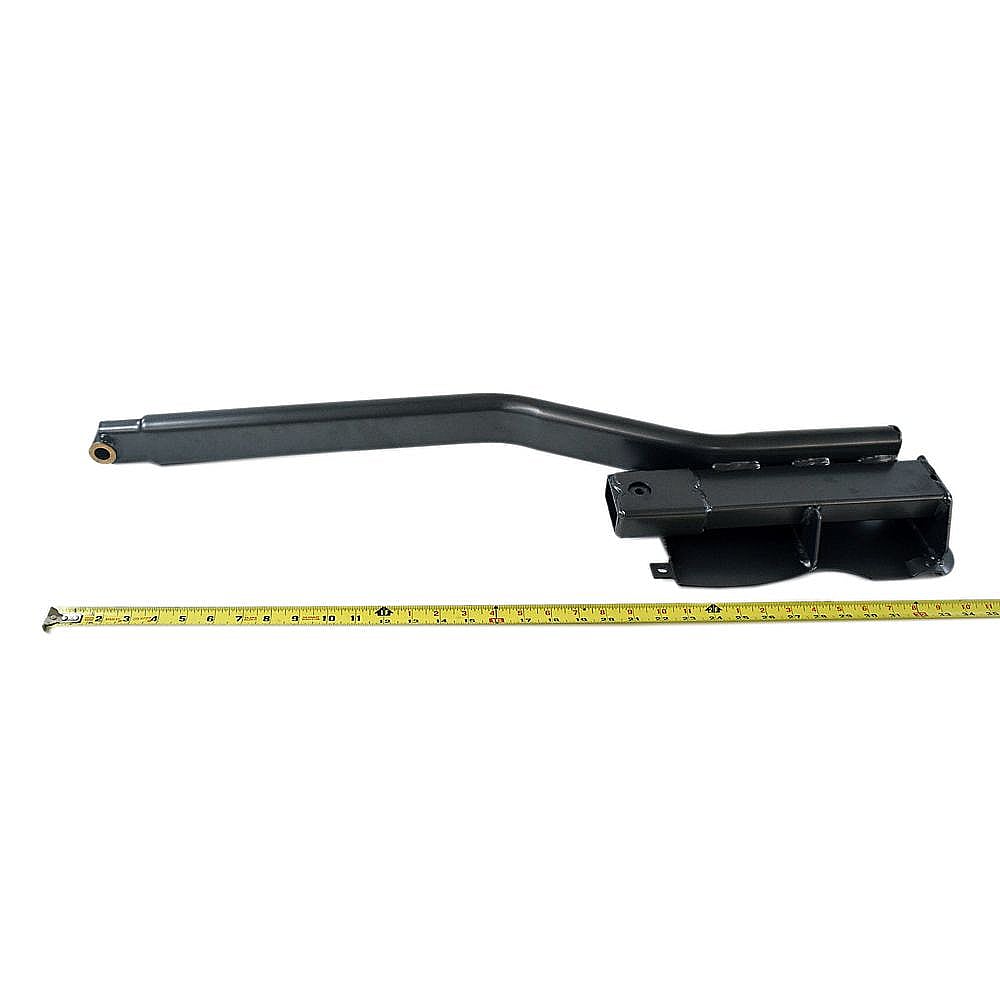

This pedal arm (part number 013109-ZL) is for ellipticals.
Pedal arm 013109-ZL holds the pedal and connects the pedal to the crank arm.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #EX-65 Horizon elliptical machine | EX-65 | Elliptical |
| Model #EX-44 Horizon elliptical machine | EX-44 | Unit assy |
| Model #EX-75 Horizon elliptical machine | EX-75 | Elliptical |
| Model #EX-22 Horizon elliptical machine | EX-22 | Elliptical |
| Model #EX-55 Horizon elliptical machine | EX-55 | Elliptical |
| Model #EX-33 Horizon elliptical machine | EX-33 | Unit assy |
