CONFIRM THE PART FITS
Part Information

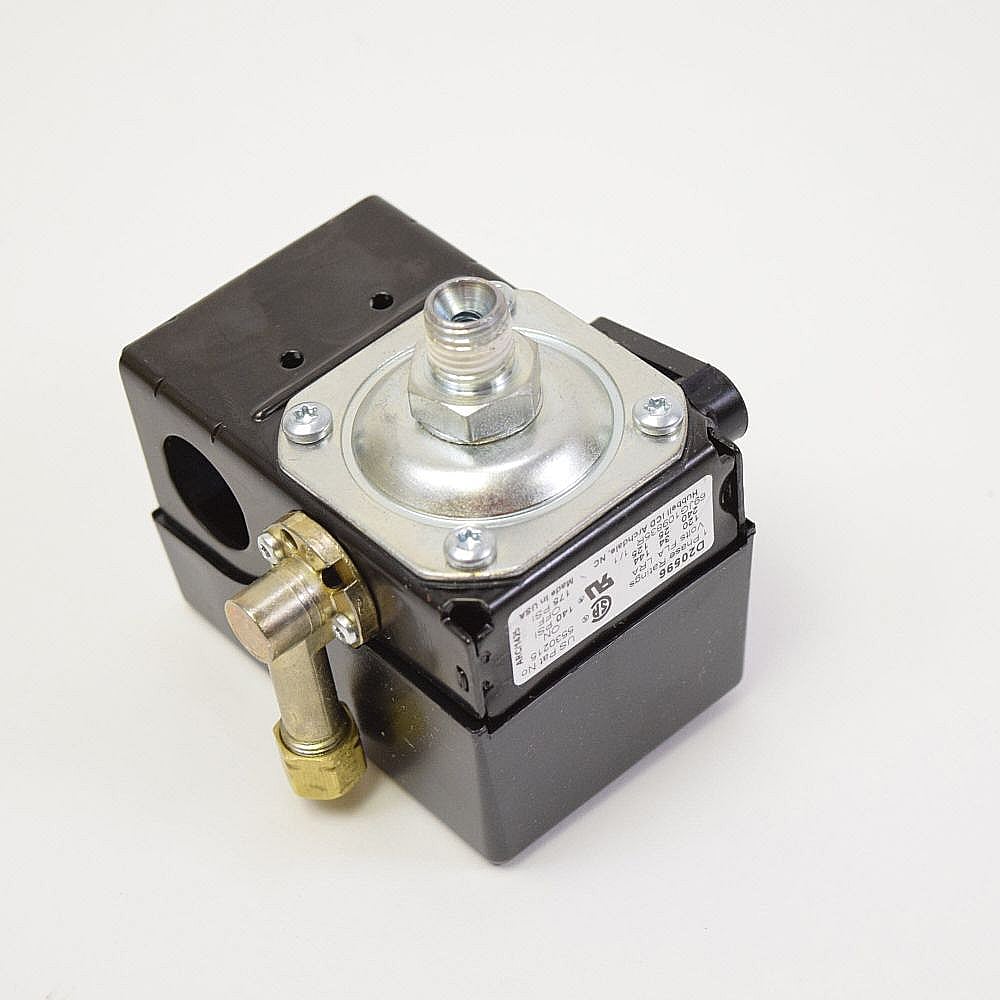

This pressure switch (part number 5140110-49) is for air compressors.
Pressure switch 5140110-49 turns the air compressor pump on and off to regulate tank air pressure.
Unplug the air compressor and bleed the air pressure from the tank before installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #919177452 Craftsman air compressor | 919177452 | Air compressor diagram |
| Model #919177351 Craftsman air compressor | 919177351 | Air compressor |
| Model #919176500 Craftsman air compressor | 919176500 | Air compressor diagram |
| Model #919176502 Craftsman air compressor | 919176502 | Compressor |
| Model #919176501 Craftsman air compressor | 919176501 | Air compressor |
| Model #919177152 Craftsman air compressor | 919177152 | Air compressor |
| Model #919177253 Craftsman air compressor | 919177253 | Air compressor diagram |
| Model #919167800 Craftsman air compressor | 919167800 | Air compressor |
| Model #919165610 Craftsman air compressor | 919165610 | Cabinet parts |
| Model #919165612 Craftsman air compressor | 919165612 | Compressor |
Reviews
It wasn't easy to install
I realized I needed a whole new plug and had some difficulty finding one.
Wayne a J, Newbury, NH
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
NOT a direct replacement
The thread pitch on the main air fitting on the bottom plate did not match original. Luckily, the original was easily interchanged with the plate on the new part. Be VERY careful when removing the 4 attaching screws as the main switch will fall apart. Take old one apart first to see what happens, and then also drill holes in old one very slightly larger for the new screws to pass thru.
mustangway, Saranac, NY
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
Easy to install
Ordered because I had a air leak coming out of the vent tube going into the pressure switch. Still have the same leak with the new pressure switch. Not sure why , or what is causing the leak.
Paul2457, Colorado springs
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
