CONFIRM THE PART FITS

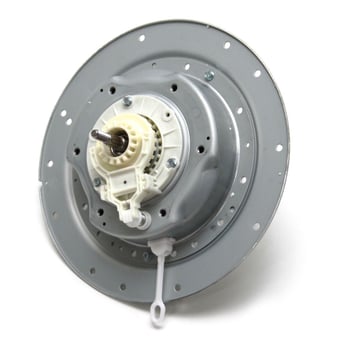

Washer Drive Shaft and Shifter Assembly AEN73131403
Part #AEN73131403
Replaced by #AEN73131406
?
Manufacturer substitution
This part replaces AEN73131403. Substitute parts can look different from the original.
Online Only Price
$202.17 |Â
6% OFFÂ Phone Price : $214.17
In Stock
For ZIP codes near Edit
This part fits
Part Information
Basic Information
- Part Name: Washer Drive Shaft and Shifter Assembly
- Manufacturer: LG
- Category: Washing Machine Drive System
- Primary Function: This assembly is responsible for converting the motor's rotary motion into the back-and-forth movement required for the agitator or wash plate, and it includes the shifter responsible for shifting the washer from wash to spin cycle.
Technical Specifications
- Dimensions: The exact dimensions vary based on the specific model but typically fit within the central tub area of compatible washing machines.
- Power Rating: Not applicable as it is a mechanical component.
- Material: Constructed from high-strength metal alloys for the shaft, with durable plastic components for the shifter assembly.
Installation & Compatibility
- Compatible Models: This part is designed to replace AEN73131403 and is compatible with various LG and Kenmore Elite top-load washer models.
- Installation Difficulty: Medium to Complex—Installation requires disassembling a significant portion of the washing machine to access the drive shaft and shifter.
- Tools Required: A standard set of hand tools including screwdrivers, a socket set, and potentially a spanner wrench specific to washing machine tub nuts.
Additional Information
The Washer Drive Shaft and Shifter Assembly (AEN73131406) is a crucial component that often needs replacement due to wear and tear over time, which can manifest as noises during the wash cycle, the washing machine failing to agitate or spin correctly, or leaking from the tub seal. This assembly is engineered to meet the exact specifications of the original part and ensure a perfect fit and long-lasting performance when installed correctly.
When replacing this part, we recommend you review the service manual for your specific model to understand the detailed steps involved. Since the process can be intricate, involving the removal of the washer's inner tub and possible recalibration of the machine, have a professional technician perform the installation if you are not familiar with appliance repair. It's important to unplug the washing machine and turn off the water supply before attempting any repairs to avoid electric shock or water damage.
Frequently Used Together
- $4.21 |Â19% OFFÂ Phone Price : $5.21
- $156.71 |Â7% OFFÂ Phone Price : $168.71
- $27.71 |Â18% OFFÂ Phone Price : $33.71
- $156.71 |Â7% OFFÂ Phone Price : $168.71
- $204.24 |Â6% OFFÂ Phone Price : $216.24
- $124.67 |Â9% OFFÂ Phone Price : $136.67
- $216.24 |Â5% OFFÂ Phone Price : $228.24
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #79631513210 Kenmore Elite washer | 79631513210 | Tub assembly parts |
| Model #WT1101CW/00 LG washer | WT1101CW/00 | Tub parts |
| Model #79631513211 Kenmore Elite washer | 79631513211 | All parts |
| Model #WT1901CW LG washer | WT1901CW | All parts |
| Model #WT1901CK LG washer | WT1901CK | All parts |
| Model #WT7600HWA LG washer | WT7600HWA | All parts |
| Model #WT5270CW LG washer | WT5270CW | Tub assembl |
| Model #79631423411 Kenmore Elite washer | 79631423411 | Tub parts |
| Model #79631423410 Kenmore Elite washer | 79631423410 | Tub assembly |
| Model #WT1301CW/00 LG washer | WT1301CW/00 | All parts |
Reviews
Like new again
Went in great. Watched a YouTube video which helped a lot.
Scott, Danville Virginia
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
It Fit and fixed my problem.
I Would give 5 stars but the mounting flange had six holes for mounting the part to the drum and only three of them were tapped to accept the bolts. I still installed it and haven't had any issues but the factory one had all six installed. My washer was making a horrible grinding noise and this fixed the issue.
Mike, New Hampshire
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Helped fix our problem
Helped fix our problem. Did have to tap the mounting holes as everyone had stated. Shipping was fast. Initially stars we wouldn't see the part until September. However shipping was quick.
RESt, Utah
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
It fit perfect except 3 holes not tapped

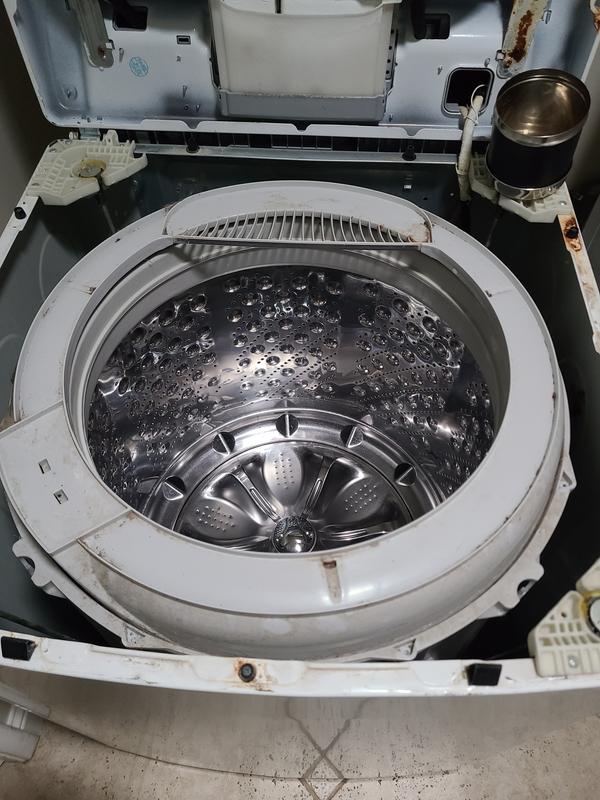

It fit and went on easy. U need a 38mm deep socket and impact gun to easily remove the tub nut. I used a 2 x 4 and a ranger strap to remove the agitator. It will be stuck on. You do not have to remove the inner tub to replace this part. If u have 6 bolts on the stator u have to tap 3 holes out or just use the 3 bolts only
JIT MARINE, WALNUTCREEK California
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
defective part
Part was defective. 3 of the 8 mounting holes for the motor windings on the bottom of the housing assembly were not tapped. Had to use my tap set complete the holes. I knew if I returned the item, it would be weeks before a I could get a replacement.
william g, Friendswood tx
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Good price, speedy shipment
Exact OEM part, cheaper than most other sites. Delivery next day.
Ted L, Bartlett
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Right part/ right price
OEM parts that fit and worked as it should. Shipping a week slower than advertised but the machine wasn't dead so not as big an issue as it could have been.
RBjr, NJ
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Difficult Install

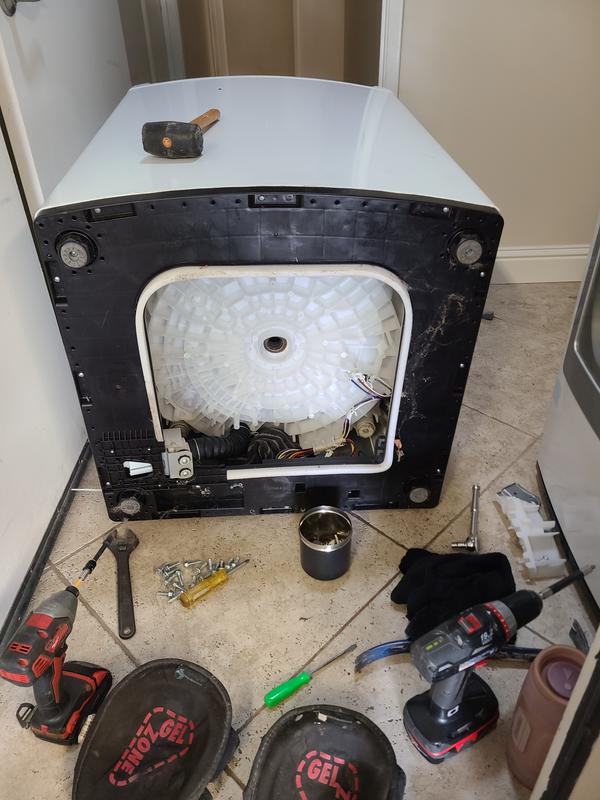

Washer plate was stuck on shaft. Needed to bolt a 2" x 4" on to it for leverage to finally wiggle it loose. Needed to obtain special 38mm socket to remove tub retaining nut. Nut was very tight all the way off. Removal & replacement without an air impact wrench would have been impossible. Tub was stuck on shaft. Eventually broke loose with more wiggling. Shaft seal split & top half remained stuck in tub bottom but pried loose eventually. Good news is squeak is gone on heavy cycle with new drive part installed. New pump drained tub as it should eliminating the OE error code. New main board eliminated endless spin cycle & failure to shut off. Cleaning all parts & hoses gave everything a fresh start.
GeorgeH, Bradenton, FL
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
