Part Information
This oven door outer panel assembly (part number W10346127) is for ranges.

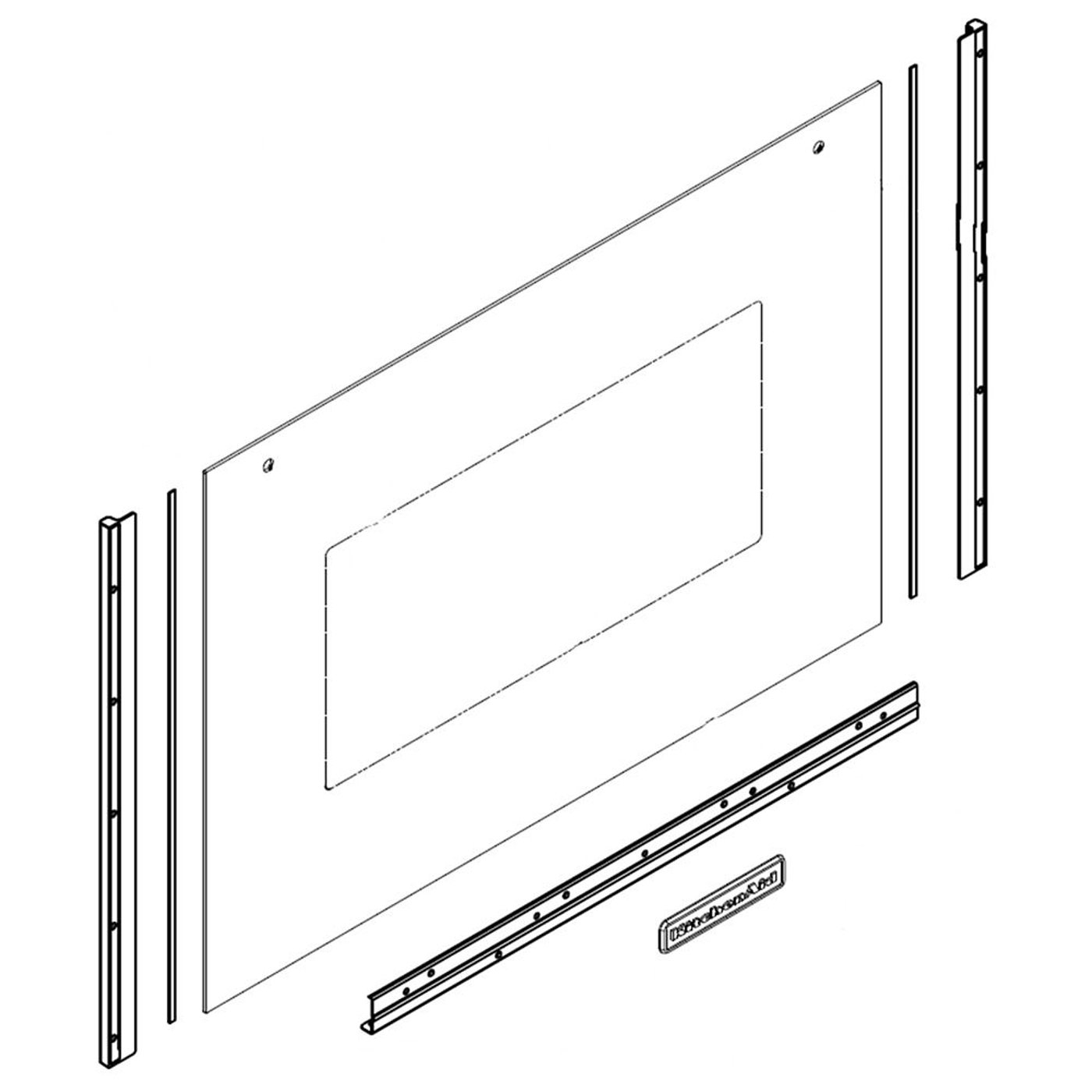

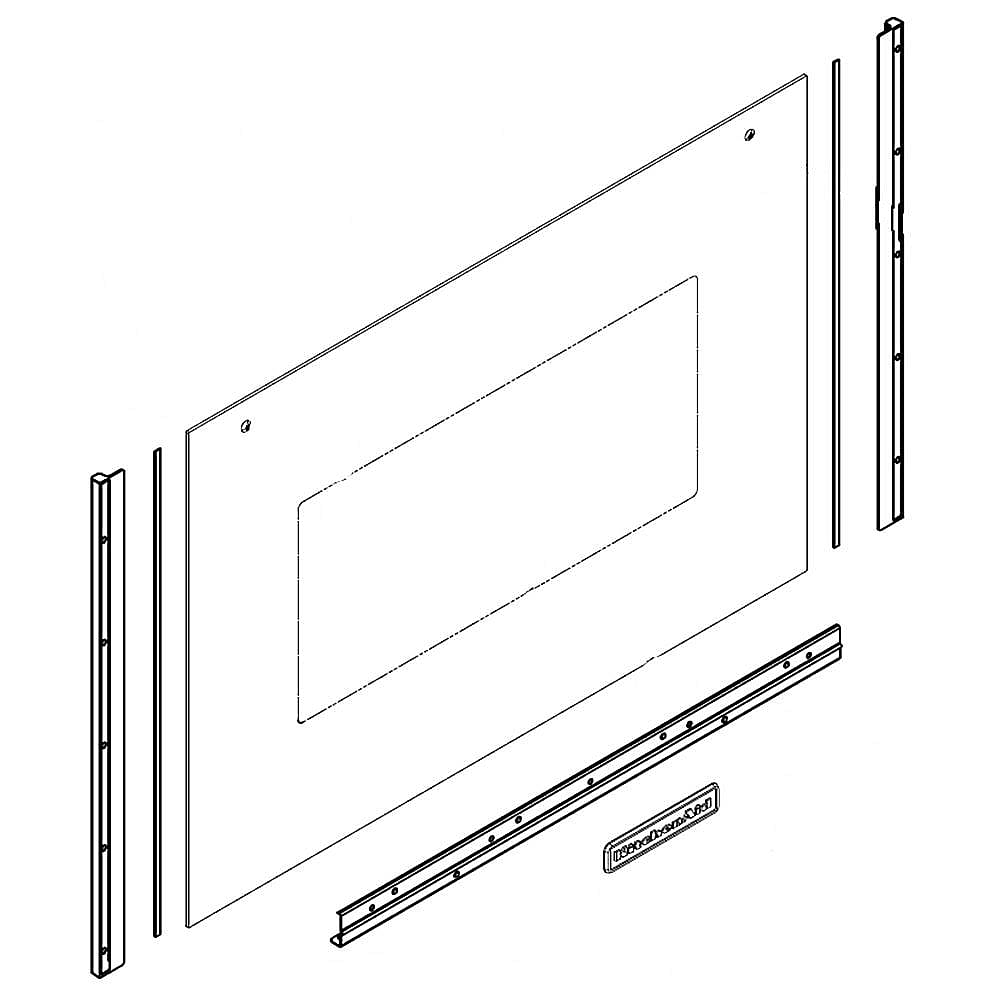

Oven door outer panel assembly W10346127 covers the outermost part of the oven door. The assembly may include multiple parts; refer to your parts diagram for a complete list of parts included.
Wait until the surface is cool to the touch before starting the repair. Wear work gloves to protect your hands. Caution: The oven door is heavy, so you might need two people to safely lift it off the oven frame for servicing.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #KERS505XBL03 KitchenAid electric range | KERS505XBL03 | Lower door parts |
| Model #KERS505XSS03 KitchenAid electric range | KERS505XSS03 | Lower door parts |
| Model #KDRS505XSS03 KitchenAid range | KDRS505XSS03 | Lower door parts |
| Model #KERS507XSS02 KitchenAid electric range | KERS507XSS02 | Lower door parts |
| Model #KERS505XWH03 KitchenAid electric range | KERS505XWH03 | Lower door parts |
| Model #KDRS505XSS04 KitchenAid range | KDRS505XSS04 | Lower door parts |
| Model #KGRS505XWH04 KitchenAid gas range | KGRS505XWH04 | Lower door parts |
| Model #KGRS505XSS04 KitchenAid gas range | KGRS505XSS04 | Lower door parts |
| Model #KGRS505XBL04 KitchenAid gas range | KGRS505XBL04 | Lower door parts |
| Model #KGRS505XWH05 KitchenAid gas range | KGRS505XWH05 | Lower door parts |
Reviews
Simple to install
Took just a few minutes to replace the broken on 5 screws for the door and 2 for the handle.
JWRJR, Fort Worth
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
