Poulan
Gas Chainsaw

Model # PP3816AV TYPE 2 Official Poulan chainsaw

Here are the diagrams and repair parts for Official Poulan PP3816AV-TYPE-2 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#7

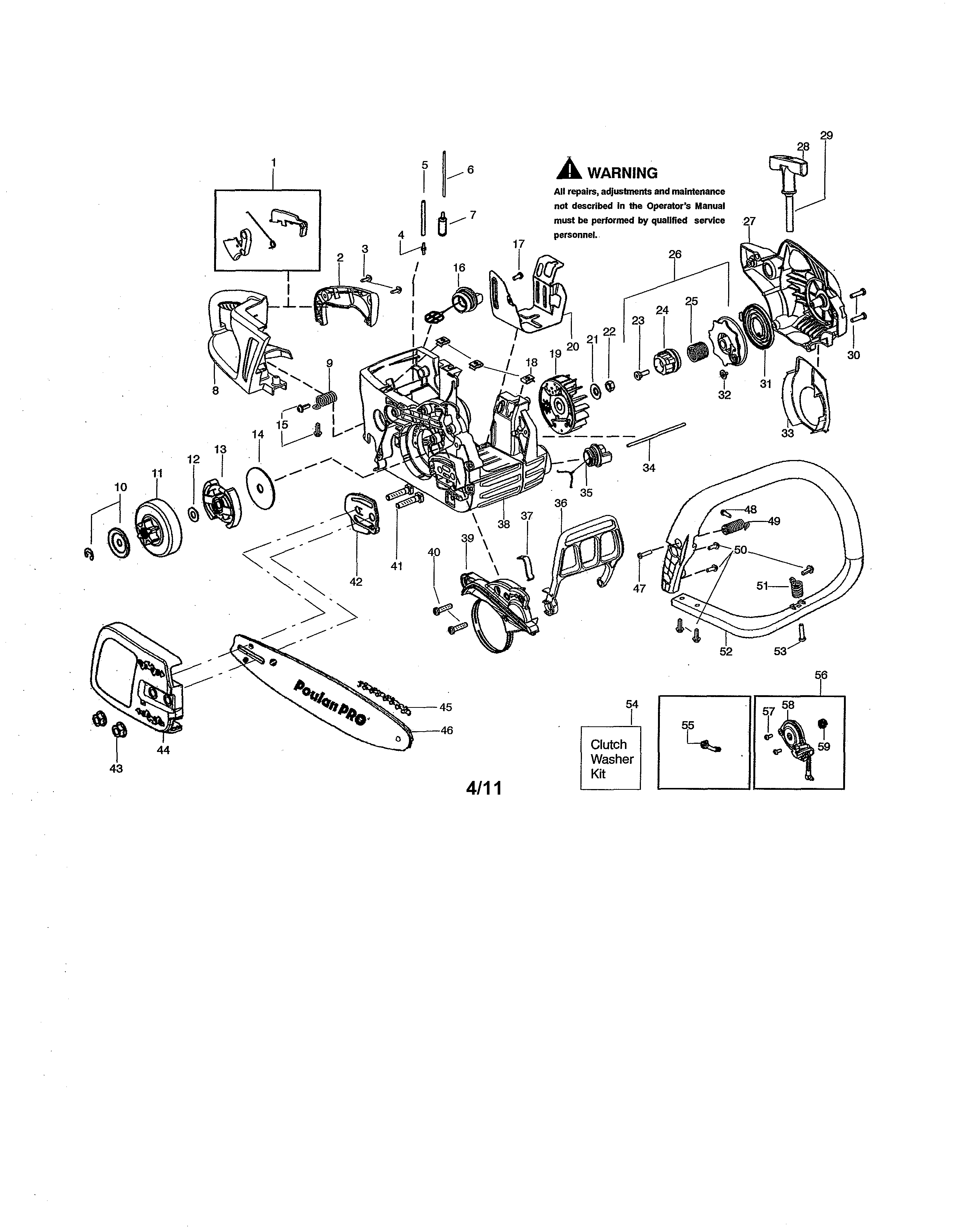

Chassis/bar/handle diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#5

Chassis/bar/handle diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Bulb (replaces 5300477-21, 530-047721) 530047721
#18

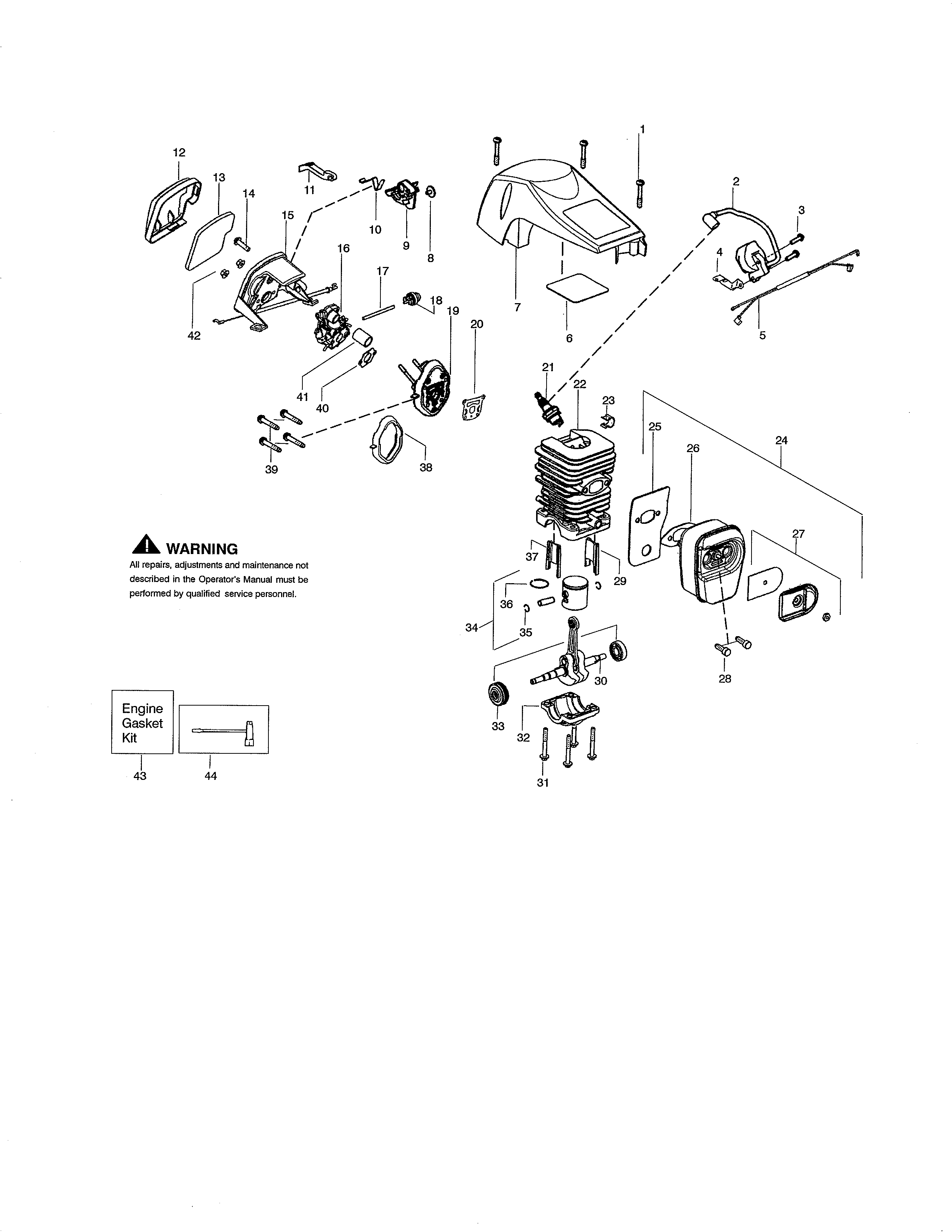

Shield/cylinder/muffler diagram

Lawn & garden equipment engine carburetor primer bulb (replaces 5300477-21, 530-047721)

Part #530047721

BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Chain 952051211
#45

Chassis/bar/handle diagram

Chain

Part #952051211

Replaced by #91PX056G

?
Manufacturer substitution
This part replaces 952051211. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.40 |
16% OFF Phone Price : $36.40
In Stock
Chainsaw Clutch Drum 530057905
#11

Chassis/bar/handle diagram

Chainsaw clutch drum

Part #530057905

Replaced by #501628301

?
Manufacturer substitution
This part replaces 530057905. Substitute parts can look different from the original.
BEST SELLER
$21.67 |
22% OFF Phone Price : $27.67
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#4

Chassis/bar/handle diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#29

Chassis/bar/handle diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Clutch 530057907
#13

Chassis/bar/handle diagram

Chainsaw clutch

Part #530057907

This item is not returnable
$17.33 |
10% OFF Phone Price : $19.33
In Stock
Chainsaw Bar Plate 530057910
#42

Chassis/bar/handle diagram

Chainsaw bar plate

Part #530057910

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
