Countertop Microwave

Model # R-408CW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-408CW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

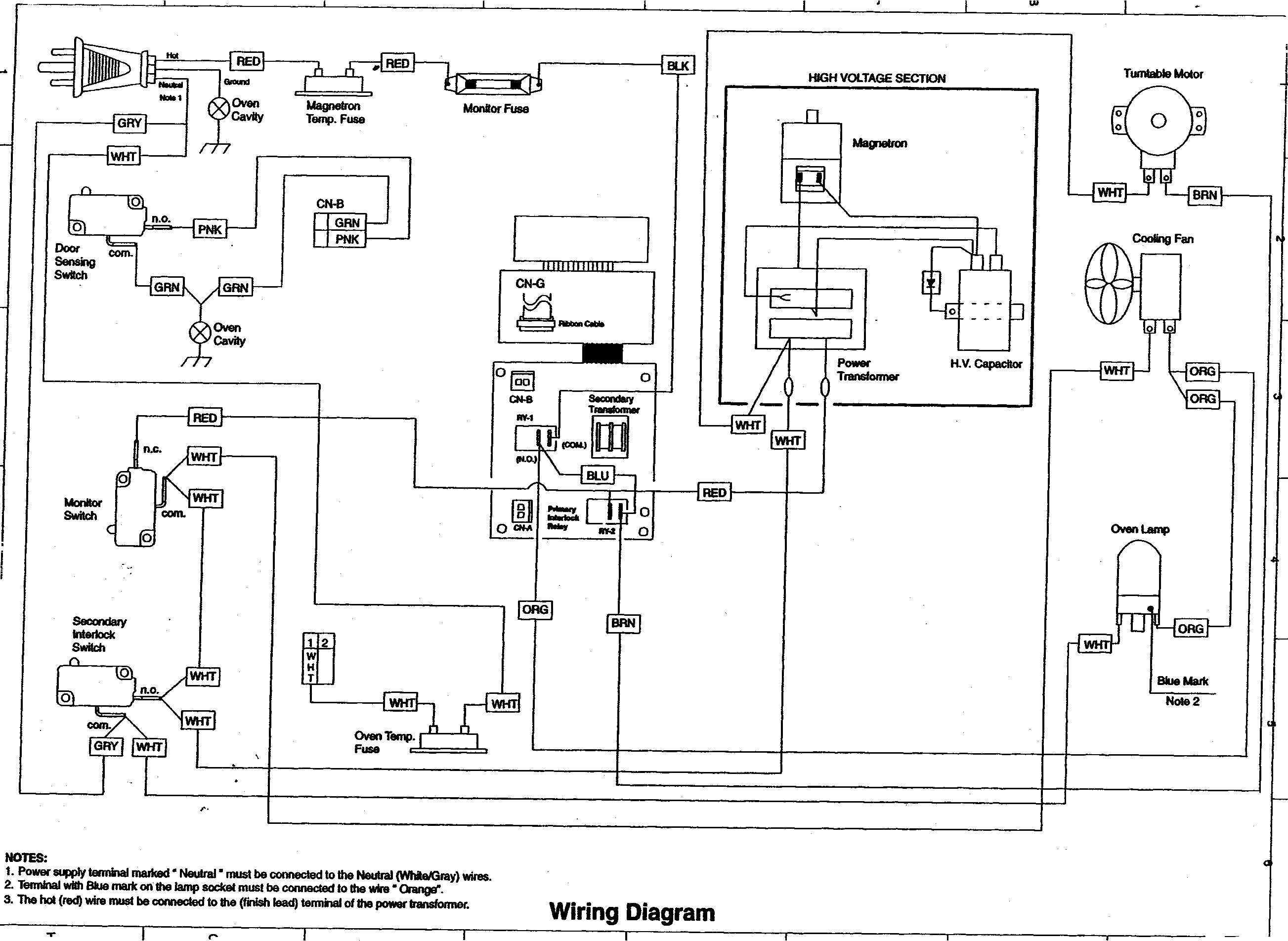

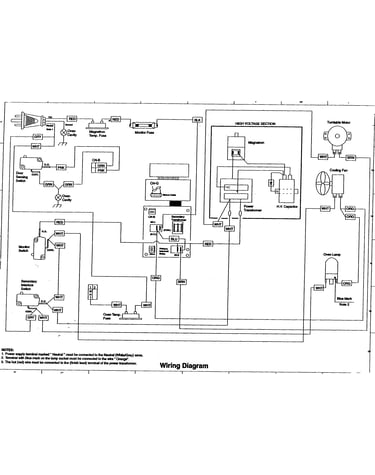

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Switch QSW-MA110WRE0
#1-9

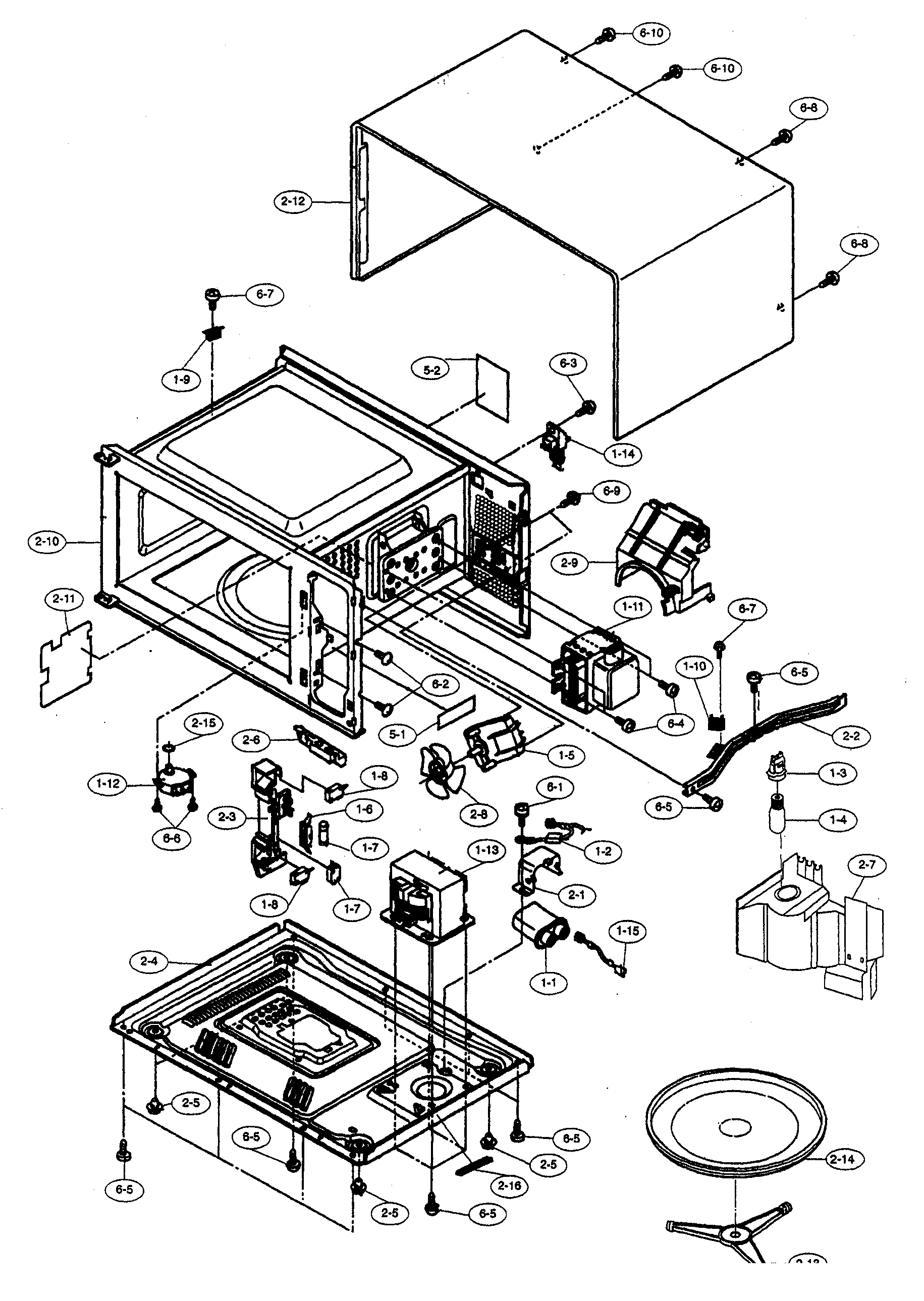

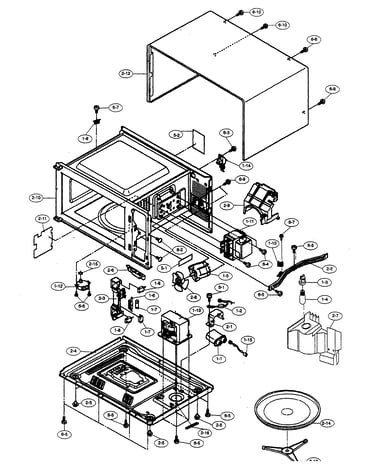

Cavity assy diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Hook PHOK-B018MRF0
#2-3

Cavity assy diagram

Hook

Part #PHOK-B018MRF0

The manufacturer no longer makes this part, and there's no substitute part

Temperature Fuse QFS-TA013WRE0
#1-10

Cavity assy diagram

Temperature fuse

Part #QFS-TA013WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cap H/v RC-QZB018MRE0
#1-1

Cavity assy diagram

Cap h/v

Part #RC-QZB018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Display Board PSHEPB023MRE0
#3-7

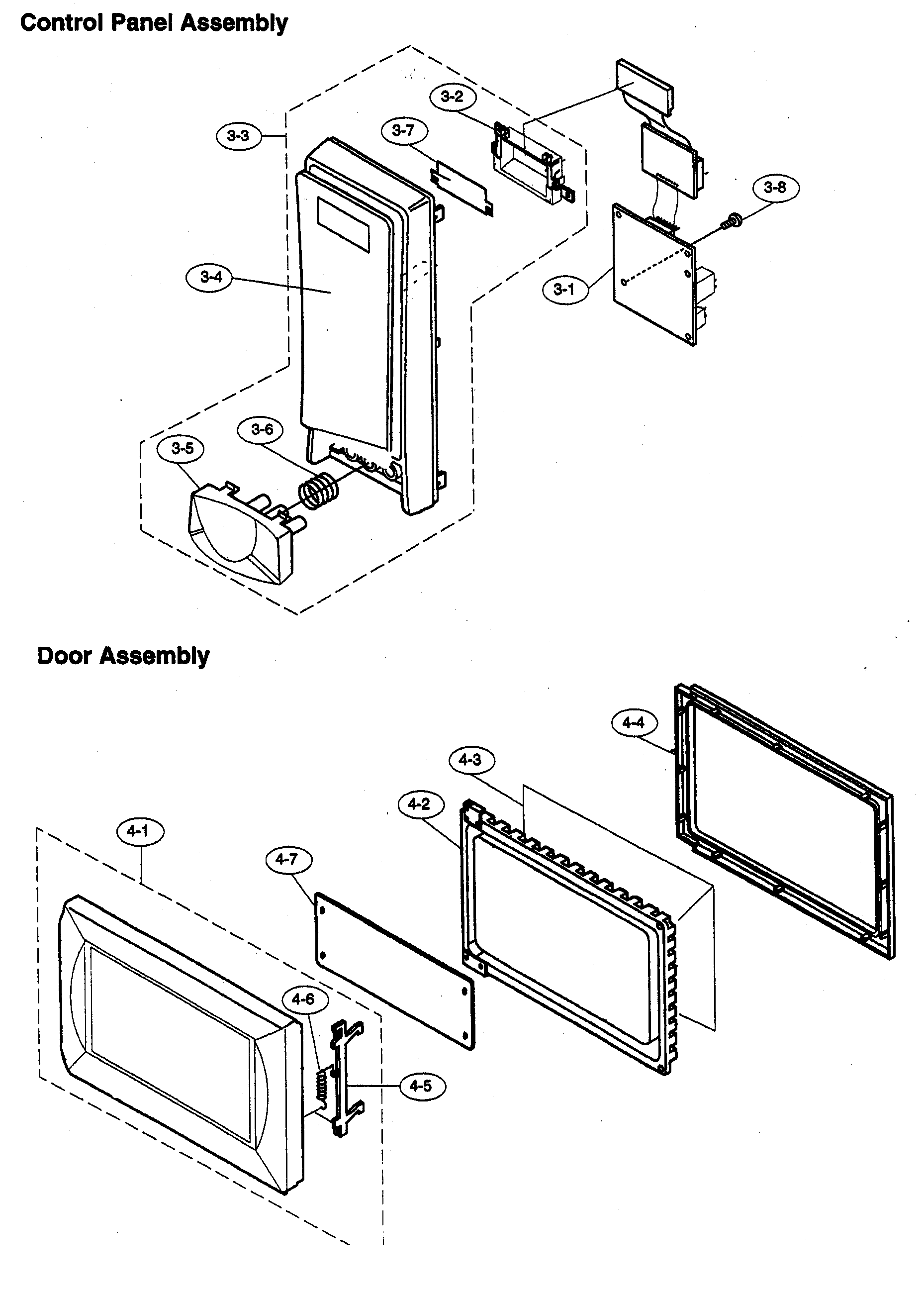

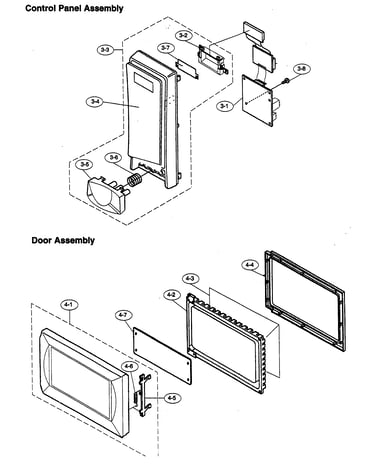

Control panel assy/door assy diagram

Microwave display board

Part #PSHEPB023MRE0

The manufacturer no longer makes this part, and there's no substitute part

Latch LSTPPB021MRF0
#4-5

Control panel assy/door assy diagram

Latch

Part #LSTPPB021MRF0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA070WRE0
#6-10

Cavity assy diagram

Screw

Part #LX-CZA070WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse QFS-TA014WRE0
#1-9

Cavity assy diagram

Fuse

Part #QFS-TA014WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB001MRE0
#2-8

Cavity assy diagram

Fan blade

Part #NFANPB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA211/KIT
#1-12

Cavity assy diagram

Motor

Part #RMOTDA211/KIT

The manufacturer no longer makes this part, and there's no substitute part
