Panasonic
Upright Vacuum

Model # MC-V3110 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-V3110 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Panasonic Panasonic Plate AC27AAFWZV07
#A-15

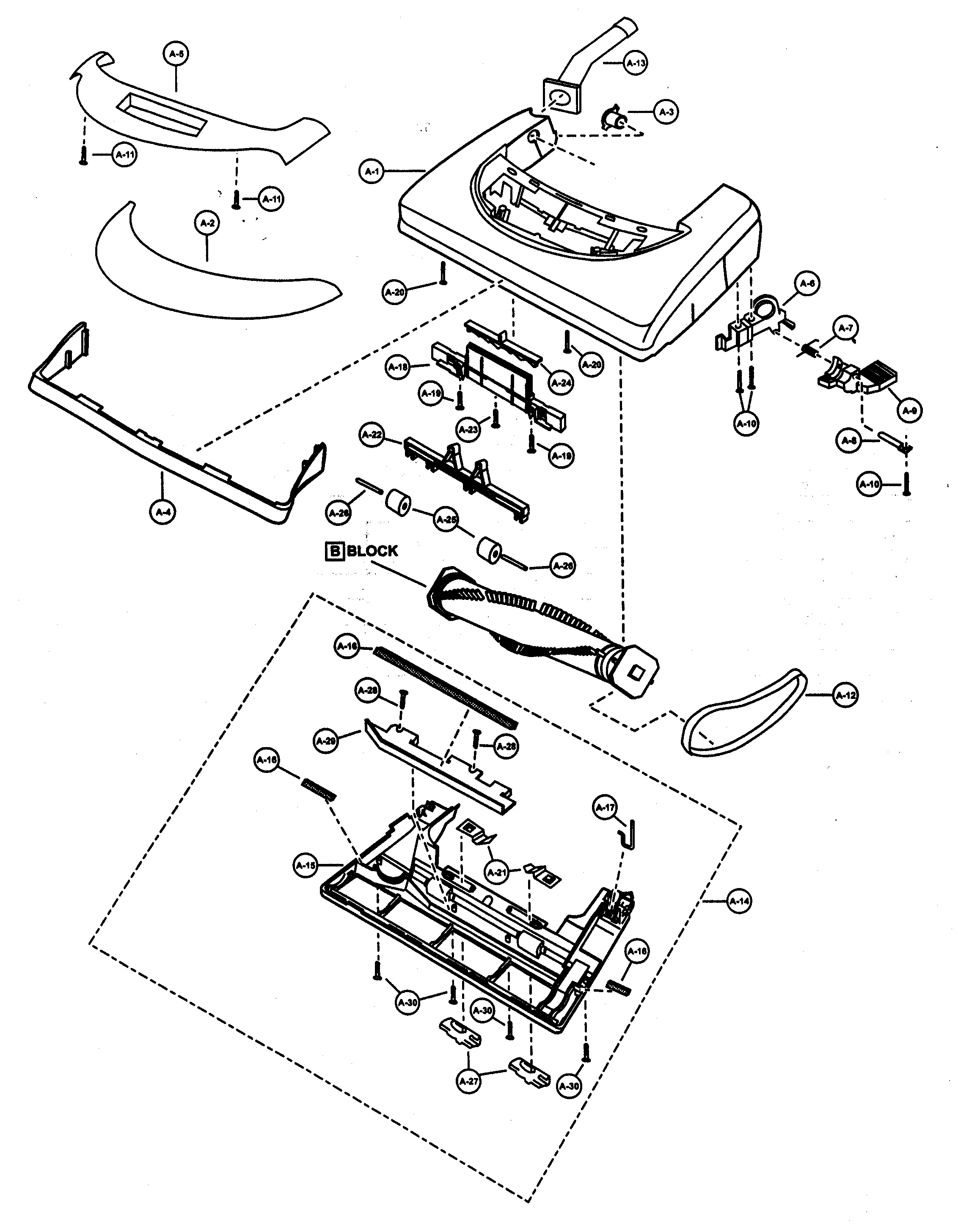

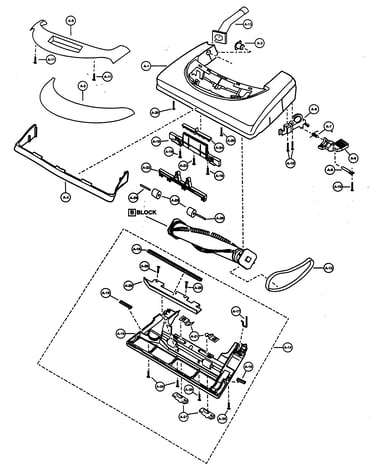

Nozzle housing diagram

Panasonic panasonic plate

Part #AC27AAFWZV07

$60.99
In Stock
Panasonic Bumper AC31AYUZV07
#C-30

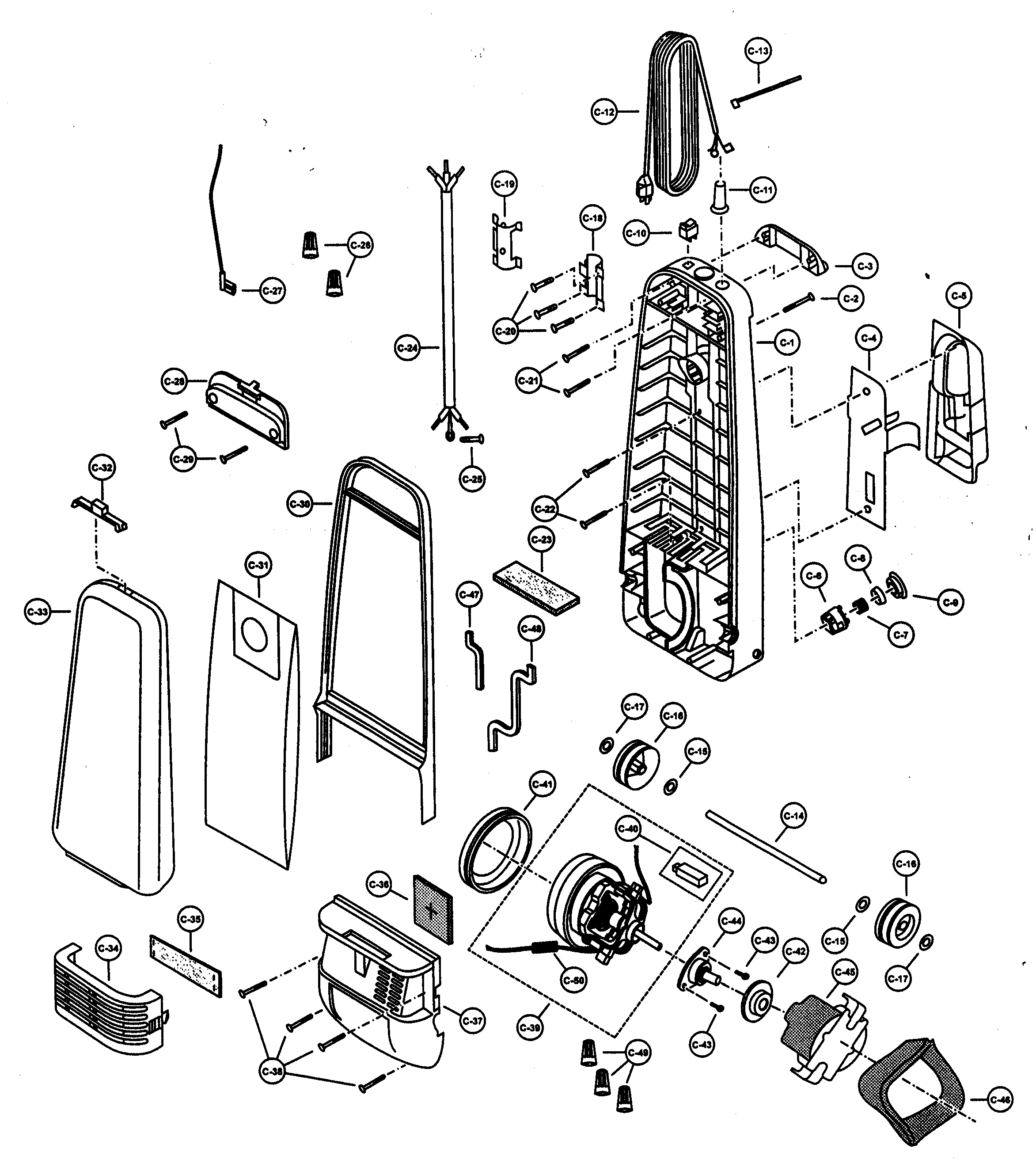

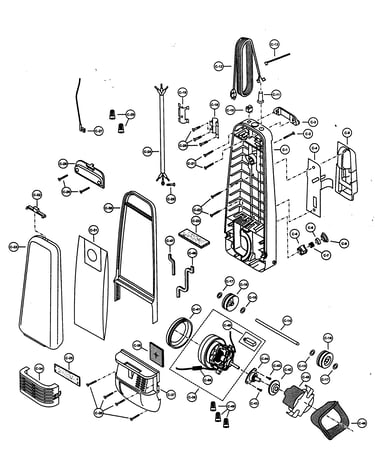

Body/motor housing/motor diagram

Panasonic bumper

Part #AC31AYUZV07

$27.49
In Stock
Panasonic Panasonic Plate Asy AC91ABAYZV07
#A-14

Nozzle housing diagram

Panasonic panasonic plate asy

Part #AC91ABAYZV07

$64.49
In Stock
Panasonic Handle Asy AC95BTCZV07
#D-1

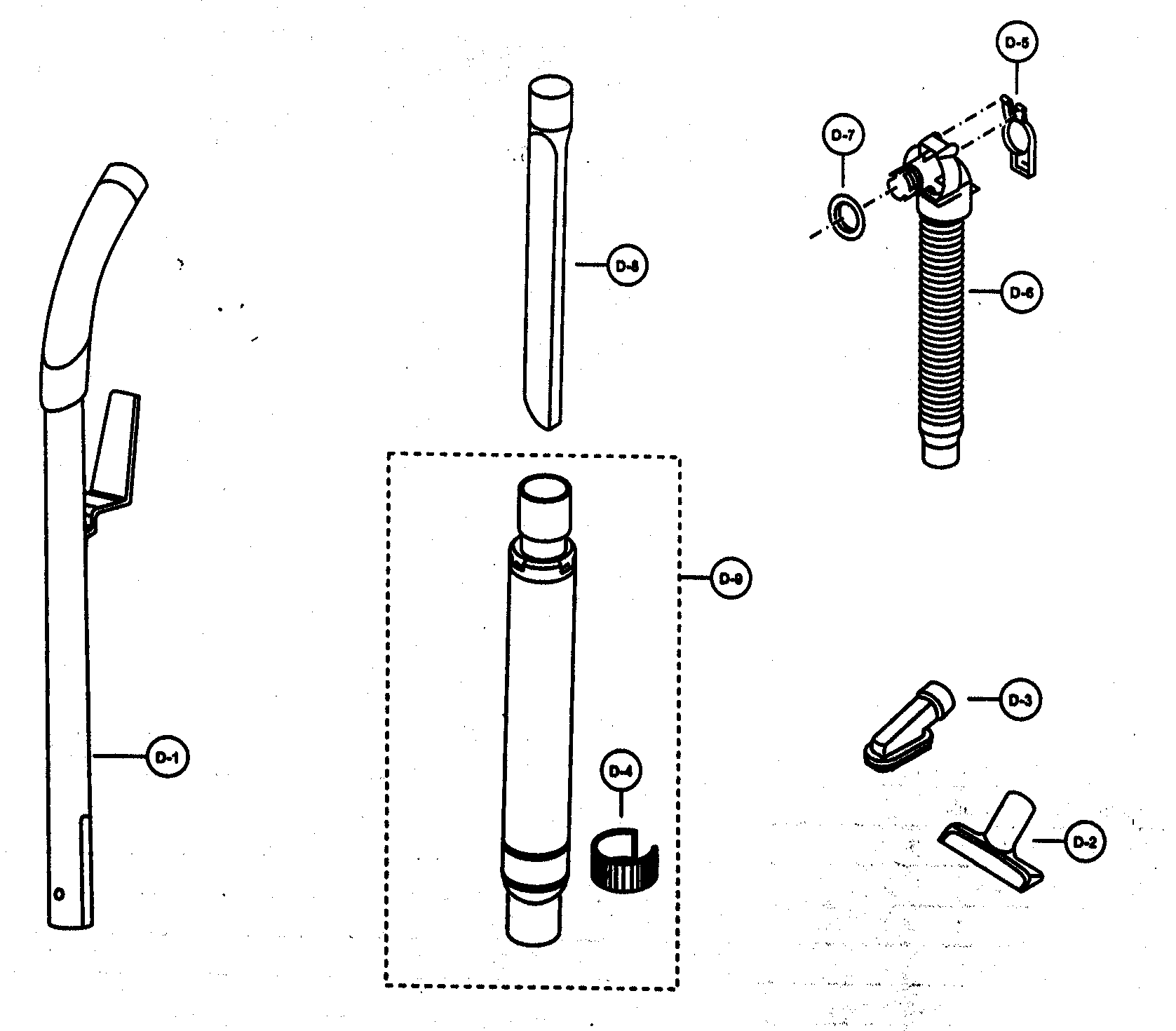

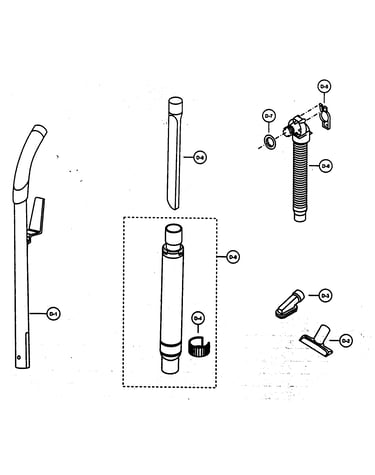

Handle/hose/attachments diagram

Panasonic handle asy

Part #AC95BTCZV07

$61.49
In Stock
Panasonic Shaft AMC25S-V00
#A-3

Nozzle housing diagram

Panasonic shaft

Part #AMC25S-V00

This item is not returnable
$7.49
In Stock
Panasonic Spacer AC60FRFZ00
#6

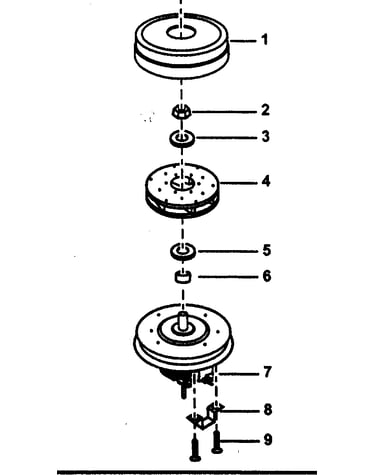

Motor fan assy diagram

Panasonic spacer

Part #AC60FRFZ00

$20.99
In Stock
Panasonic Spring AC58AAFVZ00
#A-7

Nozzle housing diagram

Panasonic spring

Part #AC58AAFVZ00

$16.99
In Stock
Panasonic Panasonic Cover AC24HCDHZVU7
#A-5

Nozzle housing diagram

Panasonic panasonic cover

Part #AC24HCDHZVU7

$26.49
In Stock
Panasonic Shaft AC16CUSZ00
#C-14

Body/motor housing/motor diagram

Panasonic shaft

Part #AC16CUSZ00

$9.99
In Stock
Panasonic Panasonic Window AC21HAGZZV07
#A-2

Nozzle housing diagram

Panasonic panasonic window

Part #AC21HAGZZV07

$25.49
In Stock
