Model # 5658872181 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658872181 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

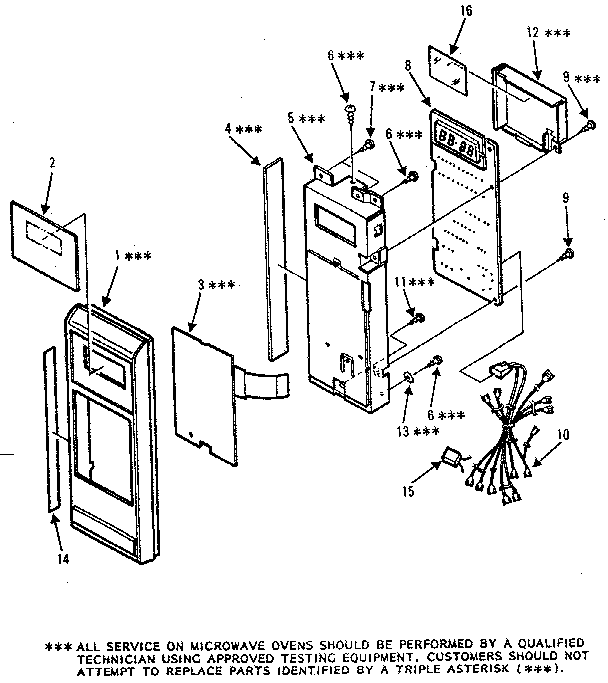

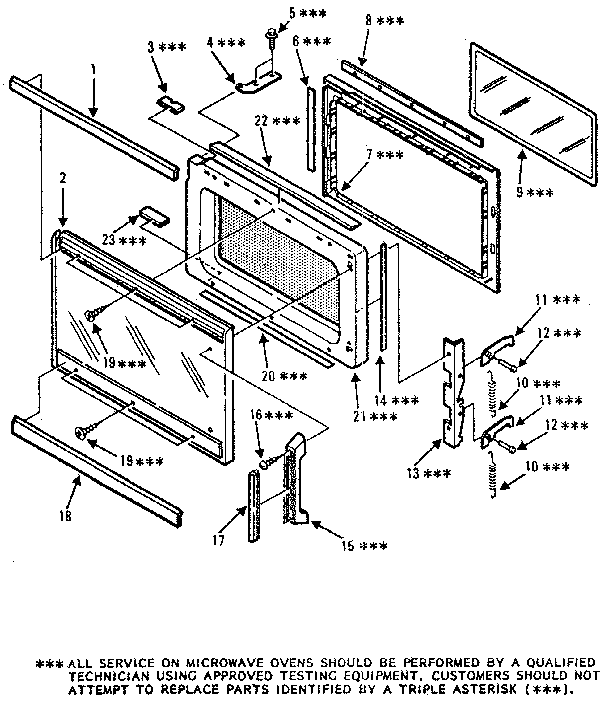

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 221 parts  |
Microwave Fuse, 15-amp 11255
#5

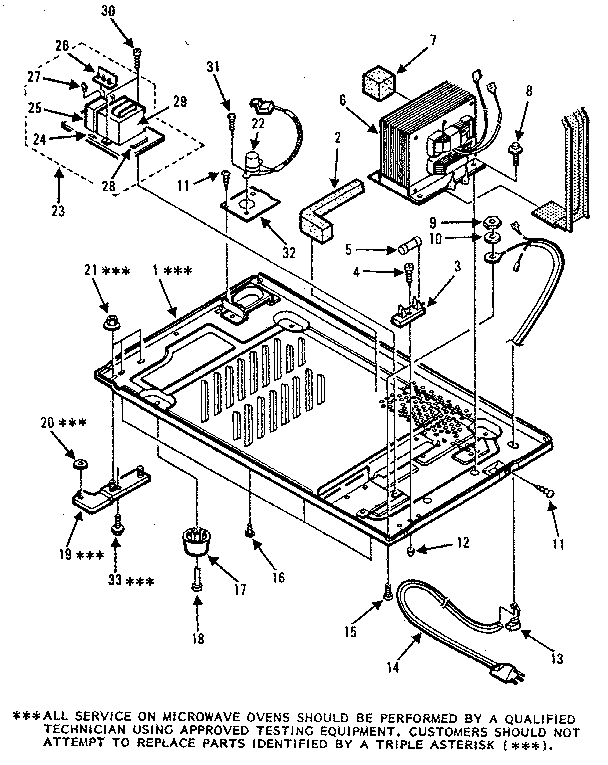

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12133
#8U

Power and control circuit board 14815 diagram

Capacitor

Part #12133

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 14689
#7

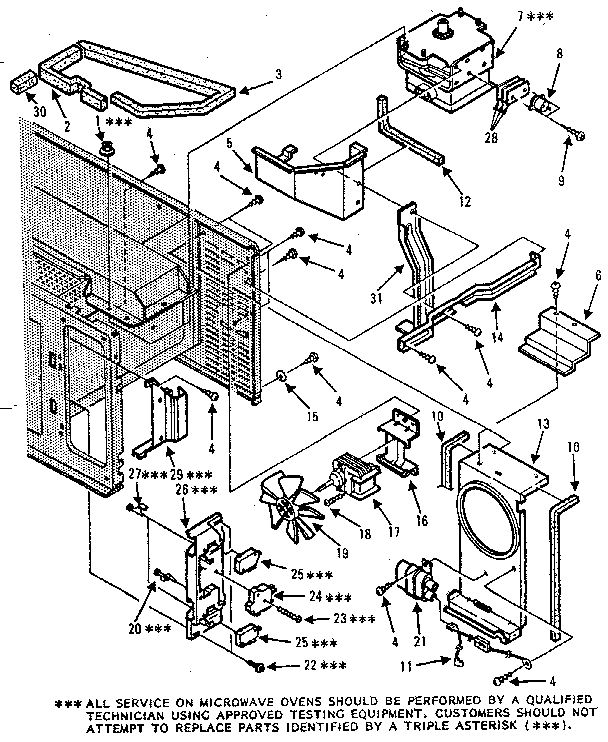

Switches and microwave parts diagram

Magnetron

Part #14689

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 11283
#5B

Power and control circuit board 14815 diagram

Intg circuit

Part #11283

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#25

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 14624
#21

Switches and microwave parts diagram

Capacitor

Part #14624

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12631
Capacitor

Part #12631

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11757
Capacitor

Part #11757

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 13872
#8A

Power and control circuit board 14815 diagram

Capacitor

Part #13872

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 14582
#21

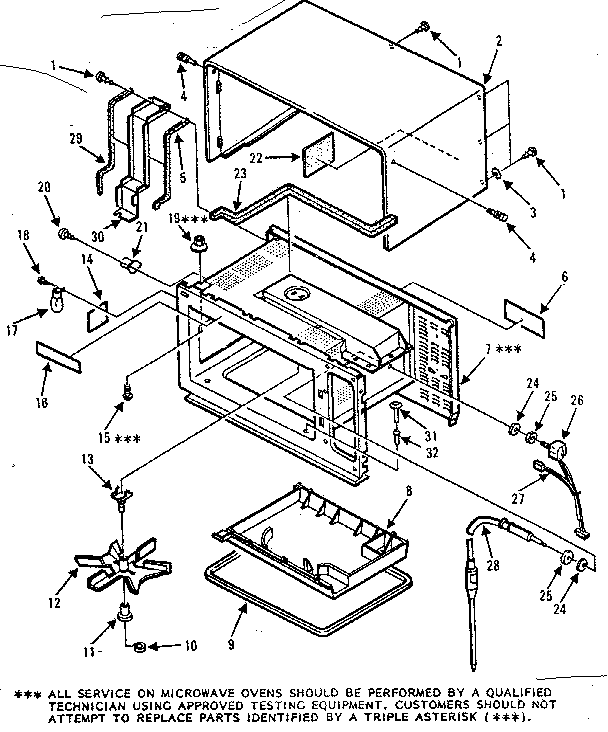

Cabinet parts diagram

Thermostat

Part #14582

The manufacturer no longer makes this part, and there's no substitute part
