Model # CXH518GKA100 Official ICP split-system heat pump

Here are the diagrams and repair parts for Official ICP CXH518GKA100 split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

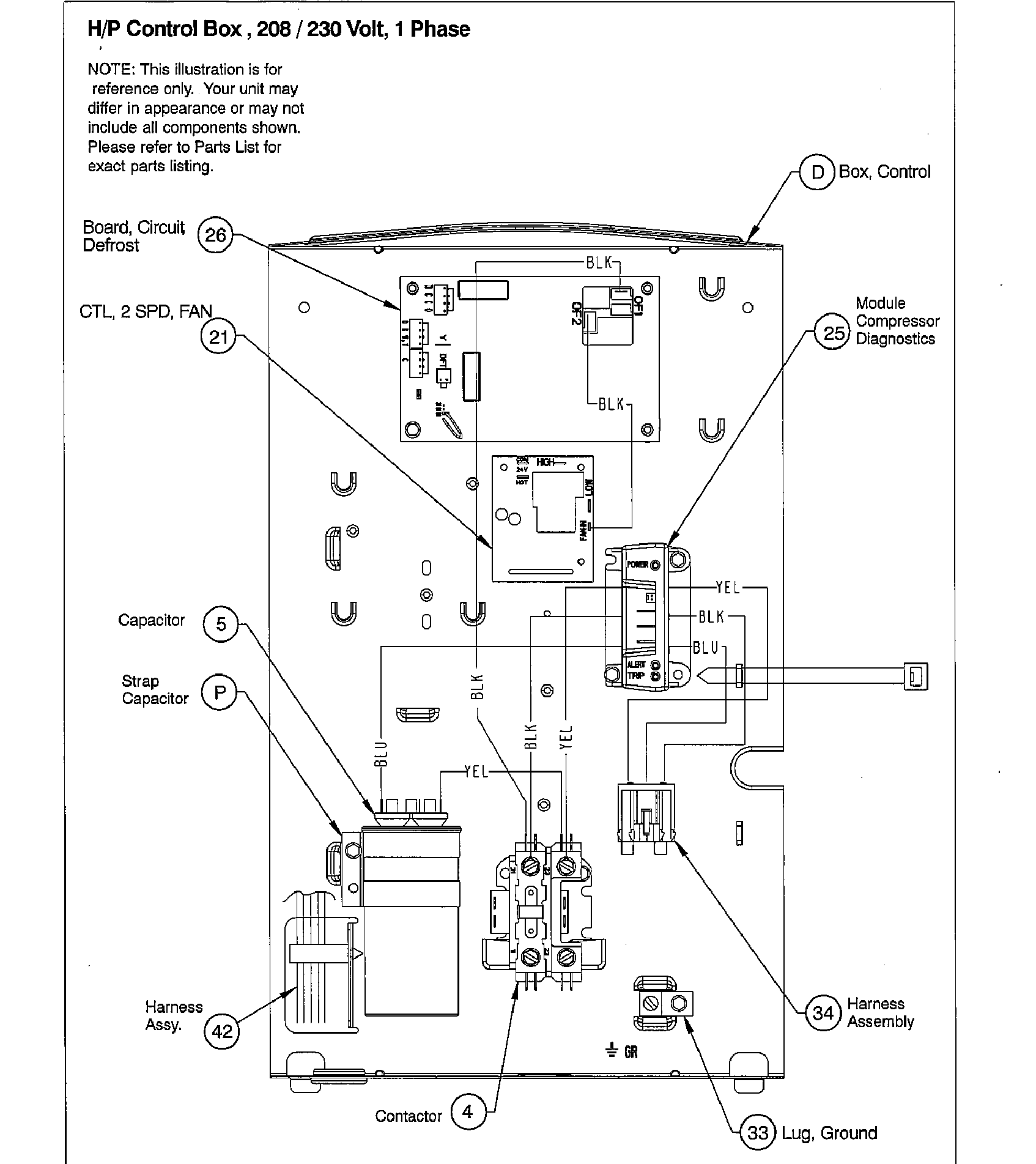

Control panel diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
7% OFF Phone Price : $91.61
In Stock
Condensing Unit Defrost Control Board 1173636
#26

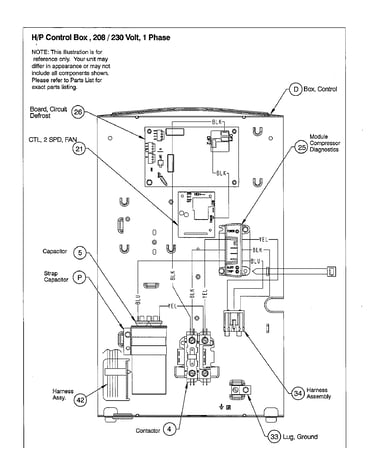

Control panel diagram

Condensing unit defrost control board

Part #1173636

$174.11 |
6% OFF Phone Price : $186.11
In Stock
Capillary 1174096
#16

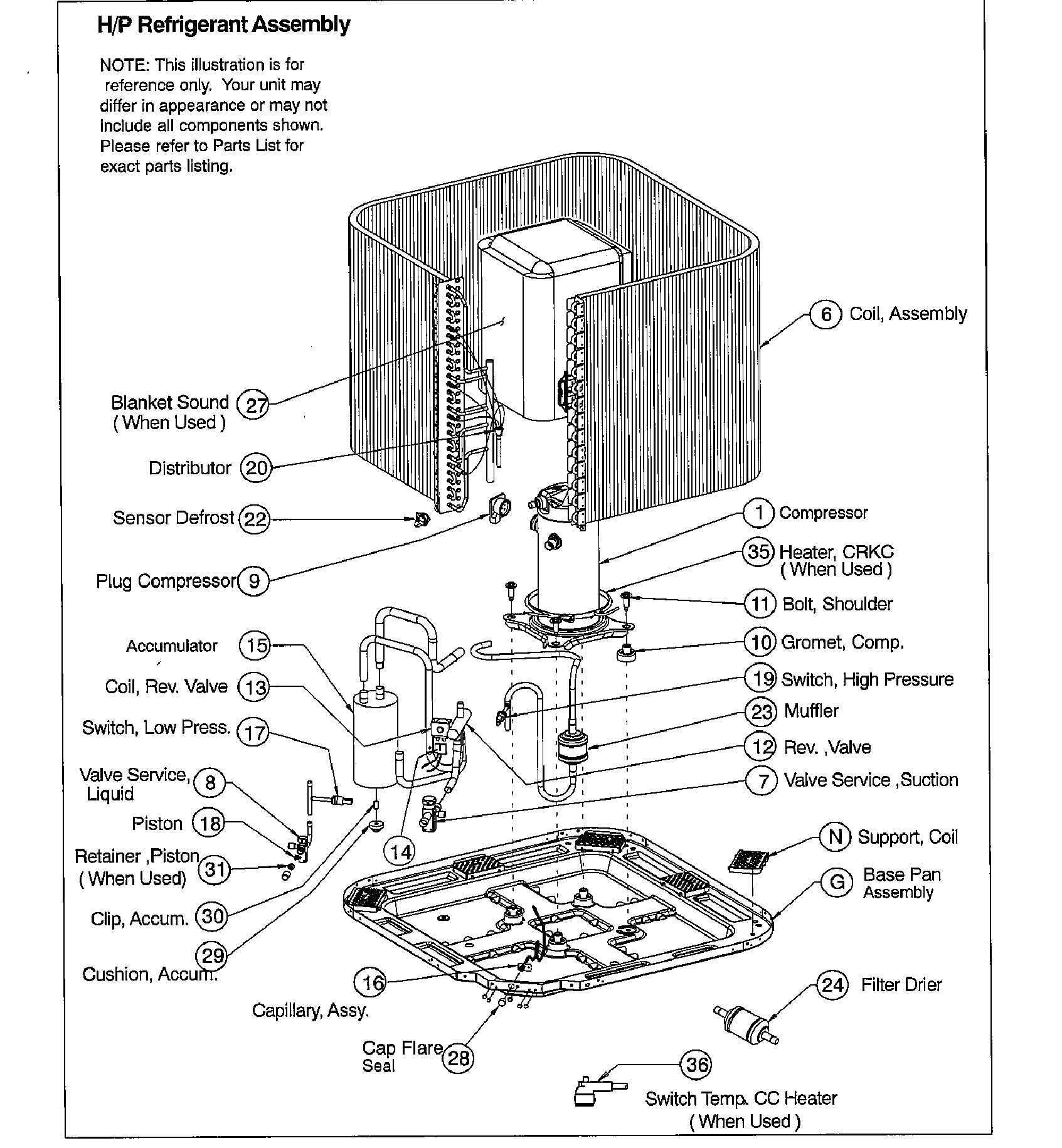

Compressor diagram

Capillary

Part #1174096

$135.14
In Stock
Accumulatr 1172312
#15

Compressor diagram

Accumulatr

Part #1172312

$188.26
In Stock
Clip 1173640
#30

Compressor diagram

Clip

Part #1173640

This item is not returnable
$2.16
In Stock
Piston 1173634
#18

Compressor diagram

Piston

Part #1173634

$9.94
In Stock
Lug Ground 1172300
#33

Control panel diagram

Lug ground

Part #1172300

This item is not returnable
$6.54
In Stock
Switch 1174695
#19

Compressor diagram

Switch

Part #1174695

$52.53 |
10% OFF Phone Price : $58.53
In Stock
Grommet 1171737
#NI

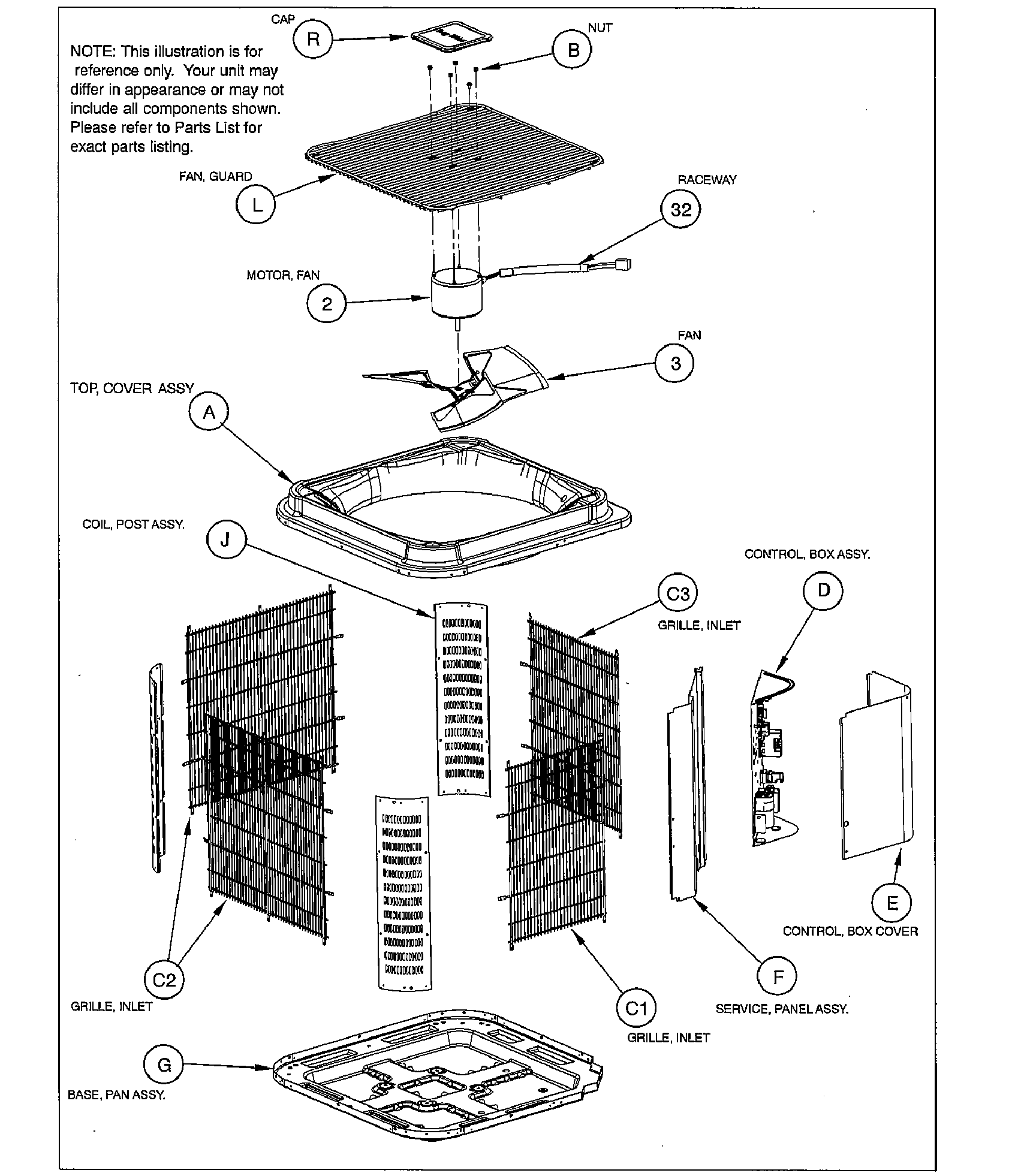

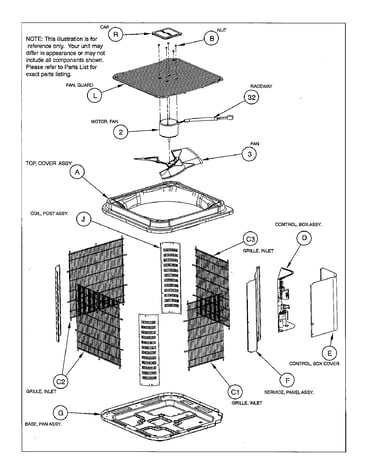

Cabinet diagram

Grommet

Part #1171737

This item is not returnable
$2.34
In Stock
Drier 1174194
#NI

Cabinet diagram

Drier

Part #1174194

$245.16
In Stock
