Model # NCGM125EKA3 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NCGM125EKA3 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Blower Wheel 1009147
#28

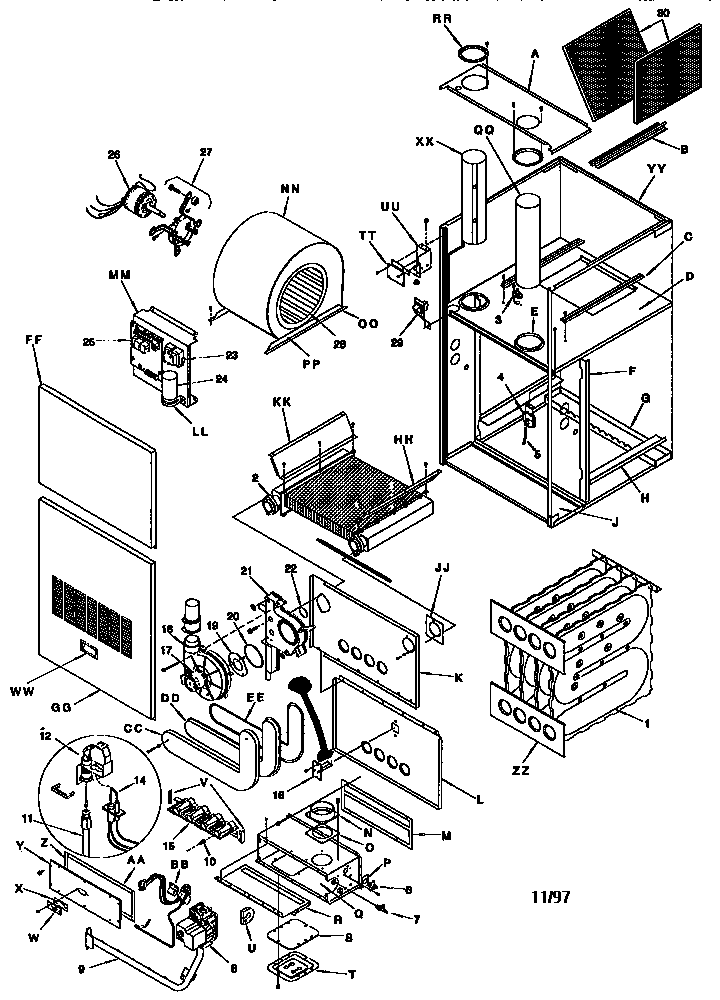

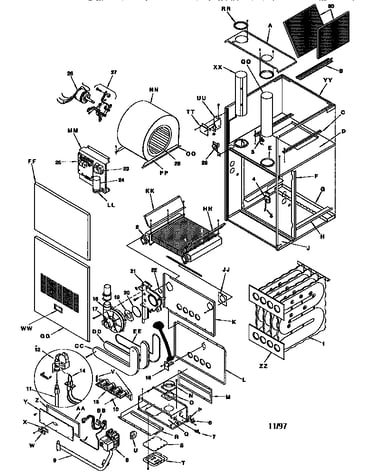

Unit parts diagram

Blower wheel

Part #1009147

Replaced by #1011420

?
Manufacturer substitution
This part replaces 1009147. Substitute parts can look different from the original.
$160.43 |
7% OFF Phone Price : $172.43
In Stock
Valve-nat 1011024
#8

Unit parts diagram

Valve-nat

Part #1011024

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1011024. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Drain Trap 1010537
#21

Unit parts diagram

Drain trap

Part #1010537

Replaced by #1011850

?
Manufacturer substitution
This part replaces 1010537. Substitute parts can look different from the original.
$131.64
In Stock
Ht Ex M Ss + 1008879
#1

Unit parts diagram

Ht ex m ss +

Part #1008879

Replaced by #1014492

?
Manufacturer substitution
This part replaces 1008879. Substitute parts can look different from the original.
$809.06 |
$12.00 OFF Phone Price : $821.06
In Stock
Furnace Pilot Burner Bracket 1010901
#BB

Unit parts diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
Gskt Coll Bx 1009538
#EE

Unit parts diagram

Gskt coll bx

Part #1009538

$24.60
In Stock
Clamp Capctr 1095020
#LL

Unit parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Furnace Burner 1008726
#15

Unit parts diagram

Furnace burner

Part #1008726

$142.32
In Stock
Bracket Coil 1008694
#KK

Unit parts diagram

Bracket coil

Part #1008694

$132.82
In Stock
Gskt Burn Bx 1008761
#M

Unit parts diagram

Gskt burn bx

Part #1008761

$25.29
In Stock
