Model # 1162375190 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 1162375190 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Vacuum Grip Handle 4155620
#44

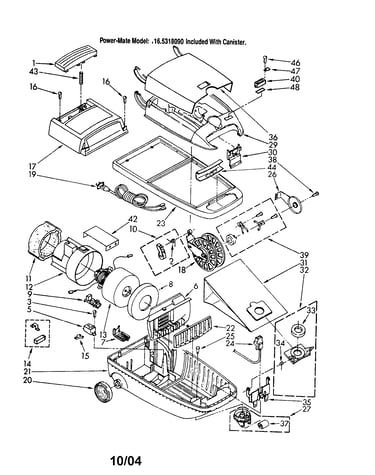

Canopy/body/wheels diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Pedal 4155623
#1

Canopy/body/wheels diagram

Pedal

Part #4155623

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 780343
#38

Canopy/body/wheels diagram

Vacuum screw

Part #780343

The manufacturer no longer makes this part, and there's no substitute part

Hose 4156270
#1

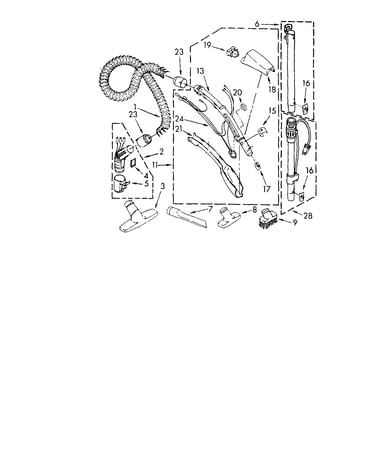

Hose and attachments diagram

Hose

Part #4156270

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#3

Hose and attachments diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4152380
#26

Canopy/body/wheels diagram

Bracket

Part #4152380

The manufacturer no longer makes this part, and there's no substitute part

Seal 4154151
#8

Canopy/body/wheels diagram

Seal

Part #4154151

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Canopy/body/wheels diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Frame Plug 4147153
#4

Hose and attachments diagram

Frame plug

Part #4147153

The manufacturer no longer makes this part, and there's no substitute part

Packing 4368704
#48

Canopy/body/wheels diagram

Packing

Part #4368704

The manufacturer no longer makes this part, and there's no substitute part
