Model # 8-50-NART6 Official Superior gas water heater

Here are the diagrams and repair parts for Official Superior 8-50-NART6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Thermostat 9000054
#19

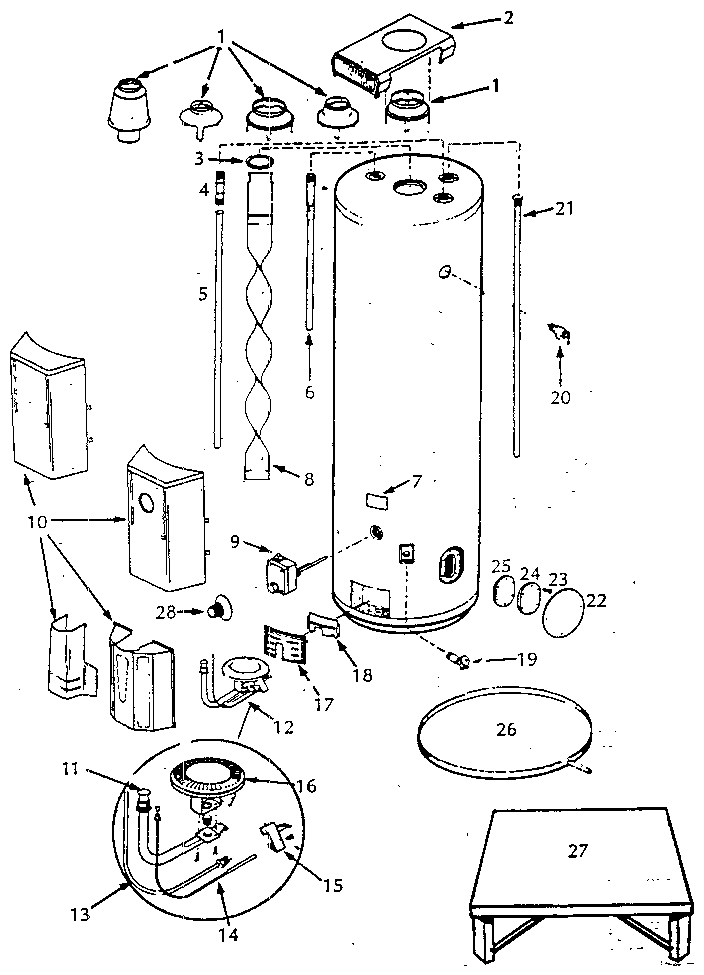

Round gas diagram

Thermostat

Part #9000054

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 9000054. Substitute parts can look different from the original.
BEST SELLER
$33.17 |
15% OFF Phone Price : $39.17
In Stock
Anode Rod 9001314
#6

Round gas diagram

Anode rod

Part #9001314

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9001314. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Box 9000356
#2

Round gas diagram

Box

Part #9000356

This item is not returnable
$4.99
In Stock
Water Heater Manifold Inner Door 9000281
#18

Round gas diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Anode Rod 9000734
#21

Round gas diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
Water Heater Burner 9000390
#16A

Round gas diagram

Water heater burner

Part #9000390

Replaced by #100108399

?
Manufacturer substitution
This part replaces 9000390. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#13

Round gas diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Pilot 9000284
#15

Round gas diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Heater Stand 9001422
#27A

Round gas diagram

Heater stand

Part #9001422

Replaced by #9005744005

?
Manufacturer substitution
This part replaces 9001422. Substitute parts can look different from the original.
$115.49
In Stock
Nipple 9000948
#4

Round gas diagram

Nipple

Part #9000948

Replaced by #9002564

?
Manufacturer substitution
This part replaces 9000948. Substitute parts can look different from the original.
$19.19 |
9% OFF Phone Price : $21.19
In Stock
