Sharp
Countertop Microwave

Model # R-410HK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-410HK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

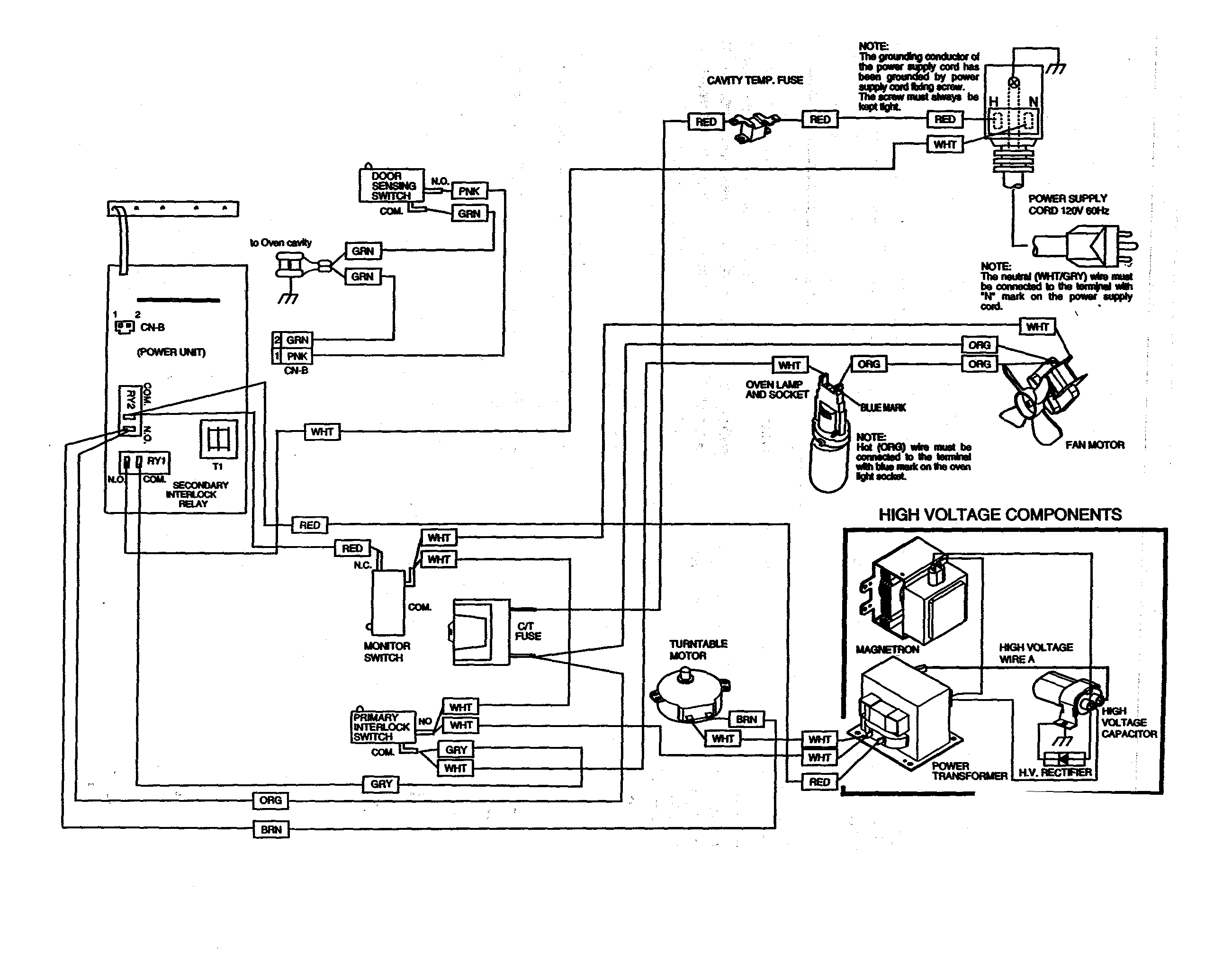

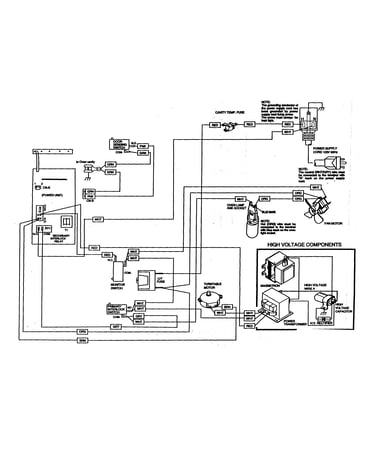

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Microwave Glass Turntable Tray NTNT-A108WREZ
#6-4

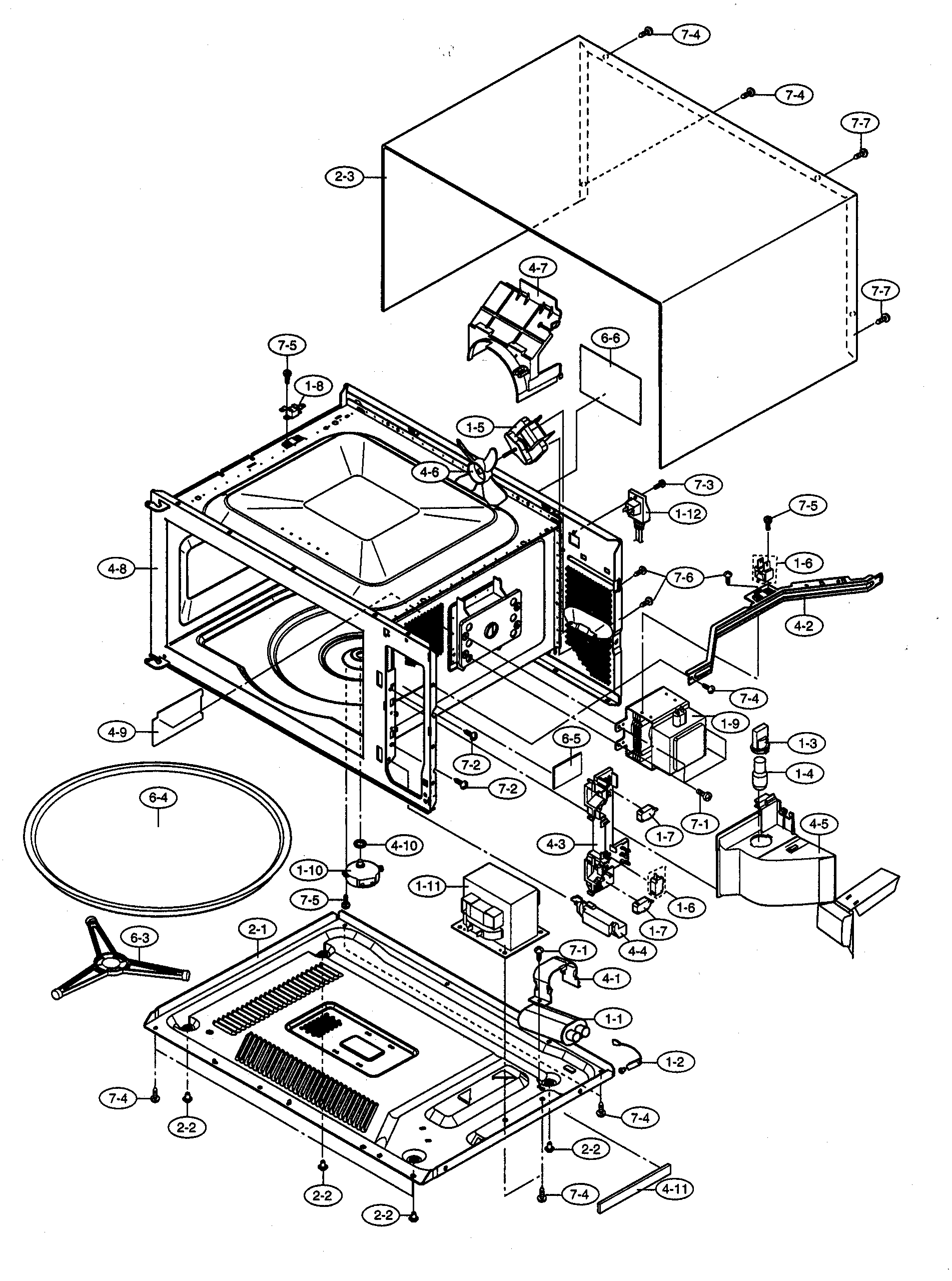

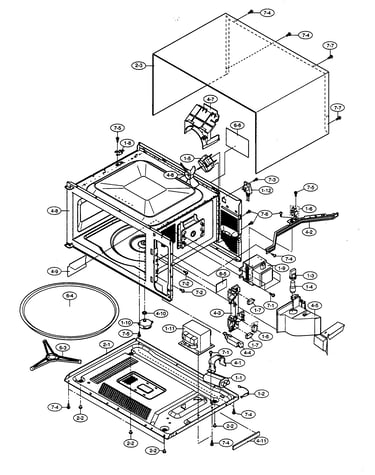

Oven/cabinet parts diagram

Microwave glass turntable tray

Part #NTNT-A108WREZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Button JBTN-B152MRF0A
#5-7

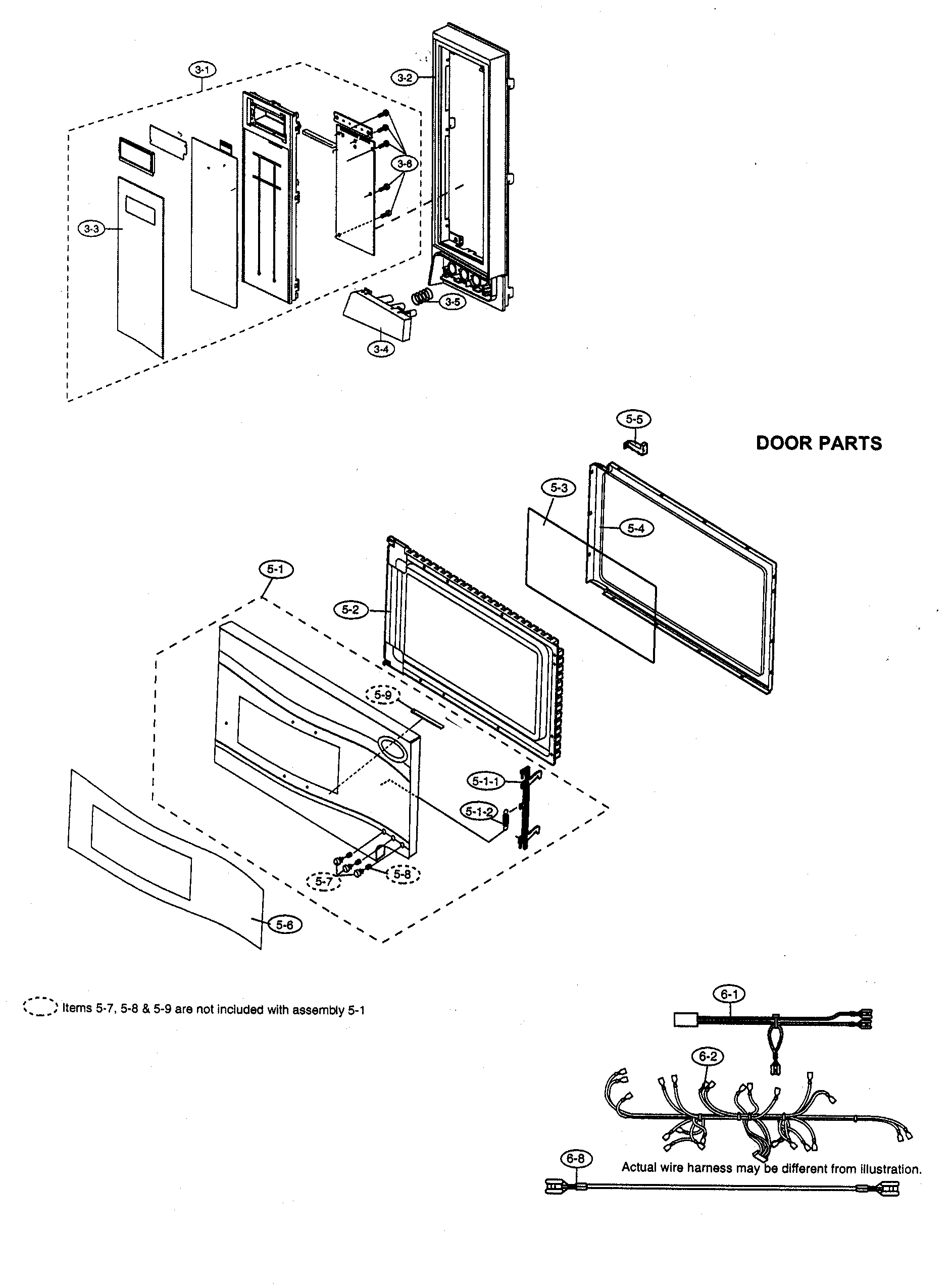

Control panel/door parts/wires diagram

Microwave button

Part #JBTN-B152MRF0A

The manufacturer no longer makes this part, and there's no substitute part

Duct PDUC-B120MRF0A
#4-5

Oven/cabinet parts diagram

Duct

Part #PDUC-B120MRF0A

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb RLMPTA086WRZZ
#1-4

Oven/cabinet parts diagram

Microwave light bulb

Part #RLMPTA086WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch And Fuse FFS-BA019/KIT
#1-6

Oven/cabinet parts diagram

Microwave door interlock switch and fuse

Part #FFS-BA019/KIT

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTB022MRE0
#5-8

Control panel/door parts/wires diagram

Spring

Part #MSPRTB022MRE0

The manufacturer no longer makes this part, and there's no substitute part

Hook PHOK-B018MRF0
#4-3

Oven/cabinet parts diagram

Hook

Part #PHOK-B018MRF0

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer RTRN-B075MRE0
#1-11

Oven/cabinet parts diagram

Power transformer

Part #RTRN-B075MRE0

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode FH-DZB018MRY0
#1-2

Oven/cabinet parts diagram

High-voltage diode

Part #FH-DZB018MRY0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA085WRE0
#1-7

Oven/cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part
