Model # FCX6000A Official ICP air handler with coil

Here are the diagrams and repair parts for Official ICP FCX6000A air handler with coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

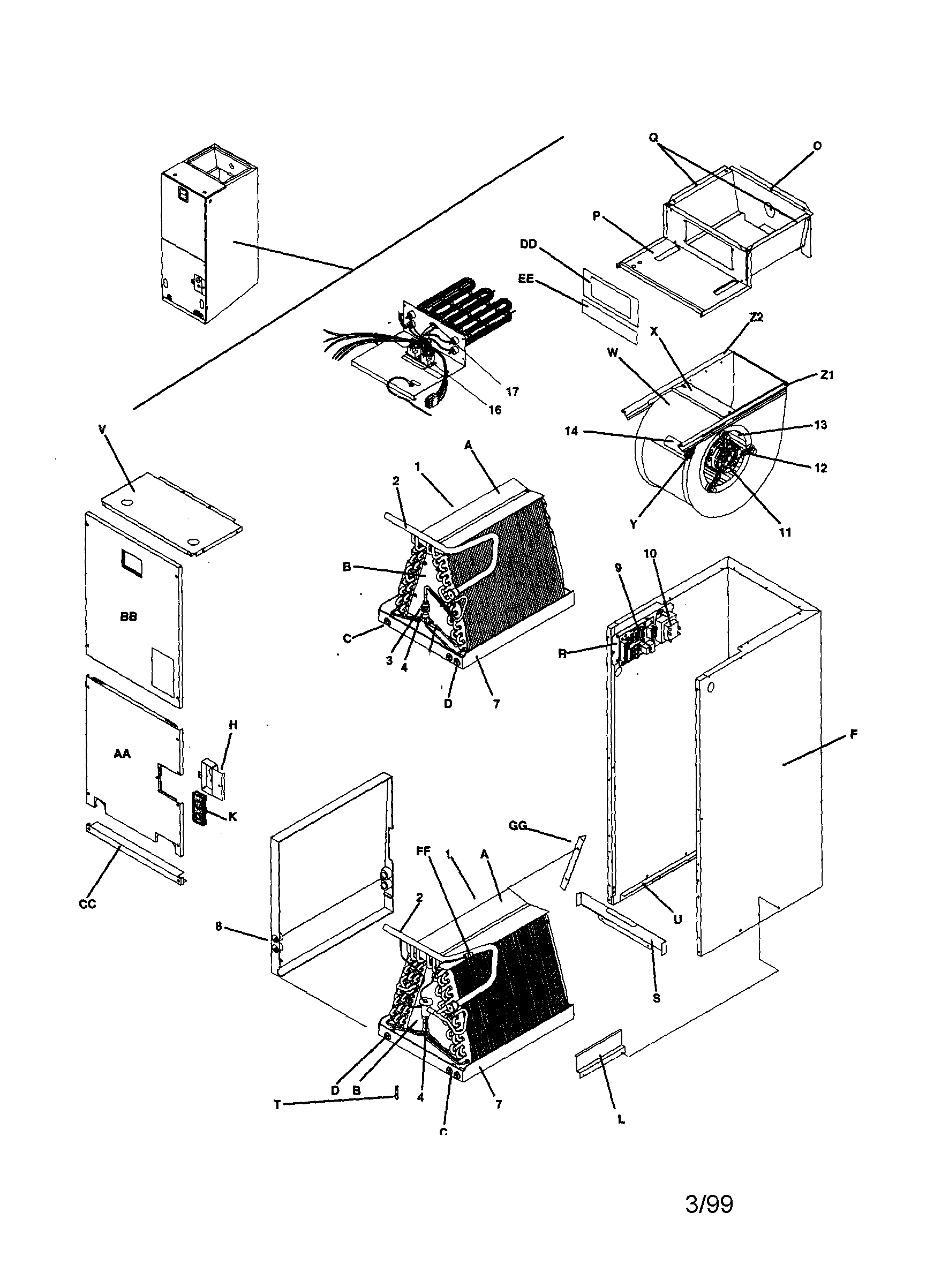

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Central Air Conditioner Air Handler Blower Wheel 96839
#13

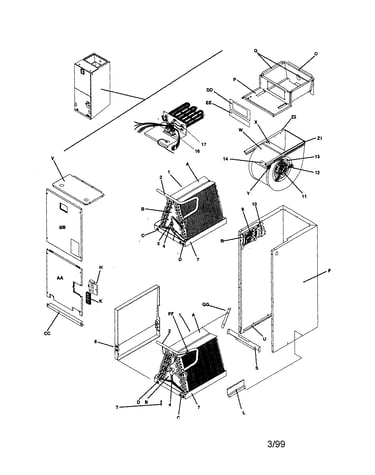

Fan coils diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
Board 1082700
#9

Fan coils diagram

Board

Part #1082700

Replaced by #1085928

?
Manufacturer substitution
This part replaces 1082700. Substitute parts can look different from the original.
$196.53 |
6% OFF Phone Price : $208.53
In Stock
Clamp Capctr 1095020
#Y

Fan coils diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Plate 1084606
#DD

Fan coils diagram

Plate

Part #1084606

$35.67
In Stock
Plate 1084608
#EE

Fan coils diagram

Plate

Part #1084608

$37.53
In Stock
Panel Blow 1082949
#X

Fan coils diagram

Panel blow

Part #1082949

$49.98
In Stock
Limit Switch 1084734
#17

Fan coils diagram

Limit switch

Part #1084734

$25.57
In Stock
Mtr Blower 1083046
#11

Fan coils diagram

Mtr blower

Part #1083046

$653.42
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#12

Fan coils diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Drain Pan 1082621
#8

Fan coils diagram

Drain pan

Part #1082621

$186.40
In Stock
