Model # 7218942580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218942580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

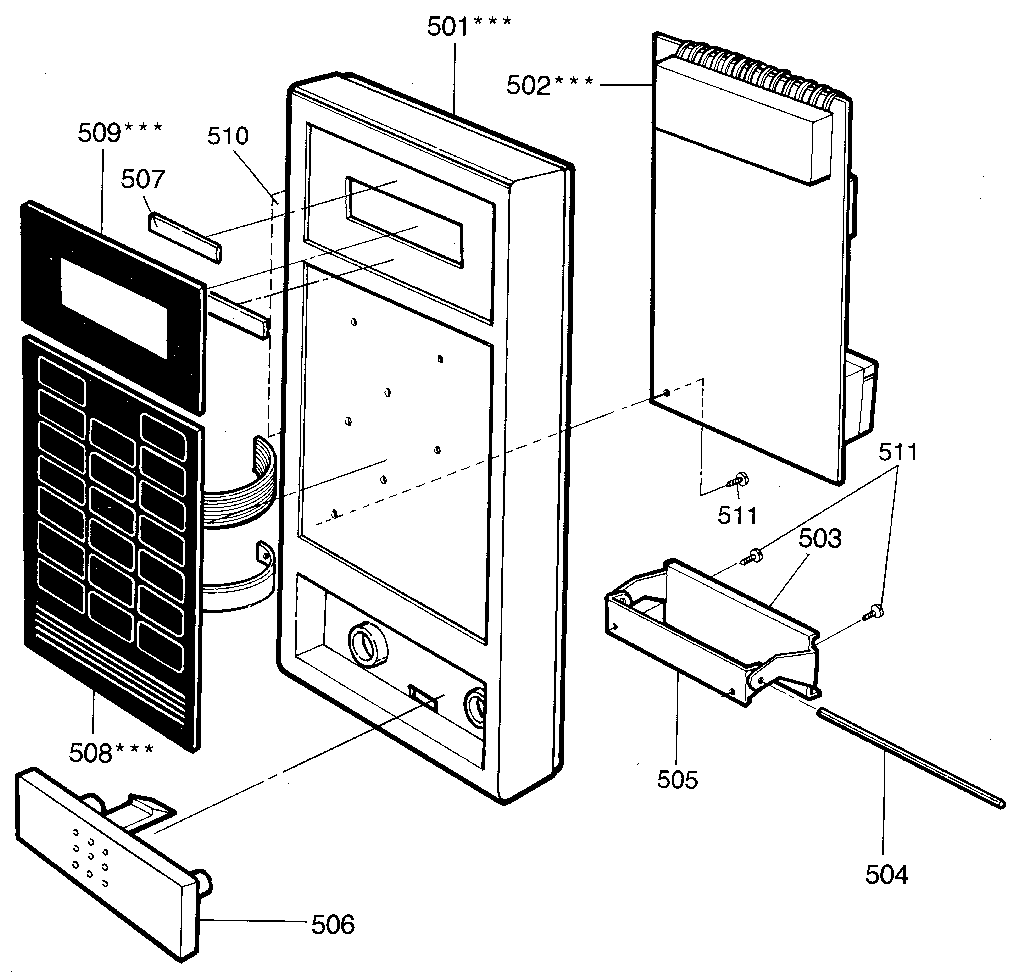

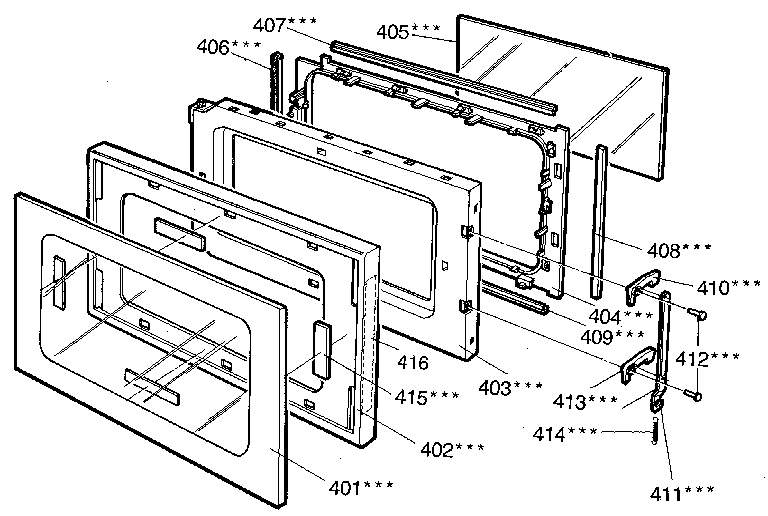

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Microwave Turntable Shaft 501368
#106

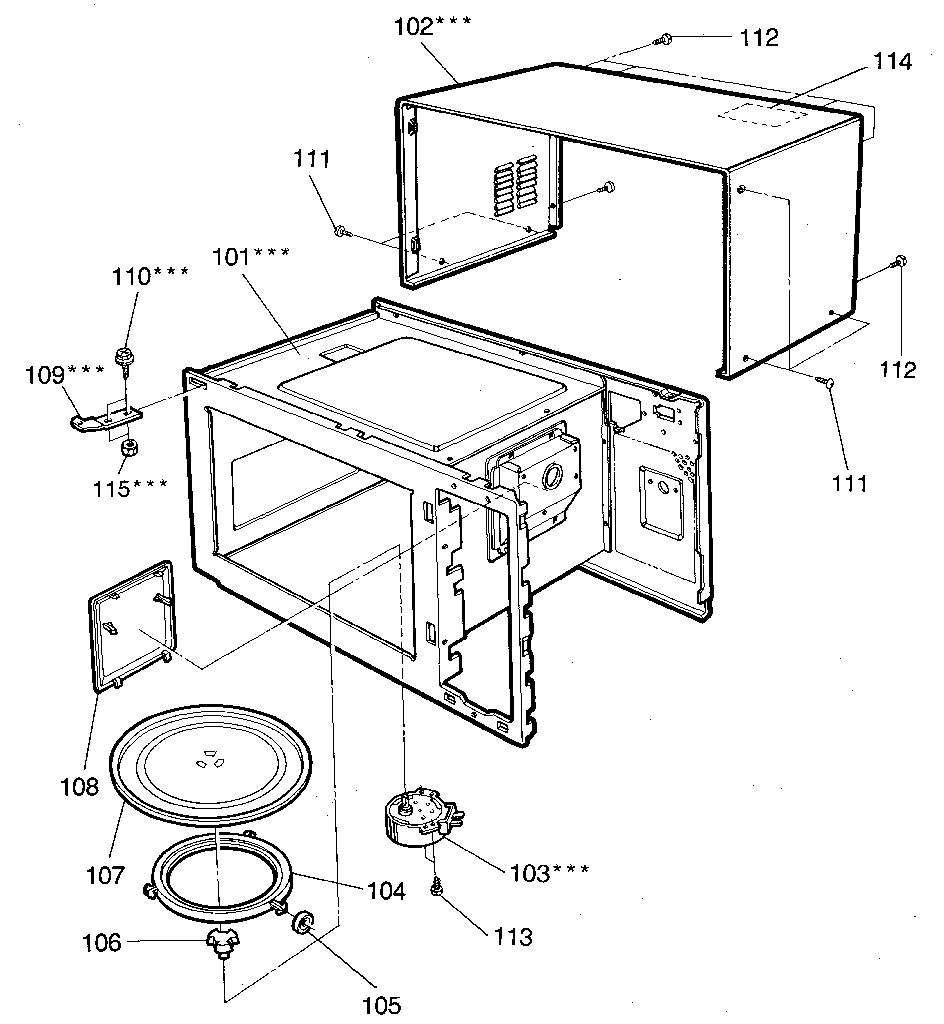

Cavity diagram

Microwave turntable shaft

Part #501368

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 501368. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Diode 501033
#204

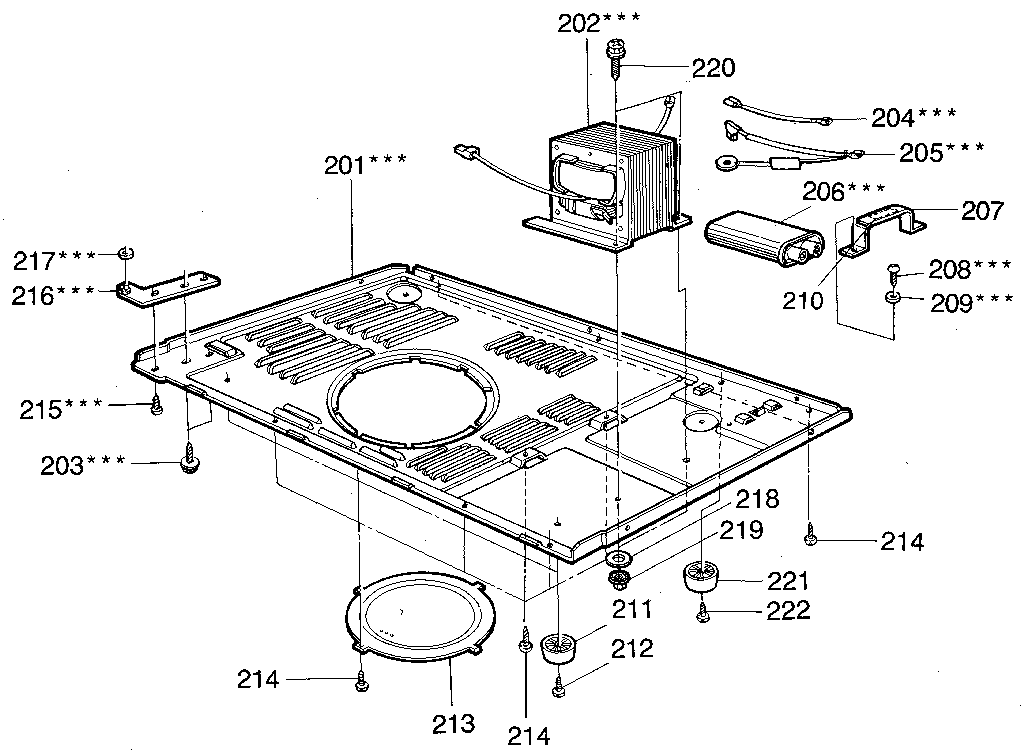

Microwave diagram

Diode

Part #501033

The manufacturer no longer makes this part, and there's no substitute part

Screw 500218
#212

Microwave diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 501388
#318

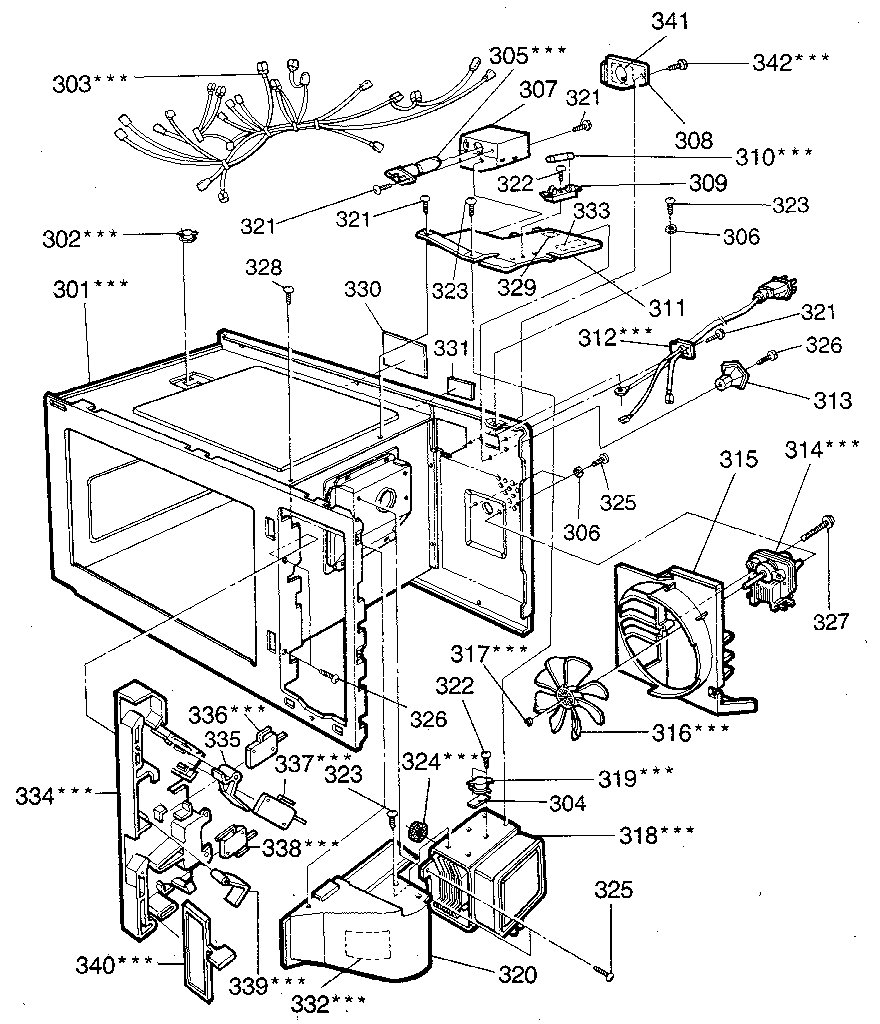

Switches and microwave diagram

Magnetron

Part #501388

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500586
#6Q

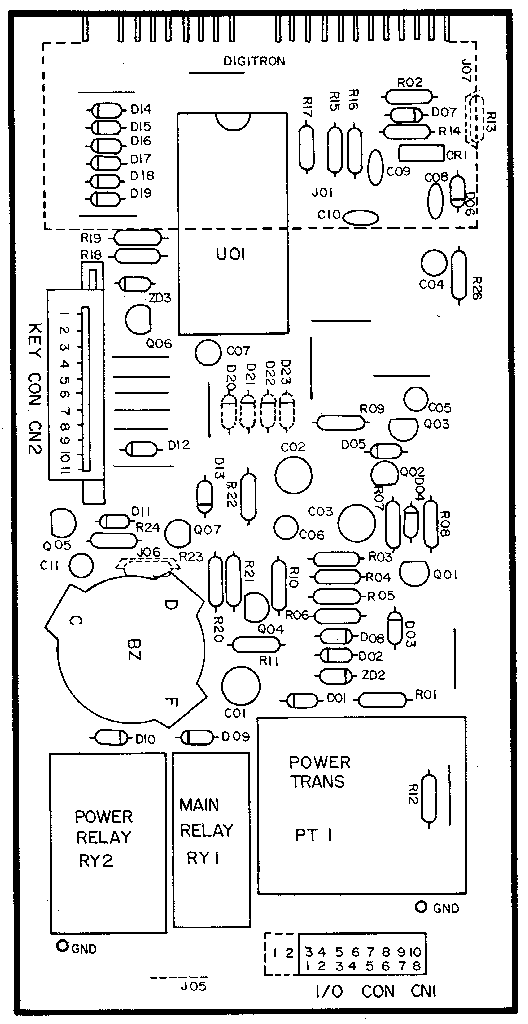

Power and control circuit board diagram

Resistor

Part #500586

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500277
#8A

Power and control circuit board diagram

Transistor

Part #500277

The manufacturer no longer makes this part, and there's no substitute part

100pf 50v 500895
100pf 50v

Part #500895

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500005
#1G

Power and control circuit board diagram

Capacitor

Part #500005

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500588
#6T

Power and control circuit board diagram

Resistor

Part #500588

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500014
Transistor

Part #500014

The manufacturer no longer makes this part, and there's no substitute part
