Model # 7218942580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218942580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

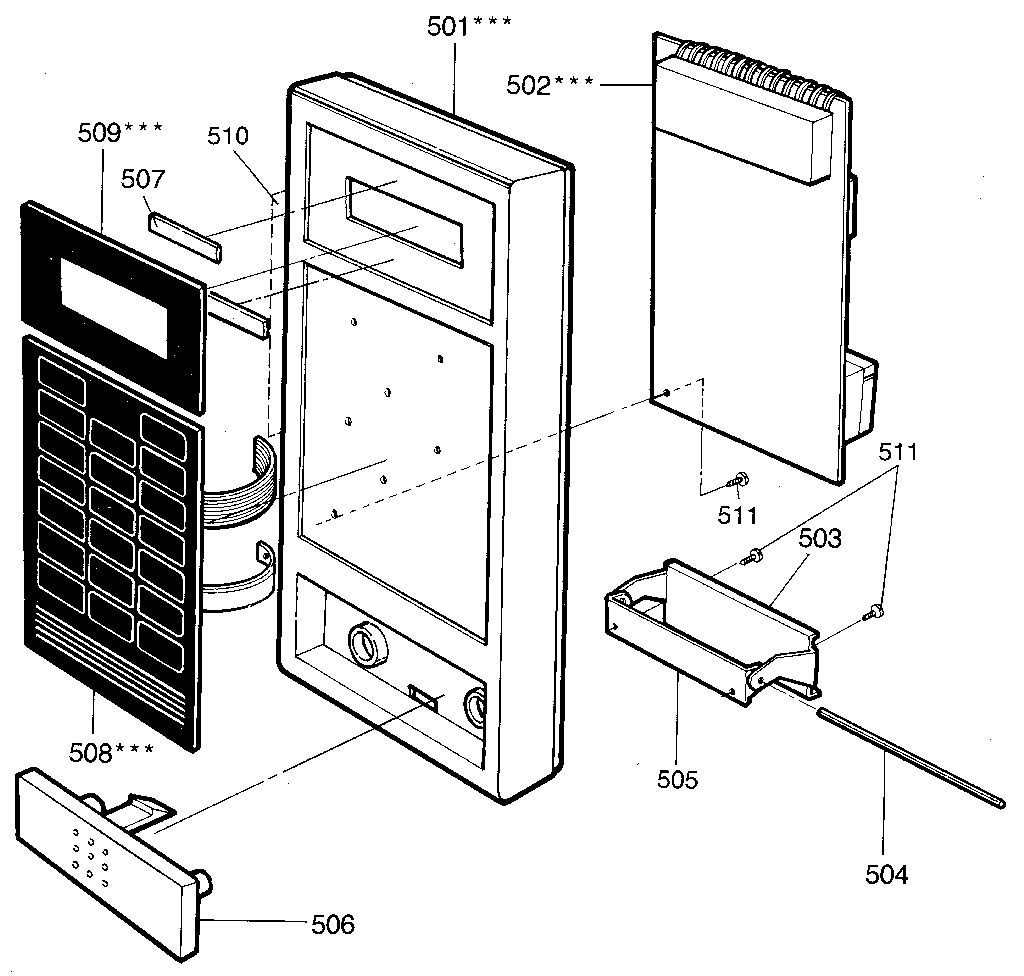

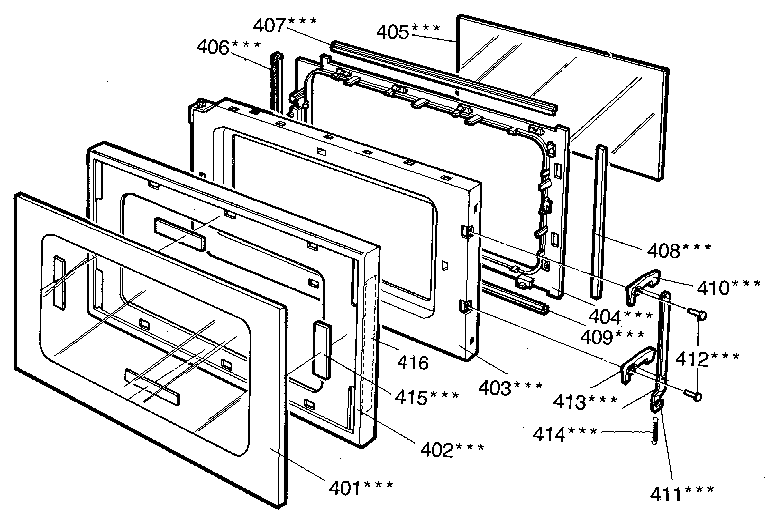

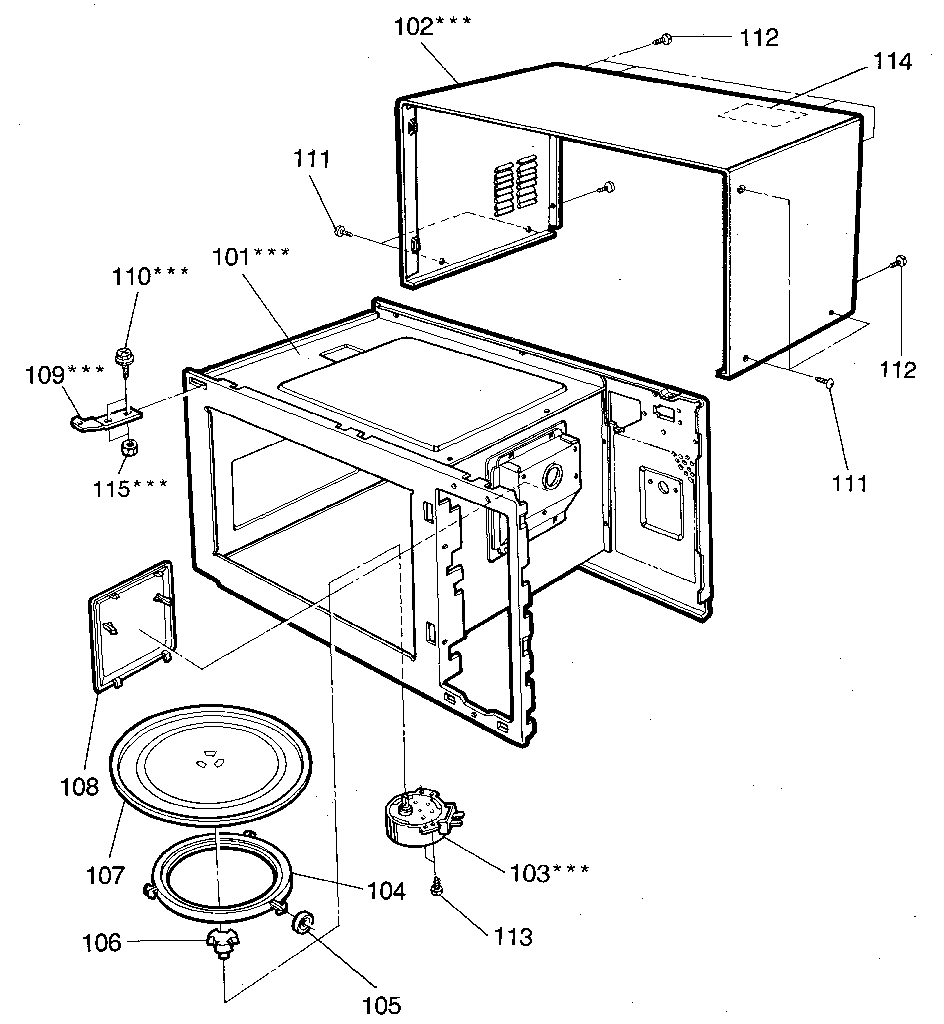

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Switch 500212
#337

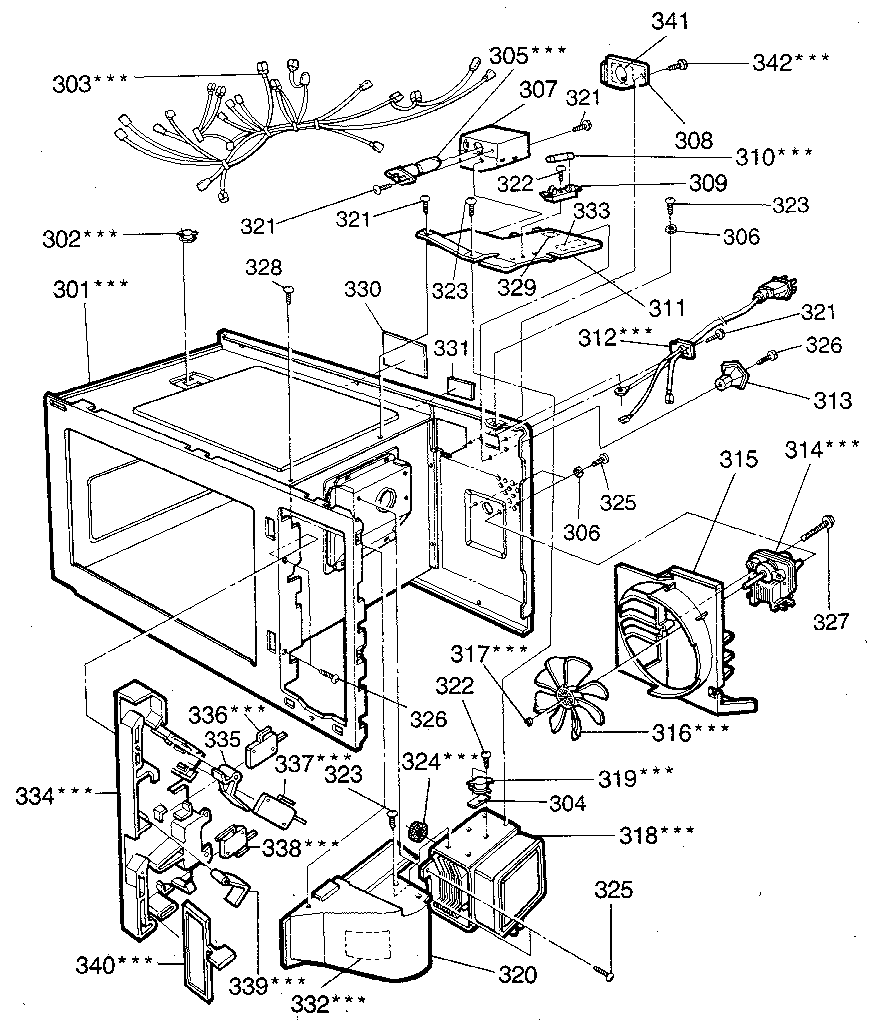

Switches and microwave diagram

Switch

Part #500212

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 500212. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Screw 500218
#212

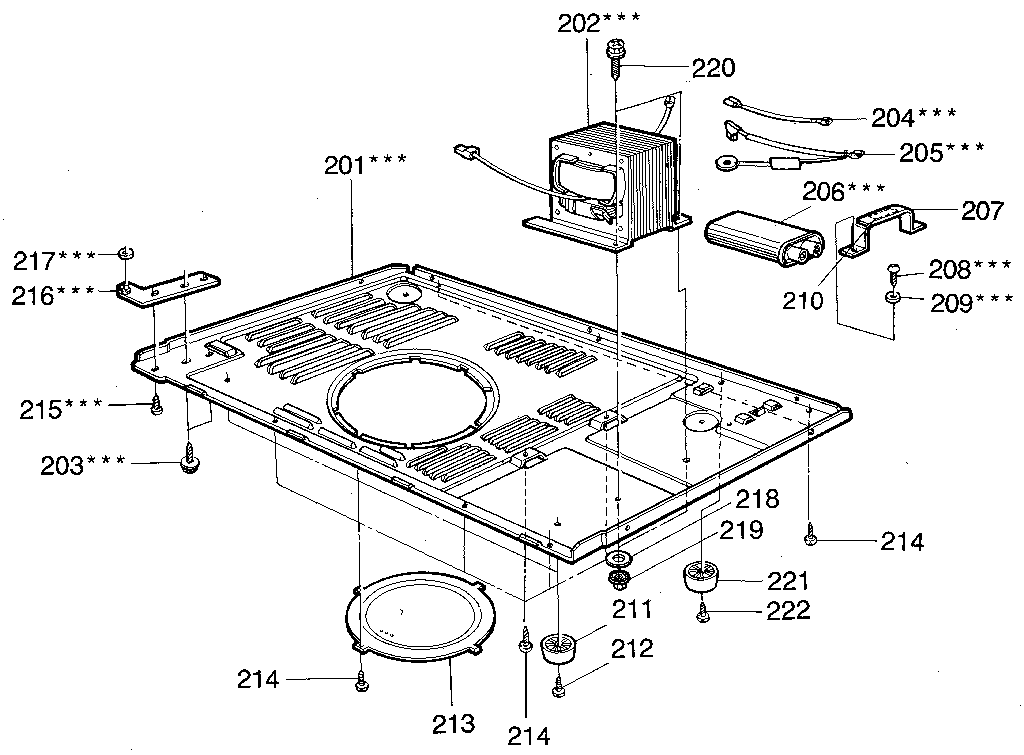

Microwave diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw Specil 500396
#326

Switches and microwave diagram

Screw specil

Part #500396

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
#322

Switches and microwave diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500277
#8A

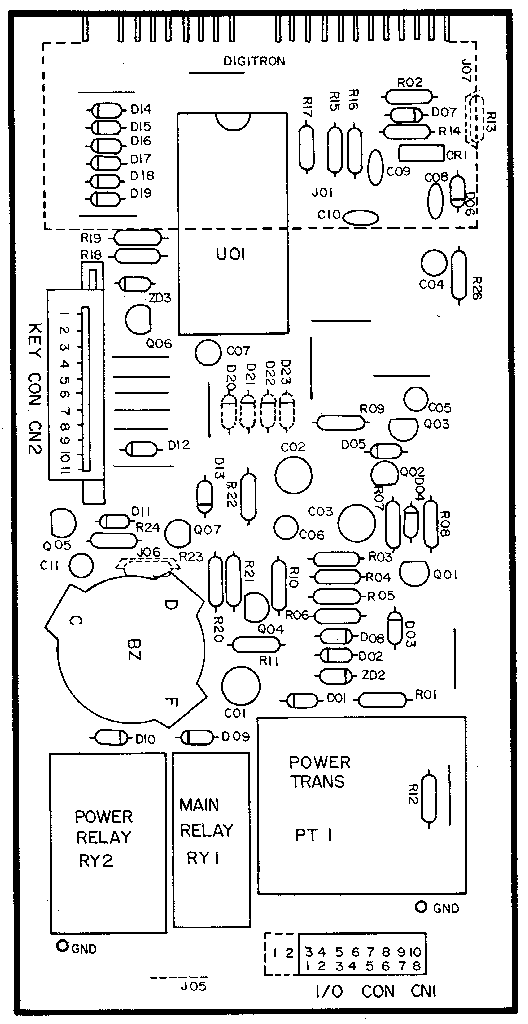

Power and control circuit board diagram

Transistor

Part #500277

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#310

Switches and microwave diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500588
#6T

Power and control circuit board diagram

Resistor

Part #500588

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500023
#6G

Power and control circuit board diagram

Resistor

Part #500023

Replaced by #2303342025

?
Manufacturer substitution
This part replaces 500023. Substitute parts can look different from the original.
This item is not returnable
$4.15
In Stock
Micro-switch 500088
#336

Switches and microwave diagram

Micro-switch

Part #500088

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500028
#7A

Power and control circuit board diagram

Resistor

Part #500028

The manufacturer no longer makes this part, and there's no substitute part
