Model # NTN5100BHA1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTN5100BHA1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

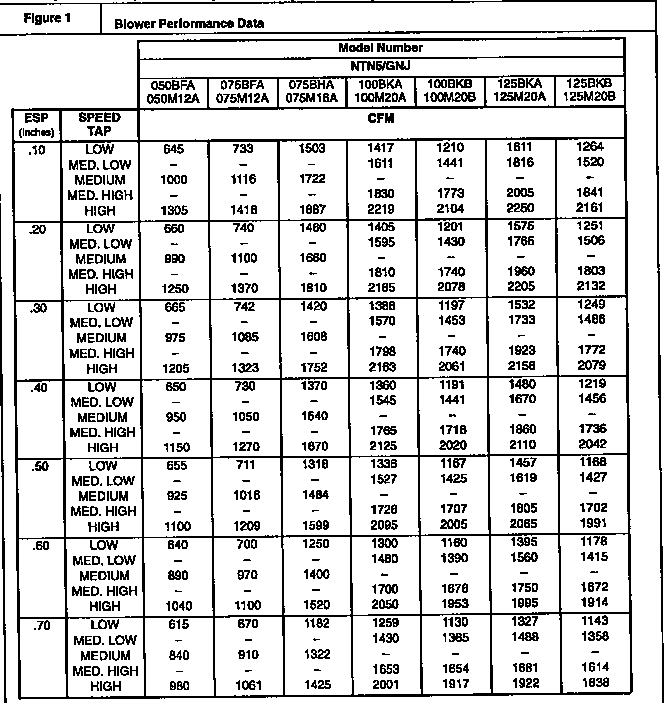

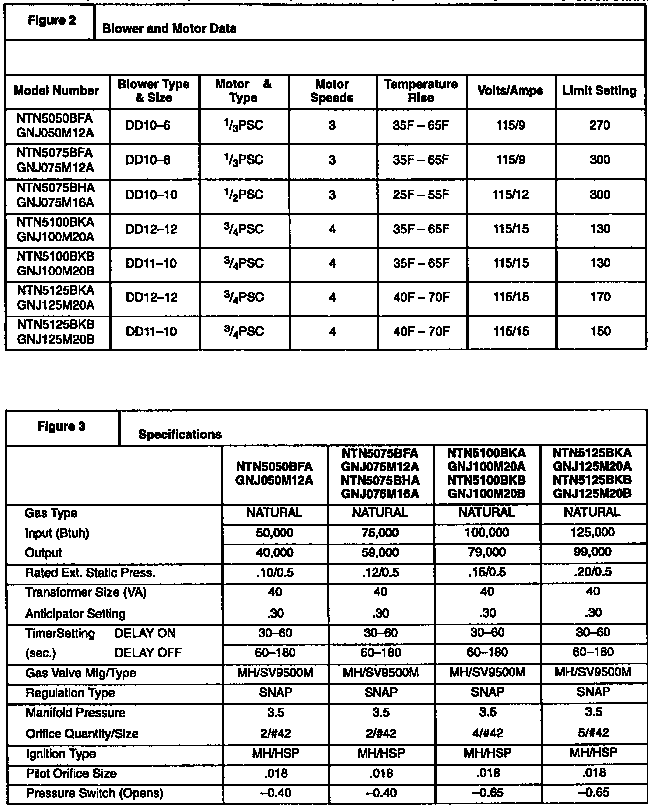

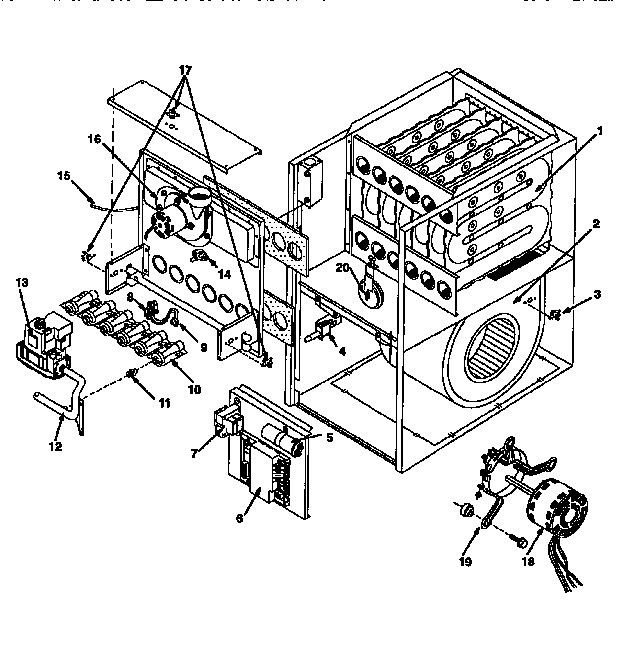

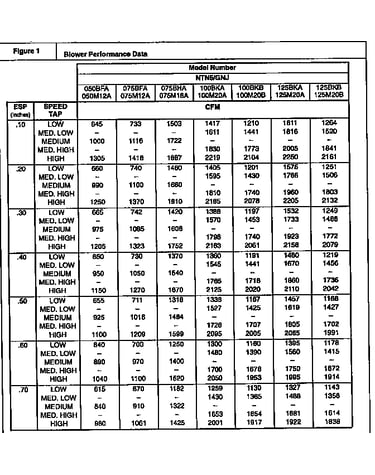

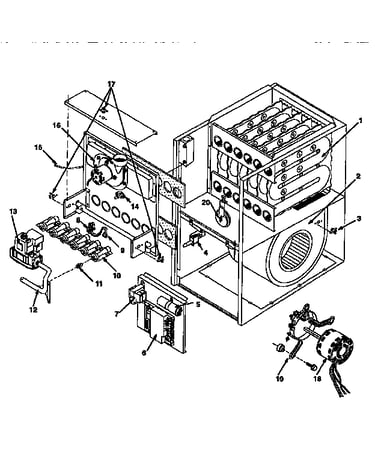

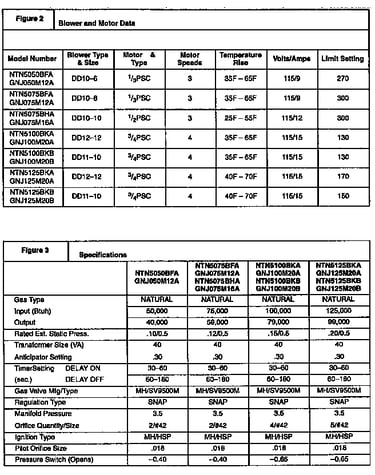

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Trans 40 Va 1008782
#7

Functional replacement diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#8

Functional replacement diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838
#6

Functional replacement diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel 601210
#2

Functional replacement diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Heat Exchange 231010104
#1

Functional replacement diagram

Heat exchange

Part #231010104

Replaced by #1014491

?
Manufacturer substitution
This part replaces 231010104. Substitute parts can look different from the original.
$799.23
In Stock
Limit Switch 1000735
#3

Functional replacement diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock

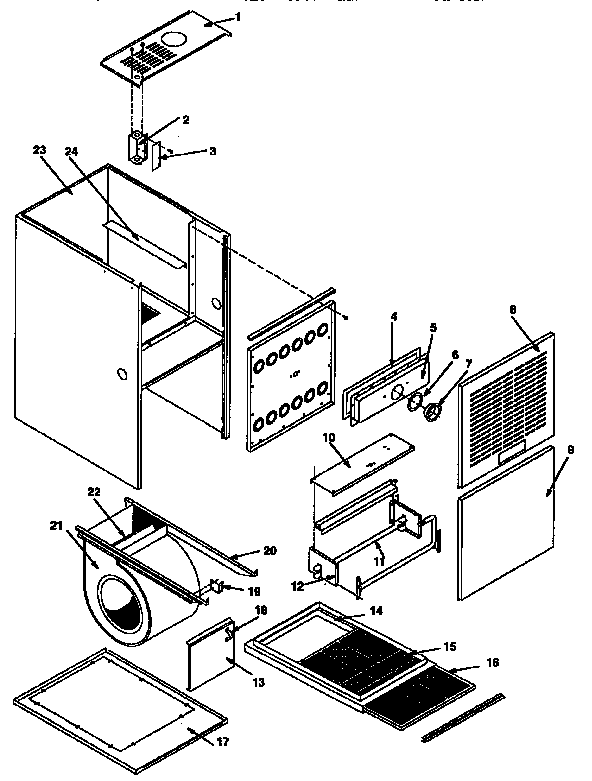

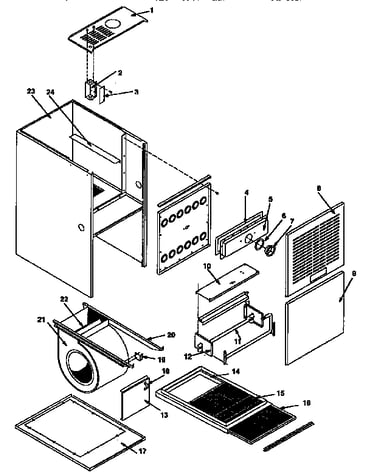

Baffle 707010031
#24

Non-functional replacement diagram

Baffle

Part #707010031

$49.47
In Stock
Gskt Htx Bnr 2480906
#1A

Functional replacement diagram

Gskt htx bnr

Part #2480906

$15.97
In Stock
Shield 1008631

#NI

All parts diagram

Shield

Part #1008631

$67.80
In Stock
Rail Galv Bl 57059

#NI

All parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
