Model # 40091710300 Official LXI am/fm stereo with 8-track

Here are the diagrams and repair parts for Official LXI 40091710300 am/fm stereo with 8-track, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Frame 25-0003
#1

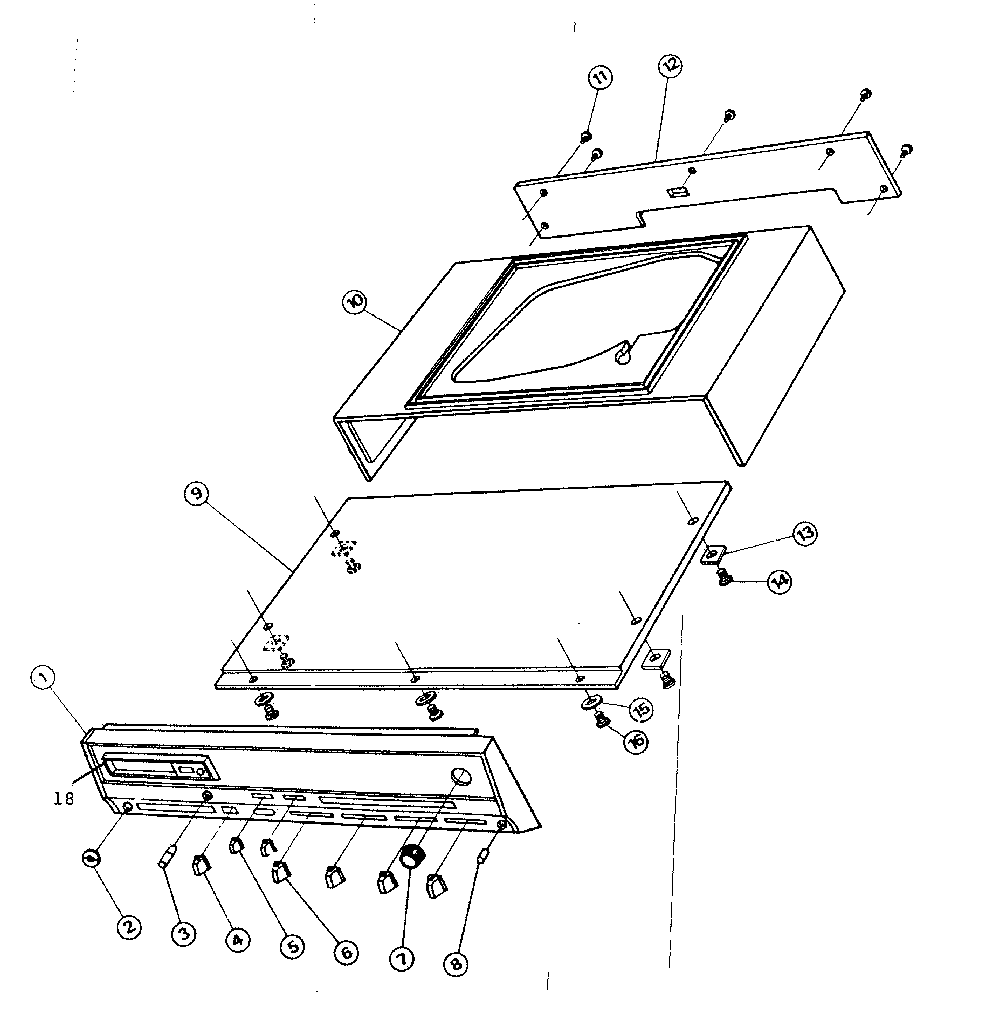

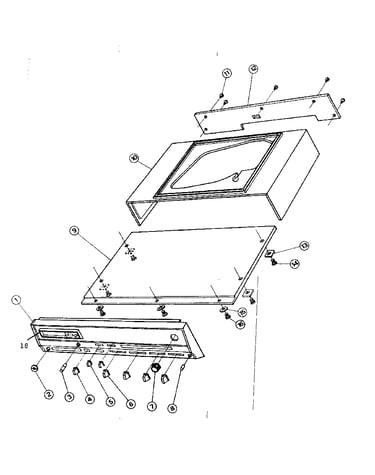

Cabinet diagram

Frame

Part #25-0003

The manufacturer no longer makes this part, and there's no substitute part

Belt 439-0013
#18

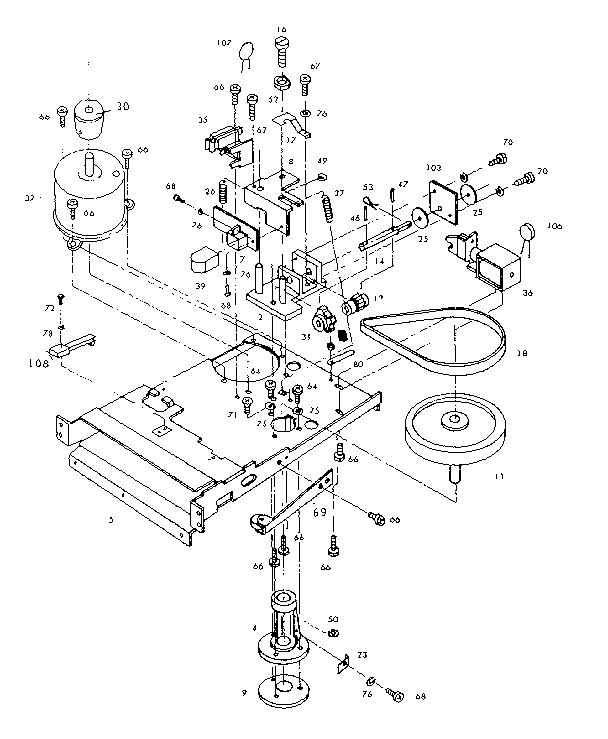

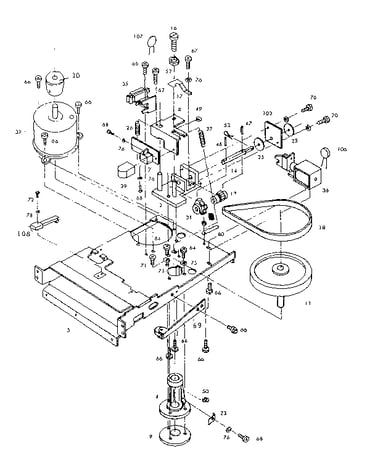

Mechanical diagram

Belt

Part #439-0013

The manufacturer no longer makes this part, and there's no substitute part

Countr Puley 39-0101

#NI

All parts diagram

Countr puley

Part #39-0101

The manufacturer no longer makes this part, and there's no substitute part

Square Washer 492-0002
#13

Cabinet diagram

Square washer

Part #492-0002

The manufacturer no longer makes this part, and there's no substitute part

Deck Assembly 35-0035
#5

Mechanical diagram

Deck assembly

Part #35-0035

The manufacturer no longer makes this part, and there's no substitute part

Lever Arm 35-0055

#NI

All parts diagram

Lever arm

Part #35-0055

The manufacturer no longer makes this part, and there's no substitute part

Board Bias 35-0028

#NI

All parts diagram

Board bias

Part #35-0028

The manufacturer no longer makes this part, and there's no substitute part

Switch 69-0100
#108

Mechanical diagram

Switch

Part #69-0100

The manufacturer no longer makes this part, and there's no substitute part

(011c01 Front Plate) - 2 N/P

#NI

All parts diagram

(011c01 front plate) - 2

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Control Board 35-0021

#NI

All parts diagram

Control board

Part #35-0021

The manufacturer no longer makes this part, and there's no substitute part
