Hoover
Upright Vacuum

Model # U5464-900 Official Hoover windtunnel vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5464-900 windtunnel vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Vacuum Wheel 38522077
#9

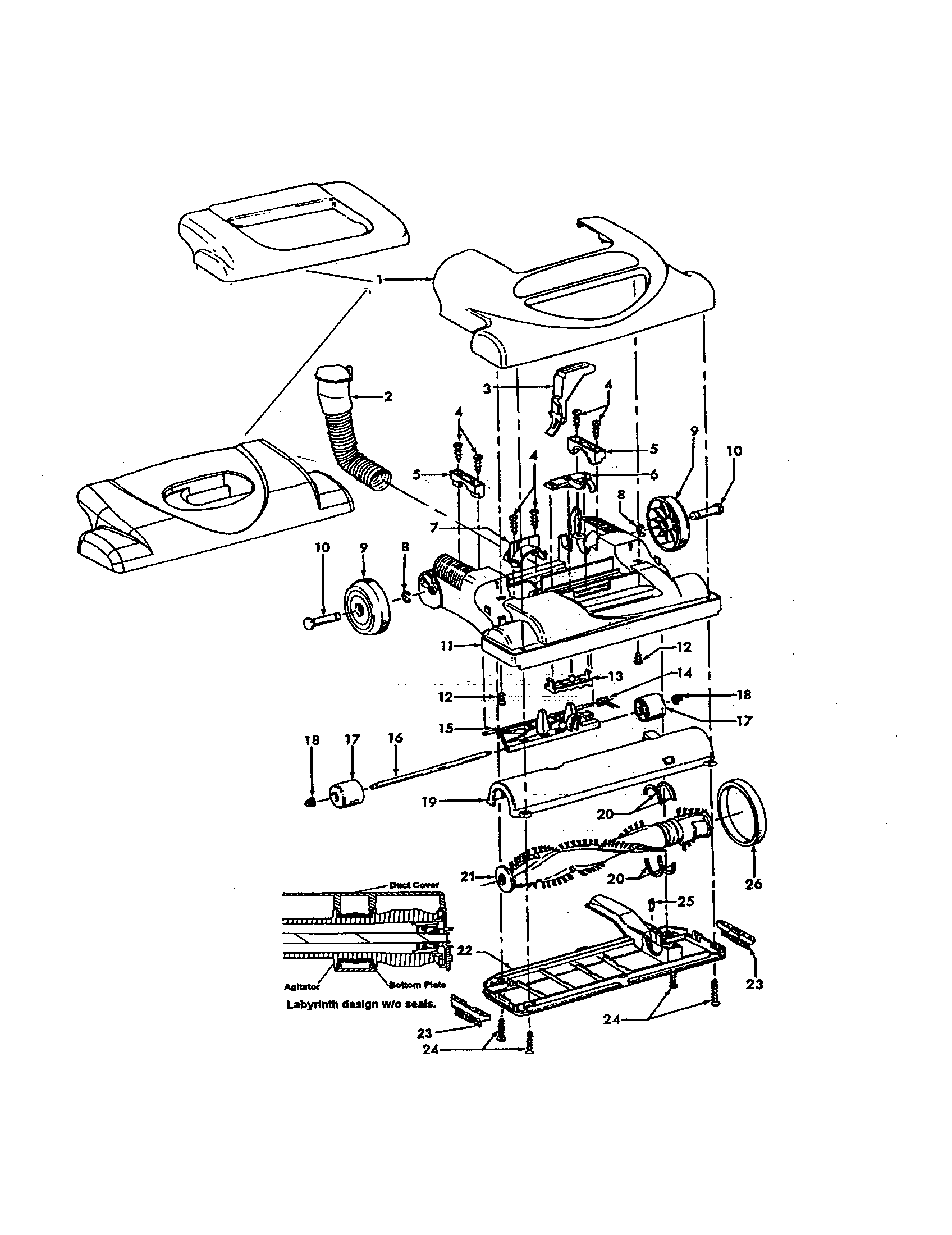

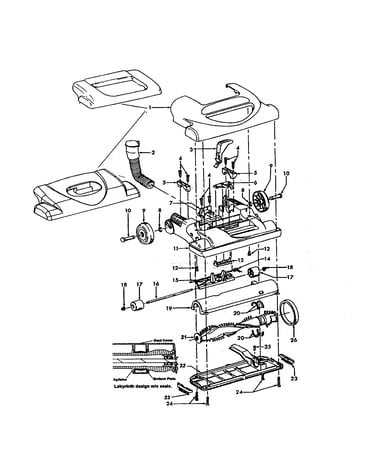

Standard hood/main body diagram

Vacuum wheel

Part #38522077

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#23

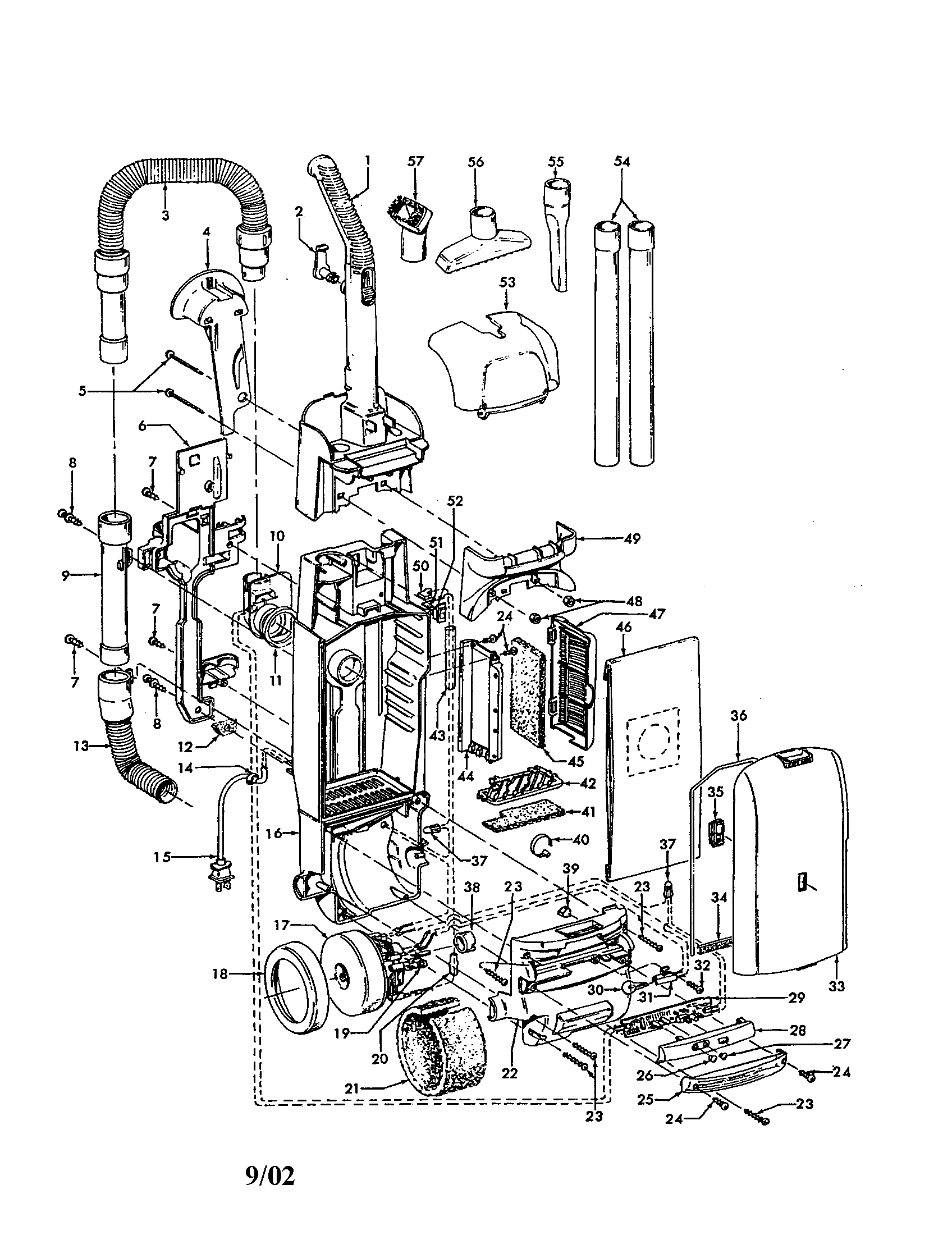

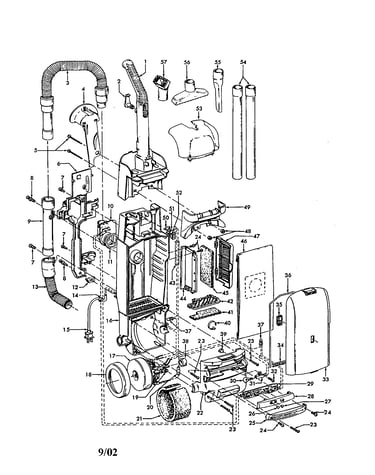

Upper handle/hose/motor diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 27618508
#37

Upper handle/hose/motor diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Cover 37196158
#22

Upper handle/hose/motor diagram

Vacuum motor cover

Part #37196158

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector 49811072

#NI02

All parts diagram

Thermal protector

Part #49811072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447121
#24

Standard hood/main body diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Label 51873001
#20B

Upper handle/hose/motor diagram

Label

Part #51873001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#14

Standard hood/main body diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Allergen Filtration Bag, 3-pack 4010100Y
#46

Upper handle/hose/motor diagram

Vacuum allergen filtration bag, 3-pack

Part #4010100Y

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 27479307
#40

Upper handle/hose/motor diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part
