Hotpoint
Countertop Microwave

Model # RE961001 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE961001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Magnetron WB27X5142
#1428B

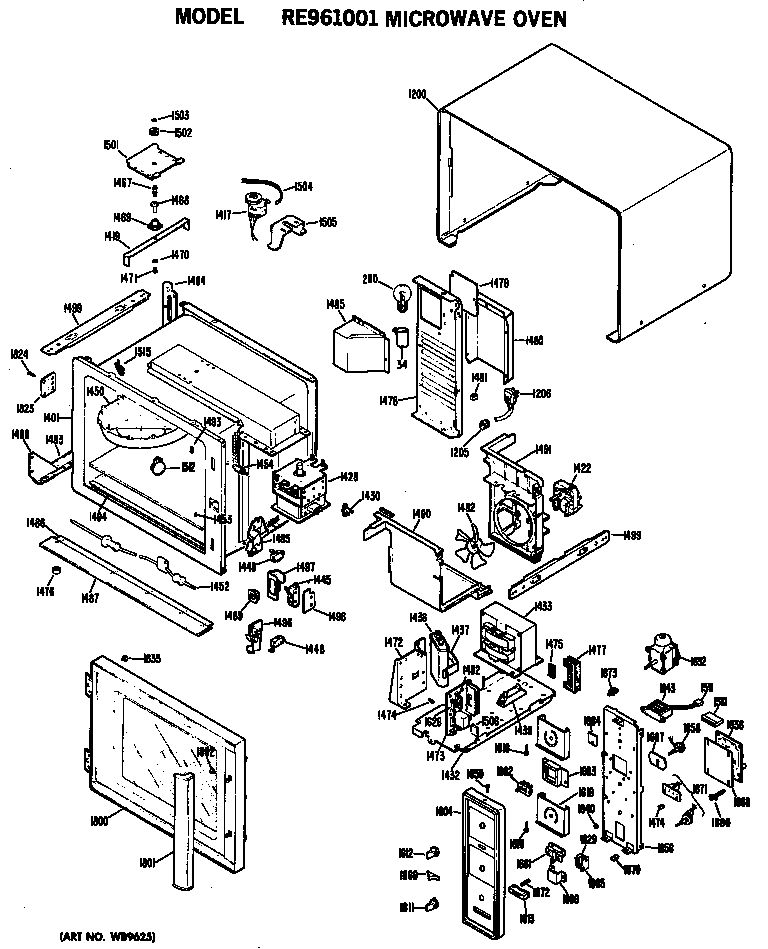

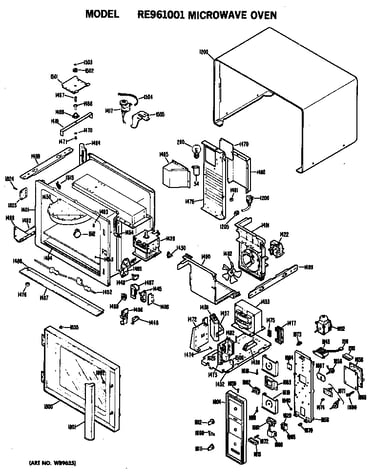

Microwave oven diagram

Magnetron

Part #WB27X5142

The manufacturer no longer makes this part, and there's no substitute part

Hinge Support WB10X5133
#1823

Microwave oven diagram

Hinge support

Part #WB10X5133

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover WB56X5882
#1450

Microwave oven diagram

Stirrer cover

Part #WB56X5882

The manufacturer no longer makes this part, and there's no substitute part

Knob Sld WB3X5578
#1669

Microwave oven diagram

Knob sld

Part #WB3X5578

The manufacturer no longer makes this part, and there's no substitute part

Microwave Diode WB27X5070
#1439

Microwave oven diagram

Microwave diode

Part #WB27X5070

The manufacturer no longer makes this part, and there's no substitute part

Knob WB3X5556
#1612

Microwave oven diagram

Knob

Part #WB3X5556

The manufacturer no longer makes this part, and there's no substitute part

Shield WB2X7065
#1477

Microwave oven diagram

Shield

Part #WB2X7065

The manufacturer no longer makes this part, and there's no substitute part

Screw Mtg Handle WB1X5580
#1802

Microwave oven diagram

Screw mtg handle

Part #WB1X5580

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X5578
#749

Microwave oven diagram

Screw

Part #WB1X5578

The manufacturer no longer makes this part, and there's no substitute part

Antenna WB2X7058
#0B

Microwave oven diagram

Antenna

Part #WB2X7058

The manufacturer no longer makes this part, and there's no substitute part
