Eureka
Canister Vacuum

Model # 3674A-1 Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 3674A-1 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

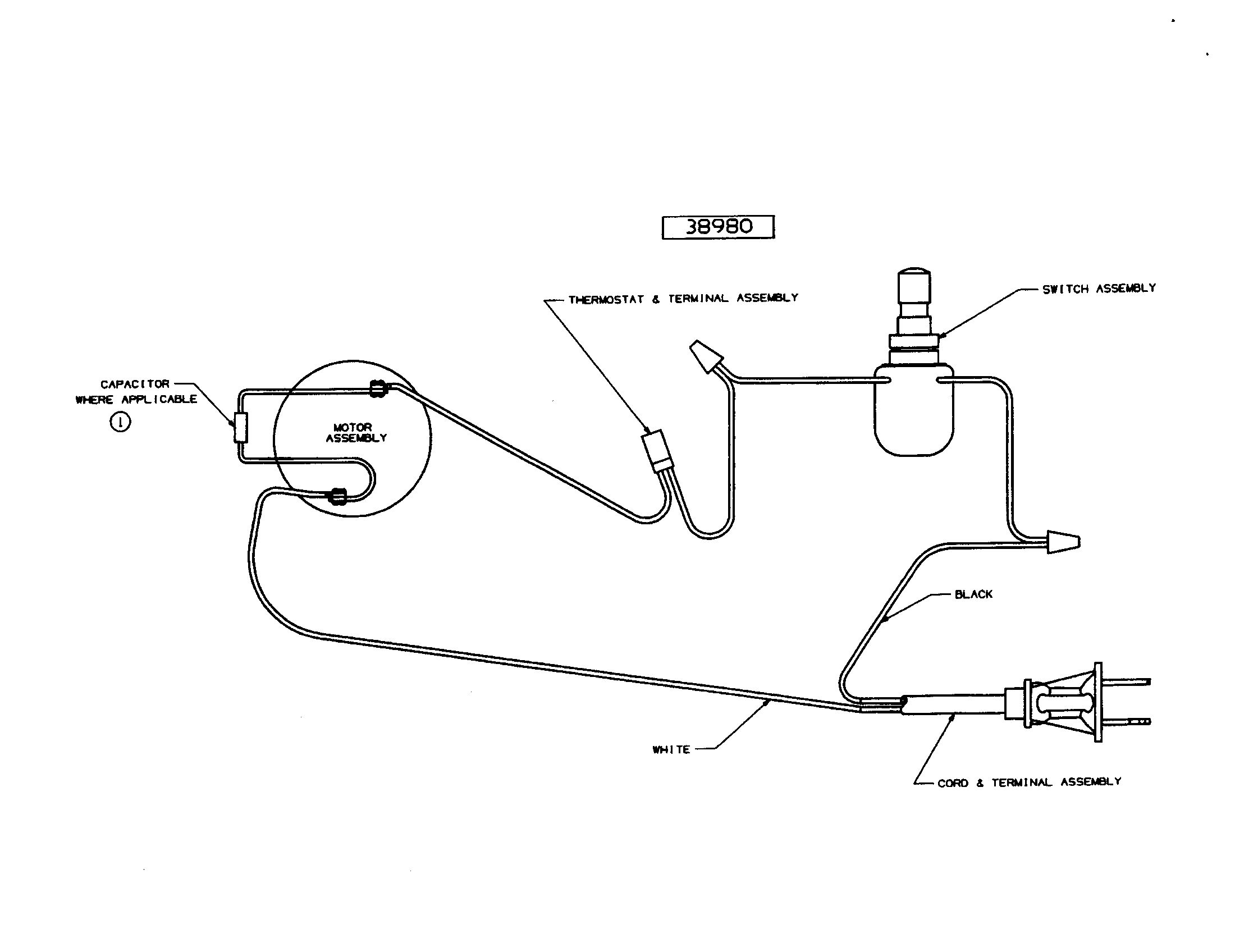

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Kenmore Carpet And Bare Floor Nozzle 39134-6
#5

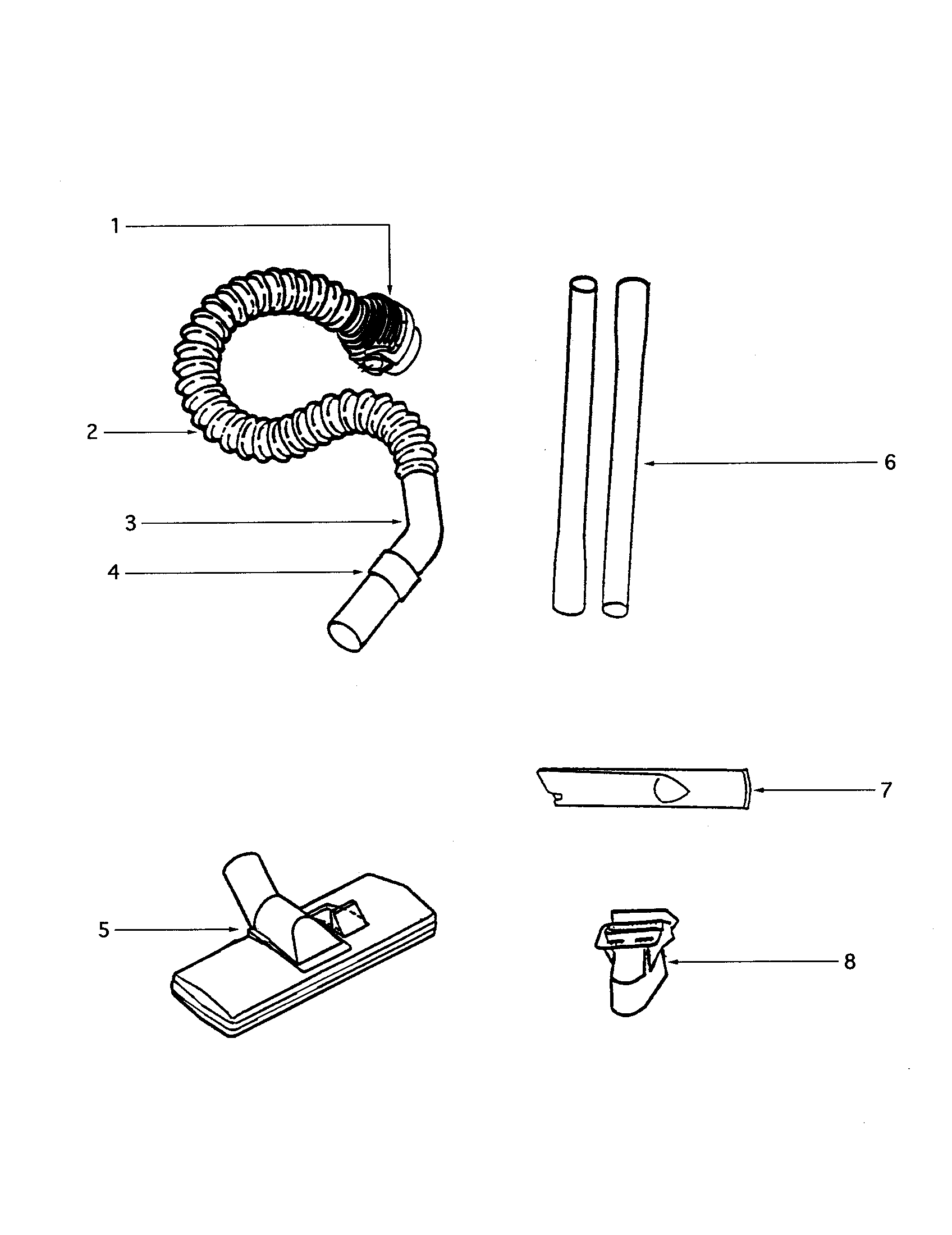

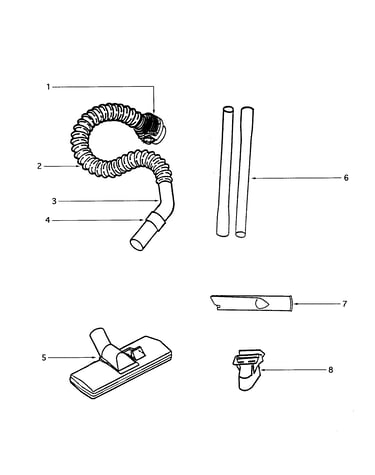

Accessories diagram

Kenmore carpet and bare floor nozzle

Part #39134-6

The manufacturer no longer makes this part, and there's no substitute part

Tube 27964-119N
#8

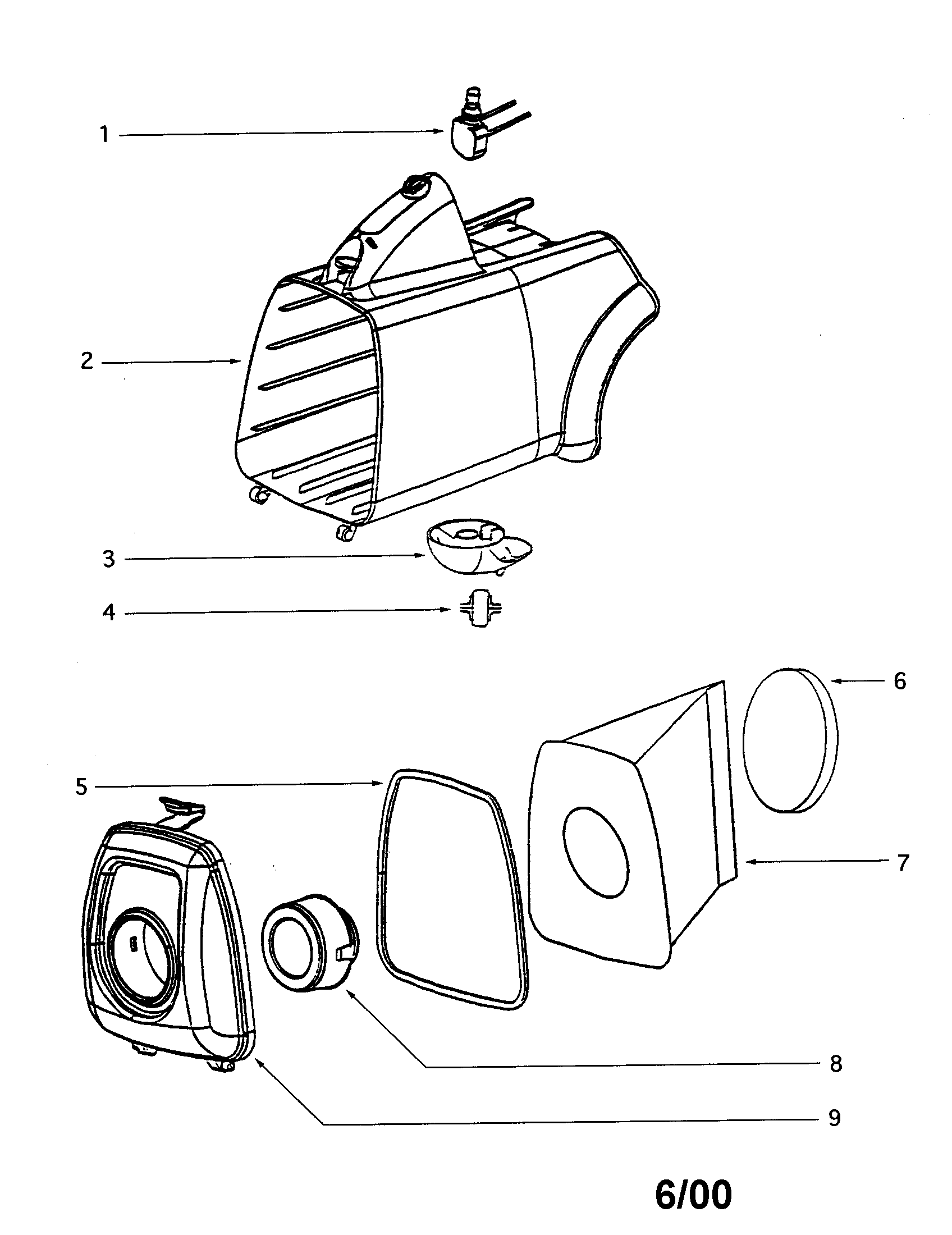

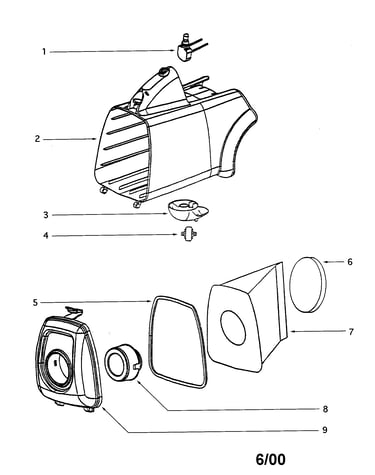

Canister diagram

Tube

Part #27964-119N

The manufacturer no longer makes this part, and there's no substitute part

Motor Bushing 27832
#2

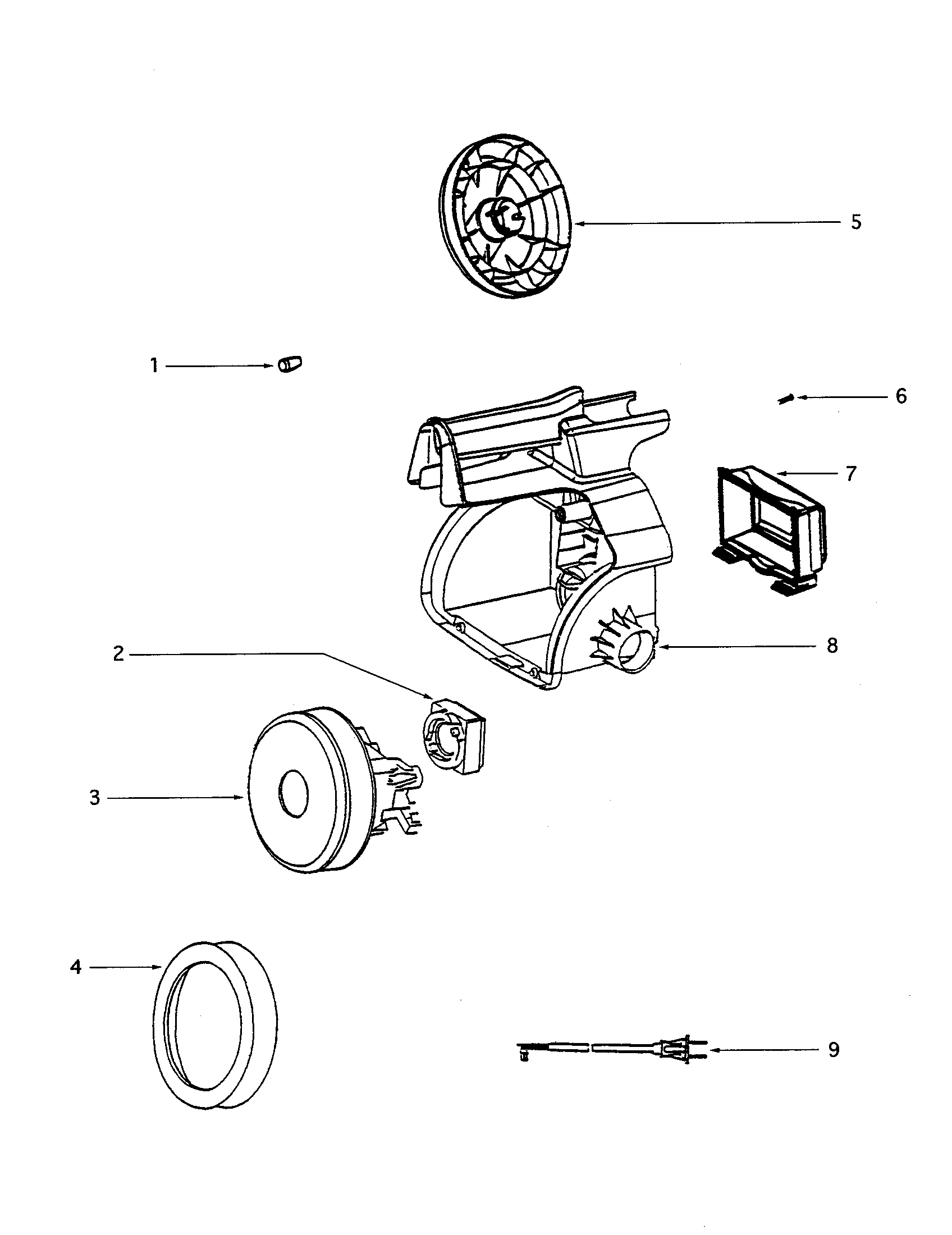

Motor diagram

Motor bushing

Part #27832

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 38956-1SV
#9

Canister diagram

Vacuum cover

Part #38956-1SV

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#8

Accessories diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Coupling 15355-119N
#1

Accessories diagram

Coupling

Part #15355-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28032
#4

Motor diagram

Gasket

Part #28032

The manufacturer no longer makes this part, and there's no substitute part

Shield 39028

#NI

All parts diagram

Shield

Part #39028

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 15409A-119N
#5

Motor diagram

Vacuum wheel

Part #15409A-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38333
#6

Canister diagram

Vacuum motor safety filter

Part #38333

The manufacturer no longer makes this part, and there's no substitute part
