Hoover
Upright Vacuum

Model # U4713910 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4713910 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Vacuum Wheel Retainer 36131056
#47

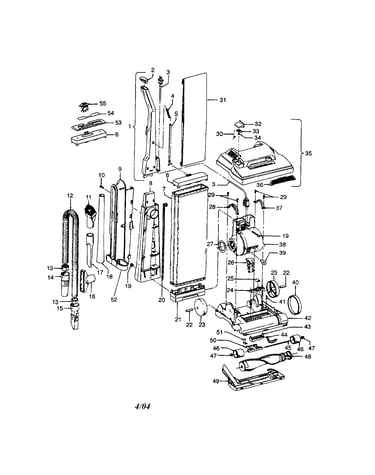

Main body/hood/handle/motor diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#31

Main body/hood/handle/motor diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#27

Main body/hood/handle/motor diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 39458056

#NI03

All parts diagram

Handle grip

Part #39458056

The manufacturer no longer makes this part, and there's no substitute part

Jacket Support 36425062
#6A

Main body/hood/handle/motor diagram

Jacket support

Part #36425062

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#29

Main body/hood/handle/motor diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Hood Assembly 42252321
#35A

Main body/hood/handle/motor diagram

Hood assembly

Part #42252321

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly 37257017
#32A

Main body/hood/handle/motor diagram

Door assembly

Part #37257017

The manufacturer no longer makes this part, and there's no substitute part

Support 37959076
#53

Main body/hood/handle/motor diagram

Support

Part #37959076

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#23

Main body/hood/handle/motor diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part
