Model # JEM4JW01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM4JW01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

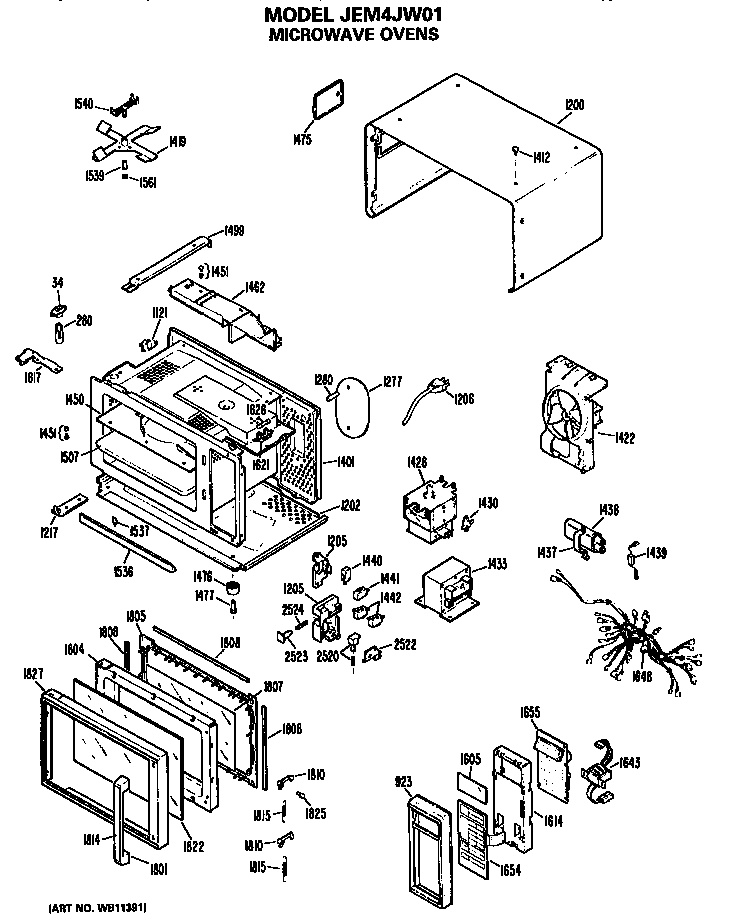

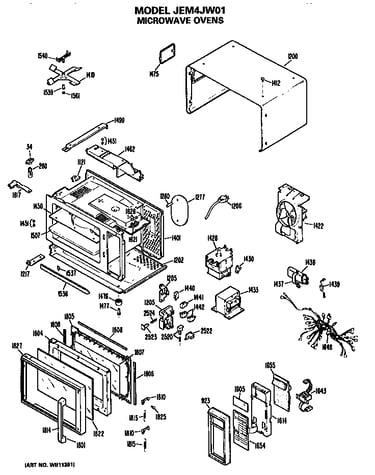

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Monitor Switch WB24X5228

#1445

All parts diagram

Monitor switch

Part #WB24X5228

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5228. Substitute parts can look different from the original.
BEST SELLER
$33.20
15% OFF Phone Price : $39.20
In Stock
Diode WB27X330

#1439

All parts diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
BEST SELLER
$79.22
7% OFF Phone Price : $85.22
In Stock
Cookbook Jem 49-4753

#9999

All parts diagram

Cookbook jem

Part #49-4753

Replaced by #49-4859

?
Manufacturer substitution
This part replaces 49-4753. Substitute parts can look different from the original.
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Glass Tray WB48X187

#1507

All parts diagram

Glass tray

Part #WB48X187

The manufacturer no longer makes this part, and there's no substitute part

Outer Window WB55X747

#1822

All parts diagram

Outer window

Part #WB55X747

The manufacturer no longer makes this part, and there's no substitute part

Lower Hinge WB10X233

#1217

All parts diagram

Lower hinge

Part #WB10X233

The manufacturer no longer makes this part, and there's no substitute part

Latch Body WB2X4678

#1205

All parts diagram

Latch body

Part #WB2X4678

The manufacturer no longer makes this part, and there's no substitute part

Window WB36X726

#1605

All parts diagram

Window

Part #WB36X726

The manufacturer no longer makes this part, and there's no substitute part

Ferrite WB2X9347

#1808

All parts diagram

Ferrite

Part #WB2X9347

The manufacturer no longer makes this part, and there's no substitute part
