Panasonic
Room Air Conditioner

Model # CW-XC184HU Official Panasonic room air conditioner

Here are the diagrams and repair parts for Official Panasonic CW-XC184HU room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Capacitor CW6120R2194D
#4

Control box assembly diagram

Capacitor

Part #CW6120R2194D

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Discharge Tube CW521130066K
#2

Pipe and tube diagram

Panasonic discharge tube

Part #CW521130066K

$48.99
In Stock
Panasonic Shroud CW4998R1597A
#14

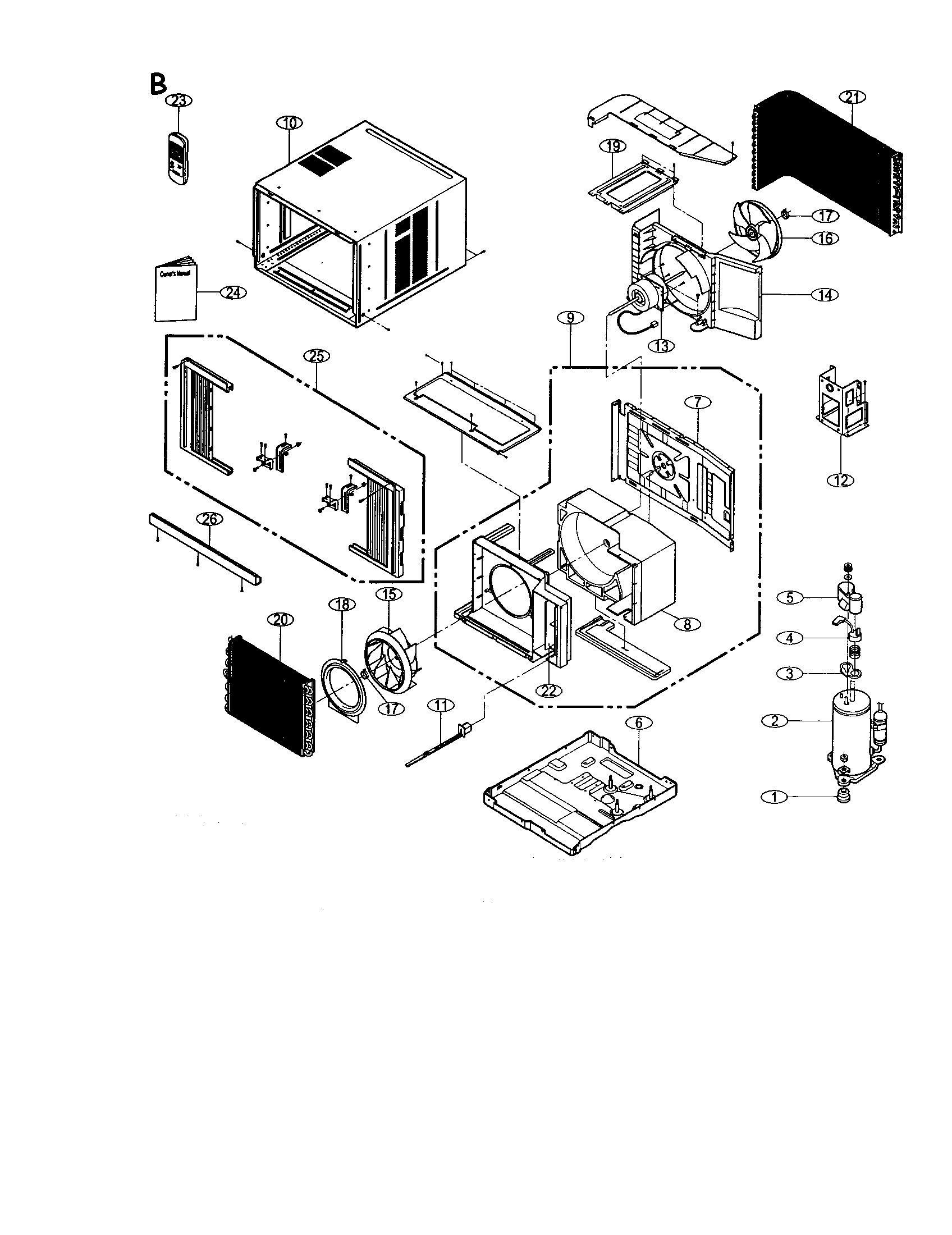

Compressor and accessories diagram

Panasonic shroud

Part #CW4998R1597A

$39.99
In Stock
Quasar Fan CW590120009A
#15

Compressor and accessories diagram

Quasar fan

Part #CW590120009A

$36.99
In Stock
Panasonic Pan Base CW304130016B
#6

Compressor and accessories diagram

Panasonic pan base

Part #CW304130016B

$161.99
In Stock
Barrier CW479010036A
#7

Compressor and accessories diagram

Barrier

Part #CW479010036A

$50.99
In Stock
Cover CW3550-L004A
#5

Compressor and accessories diagram

Cover

Part #CW3550-L004A

$15.99
In Stock
Gasket CW4986-L001G
#3

Compressor and accessories diagram

Gasket

Part #CW4986-L001G

$7.99
In Stock
Cover CW355130015A
#7

Control box assembly diagram

Cover

Part #CW355130015A

This item is not returnable
$4.49
In Stock
Scroll CW307220009A
#8

Compressor and accessories diagram

Scroll

Part #CW307220009A

$48.99
In Stock
