Amana
Countertop Microwave

Model # ML-10/P76804-3M Official Amana microwave

Here are the diagrams and repair parts for Official Amana ML-10-P76804-3M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Lamp R0812001
#5

Cabinet/fan motor diagram

Lamp

Part #R0812001

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces R0812001. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Slider, Interlock Switch R0803511
#8

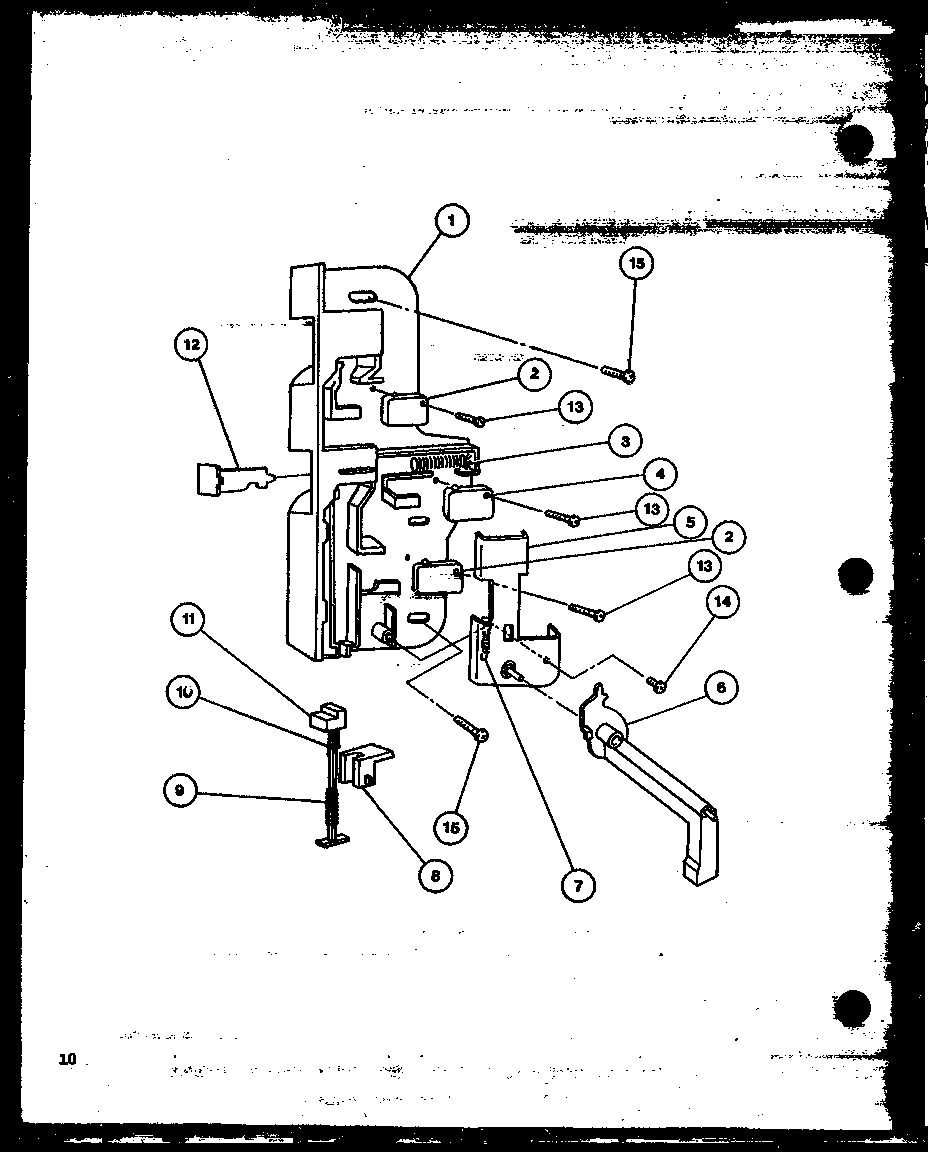

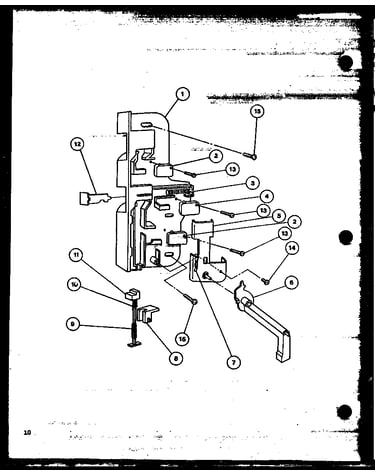

Switch, lock diagram

Slider, interlock switch

Part #R0803511

The manufacturer no longer makes this part, and there's no substitute part

Ferrite, Rubber R0806506
#9

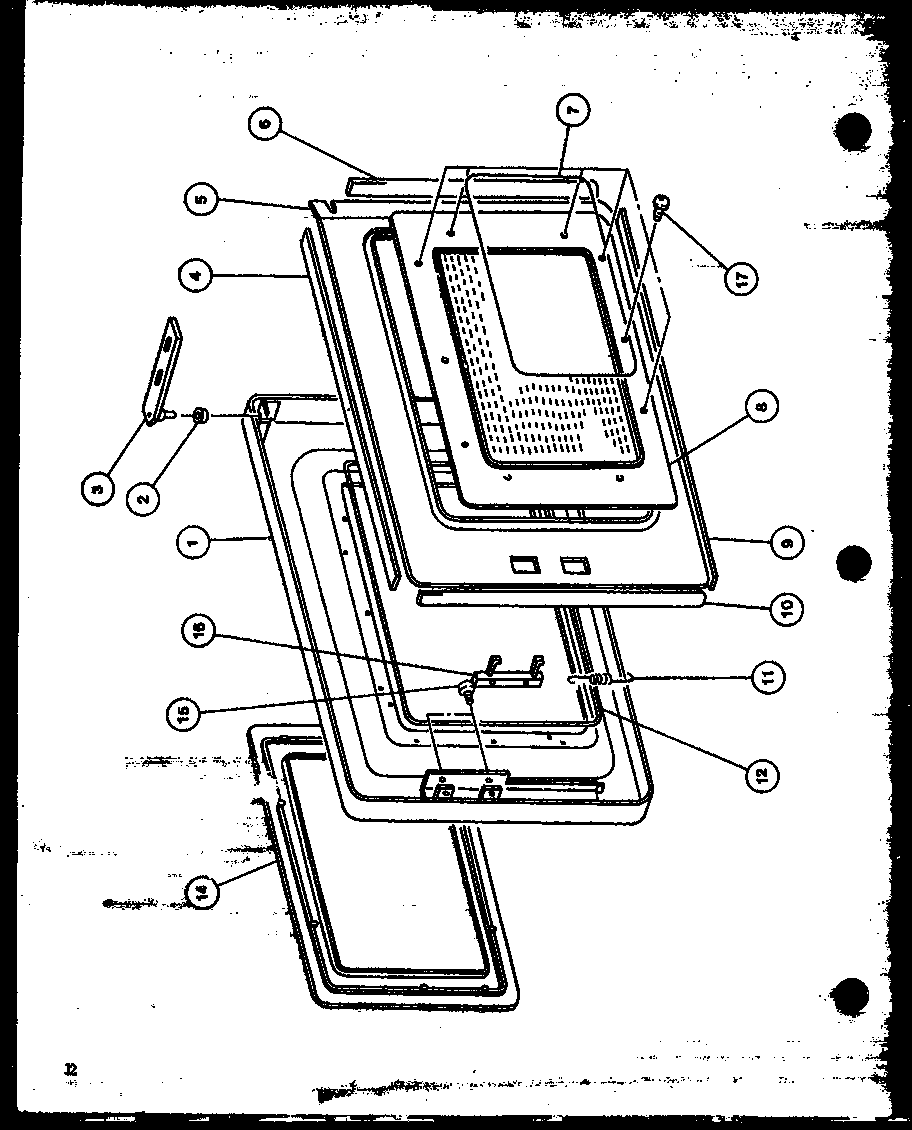

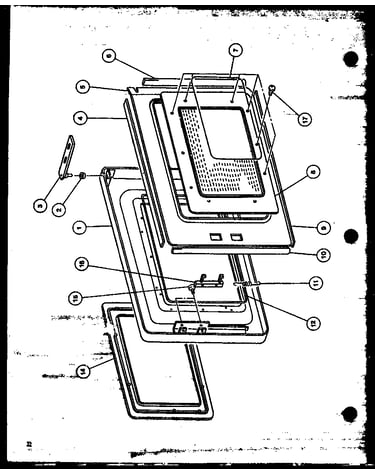

Door diagram

Ferrite, rubber

Part #R0806506

The manufacturer no longer makes this part, and there's no substitute part

Slider R0805509
#12

Switch, lock diagram

Slider

Part #R0805509

The manufacturer no longer makes this part, and there's no substitute part

Base Cover R0805525
#4

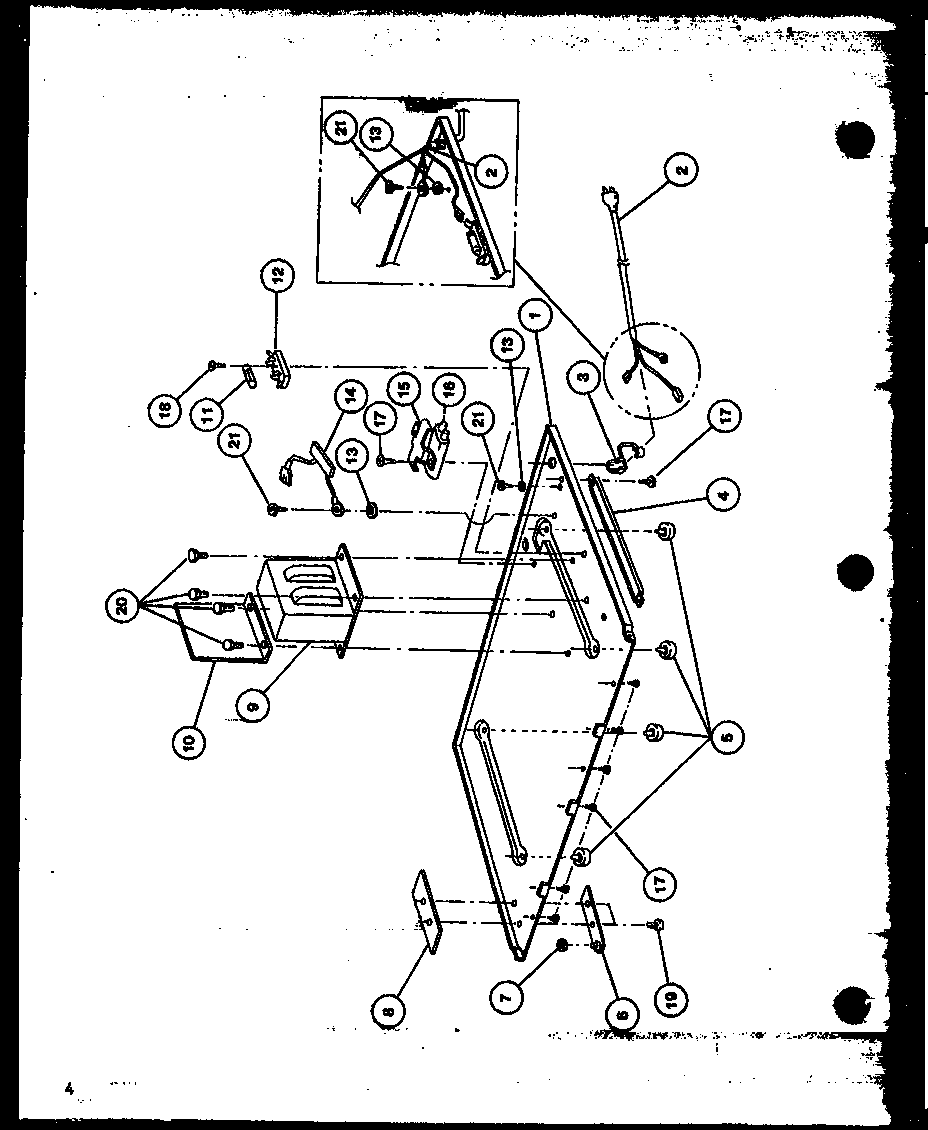

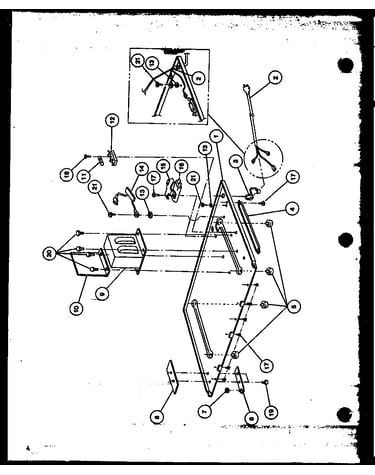

Transformer/magnetron diagram

Base cover

Part #R0805525

The manufacturer no longer makes this part, and there's no substitute part

Tube R0810003
#5

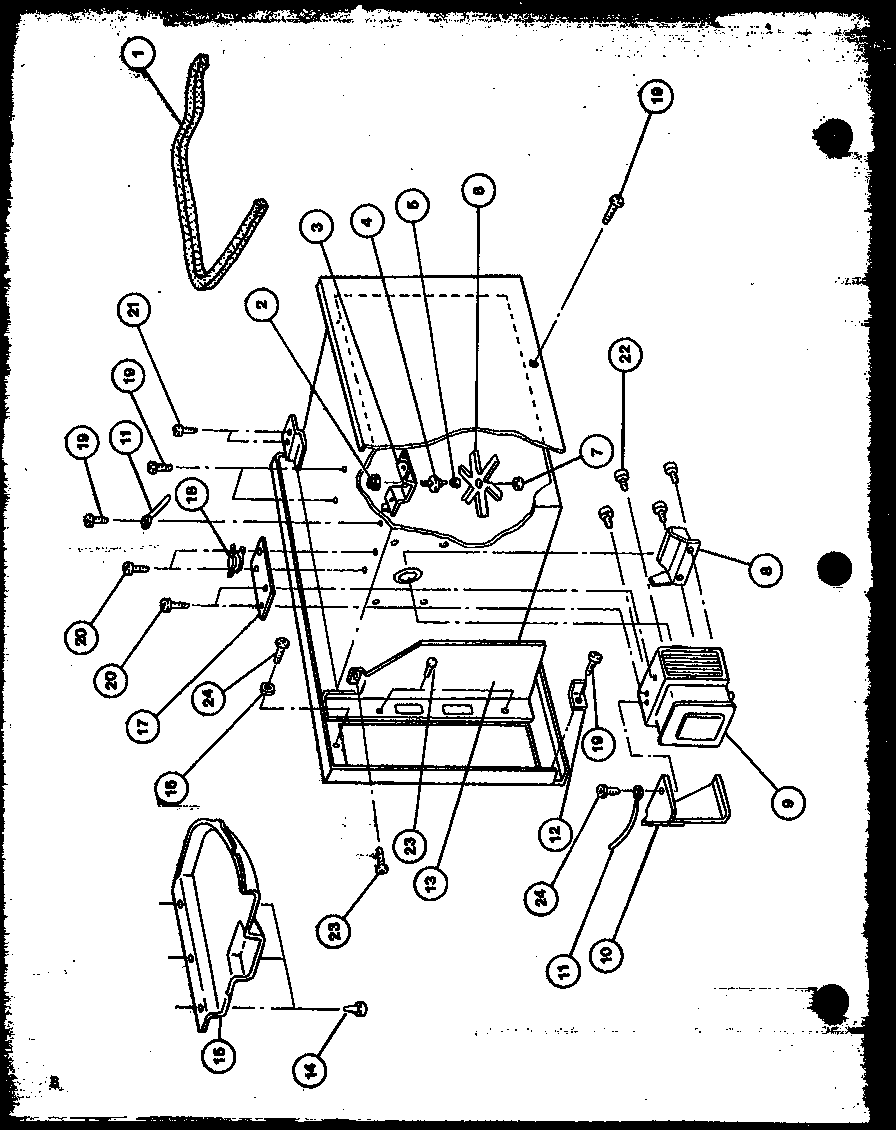

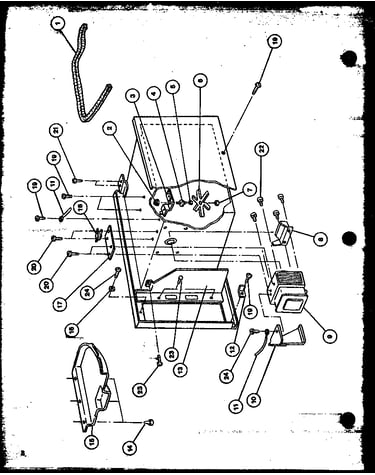

Stirrer/thermostat diagram

Tube

Part #R0810003

The manufacturer no longer makes this part, and there's no substitute part

Spring, Slider, Upper R0805510
#10

Switch, lock diagram

Spring, slider, upper

Part #R0805510

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover R0803502
#15

Stirrer/thermostat diagram

Stirrer cover

Part #R0803502

The manufacturer no longer makes this part, and there's no substitute part

Lock R0805508
#1

Switch, lock diagram

Lock

Part #R0805508

The manufacturer no longer makes this part, and there's no substitute part

Plate Gasket R0805534
#8

Door diagram

Plate gasket

Part #R0805534

The manufacturer no longer makes this part, and there's no substitute part
