Model # FAH08ES1TB Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH08ES1TB room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

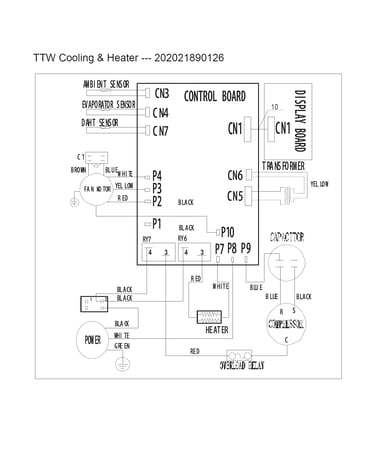

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Room Air Conditioner Air Filter 5304470951
#4

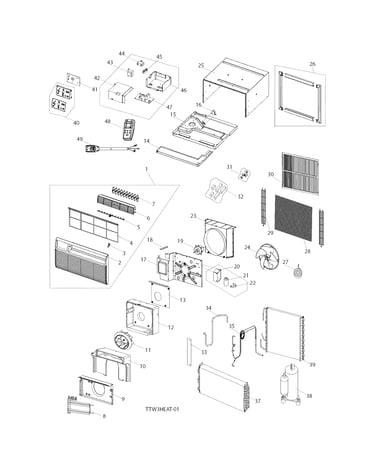

Recommended spare parts diagram

Room air conditioner air filter

Part #5304470951

Replaced by #5304528926

?
Manufacturer substitution
This part replaces 5304470951. Substitute parts can look different from the original.
$16.80
In Stock
Room Air Conditioner Foam Seal 5304470974
#27

Recommended spare parts diagram

Room air conditioner foam seal

Part #5304470974

$74.51
In Stock
Room Air Conditioner Condenser Fan Blade 5304470971
#24

Recommended spare parts diagram

Room air conditioner condenser fan blade

Part #5304470971

$62.07
In Stock
Room Air Conditioner Rear Grille 5304470975
#28

Recommended spare parts diagram

Room air conditioner rear grille

Part #5304470975

$20.69 |
22% OFF Phone Price : $26.69
In Stock
Room Air Conditioner Control Panel Assembly 5304470987
#41

Recommended spare parts diagram

Room air conditioner control panel assembly

Part #5304470987

$103.00 |
10% OFF Phone Price : $115.00
In Stock
Room Air Conditioner Transformer 5304470989
#43

Recommended spare parts diagram

Room air conditioner transformer

Part #5304470989

$72.93
In Stock
Motor 5304470966
#19

Recommended spare parts diagram

Motor

Part #5304470966

The manufacturer no longer makes this part, and there's no substitute part

Box 5304470967
#20

Recommended spare parts diagram

Box

Part #5304470967

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Front Grille 5304470949
#2

Recommended spare parts diagram

Room air conditioner front grille

Part #5304470949

The manufacturer no longer makes this part, and there's no substitute part

Base 5304470962
#15

Recommended spare parts diagram

Base

Part #5304470962

The manufacturer no longer makes this part, and there's no substitute part
