White-Westinghouse
Room Air Conditioner

Model # WAH096H2T1 Official White-Westinghouse room air conditioner - p5995321543

Here are the diagrams and repair parts for Official White-Westinghouse WAH096H2T1 room air conditioner - p5995321543, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

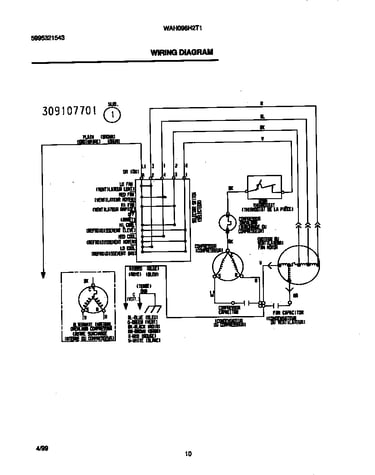

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Room Air Conditioner Screw 5304410881
Room air conditioner screw

Part #5304410881

This item is not returnable
$4.77
In Stock
Overload 5304408745
#8

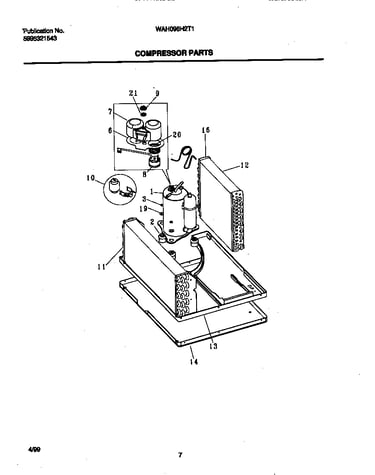

Compressor diagram

Overload

Part #5304408745

Replaced by #5304418714

?
Manufacturer substitution
This part replaces 5304408745. Substitute parts can look different from the original.
$8.70
In Stock
Screw 3202975
#2

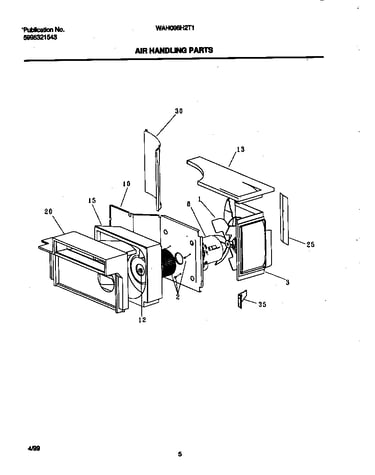

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
#fnt/cntrl L 309631801
#43

Cabinet front/wrapper diagram

#fnt/cntrl l

Part #309631801

The manufacturer no longer makes this part, and there's no substitute part

+evap Assy-1 309632303
#11

Compressor diagram

+evap assy-1

Part #309632303

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5303295516
#21

Compressor diagram

Gasket

Part #5303295516

The manufacturer no longer makes this part, and there's no substitute part

Control Box 309628501
#7

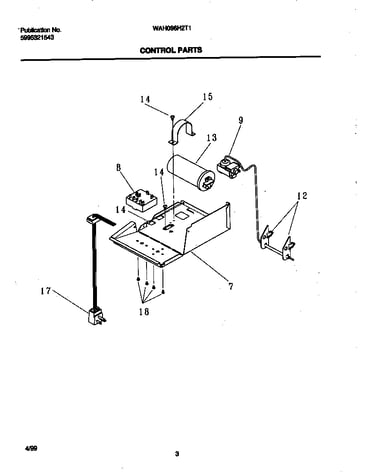

Control parts diagram

Control box

Part #309628501

The manufacturer no longer makes this part, and there's no substitute part

Scroll Plate 309622901
#20

Air handling parts diagram

Scroll plate

Part #309622901

The manufacturer no longer makes this part, and there's no substitute part

Partition 309629001
#30

Air handling parts diagram

Partition

Part #309629001

The manufacturer no longer makes this part, and there's no substitute part

Louver 309628001
#8

Cabinet front/wrapper diagram

Louver

Part #309628001

The manufacturer no longer makes this part, and there's no substitute part
