Kenmore
Central Air Conditioner

Model # 867816642 Official Kenmore condensing unit

Here are the diagrams and repair parts for Official Kenmore 867816642 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Contactor 92337
#9A

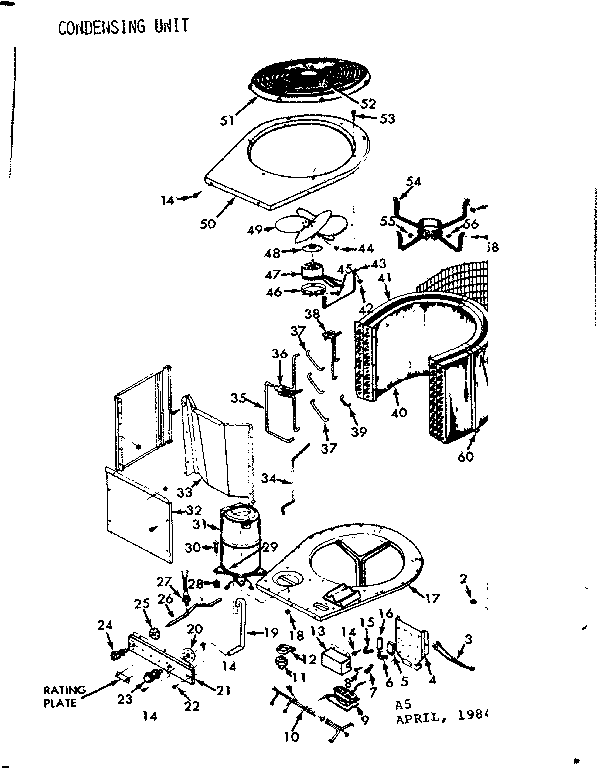

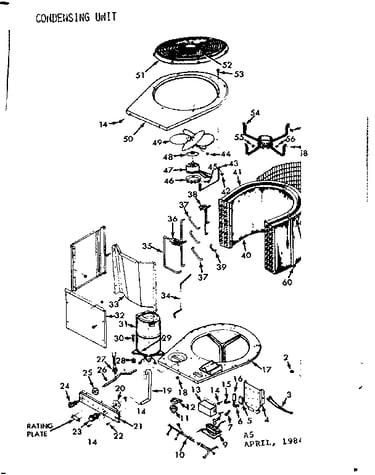

Unit parts diagram

Contactor

Part #92337

The manufacturer no longer makes this part, and there's no substitute part

Motor 96799
#47B

Unit parts diagram

Motor

Part #96799

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Capacitor 708085
#5B

Unit parts diagram

Capacitor

Part #708085

Replaced by #PAKTRCFD605

?
Manufacturer substitution
This part replaces 708085. Substitute parts can look different from the original.
BEST SELLER
$23.38 |
20% OFF Phone Price : $29.38
In Stock
Outlet Grille 708690
#51

Unit parts diagram

Outlet grille

Part #708690

Replaced by #512848

?
Manufacturer substitution
This part replaces 708690. Substitute parts can look different from the original.
$164.46 |
7% OFF Phone Price : $176.46
In Stock
Fan Blade 707222
#49B

Unit parts diagram

Fan blade

Part #707222

Replaced by #1080764

?
Manufacturer substitution
This part replaces 707222. Substitute parts can look different from the original.
$80.17
In Stock
Contactor 704410
#9B

Unit parts diagram

Contactor

Part #704410

Replaced by #90-170

?
Manufacturer substitution
This part replaces 704410. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Capacitor 706437
#16B

Unit parts diagram

Capacitor

Part #706437

Replaced by #12005

?
Manufacturer substitution
This part replaces 706437. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Capacitor 706436
#5A

Unit parts diagram

Capacitor

Part #706436

The manufacturer no longer makes this part, and there's no substitute part

Heater 708849
#29

Unit parts diagram

Heater

Part #708849

Replaced by #1053477

?
Manufacturer substitution
This part replaces 708849. Substitute parts can look different from the original.
$152.12
In Stock
Start Device 707934
#11A

Unit parts diagram

Start device

Part #707934

The manufacturer no longer makes this part, and there's no substitute part
