Model # WLCR88851 Official Weslo body glide

Here are the diagrams and repair parts for Official Weslo WLCR88851 body glide, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

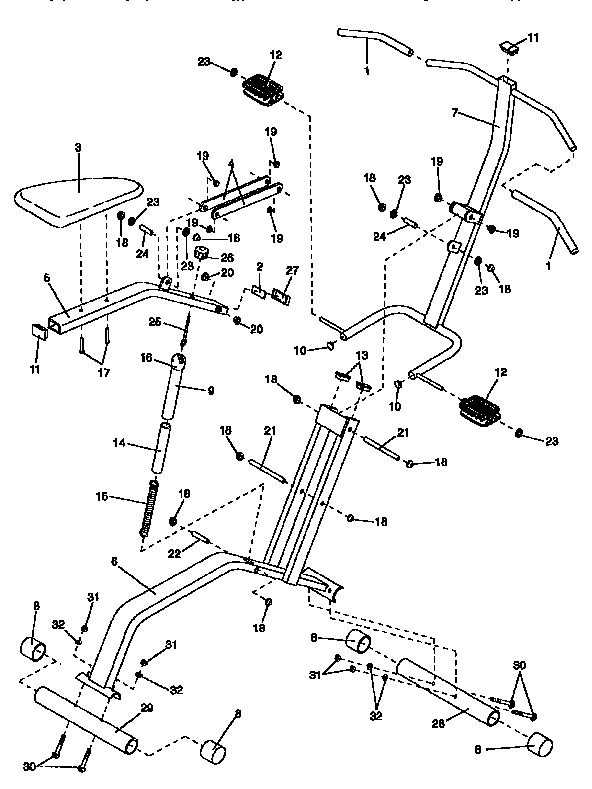

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Wshr,flat,zp 126333

#NI

All parts diagram

Wshr,flat,zp

Part #126333

This item is not returnable
In Stock
Nylon Lcknut 128358
#31

Unit parts diagram

Nylon lcknut

Part #128358

This item is not returnable
In Stock
Nordictrack End Cap 126329
#13

Unit parts diagram

Nordictrack end cap

Part #126329

This item is not returnable
In Stock
Image Bolt 126704
#30

Unit parts diagram

Image bolt

Part #126704

This item is not returnable
In Stock
1 1/2 Endcap 128240
#11

Unit parts diagram

1 1/2 endcap

Part #128240

Replaced by #117544

?
Manufacturer substitution
This part replaces 128240. Substitute parts can look different from the original.
This item is not returnable
In Stock
5/16" Washer 128359
#32

Unit parts diagram

5/16" washer

Part #128359

Replaced by #014132

?
Manufacturer substitution
This part replaces 128359. Substitute parts can look different from the original.
This item is not returnable
In Stock
1/4 X 2" Cap 128346
#17

Unit parts diagram

1/4 x 2" cap

Part #128346

Replaced by #132656

?
Manufacturer substitution
This part replaces 128346. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pedal Frm/hw 126690
#7

Unit parts diagram

Pedal frm/hw

Part #126690

The manufacturer no longer makes this part, and there's no substitute part

6" Pivot Axl 128162
#21

Unit parts diagram

6" pivot axl

Part #128162

The manufacturer no longer makes this part, and there's no substitute part

Lit. Packet 128464

#NI

All parts diagram

Lit. packet

Part #128464

The manufacturer no longer makes this part, and there's no substitute part
