Model # CV18S-61544 Official Kohler engine

Here are the diagrams and repair parts for Official Kohler CV18S-61544 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

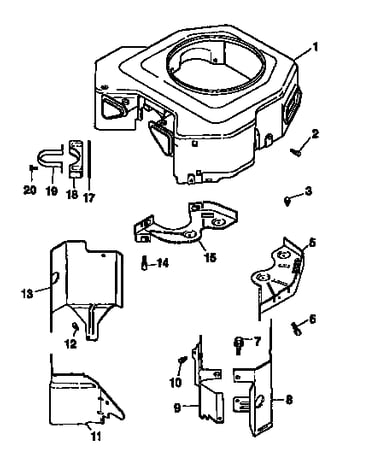

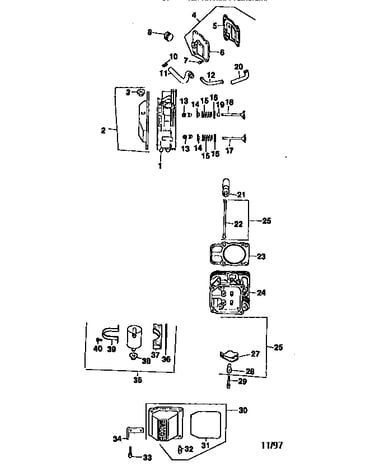

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Fuel Filter 25-050-03
#14

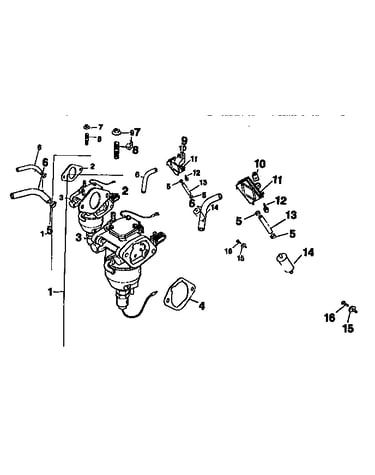

Fuel system diagram

Fuel filter

Part #25-050-03

Replaced by #25-050-22-S1

?
Manufacturer substitution
This part replaces 25-050-03. Substitute parts can look different from the original.
BEST SELLER
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Pump 24-393-04
#11

Fuel system diagram

Pump

Part #24-393-04

Replaced by #24-393-16-S

?
Manufacturer substitution
This part replaces 24-393-04. Substitute parts can look different from the original.
BEST SELLER
$56.09 |
10% OFF Phone Price : $62.09
In Stock
Electric Starter 25-098-05
#4

Starting system diagram

Electric starter

Part #25-098-05

Replaced by #25-098-07-S

?
Manufacturer substitution
This part replaces 25-098-05. Substitute parts can look different from the original.
BEST SELLER
$238.00 |
5% OFF Phone Price : $250.00
In Stock
Pre-filter 24-083-02
#9

Air intake diagram

Pre-filter

Part #24-083-02

Replaced by #24-083-02-S

?
Manufacturer substitution
This part replaces 24-083-02. Substitute parts can look different from the original.
This item is not returnable
$6.99 |
13% OFF Phone Price : $7.99
In Stock
Regulator Rectifier 25-403-03
#10

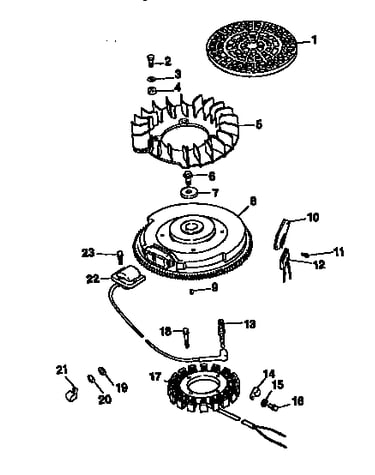

Ignition/electrical diagram

Regulator rectifier

Part #25-403-03

Replaced by #25-403-37-S

?
Manufacturer substitution
This part replaces 25-403-03. Substitute parts can look different from the original.
$102.27 |
11% OFF Phone Price : $114.27
In Stock
Tube 12-123-04
#21

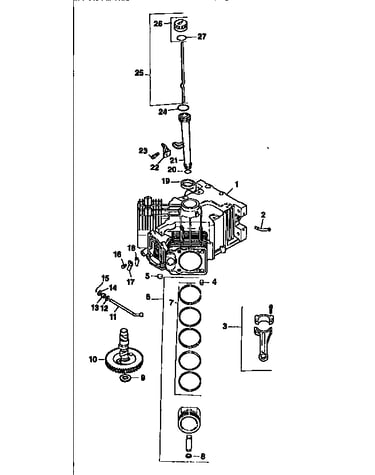

Crankcase diagram

Tube

Part #12-123-04

Replaced by #32-755-32-S

?
Manufacturer substitution
This part replaces 12-123-04. Substitute parts can look different from the original.
This item is not returnable
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Clamp X-426-9
Clamp

Part #X-426-9

Replaced by #25-237-31-S

?
Manufacturer substitution
This part replaces X-426-9. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Key X-42-15
#9

Ignition/electrical diagram

Key

Part #X-42-15

Replaced by #X-42-15-S

?
Manufacturer substitution
This part replaces X-42-15. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Seal 24-032-01
#19

Crankcase diagram

Seal

Part #24-032-01

Replaced by #24-032-19-S

?
Manufacturer substitution
This part replaces 24-032-01. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Choke Linkage 24-079-05
#20

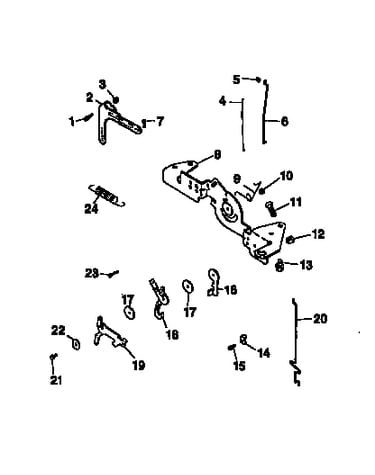

Engine controls diagram

Choke linkage

Part #24-079-05

Replaced by #24-079-22-S

?
Manufacturer substitution
This part replaces 24-079-05. Substitute parts can look different from the original.
This item is not returnable
$9.53 |
10% OFF Was : $10.59
In Stock
