Model # 38EZG018 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38EZG018-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Capactr Duel P291-3053RS
#33

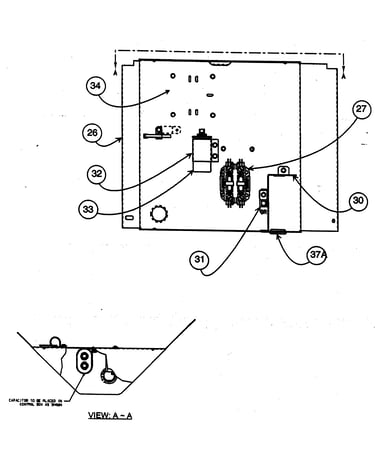

Control box diagram

Capactr duel

Part #P291-3053RS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces P291-3053RS. Substitute parts can look different from the original.
This item is not returnable
$34.08
15% OFF Phone Price : $40.08
In Stock
Switch 312926-237
#NI

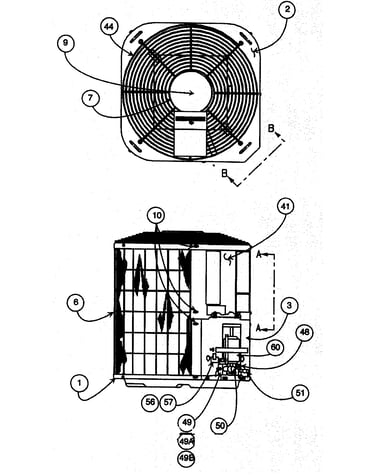

Top view diagram

Switch

Part #312926-237

In Stock
Line Drier KH45LG140
#NI

Top view diagram

Line drier

Part #KH45LG140

In Stock
Carrier Condenser Coil 322337-7036
#47

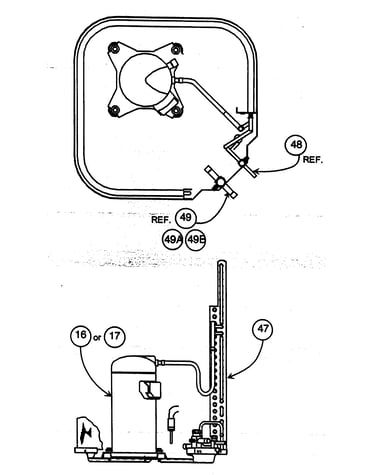

Compressor assy diagram

Carrier condenser coil

Part #322337-7036

In Stock
Bryant Fan Prop LA01EA026
#42

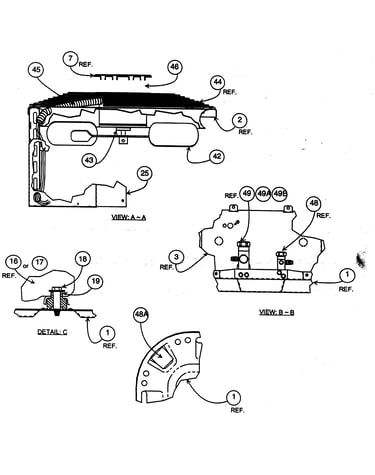

View a-a/view b-b diagram

Bryant fan prop

Part #LA01EA026

In Stock
Valve 317412-401
Valve

Part #317412-401

In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC
#NI

Top view diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

In Stock
Lug HY90AZ009
#31

Control box diagram

Lug

Part #HY90AZ009

In Stock
Valve EA36YD121
#NI

Top view diagram

Valve

Part #EA36YD121

In Stock
Piston EA52PH052
#56

Top view diagram

Piston

Part #EA52PH052

In Stock
