Sharp
Countertop Microwave

Model # R-330DW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-330DW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

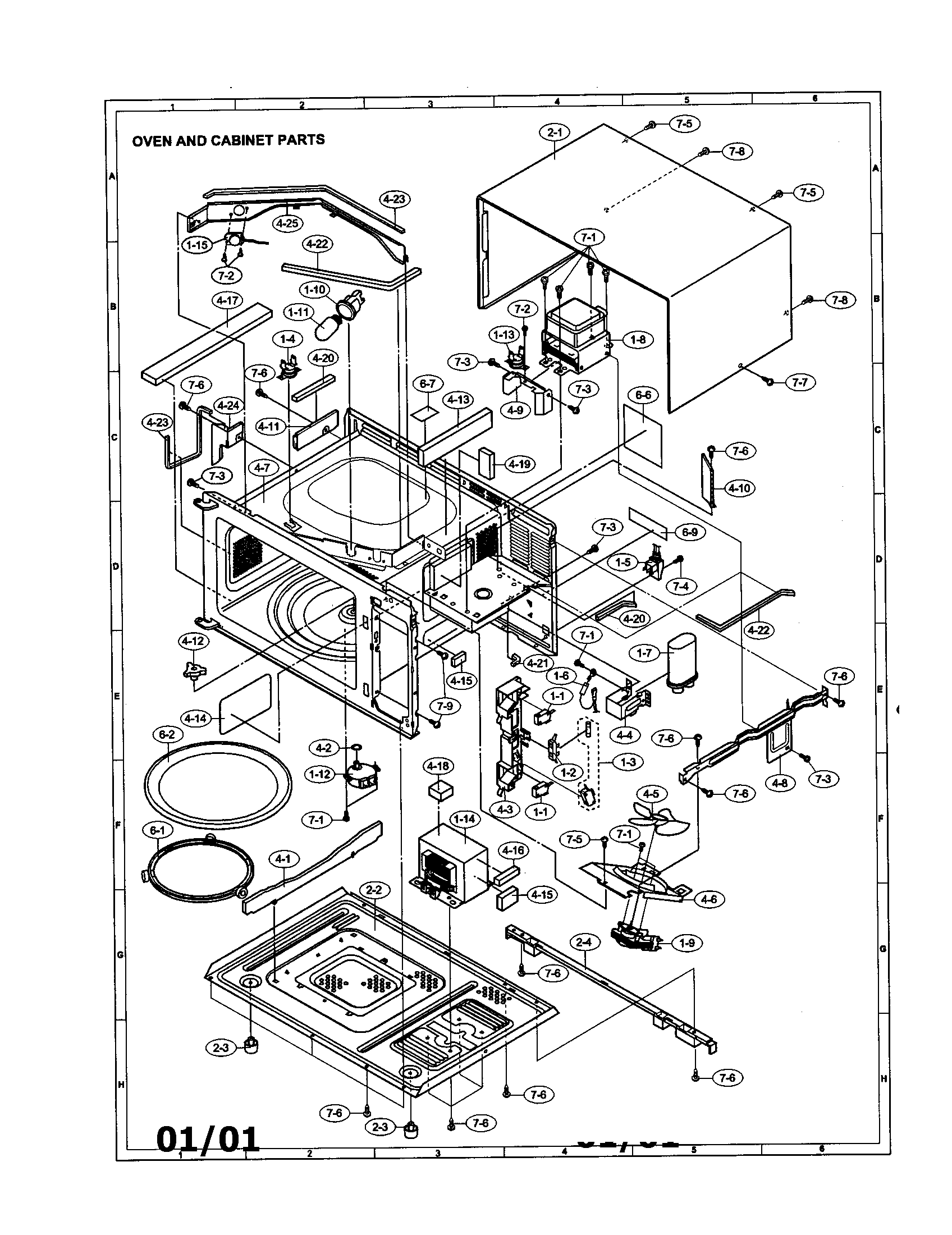

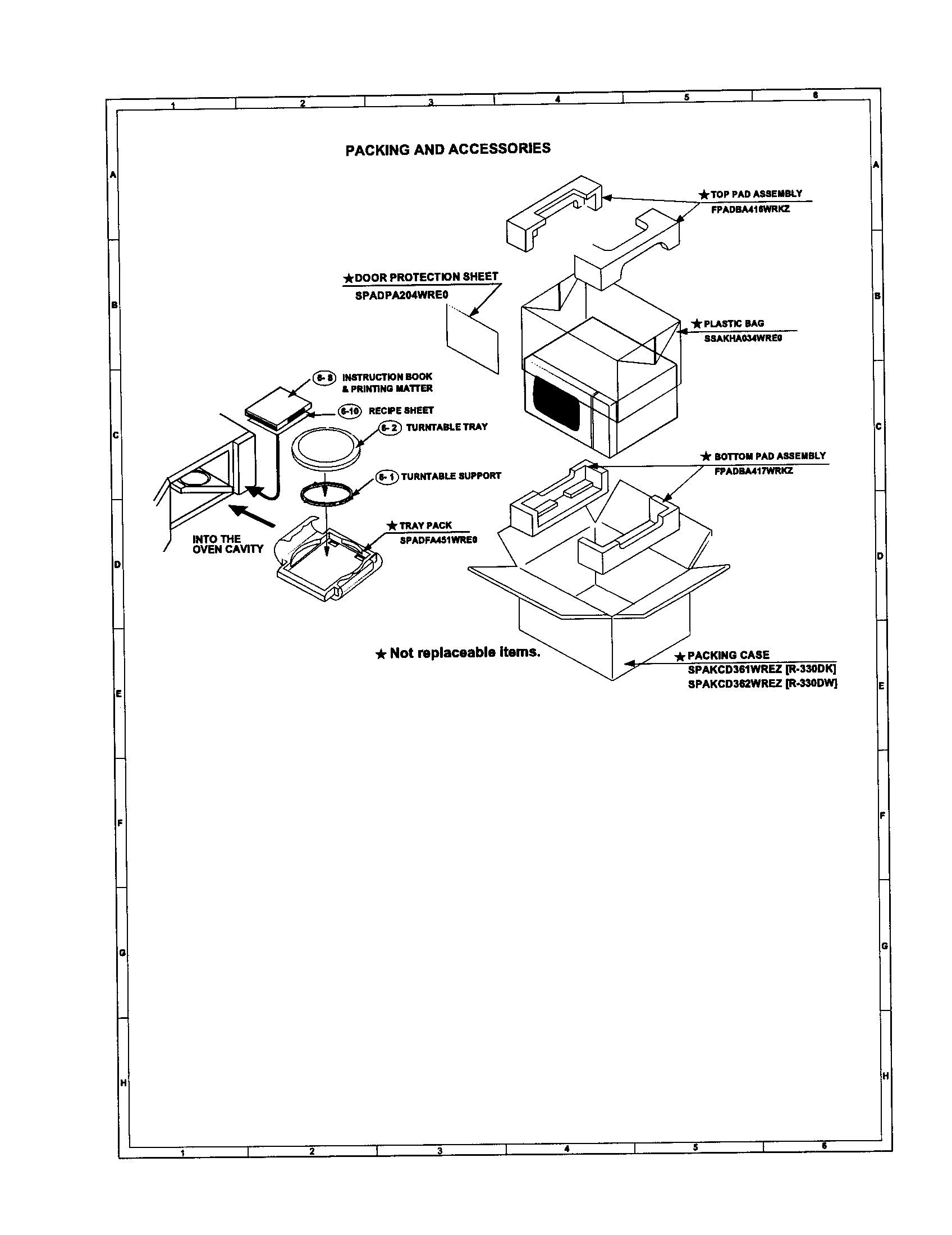

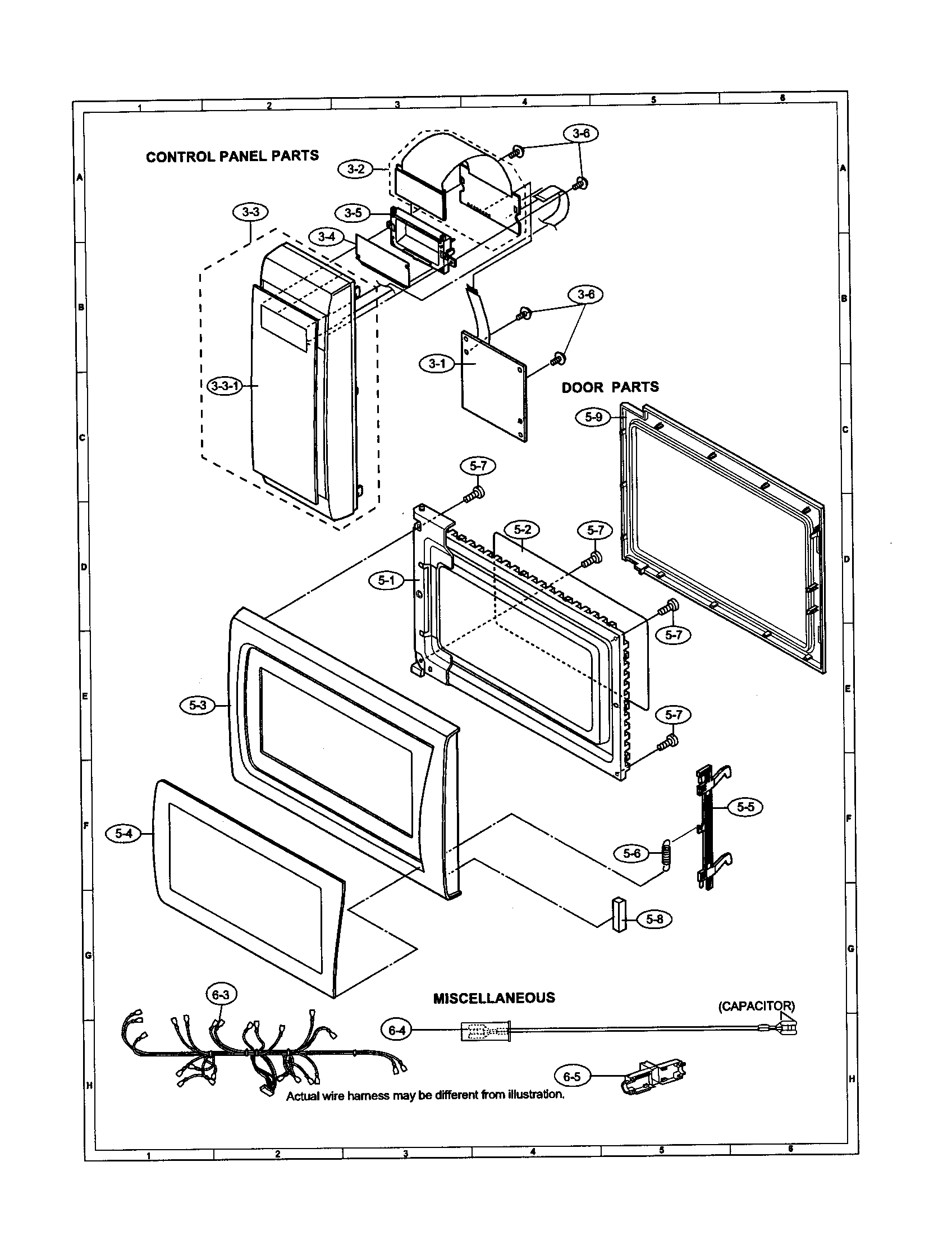

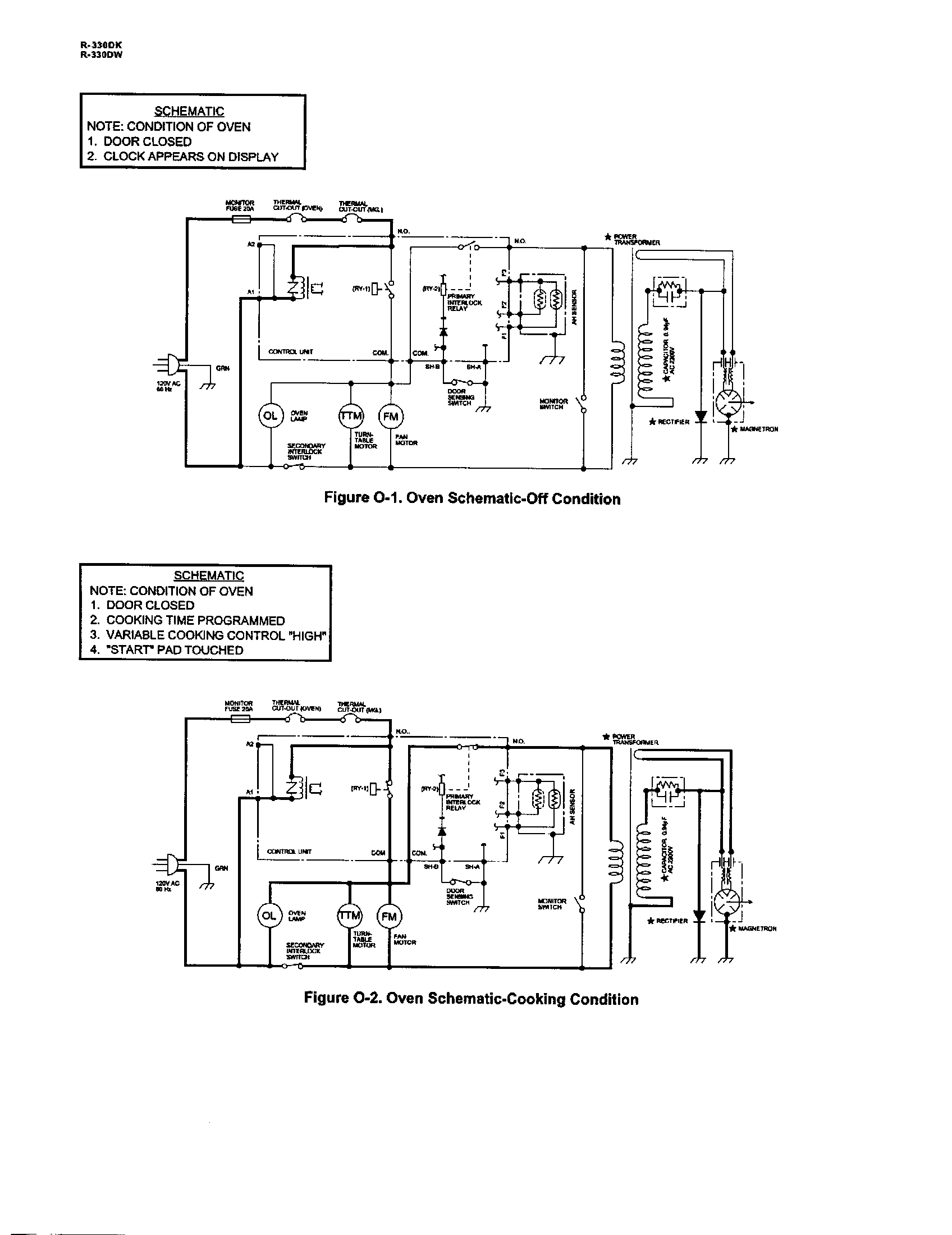

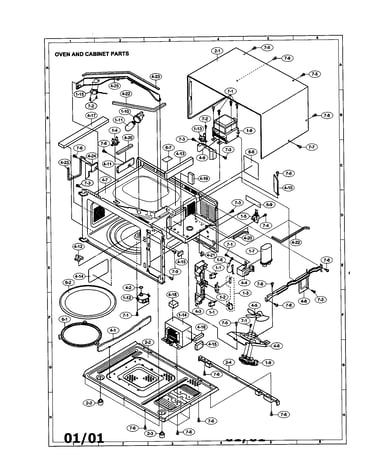

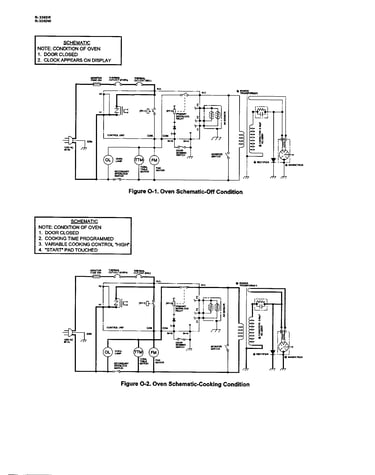

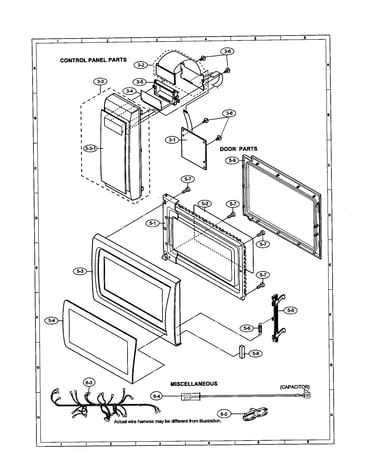

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Power Cord FACCDA083WRE0

#1-05

All parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA187WRE0

#5-06

All parts diagram

Spring

Part #MSPRTA187WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0

#6-01

All parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA147WRZZ

#1-01

All parts diagram

Switch

Part #QSW-MA147WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XHPSD40P08K00

#7-01

All parts diagram

Screw

Part #XHPSD40P08K00

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA461WRP0

#5-08

All parts diagram

Cushion

Part #PCUSUA461WRP0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VRD-B12EF242J

#NI

All parts diagram

Capacitor

Part #VRD-B12EF242J

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12EF472J

#NI

All parts diagram

Resistor

Part #VRD-B12EF472J

The manufacturer no longer makes this part, and there's no substitute part

Diode VHD11ES1///-1

#NI

All parts diagram

Diode

Part #VHD11ES1///-1

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor 507453

#1-12

All parts diagram

Microwave turntable motor

Part #507453

The manufacturer no longer makes this part, and there's no substitute part
