Model # YWMH1162XVB4 Official Whirlpool 1.6 cubic foot microwave

Here are the diagrams and repair parts for Official Whirlpool YWMH1162XVB4 1.6 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Diode W10163432
#26

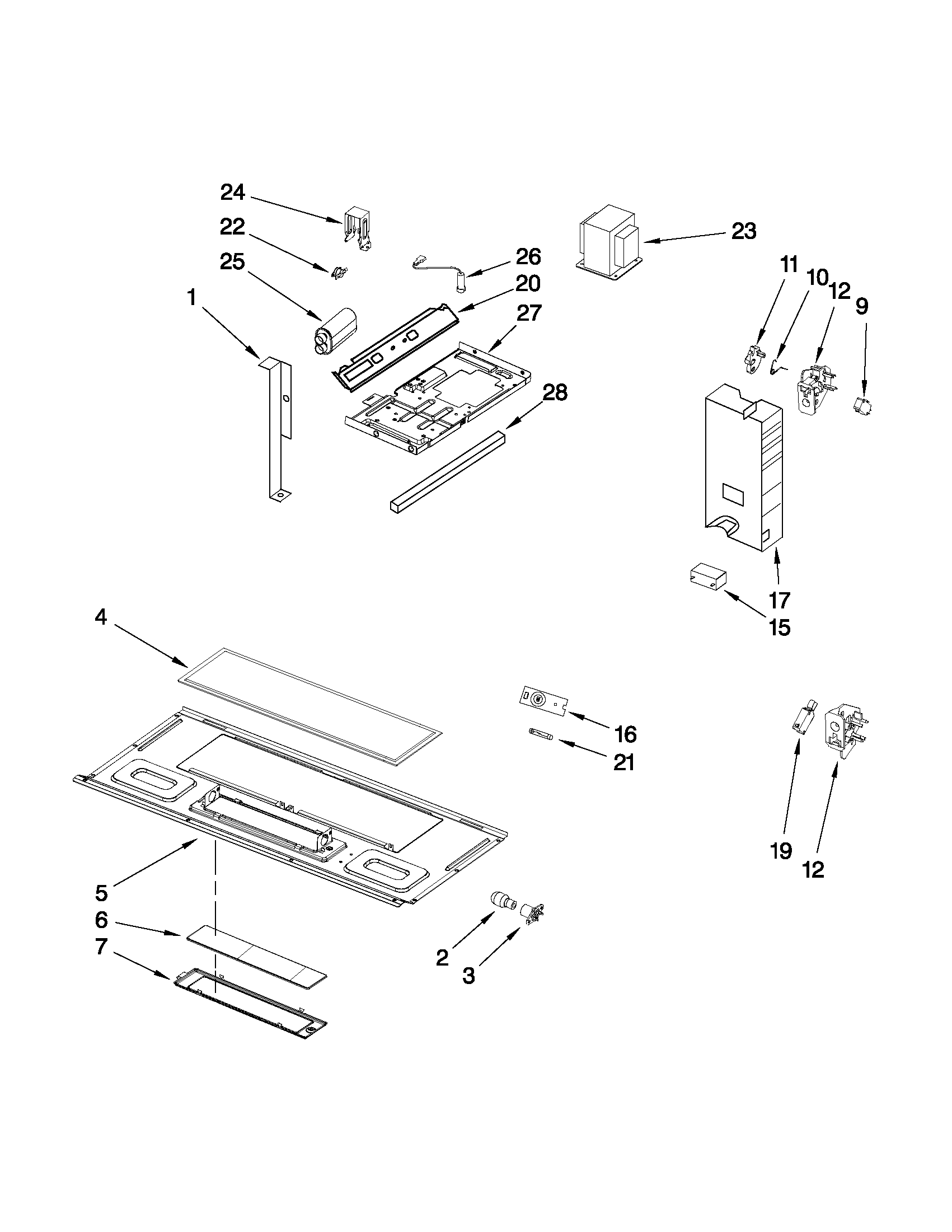

Interior and ventilation parts diagram

Diode

Part #W10163432

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10163432. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#9

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$23.43 |
20% OFF Phone Price : $29.43
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Lamp Assembly 4393681
#3

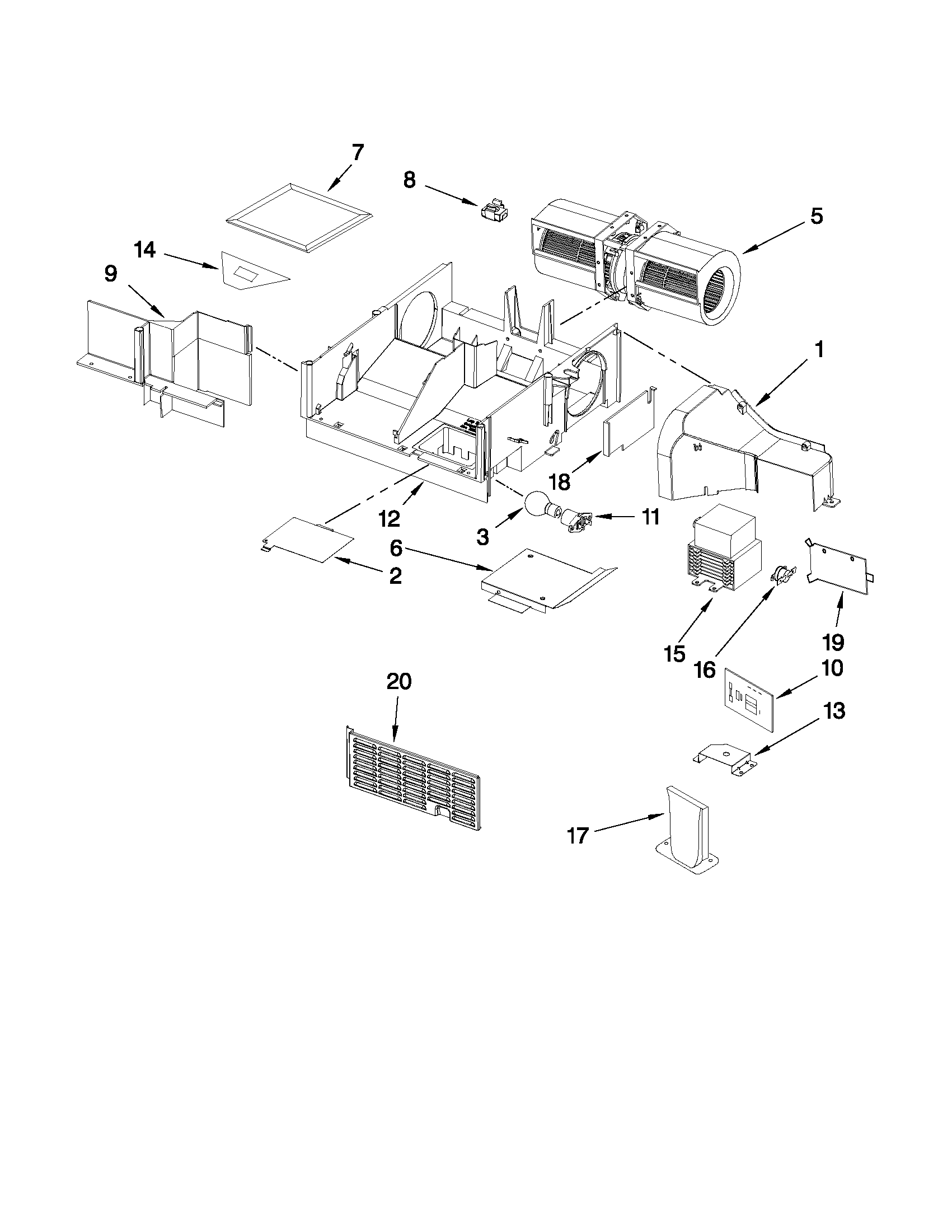

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave Door Interlock Switch W10269460
#19

Interior and ventilation parts diagram

Microwave door interlock switch

Part #W10269460

BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Microwave Door Interlock Support, Upper 8206419
#12

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Microwave Turntable Motor W10210848
#7

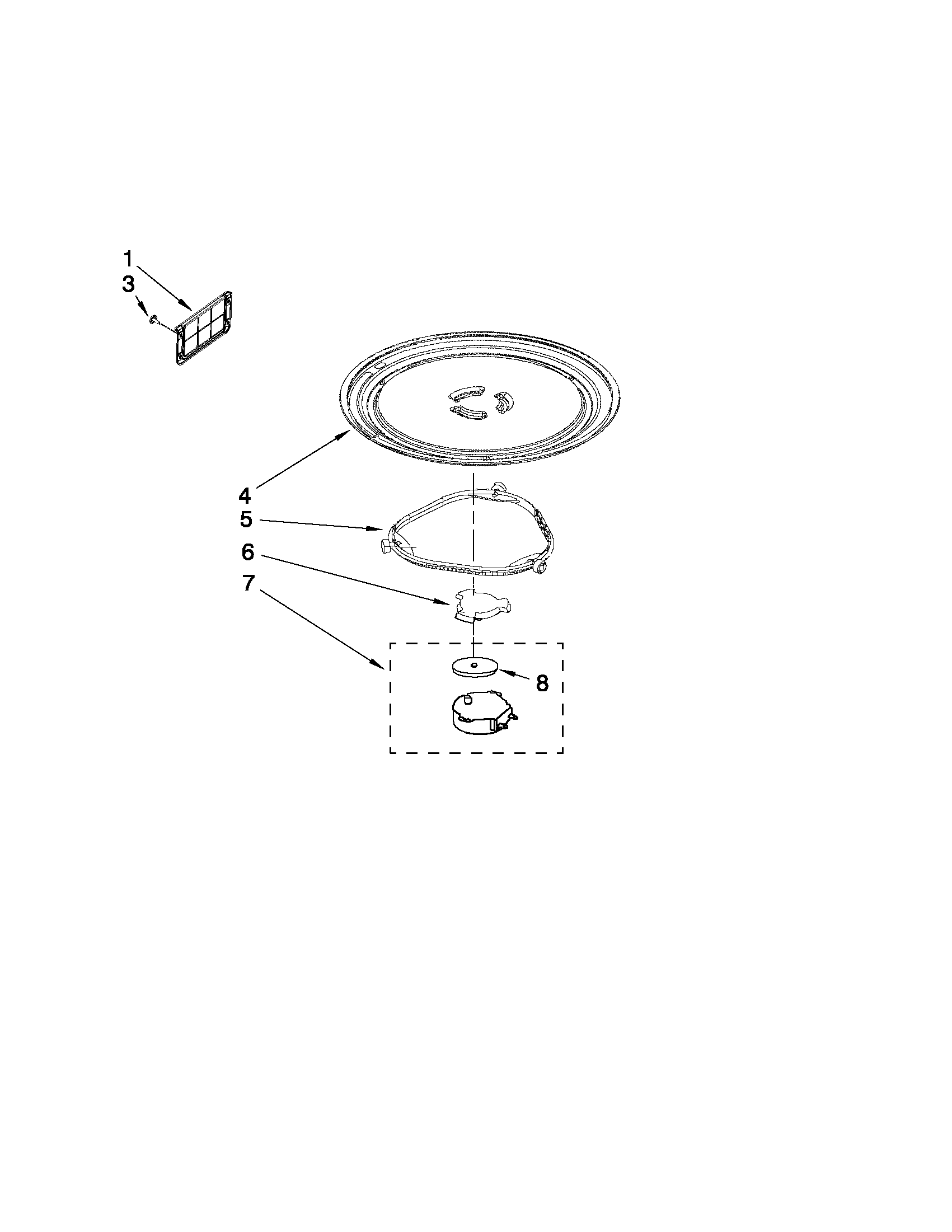

Turntable parts diagram

Microwave turntable motor

Part #W10210848

Replaced by #WPW10466420

?
Manufacturer substitution
This part replaces W10210848. Substitute parts can look different from the original.
BEST SELLER
$32.16 |
16% OFF Phone Price : $38.16
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Filter 8206230
#7

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
