Model # WEBE88890 Official Weider pro 136 weight system

Here are the diagrams and repair parts for Official Weider WEBE88890 pro 136 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Nordictrack Exercise Equipment Snap Hook 103087
#37

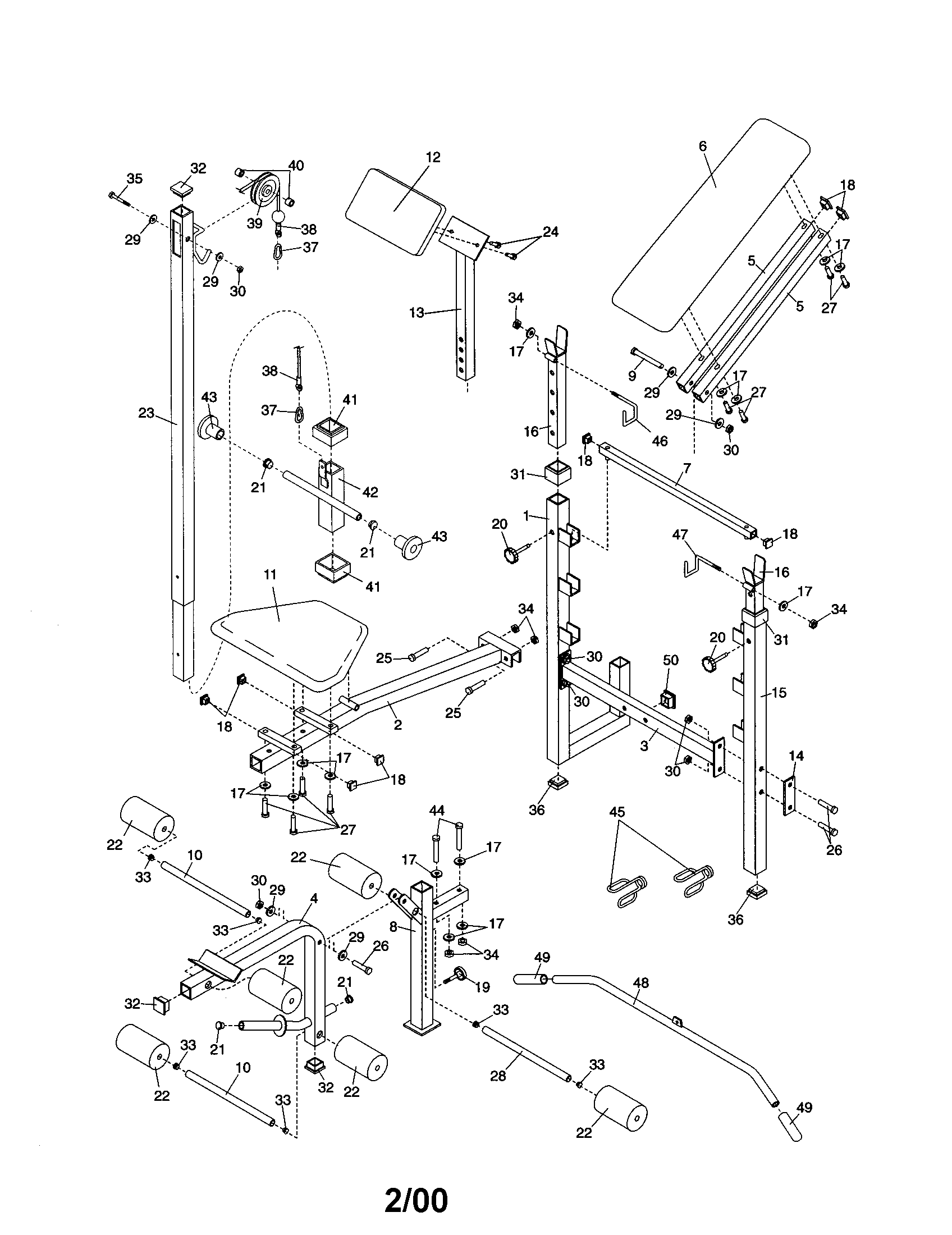

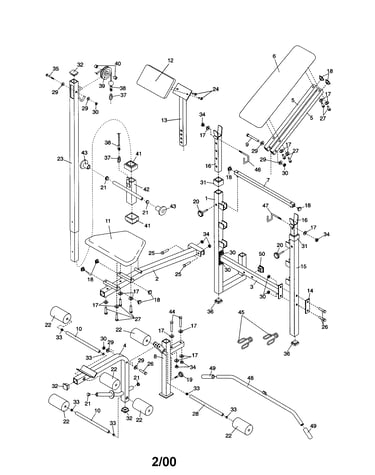

Weight system diagram

Nordictrack exercise equipment snap hook

Part #103087

This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Base End Cap 103833
#32

Weight system diagram

Base end cap

Part #103833

This item is not returnable
In Stock
Image Weight System Adjustment Knob 149651
#20

Weight system diagram

Image weight system adjustment knob

Part #149651

This item is not returnable
In Stock
Nut,hex Nyl 121050
#30

Weight system diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#33

Weight system diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
In Stock
Internal Round End Cap, 1-in 120733
#21

Weight system diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
In Stock
Weight System Cable Pulley 163633
#39

Weight system diagram

Weight system cable pulley

Part #163633

$42.79
12% OFF Phone Price : $48.79
In Stock
Elliptical Washer 014132
#29

Weight system diagram

Elliptical washer

Part #014132

This item is not returnable
In Stock
Spcr,mtl,.39 156158
#40

Weight system diagram

Spcr,mtl,.39

Part #156158

This item is not returnable
In Stock
Weight System Screw 132653
#9

Weight system diagram

Weight system screw

Part #132653

In Stock
