Kenmore
Gas Grill

Model # 41515485 Official Kenmore lp gas grill

Here are the diagrams and repair parts for Official Kenmore 41515485 lp gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Grease Clip 4156894
#56

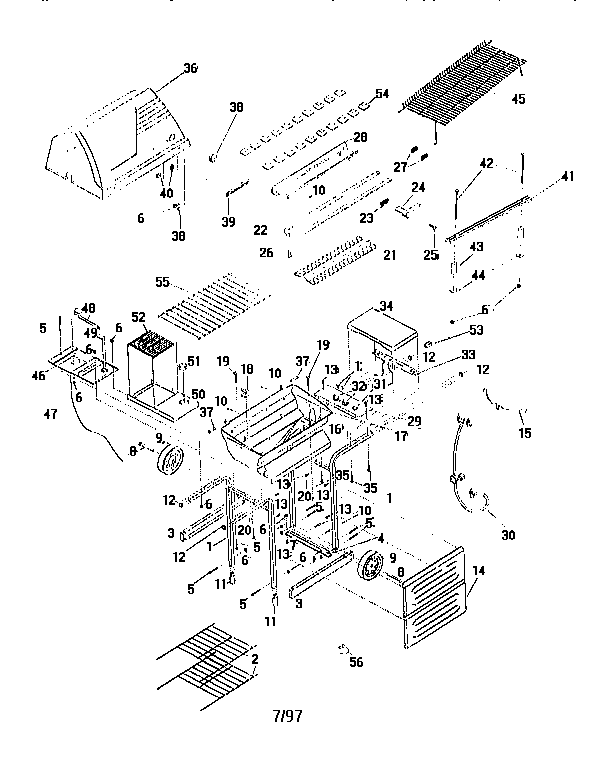

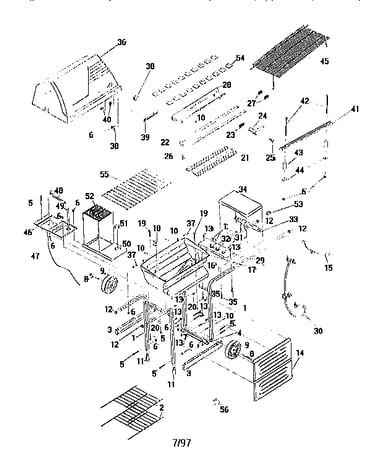

Replacement parts diagram

Grease clip

Part #4156894

Replaced by #80011874

?
Manufacturer substitution
This part replaces 4156894. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Ken-ran Gas Grill Axle Bolt 4080155
#8

Replacement parts diagram

Ken-ran gas grill axle bolt

Part #4080155

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Screw 4080307
#42

Replacement parts diagram

Ken-ran gas grill screw

Part #4080307

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Lid Hinge Pin 4156513
#37

Replacement parts diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Wheel 4156956
#9

Replacement parts diagram

Wheel

Part #4156956

Replaced by #G206-0025-W1

?
Manufacturer substitution
This part replaces 4156956. Substitute parts can look different from the original.
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Handle Spacer 4069908
#43

Replacement parts diagram

Handle spacer

Part #4069908

Replaced by #4253274

?
Manufacturer substitution
This part replaces 4069908. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Leg Assembly 4302501
#1

Replacement parts diagram

Leg assembly

Part #4302501

The manufacturer no longer makes this part, and there's no substitute part

Nut, 3/16" 4153096
#40

Replacement parts diagram

Nut, 3/16"

Part #4153096

The manufacturer no longer makes this part, and there's no substitute part

Console 4525328
#16

Replacement parts diagram

Console

Part #4525328

The manufacturer no longer makes this part, and there's no substitute part

Rail Assembly 4502771
#3

Replacement parts diagram

Rail assembly

Part #4502771

The manufacturer no longer makes this part, and there's no substitute part
