Countertop Microwave

Model # R-330EK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-330EK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

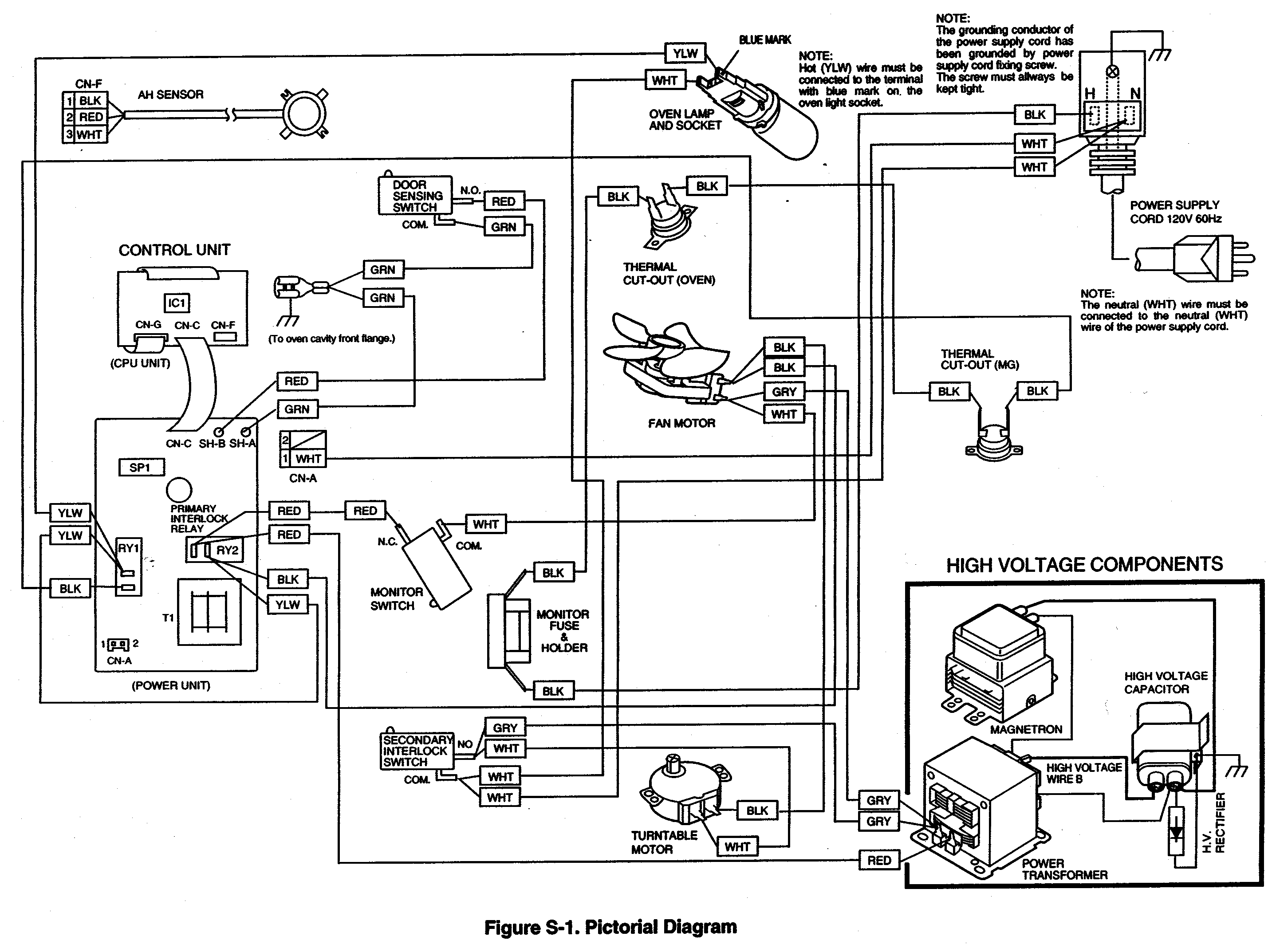

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Power Cord FACCDA083WRE0
#1-5

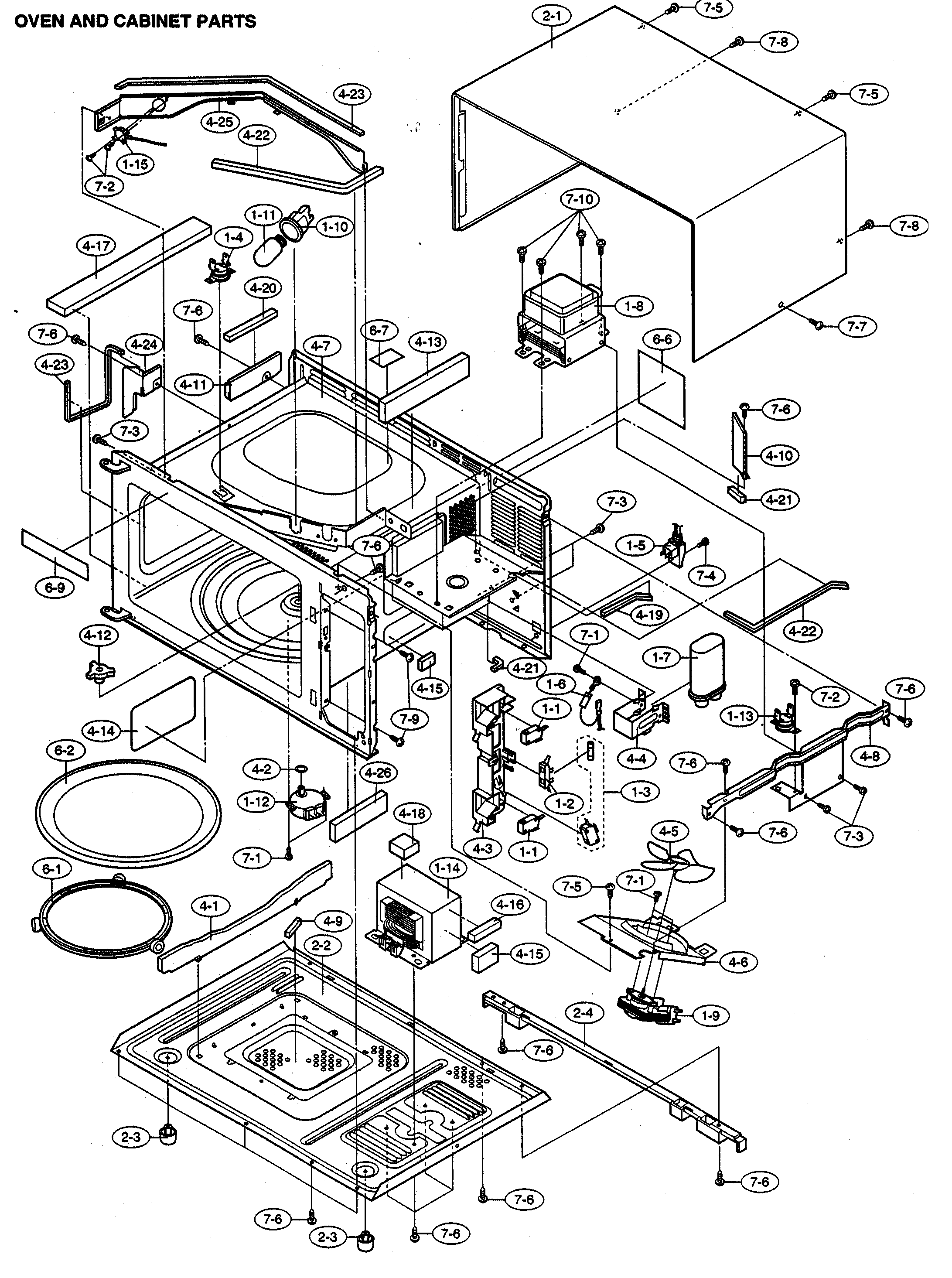

Oven/cabinet parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screen HPNL-A756WRRZ
#5-4

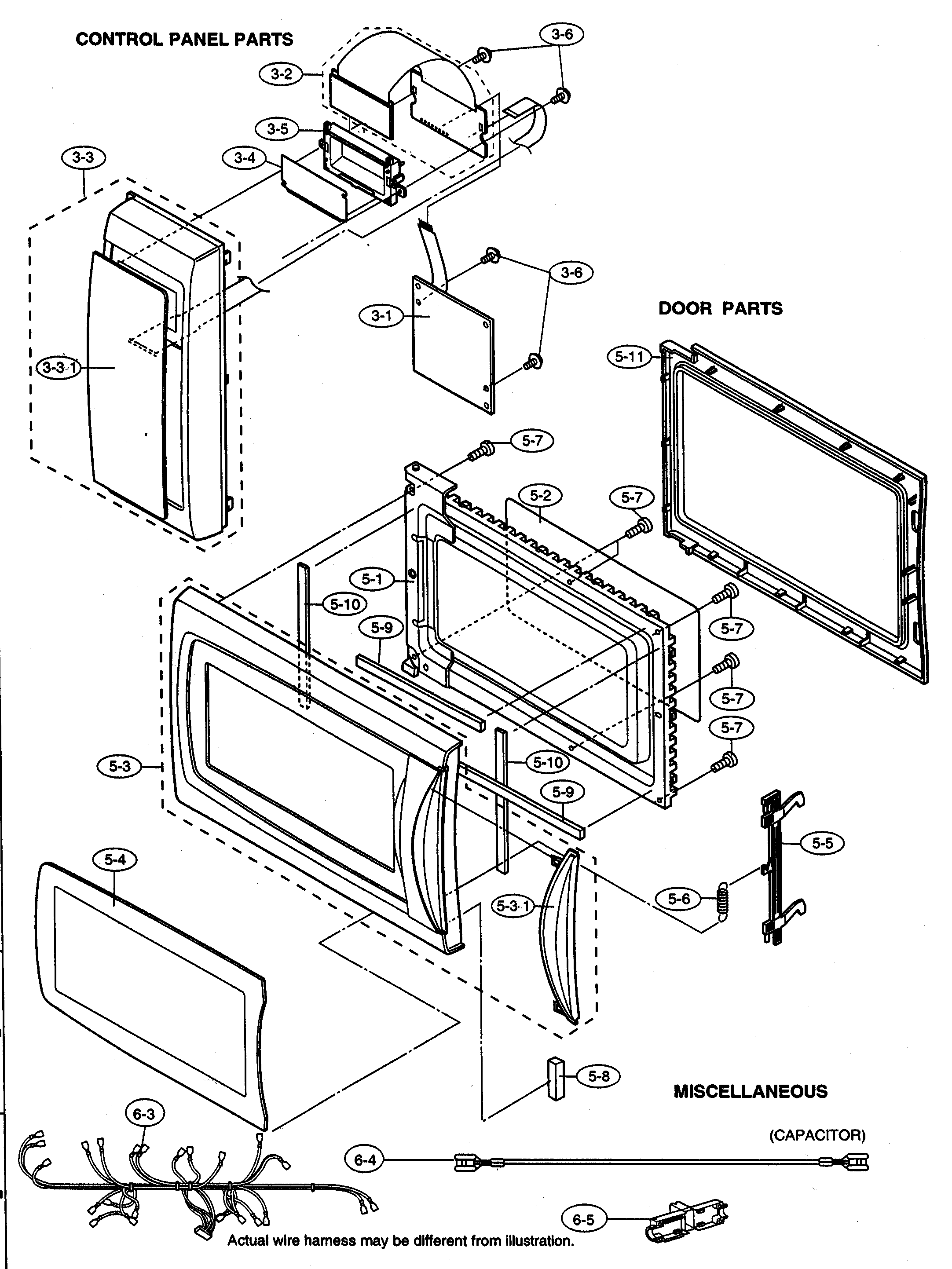

Control panel/door/miscellaneous parts diagram

Screen

Part #HPNL-A756WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA291WRE0
#1-8A

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA291WRE0

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual TINSEA884WRRZ
#NI

Oven/cabinet parts diagram

Owner's manual

Part #TINSEA884WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Cutoff Thermostat RTHM-A080WRE0
#113A

Oven/cabinet parts diagram

Cutoff thermostat

Part #RTHM-A080WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0
#1-2

Oven/cabinet parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Foot GLEGPA074WRE0
#2-3

Oven/cabinet parts diagram

Microwave foot

Part #GLEGPA074WRE0

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA187WRE0
#5-6

Control panel/door/miscellaneous parts diagram

Spring

Part #MSPRTA187WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA382WRE0
#5-2

Control panel/door/miscellaneous parts diagram

Sheet

Part #PSHEPA382WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA147WRZZ
#1-1

Oven/cabinet parts diagram

Switch

Part #QSW-MA147WRZZ

The manufacturer no longer makes this part, and there's no substitute part
