Kenmore
Electric Water Heater

Model # 153311010 Official Kenmore super j le dual 21 tabletop electric water heater

Here are the diagrams and repair parts for Official Kenmore 153311010 super j le dual 21 tabletop electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Thermostat 018032
#5

Functional replacement parts diagram

Thermostat

Part #018032

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 018032. Substitute parts can look different from the original.
BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Gasket 053037
#3

Functional replacement parts diagram

Gasket

Part #053037

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 053037. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Light 079001
#8

Functional replacement parts diagram

Light

Part #079001

Replaced by #100108384

?
Manufacturer substitution
This part replaces 079001. Substitute parts can look different from the original.
$30.00
In Stock
Top 150423
#1

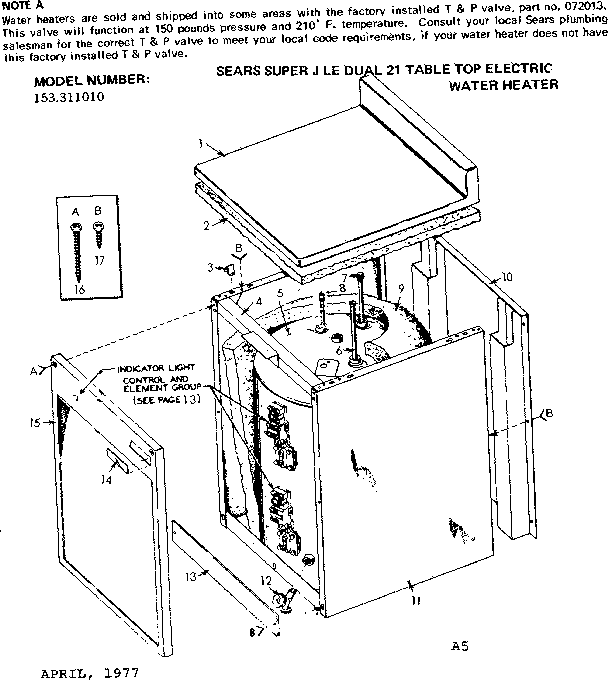

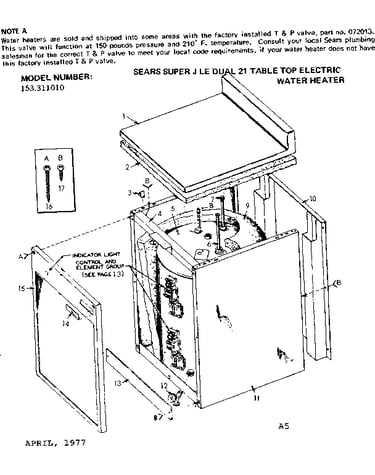

Non-functional replacement parts diagram

Top

Part #150423

Replaced by #1500423

?
Manufacturer substitution
This part replaces 150423. Substitute parts can look different from the original.
$33.99
In Stock
Element 074311
#2

Functional replacement parts diagram

Element

Part #074311

Replaced by #100108330

?
Manufacturer substitution
This part replaces 074311. Substitute parts can look different from the original.
$65.56
In Stock
Therm W/eco 018031
#6

Functional replacement parts diagram

Therm w/eco

Part #018031

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 018031. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Insulation 013154
#2

Non-functional replacement parts diagram

Insulation

Part #013154

Replaced by #0130154

?
Manufacturer substitution
This part replaces 013154. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Spring Clip 040004
#3

Non-functional replacement parts diagram

Spring clip

Part #040004

Replaced by #9000337

?
Manufacturer substitution
This part replaces 040004. Substitute parts can look different from the original.
$16.49
In Stock
Therm W/eco 018030
#4

Functional replacement parts diagram

Therm w/eco

Part #018030

Replaced by #100108424

?
Manufacturer substitution
This part replaces 018030. Substitute parts can look different from the original.
$30.00
In Stock
Bracket 011238
#1

Functional replacement parts diagram

Bracket

Part #011238

Replaced by #100108380

?
Manufacturer substitution
This part replaces 011238. Substitute parts can look different from the original.
$27.78
In Stock
